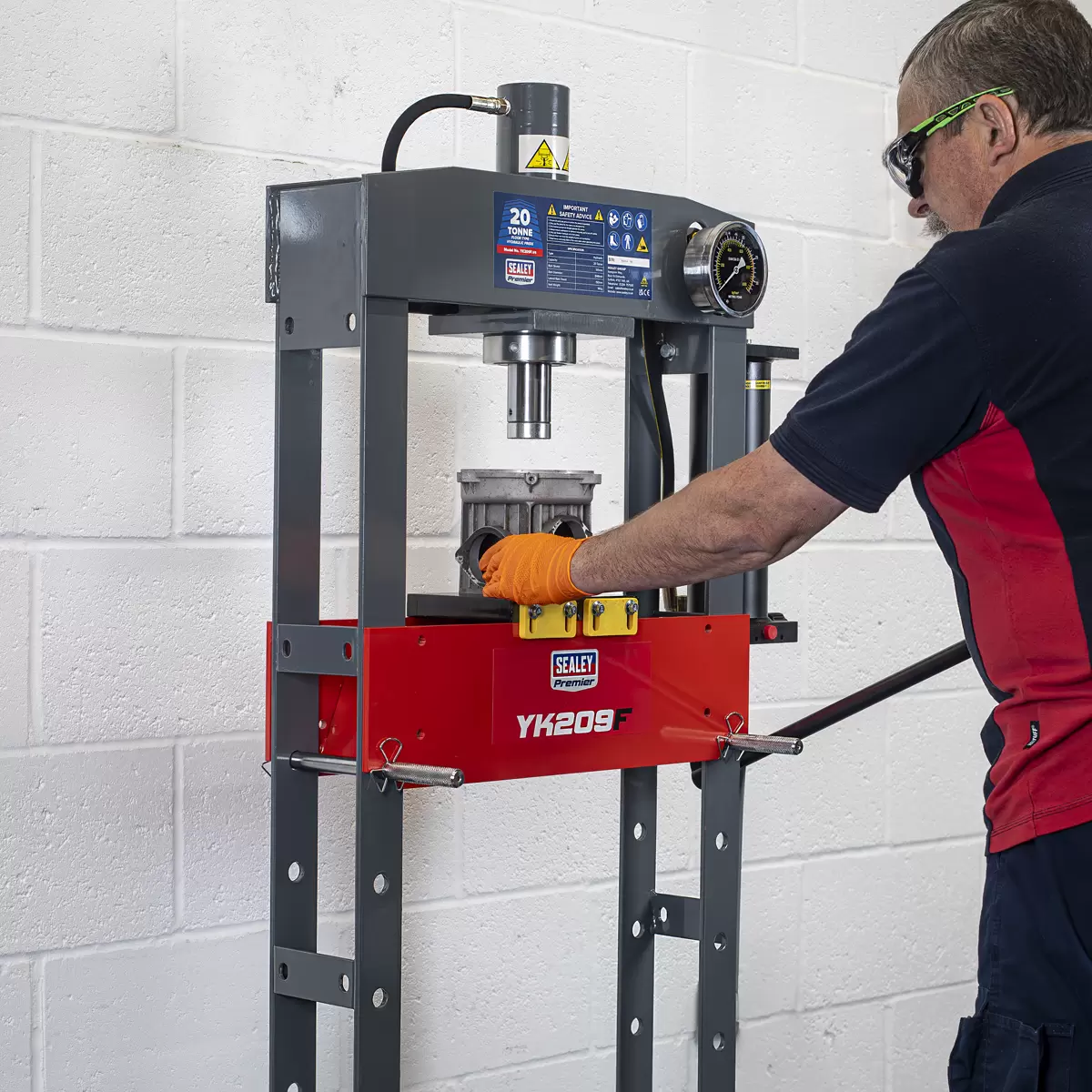

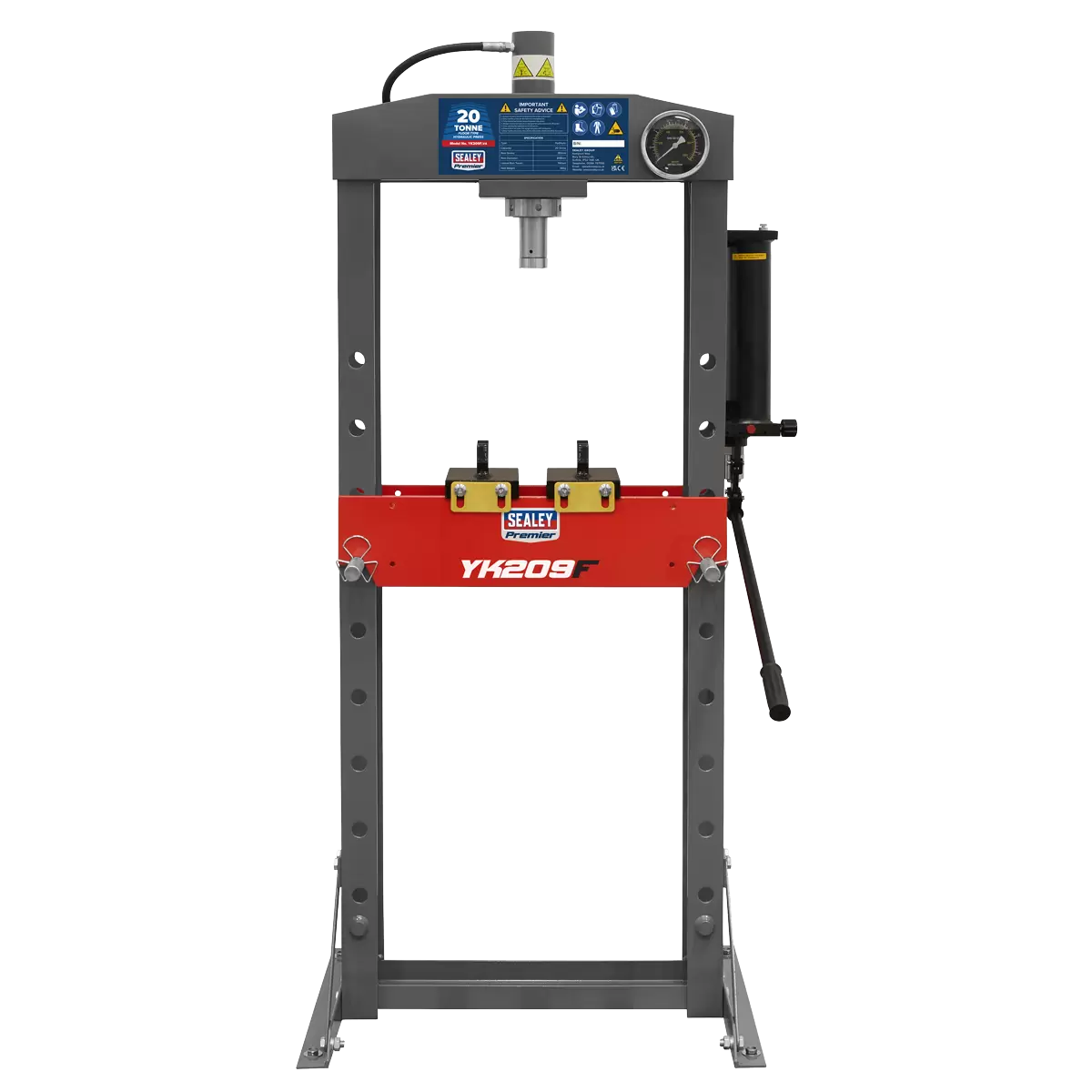

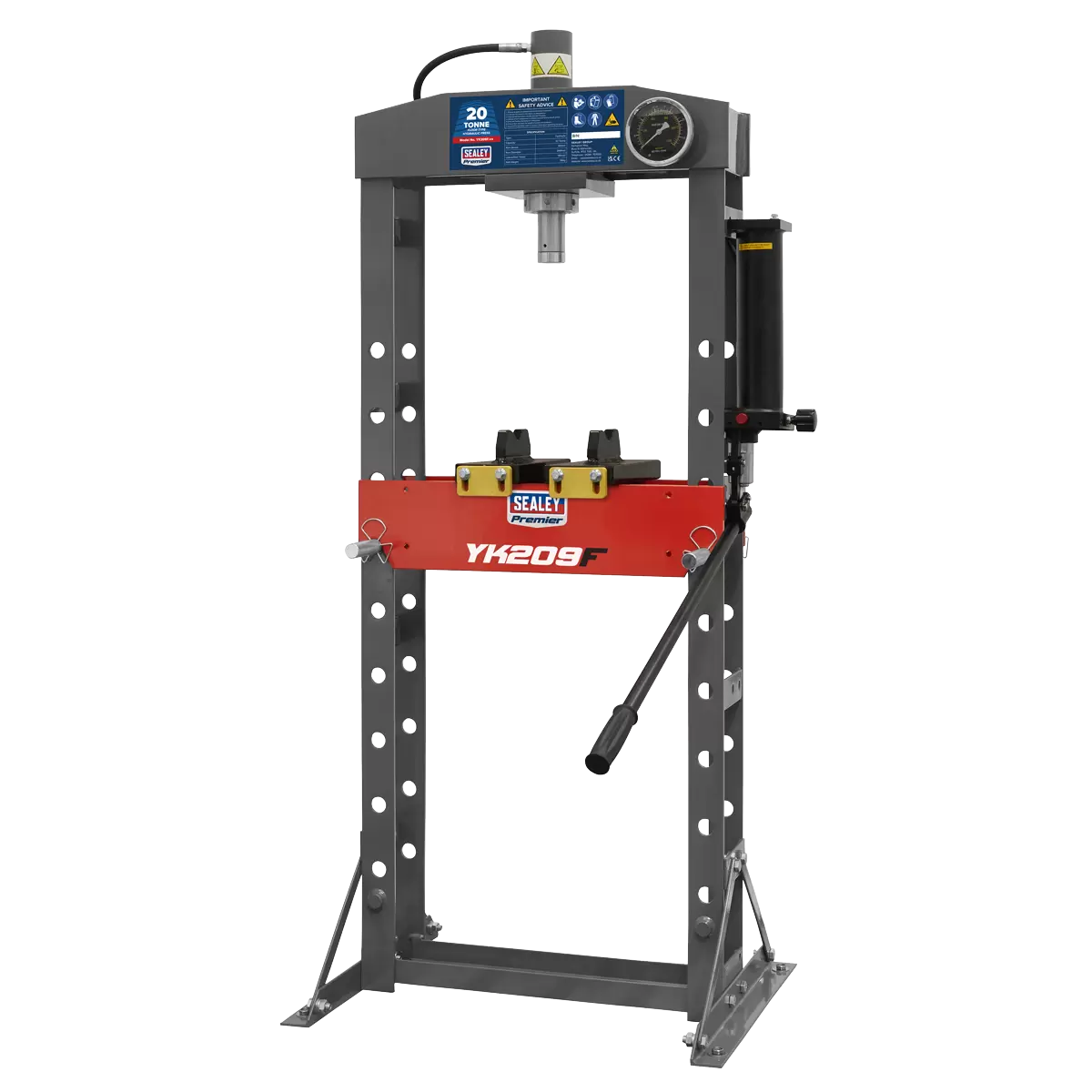

Sealey - YK209F - Premier Heavy-Duty Floor Type Hydraulic Press 20 Tonne
SKU: YK209F
Part Number: YK209F
Barcode: 5054630566264
Country of Origin: CHN
Weight: 110.00 Kg
Our Price
£910.22 (inc VAT) £758.52 (ex VAT)
RRP £1,055.94 £879.95
Save
£145.72
£121.43
5 years Warranty included.
Description

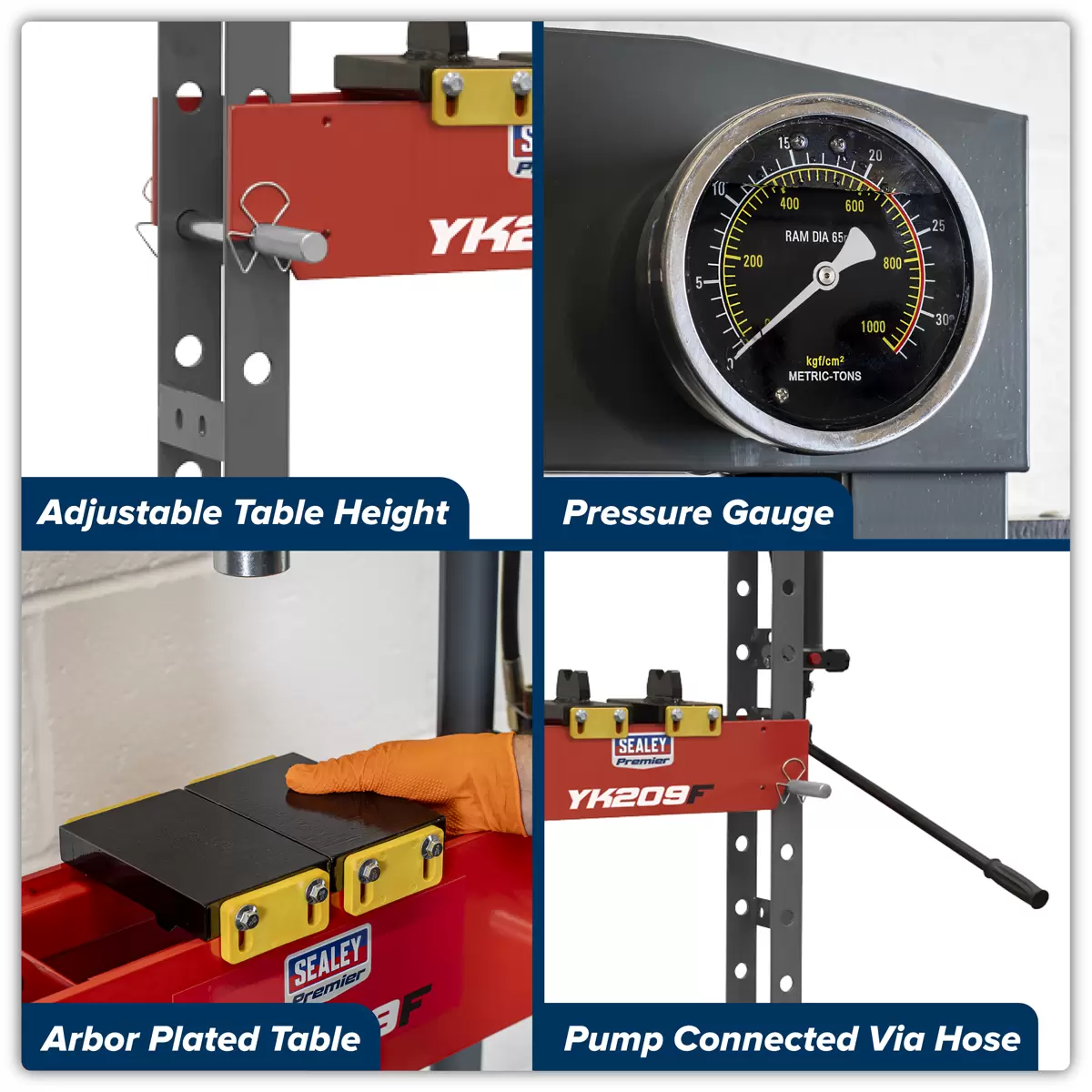

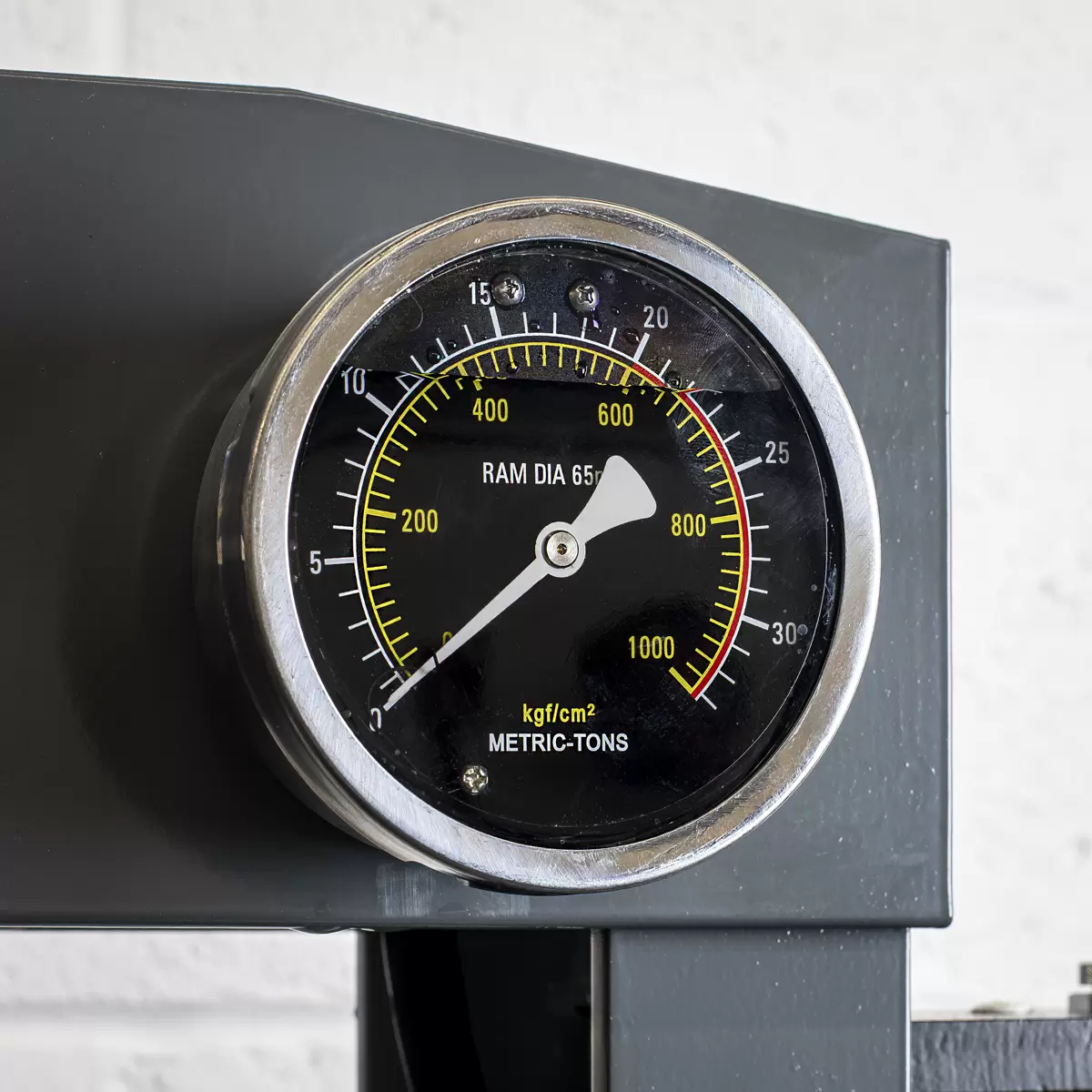

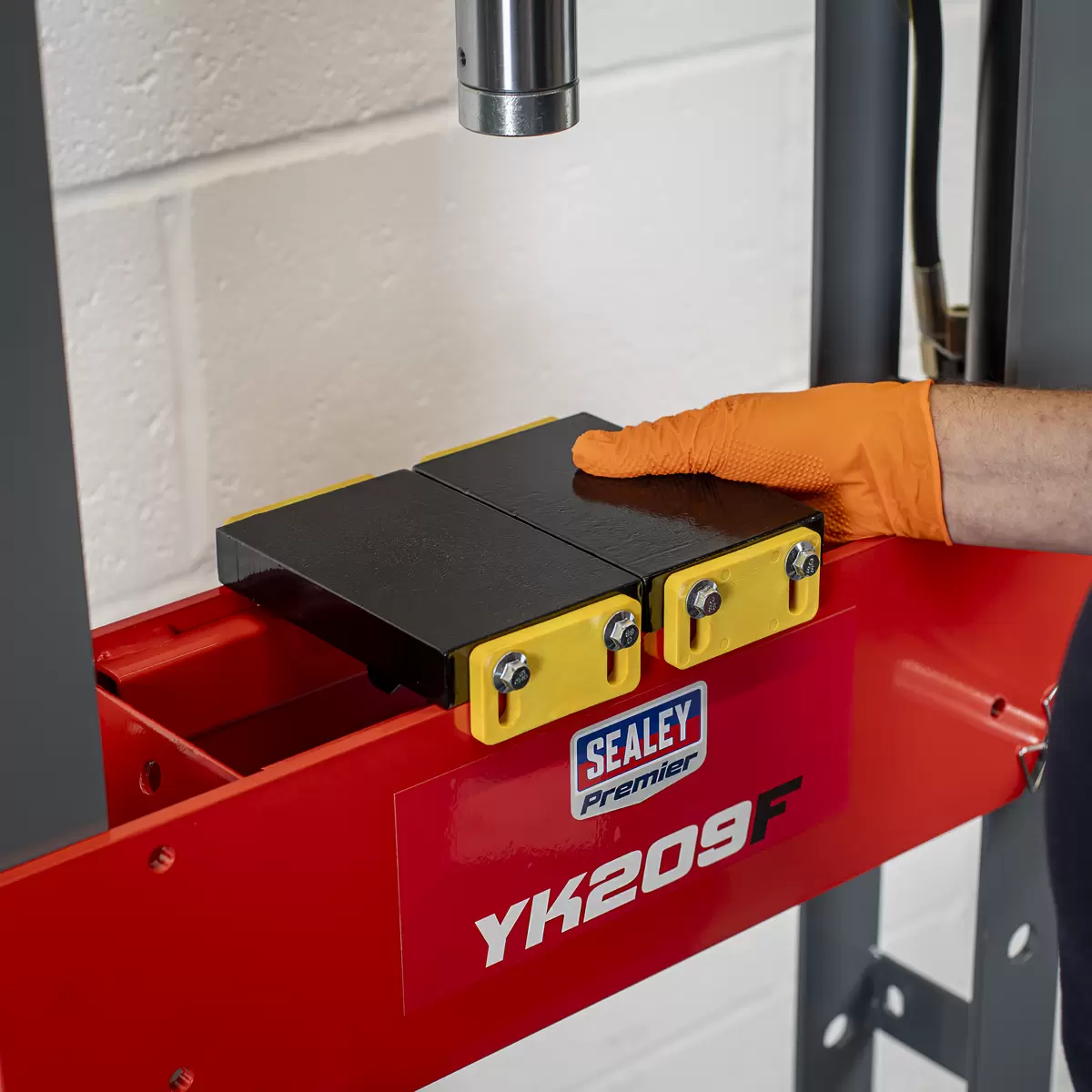

Made from a high quality steel with a powder coated paint finish to help corrosion resistance. Fully Welded frame. Sliding hydraulic ram assembly giving 190mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.
Features

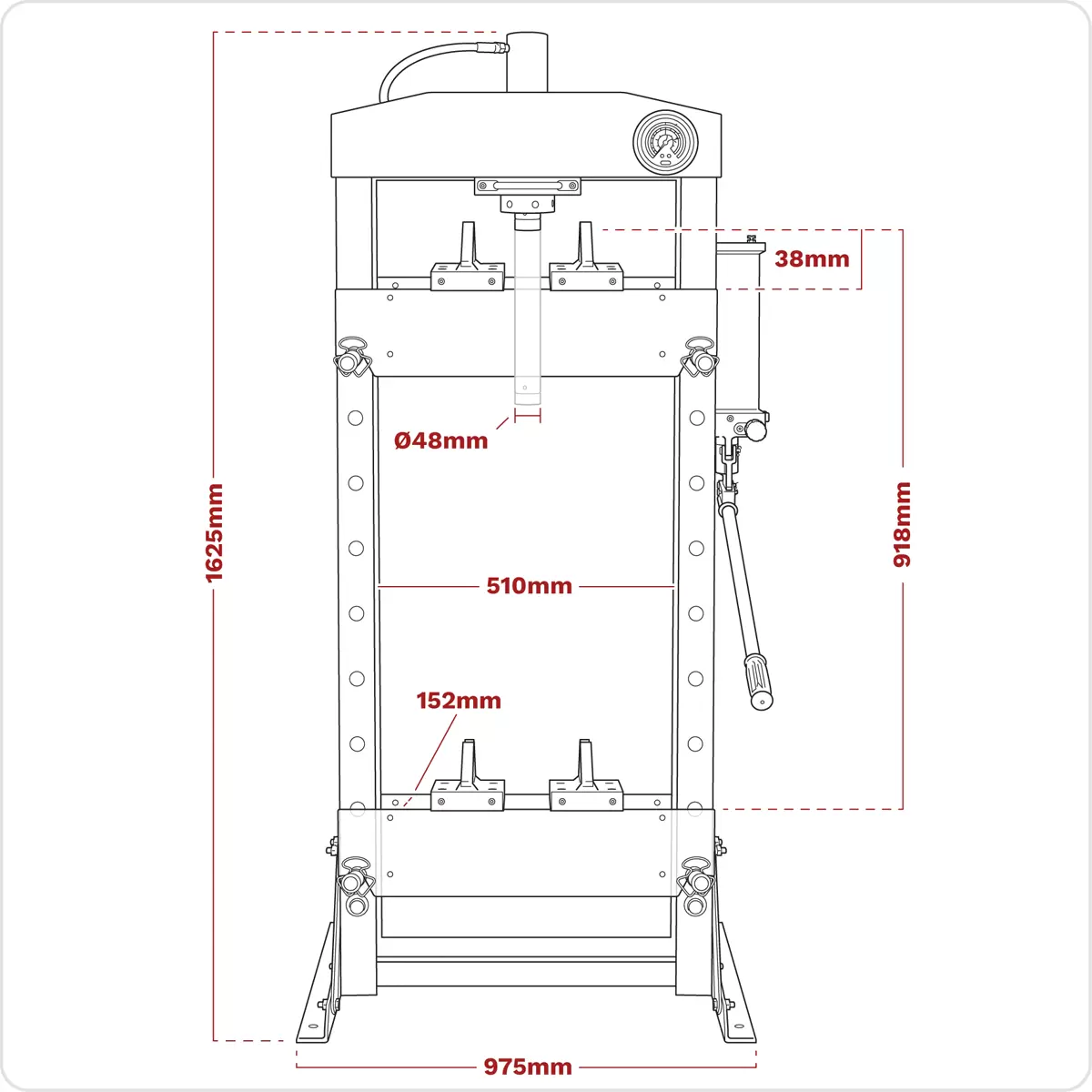

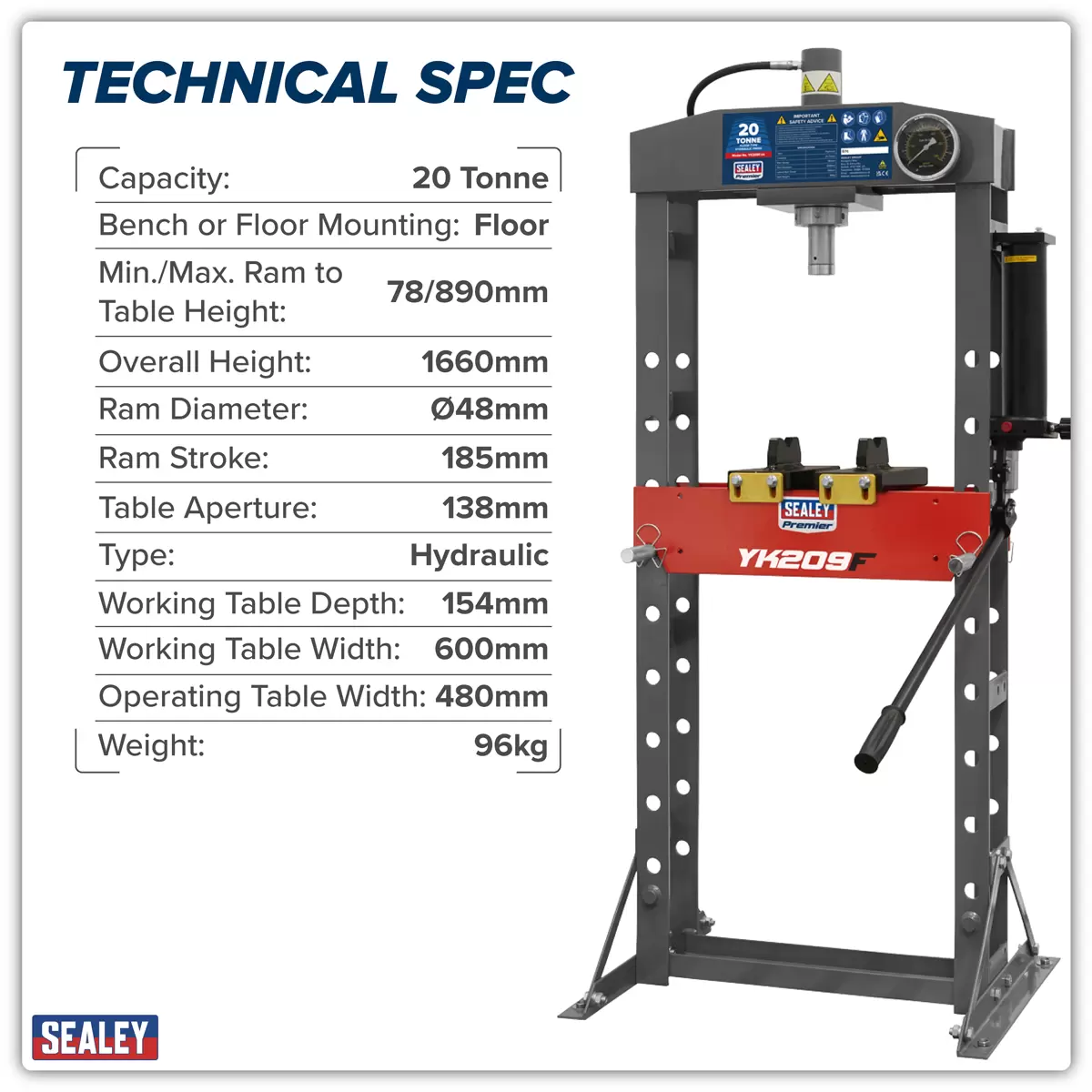

Model No YK209F
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 20 Tonne
Gauge Included: Yes
Lateral Ram Travel: 190mm
Maximum Height - Ram to Table: 890mm
Minimum Height - Ram to Table: 78mm
Nett Weight: 96kg
Operating Table Width: 480mm
Optional Accessories: YKSG20 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1660mm
Ram Diameter: Ø48mm
Ram Stroke: 185mm
Table Aperture: 138mm
Type: Hydraulic
Working Table Depth: 154mm
Working Table Width: 600mm
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 20 Tonne
Gauge Included: Yes
Lateral Ram Travel: 190mm
Maximum Height - Ram to Table: 890mm
Minimum Height - Ram to Table: 78mm
Nett Weight: 96kg
Operating Table Width: 480mm
Optional Accessories: YKSG20 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1660mm
Ram Diameter: Ø48mm
Ram Stroke: 185mm
Table Aperture: 138mm
Type: Hydraulic
Working Table Depth: 154mm
Working Table Width: 600mm
Specification
Workshopping Says
• Automotive workshops
• Garage use
• Trade and professional environments
• Engineering applications
