Home > Workshop Equipment > Drilling > Sealey - GDM150B - Bench Mounting Pillar Drill 16-Speed 650W/230V

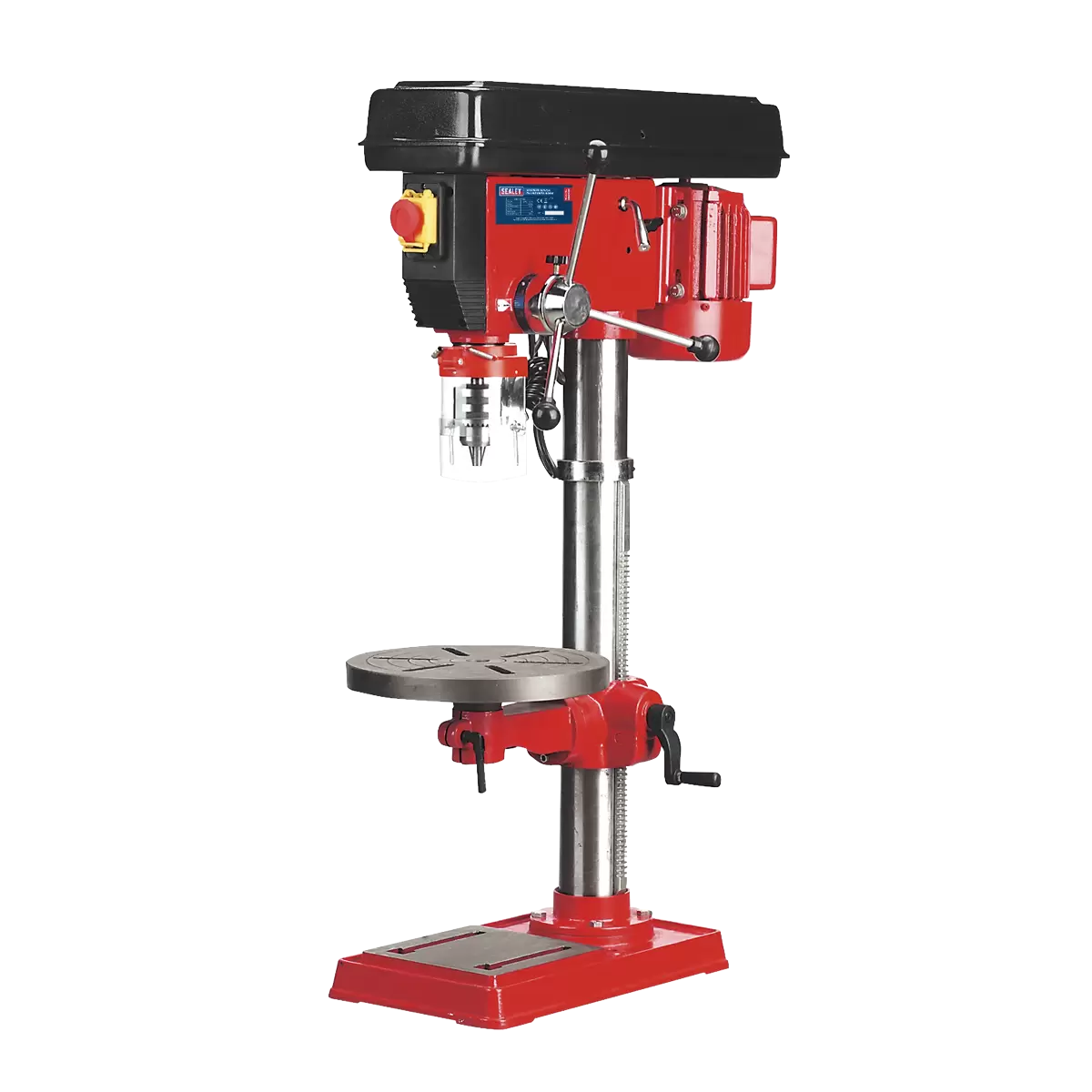

Sealey - GDM150B - Bench Mounting Pillar Drill 16-Speed 650W/230V
SKU: GDM150B
Part Number: GDM150B
Barcode: 5024209365659
Country of Origin: CHN
Weight: 63.00 Kg
Our Price
£416.96 (inc VAT) £347.47 (ex VAT)
RRP £539.94 £449.95
Save
£122.98
£102.48
1 year Warranty included.
Description
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.
Features
Model No GDM150B
Base Size: 460 x 275mm
Brand: Sealey
Collar Diameter: 60mm
Column Diameter: 80mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 670mm
Maximum Distance Spindle to Table: 480mm
Motor Power (Start): 450W(650W)
Nett Weight: 60kg
Number of Speeds: 16
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 1070mm
Speed Range: 120-3000rpm
Spindle Centre to Column: 178mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 356mm
Working Base Surface Size: 200 x 220mm
Working Table Surface Size: Ø310mm
Base Size: 460 x 275mm
Brand: Sealey
Collar Diameter: 60mm
Column Diameter: 80mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 670mm
Maximum Distance Spindle to Table: 480mm
Motor Power (Start): 450W(650W)
Nett Weight: 60kg
Number of Speeds: 16
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 1070mm
Speed Range: 120-3000rpm
Spindle Centre to Column: 178mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 356mm
Working Base Surface Size: 200 x 220mm
Working Table Surface Size: Ø310mm
Specification
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8459290000
Country of Origin = CHN
