Home > Workshop Equipment > Jacking & Lifting > Draper Tools - 02080 - Pneumatic Long Chassis Low Profile Jack, 40 Tonne
Draper Tools - 02080 - Pneumatic Long Chassis Low Profile Jack, 40 Tonne
SKU: 02080
Part Number: PJ40LC
Barcode: 5010559020805
Country of Origin: CN
Weight: 50.74 Kg
Our Price
£1,219.70 (inc VAT) £1,016.42 (ex VAT)
RRP £1,464.00 £1,220.00
Save
£244.30
£203.58
12 months Warranty included.
Description

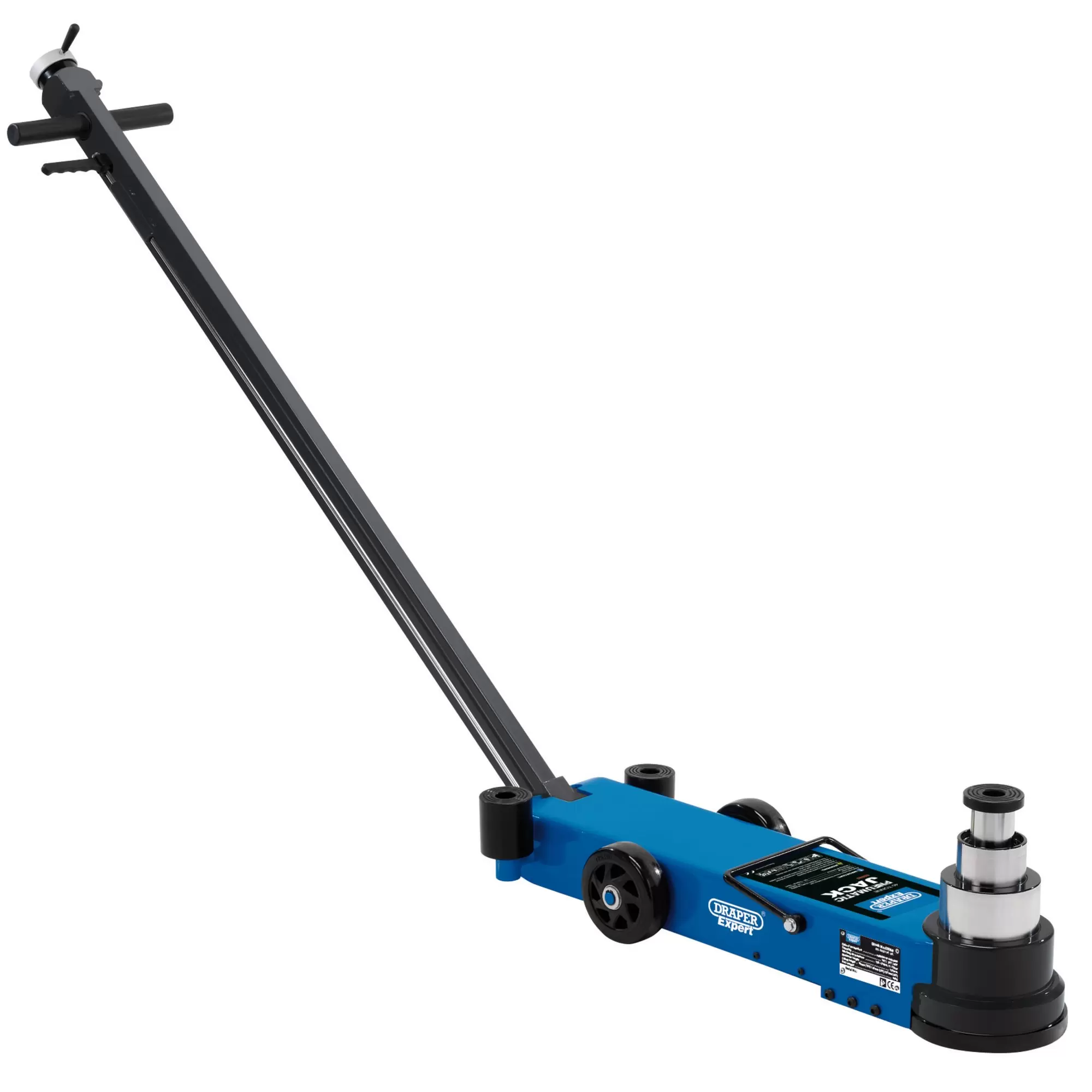

Expert Quality, long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.
Features
Specification
Air Consumption 11.5cfm
Air Inlet 1/4" BSP
Capacity 40 Tonne (40,000kg)20 Tonne (20,000kg)10 Tonne (10,000kg)
Chassis Dimensions 830 x 179 x 125mm
Handle Length 1380mm
Lifting Height Position 1 57mm
Max Height Stage 1 302mm (inc extensions)
Max Height Stage 2 347mm (inc extensions)
Min Height 125mm
Nett Weight 44kg
Operating Air Pressure 9 – 12BAR (130 – 174psi)
Saddle Diameter 70mm
Wheel Diameter 125mm
Max Height Stage 3 396mm (inc extensions)
Wheel Width 47.5mm
Air Inlet 1/4" BSP
Capacity 40 Tonne (40,000kg)20 Tonne (20,000kg)10 Tonne (10,000kg)
Chassis Dimensions 830 x 179 x 125mm
Handle Length 1380mm
Lifting Height Position 1 57mm
Max Height Stage 1 302mm (inc extensions)
Max Height Stage 2 347mm (inc extensions)
Min Height 125mm
Nett Weight 44kg
Operating Air Pressure 9 – 12BAR (130 – 174psi)
Saddle Diameter 70mm
Wheel Diameter 125mm
Max Height Stage 3 396mm (inc extensions)
Wheel Width 47.5mm
