Sealey - PH30 - Fixed Frame Engine Crane with Extendable Legs 3 Tonne

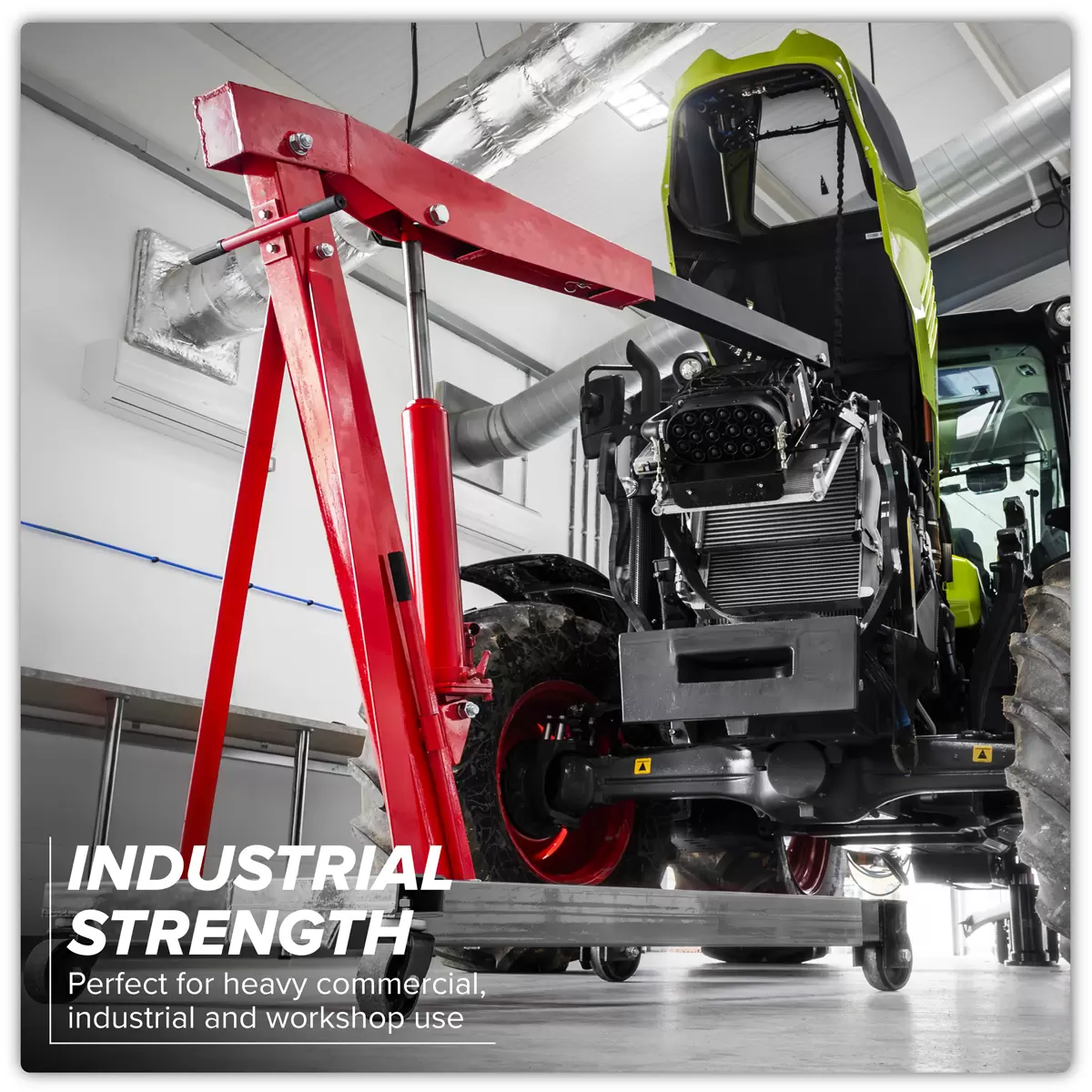

Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Beam can be set in 4-positions with a capacity of 1000kg at its full extension of 1820mm. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.

Model No PH30
Brand: Sealey
Height Jib Down: 1610mm
Height Legs Folded: N/A
Height of Frame: 195mm
Length of Jib Position 1: 1200mm
Length of Jib Position 2: 1400mm
Length of Jib Position 3: 1610mm
Length of Jib Position 4: 1820mm
Length of Jib Position 5: n/a

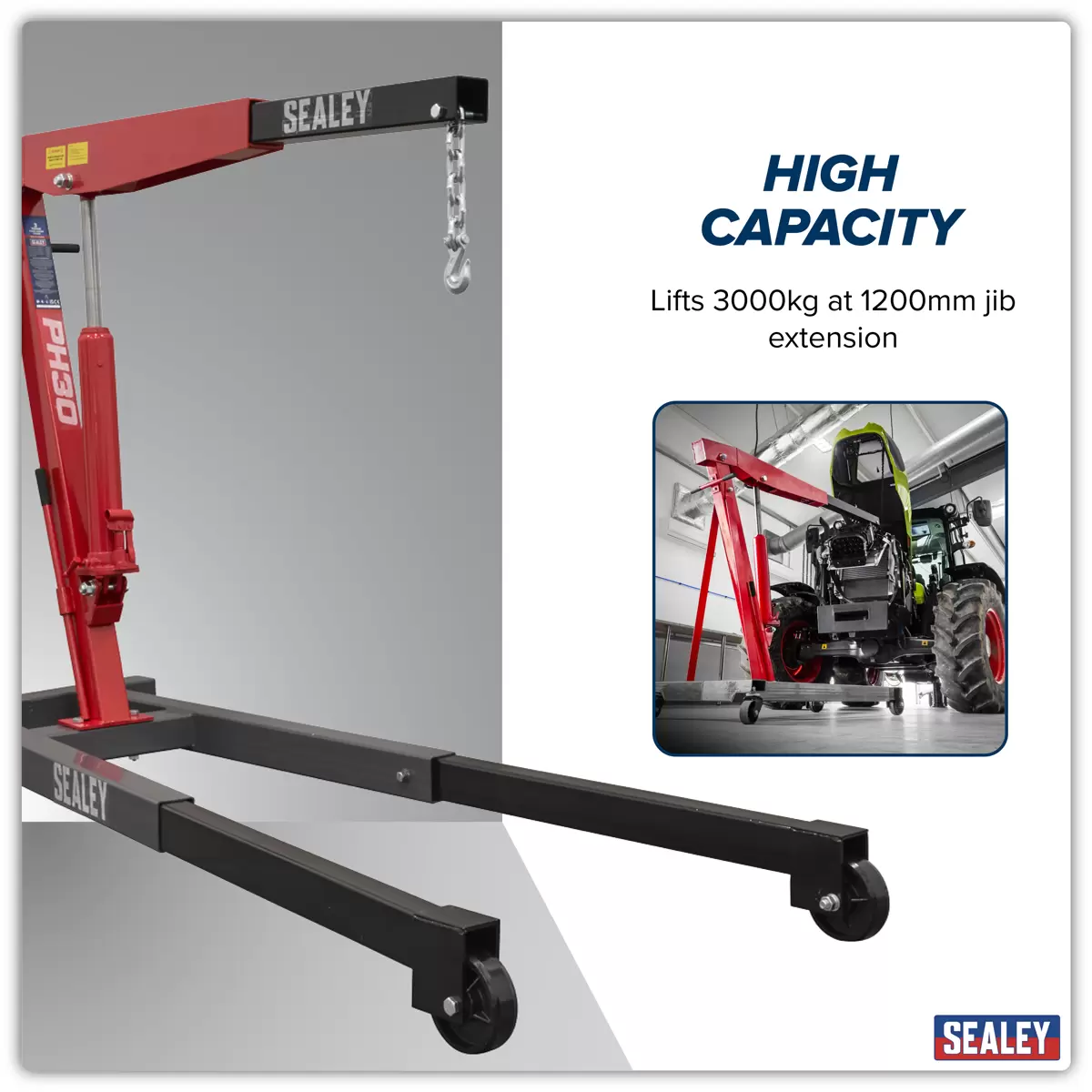

Lifting Capacity in Position 1: 3000kg
Lifting Capacity in Position 2: 2000kg
Lifting Capacity in Position 3: 1500kg
Lifting Capacity in Position 4: 1000kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1880mm
Max. Lift Ht at Jib Position 2: 1970mm
Max. Lift Ht at Jib Position 3: 2010mm
Max. Lift Ht at Jib Position 4: 2220mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 155kg
Note: *Legs Extended
Rear Width: 780mm
Width Front Frame: 855mm*
Width Inside Front Frame: 700mm*

Warranty Period = 1 year years

Commodity code = 8426190000

Country of Origin = CHN
