Sealey - PH5 - Low Profile Engine Crane 0.5 Tonne
SKU: PH5
Part Number: PH5
Barcode: 5054511789935
Country of Origin: CHN
Weight: 38.40 Kg
Our Price
£196.13 (inc VAT) £163.44 (ex VAT)
RRP £311.94 £259.95
Save
£115.81
£96.51
1 year Warranty included.
Description

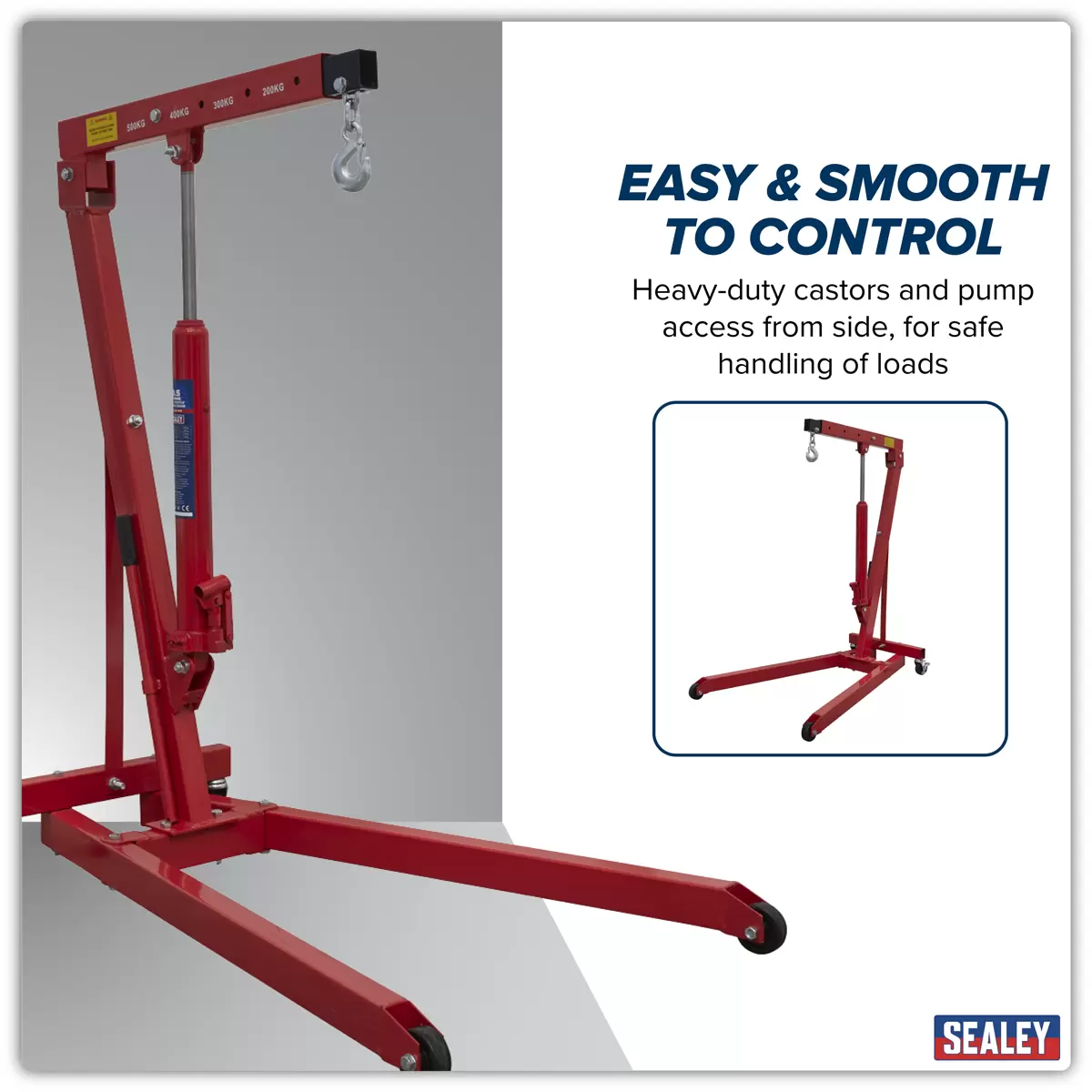

Low entry engine crane with a height of only 100mm at the wheels. Weighs only 37kg so is extremely lightweight and manoeuvrable. Heavy-duty castors and pump access from side, for safe handling of loads. Delivered in knock-down form to reduce freight costs, some self-assembly required.
Features
Specification
Model No PH5
Brand: Sealey
Height Jib Down: 1330mm
Height Legs Folded: n/a
Height of Frame: 100mm
Length Legs Extended: n/a
Length of Jib Position 1: 750mm
Length of Jib Position 2: 860mm
Length of Jib Position 3: 980mm
Length of Jib Position 4: 1100mm
Length of Jib Position 5: n/a
Length: 1210mm
Lifting Capacity in Position 1: 500kg
Lifting Capacity in Position 2: 400kg
Lifting Capacity in Position 3: 300kg
Lifting Capacity in Position 4: 200kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1950mm
Max. Lift Ht at Jib Position 2: 2050mm
Max. Lift Ht at Jib Position 3: 2150mm
Max. Lift Ht at Jib Position 4: 2250mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 37kg
Rear Width: 550mm
Width Front Frame: 800mm
Width Inside Front Frame: 700mm
Brand: Sealey
Height Jib Down: 1330mm
Height Legs Folded: n/a
Height of Frame: 100mm
Length Legs Extended: n/a
Length of Jib Position 1: 750mm
Length of Jib Position 2: 860mm
Length of Jib Position 3: 980mm
Length of Jib Position 4: 1100mm
Length of Jib Position 5: n/a
Length: 1210mm
Lifting Capacity in Position 1: 500kg
Lifting Capacity in Position 2: 400kg
Lifting Capacity in Position 3: 300kg
Lifting Capacity in Position 4: 200kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1950mm
Max. Lift Ht at Jib Position 2: 2050mm
Max. Lift Ht at Jib Position 3: 2150mm
Max. Lift Ht at Jib Position 4: 2250mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 37kg
Rear Width: 550mm
Width Front Frame: 800mm
Width Inside Front Frame: 700mm
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8426190000
Country of Origin = CHN
