Home > Workshop Equipment > Machine Shop > Sealey - PPB15S - Viking Bench Type Hydraulic Press 15 Tonne

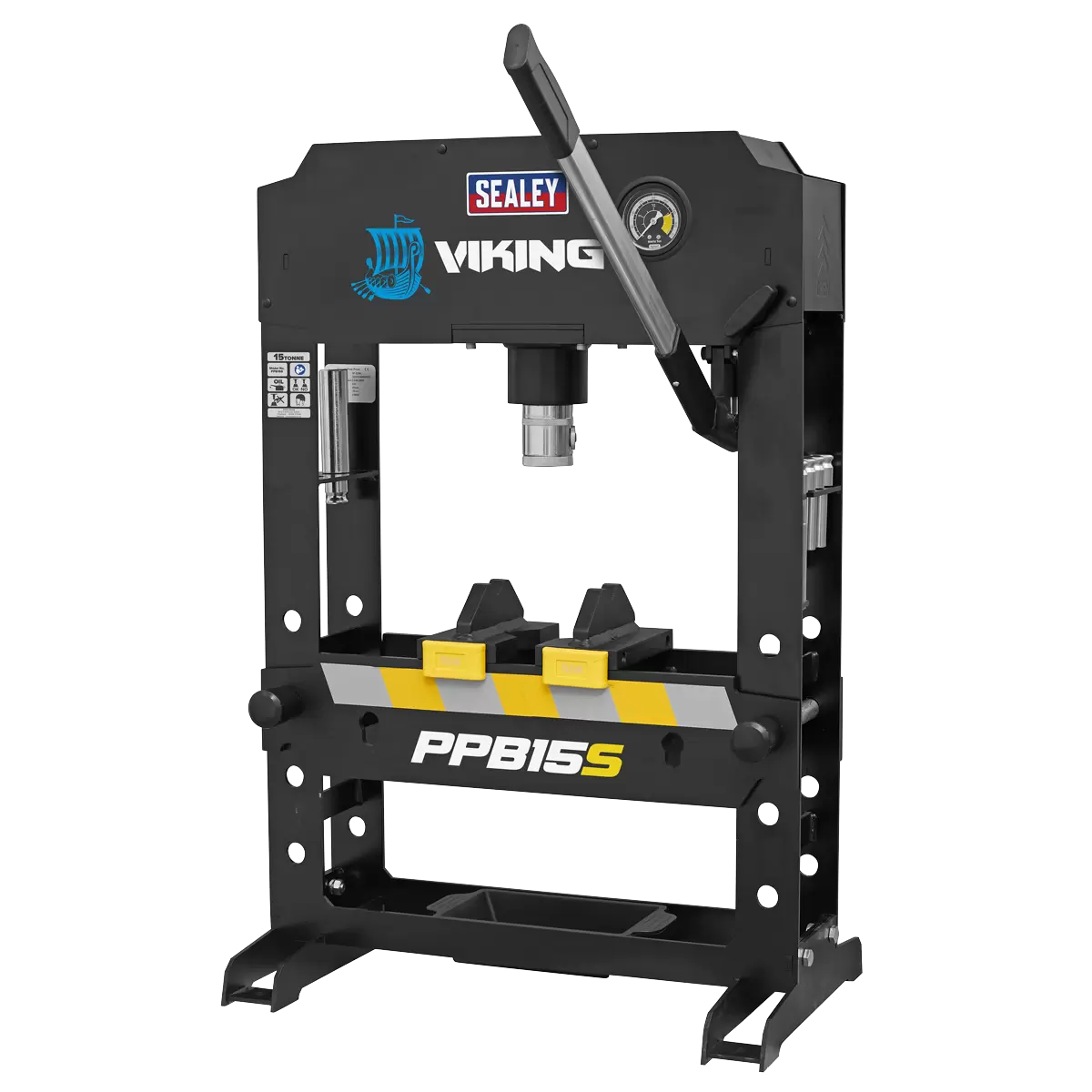

Sealey - PPB15S - Viking Bench Type Hydraulic Press 15 Tonne
SKU: PPB15S
Part Number: PPB15S
Barcode: 5054630135491
Country of Origin: CHN
Weight: 60.00 Kg
Our Price
£656.29 (inc VAT) £546.91 (ex VAT)
RRP £815.94 £679.95
Save
£159.65
£133.04
5 years Warranty included.
Description
Heavy-duty steel frame construction with handle operated hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Frame head fitted with ram pressure gauge. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks.
Features
Model No PPB15S
Bench or Floor Mounting: Bench
Brand: Viking
Capacity: 15 Tonne
Gauge Included: Yes
Lateral Ram Travel: n/a
Maximum Height - Ram to Table: 347mm
Minimum Height - Ram to Table: 55mm
Nett Weight: 56.3kg
Operating Table Width: 440mm
Overall Height: 855mm
Ram Diameter: Ø79.2mm
Ram Stroke: 170mm
Screw Extension: 75mm
Table Aperture: 147mm
Type: Bench Type
Working Table Depth: 163mm
Working Table Width: 565mm
Bench or Floor Mounting: Bench
Brand: Viking
Capacity: 15 Tonne
Gauge Included: Yes
Lateral Ram Travel: n/a
Maximum Height - Ram to Table: 347mm
Minimum Height - Ram to Table: 55mm
Nett Weight: 56.3kg
Operating Table Width: 440mm
Overall Height: 855mm
Ram Diameter: Ø79.2mm
Ram Stroke: 170mm
Screw Extension: 75mm
Table Aperture: 147mm
Type: Bench Type
Working Table Depth: 163mm
Working Table Width: 565mm
Specification
Workshopping Says
Warranty Period = 5 years years
Commodity code = 8462619000
Country of Origin = CHN
