In stock
Home > Workshop Equipment > Machine Shop > Sealey - YK30F - Premier Hydraulic Floor Type Press 30 Tonne

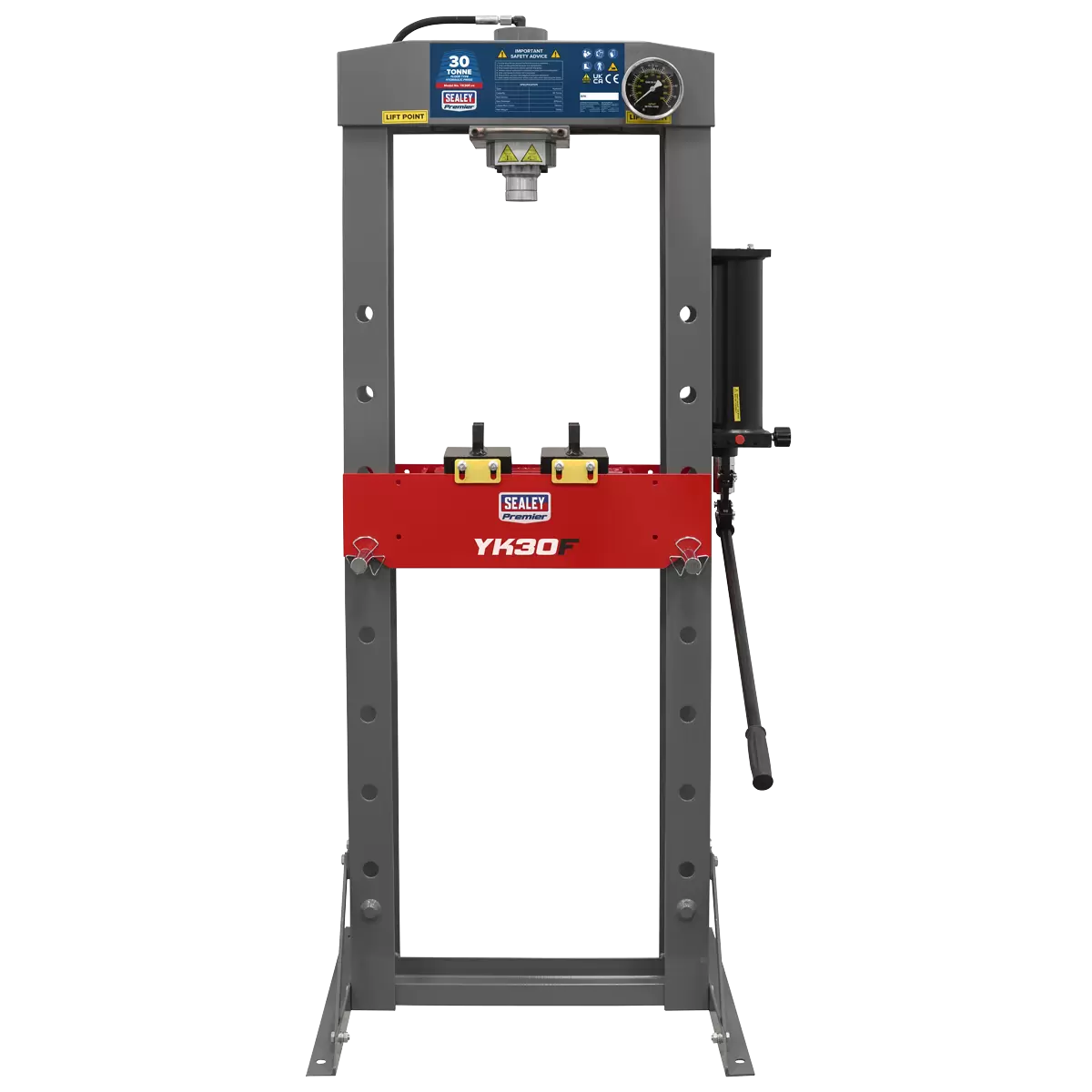

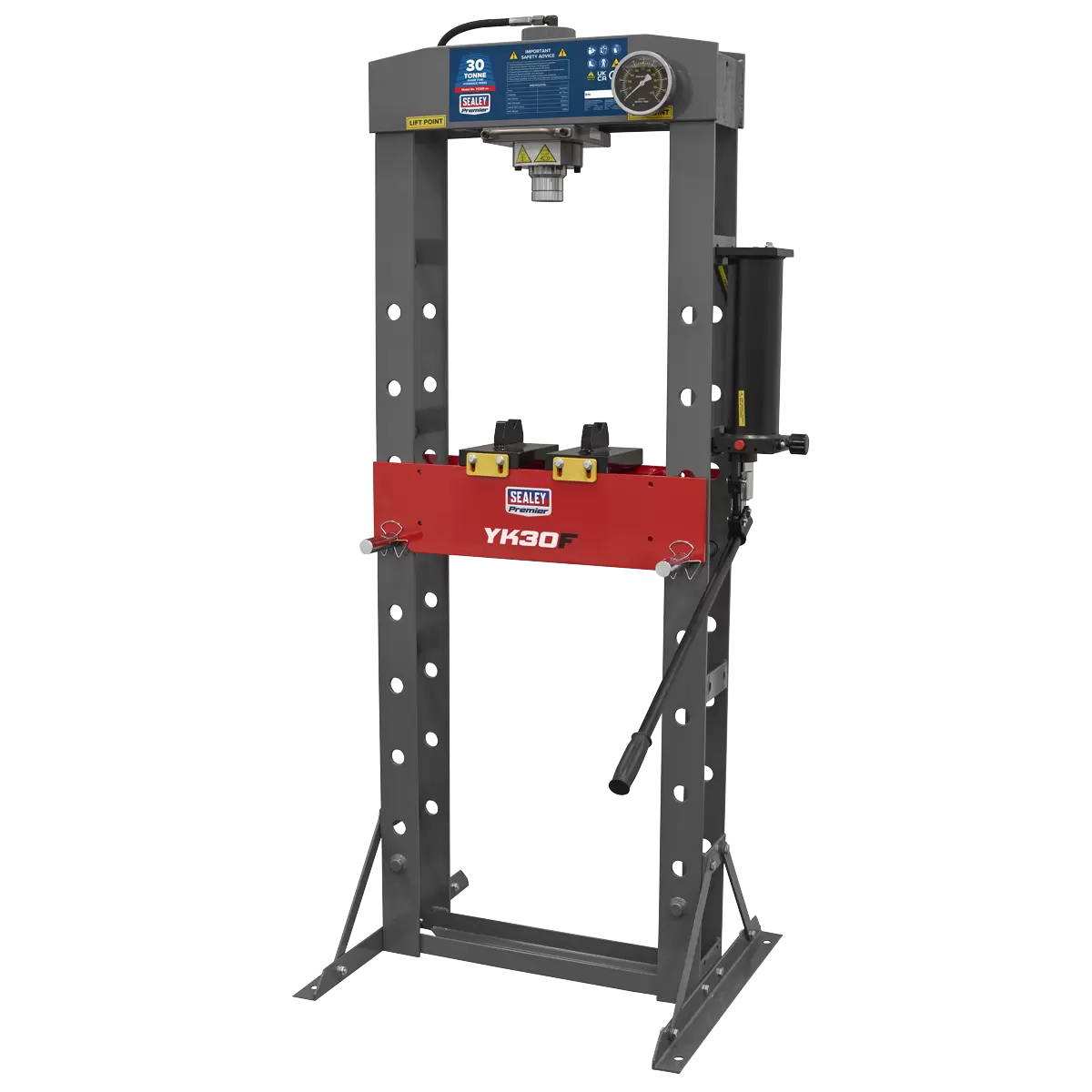

Sealey - YK30F - Premier Hydraulic Floor Type Press 30 Tonne
SKU: YK30F
Part Number: YK30F
Barcode: 5054630566271
Country of Origin: CHN
Weight: 155.50 Kg
Our Price
£1,331.76 (inc VAT) £1,109.80 (ex VAT)
RRP £1,619.94 £1,349.95
Save
£288.18
£240.15
5 years Warranty included.
Description
Steel frame construction with 2-speed hydraulic pump unit. Sliding hydraulic ram assembly gives 200mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.
Features
Model No YK30F
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 190mm
Maximum Height - Ram to Table: 1035mm
Minimum Height - Ram to Table: 55mm
Nett Weight: 130kg
Operating Table Width: 490mm
Optional Accessories: YKSG20 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1775mm
Ram Diameter: Ø70mm
Ram Stroke: 150mm
Screw Extension: N/A
Table Aperture: 152mm
Type: Hydraulic
Working Table Depth: 172mm
Working Table Width: 650mm
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 190mm
Maximum Height - Ram to Table: 1035mm
Minimum Height - Ram to Table: 55mm
Nett Weight: 130kg
Operating Table Width: 490mm
Optional Accessories: YKSG20 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1775mm
Ram Diameter: Ø70mm
Ram Stroke: 150mm
Screw Extension: N/A
Table Aperture: 152mm
Type: Hydraulic
Working Table Depth: 172mm
Working Table Width: 650mm
Specification
Workshopping Says
• Automotive workshops
• Garage use
• Trade and professional environments
• Engineering applications
Description
Steel frame construction with 2-speed hydraulic pump unit. Sliding hydraulic ram assembly gives 200mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.
