Home > Handtools > Pliers & Cutters , circlip > Draper Tools - 03517 - KNIPEX 90 22 10 BK BiX® Cutters for Plastic Pipes and Sealing Sleeves, 72mm

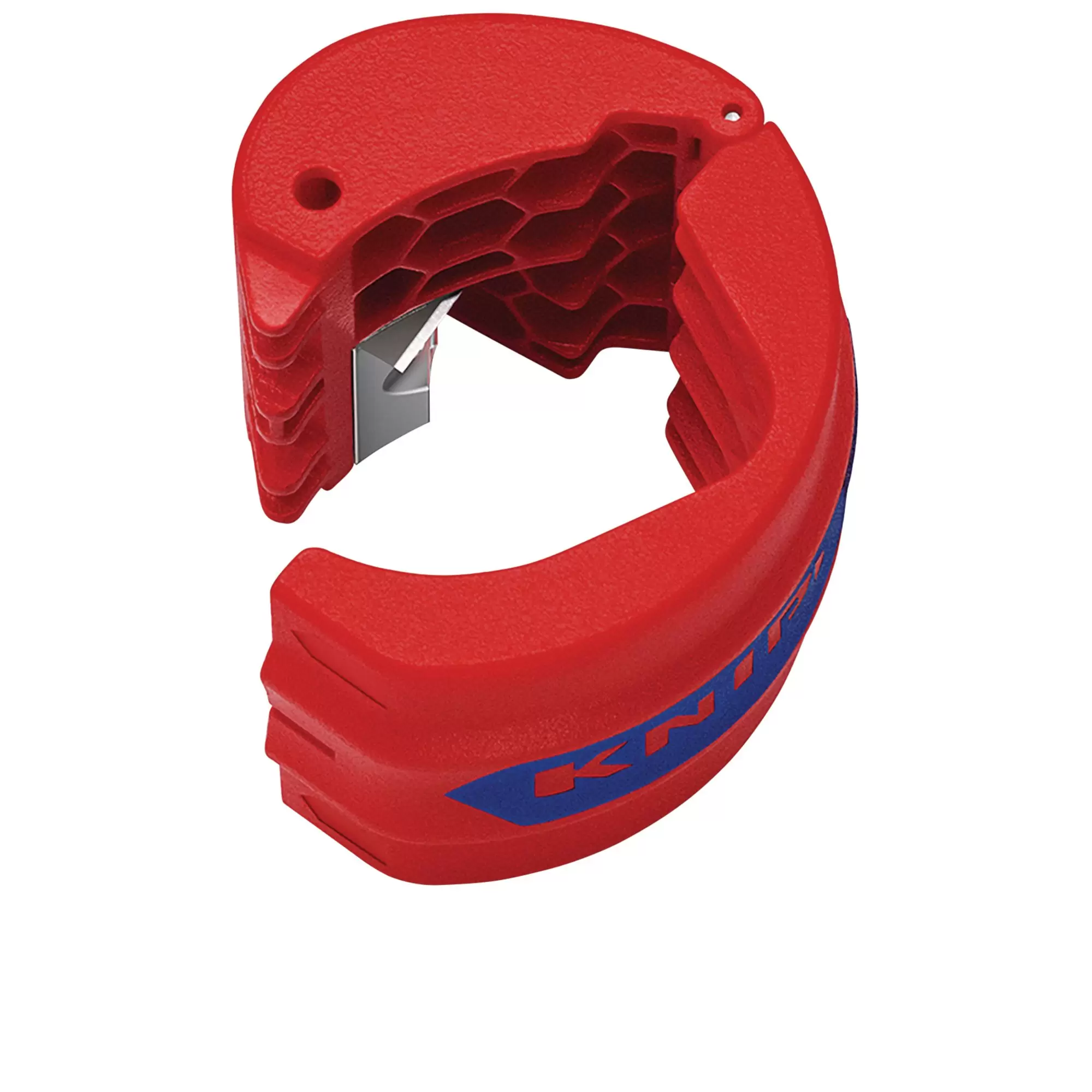

Draper Tools - 03517 - KNIPEX 90 22 10 BK BiX® Cutters for Plastic Pipes and Sealing Sleeves, 72mm

SKU: 03517
Part Number: 90 22 10 BK
Barcode: 5059482048678
Country of Origin: DE
Weight: 9 g
Product Image

Our Price

£34.21 (inc VAT) £28.51 (ex VAT)

RRP £48.48 £40.40

Save £14.27 £11.89
Lifetime Warranty included.

Description

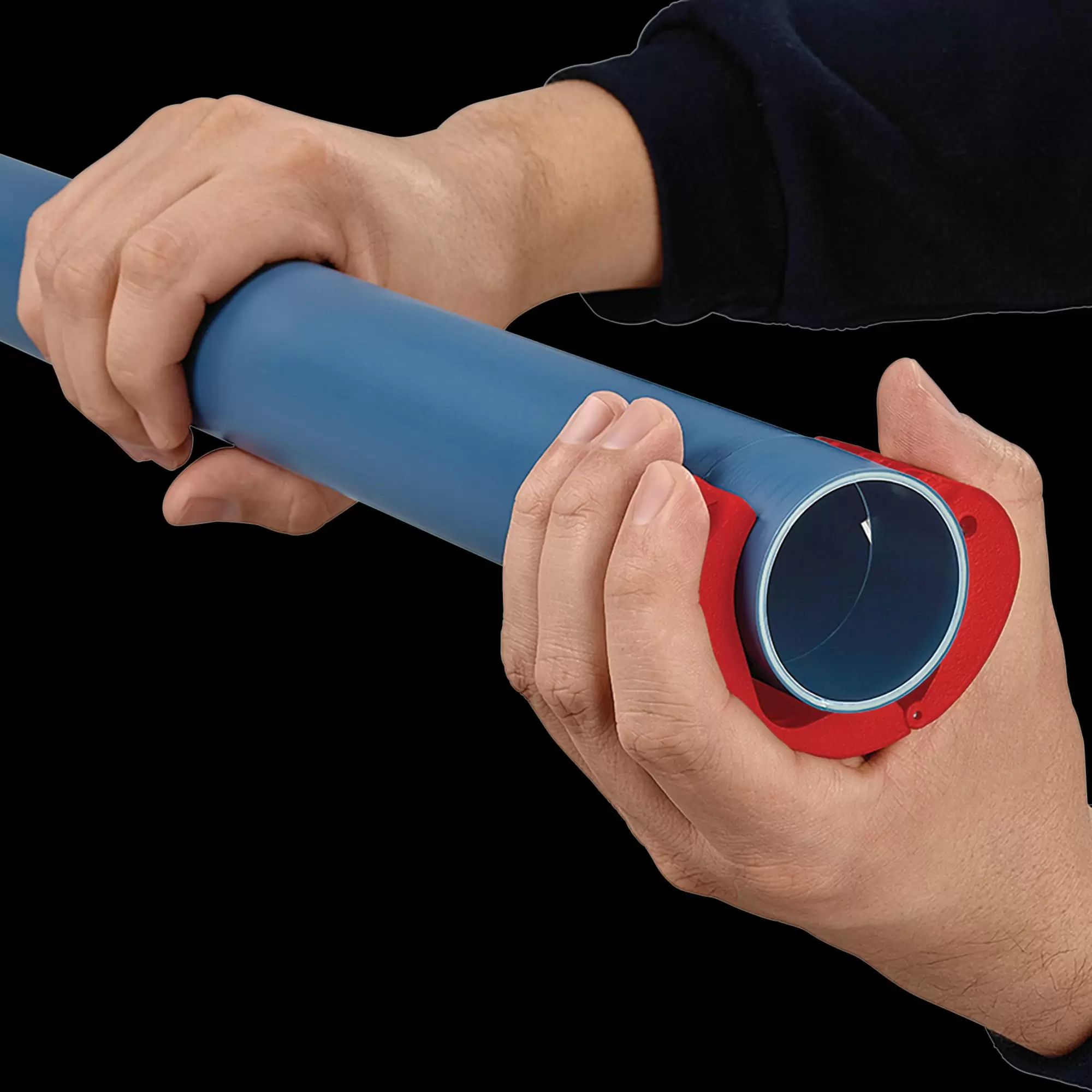

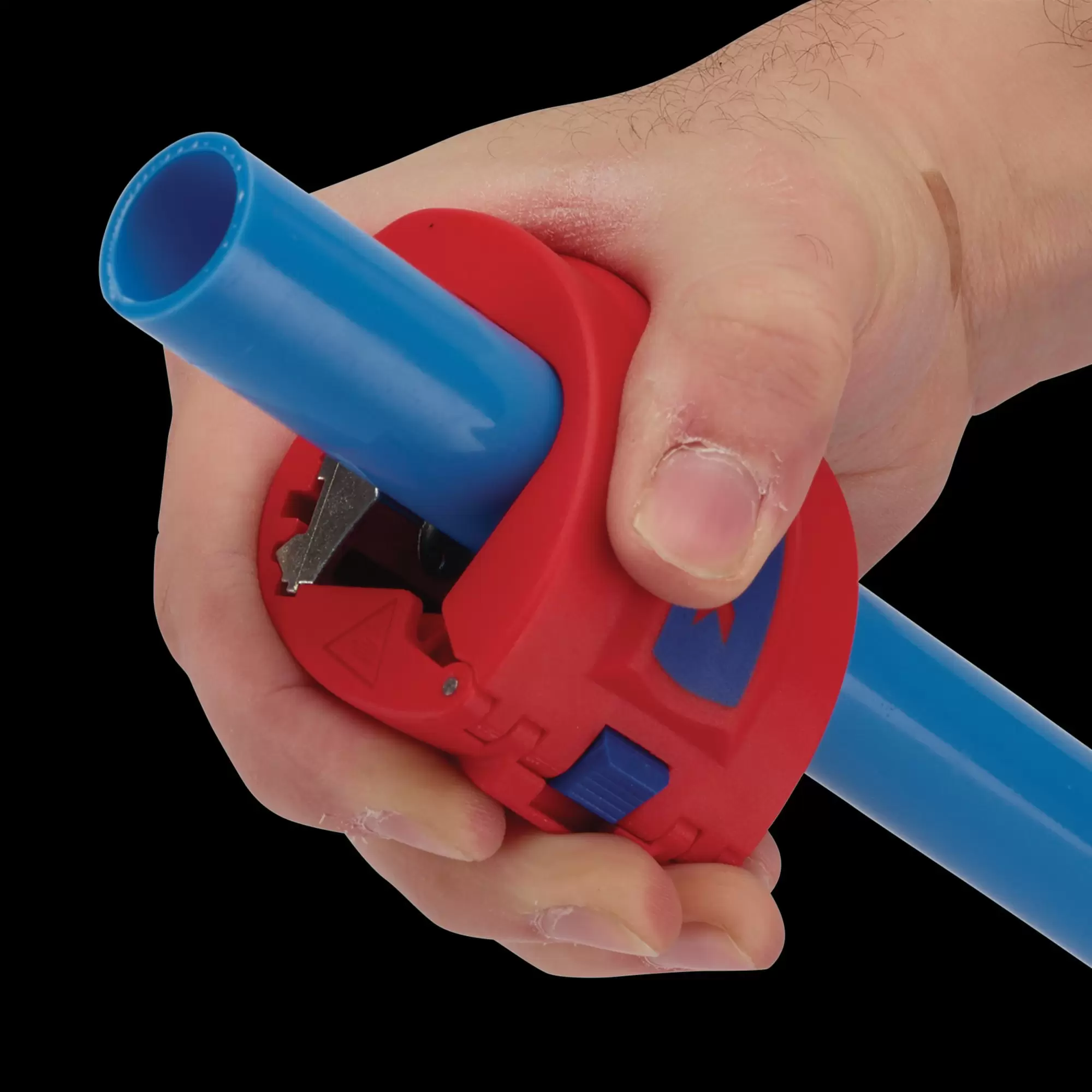

This clever, practical tool for plumbers and electricians cuts plastic pipes and sealing sleeves quickly and cleanly, without shavings. It can cut reinforced plastic pipes with a diameter of 20 to 50mm and a wall thickness of up to 2.4mm. It enables standard, compliant cutting for drip and sealing sleeves to DIN 18534 standards and can cut sealing sleeves approx. 2––3mm from the wall. The cutter has a unique rotating blade that can turn 180 degrees to switch between central and outer cutting functions. Compact and versatile, the cutter fits comfortably in the hand. There’s a locking mechanism for safe transport and two spare blades are integrated into the tool.

Features

  • Clever pipe cutter: Cuts pipes without shavings and fits comfortably in the hand
  • Can cut high-temperature plastic drain pipes and electrical conduits in next to no time
  • Can be used to cut sealing sleeves during final assembly – close to the wall, standard-compliant
  • Cuts unreinforced plastic pipes from Ø 20 to 50 mm with a wall thickness of up to 2.4 mm
  • Cuts soft plastic pipes and those with foam cores from Ø 20 to 50 mm with a wall thicknesses of up to 3.5 mm
  • Cuts sealing sleeves approx. 2-3 mm from the wall
  • Cuts pipes quickly, cleanly and without shavings
  • Rotatable knife block for cutting plastic pipes (blade in the middle) and sealing sleeves (blade outside)
  • With locking mechanism for safe transport
  • Two spare blades integrated in the tool

    • Specification

    Cutting values for HT and plastic pipes Ø 20 - 50mm
    Cutting values for sealing sleeves Ø 20 -50mm
    Spare parts Knipex 90 22 10 E01 Spare Blades for 90 22 10 BK (stock no. 03874)
    Dimensions W 72 x H 50 x D 40mm
    Weight 108g
