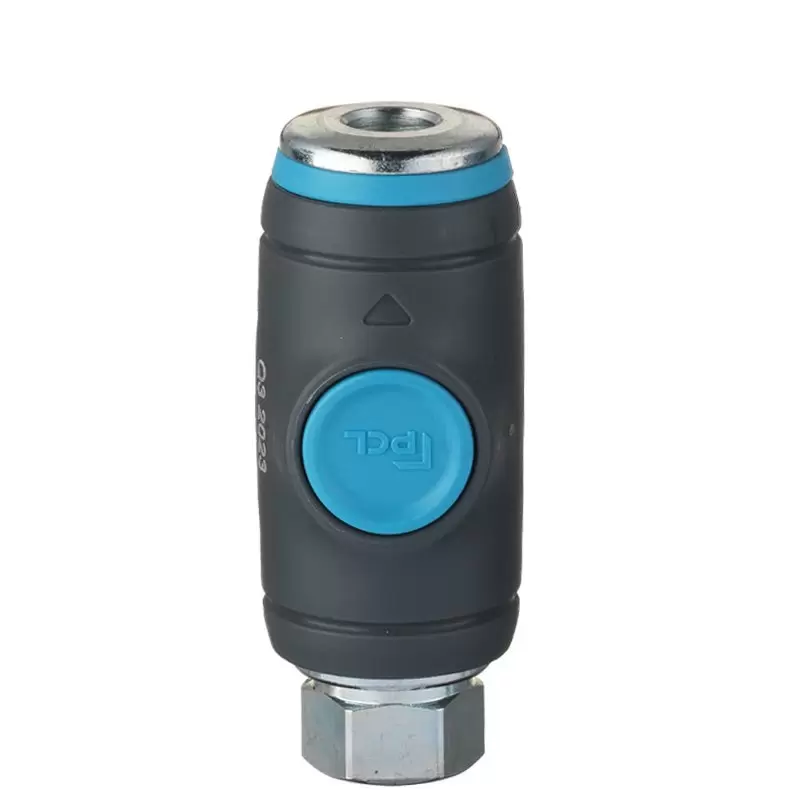

PCL - PBS21EF - PCL Standard Push Button Safety Coupling, Female Thread Rp 3/8
Our Price
£20.08 (inc VAT) £16.73 (ex VAT)
RRP £35.40 £29.50
Description
Features
Built by hand and 100% individually tested for guaranteed reliability in PCL's Sheffield factory, the new UK Standard Push Button Safety Coupling provides a two-stage, self venting release as reccomended by the Health and Safety Guide HS(G)39, which fully vents the system on first press, then releases the adaptor on the second one, eliminating the dangers of hose whip, creating a safe compressed air environment.
This lightweight but robust "Made in Sheffield" coupling comes with a 5 year warranty.
Specification
| Shipping Weight (kg) | 0.17 |
|---|---|
| EAN | 5014875169828 |
| Brand | PCL |
| Coupling Style | Coupling |
| Thread Type | Female |
| Thread Size | Rp 3/8 |
| Nominal Bore (mm) | 4.8 mm |
| Flow Rate | 43 cfm @ 100 psi |
| Maximum Working Pressure | 10 bar / 145 psi |
| Temperature Range | -20°C to 70°C |
| Interchange | Rectus 19, Prevost BSI 06 |
