Sealey - SC10 - KD' Type Folding Crane 1 Tonne
SKU: SC10
Part Number: SC10
Barcode: 5024209483957
Country of Origin: CHN
Weight: 72.40 Kg
Our Price
£247.75 (inc VAT) £206.46 (ex VAT)
RRP £407.94 £339.95
Save
£160.19
£133.49
1 year Warranty included.
Description

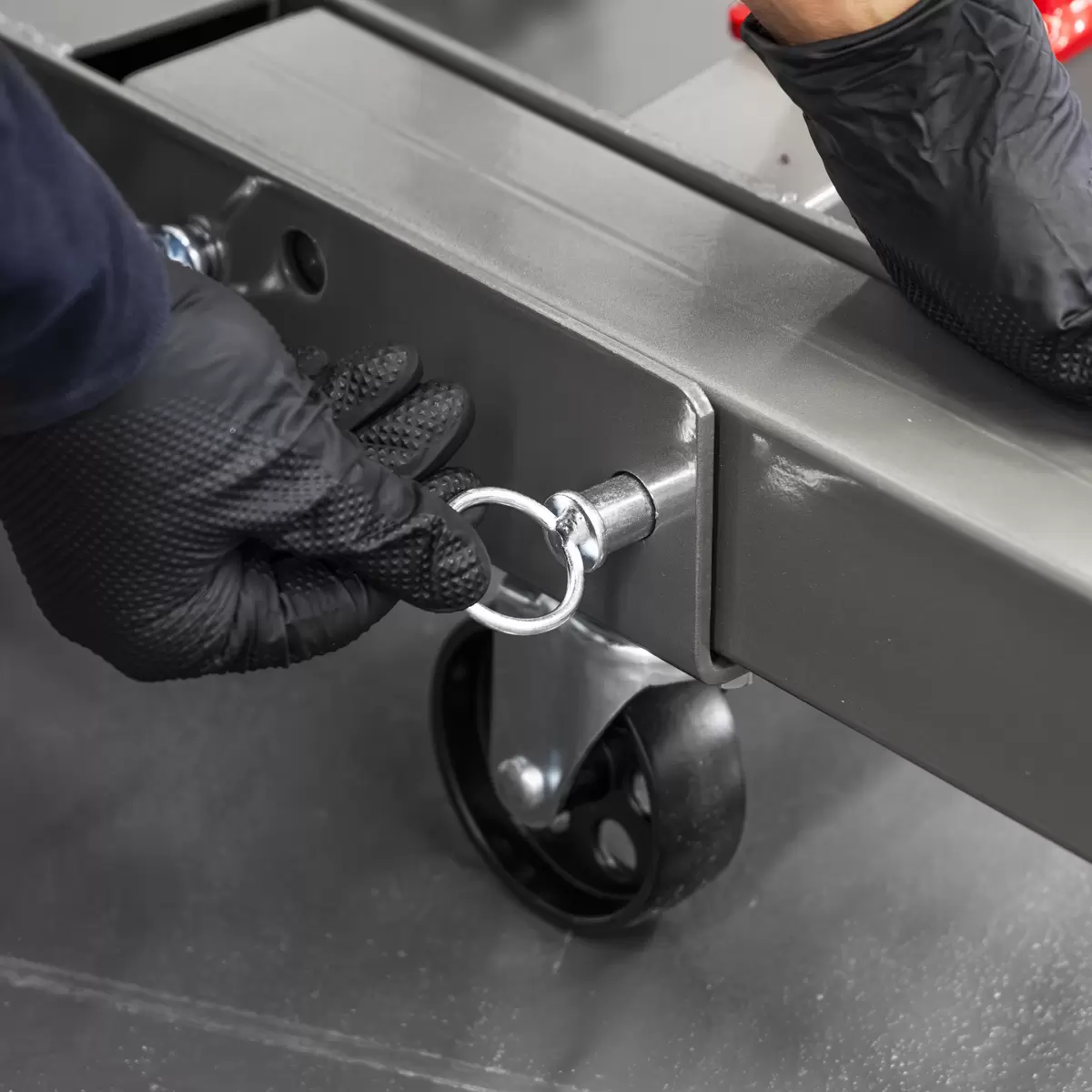

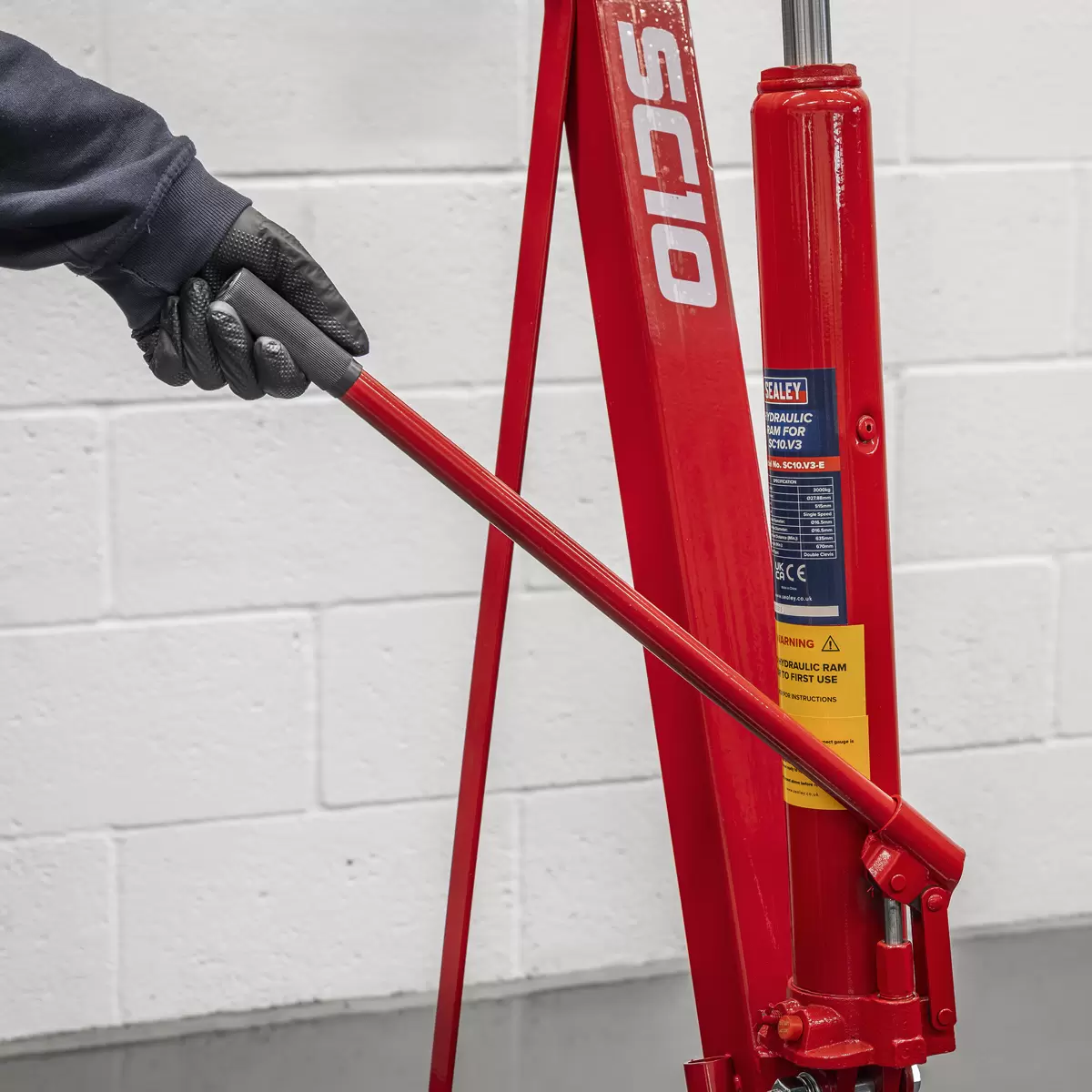

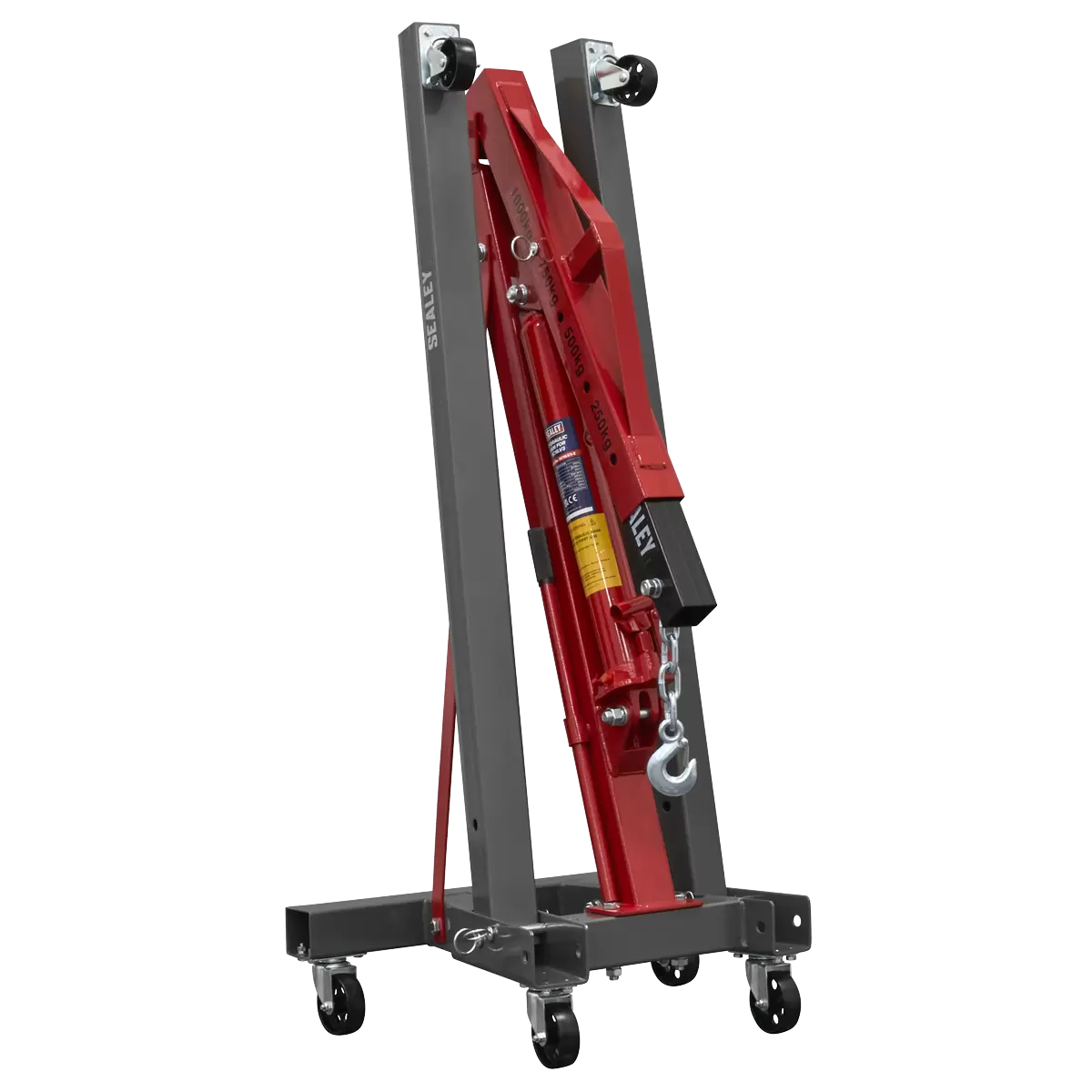

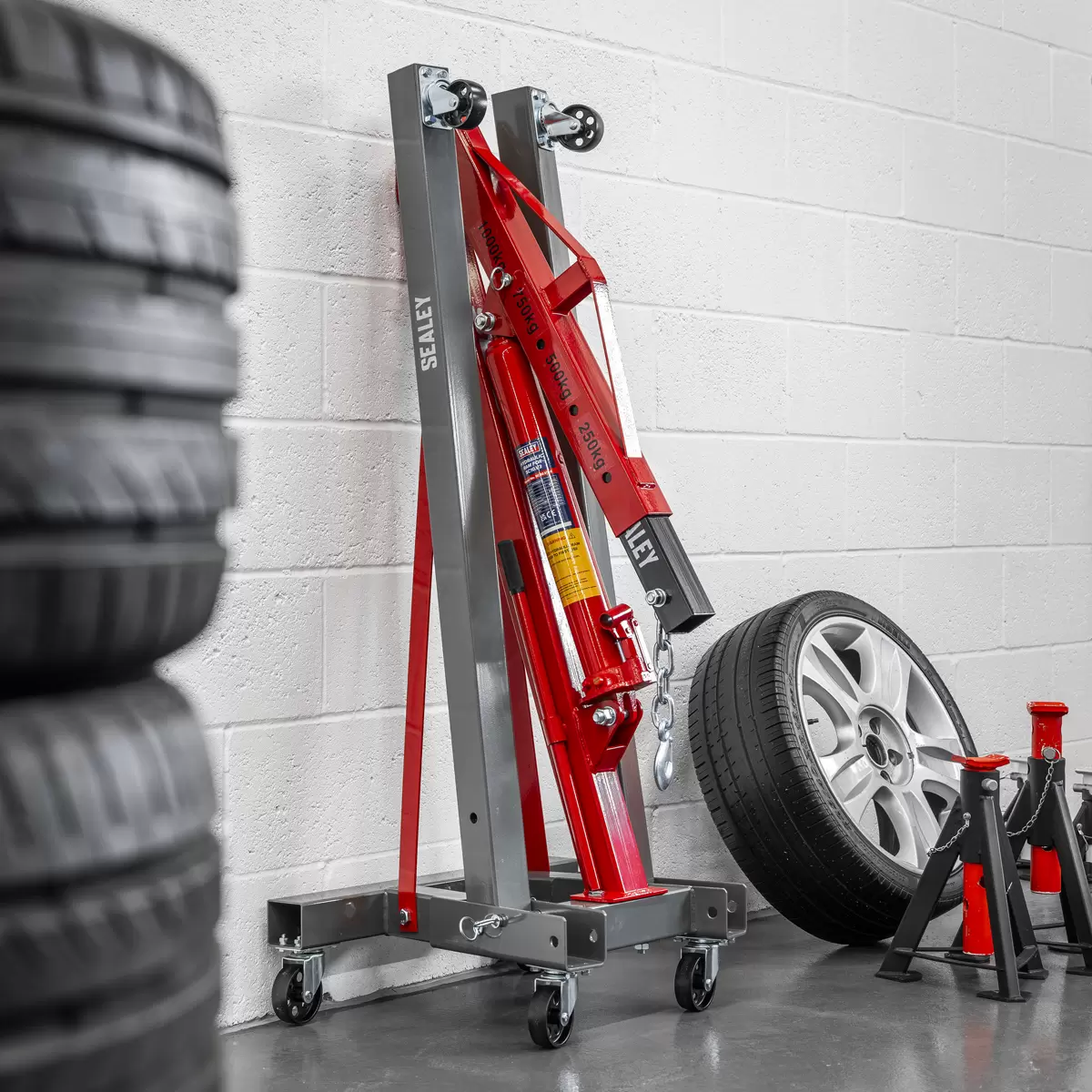

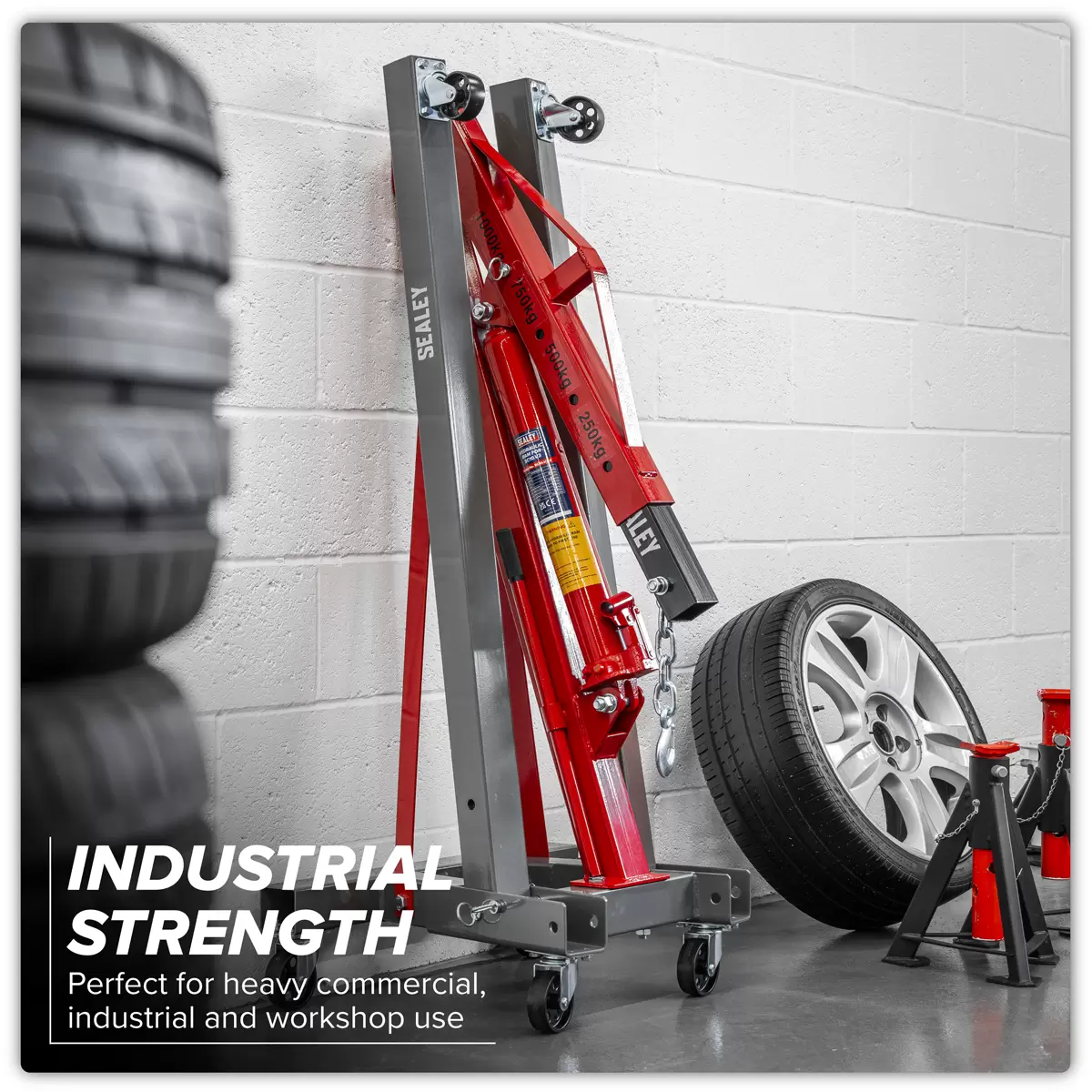

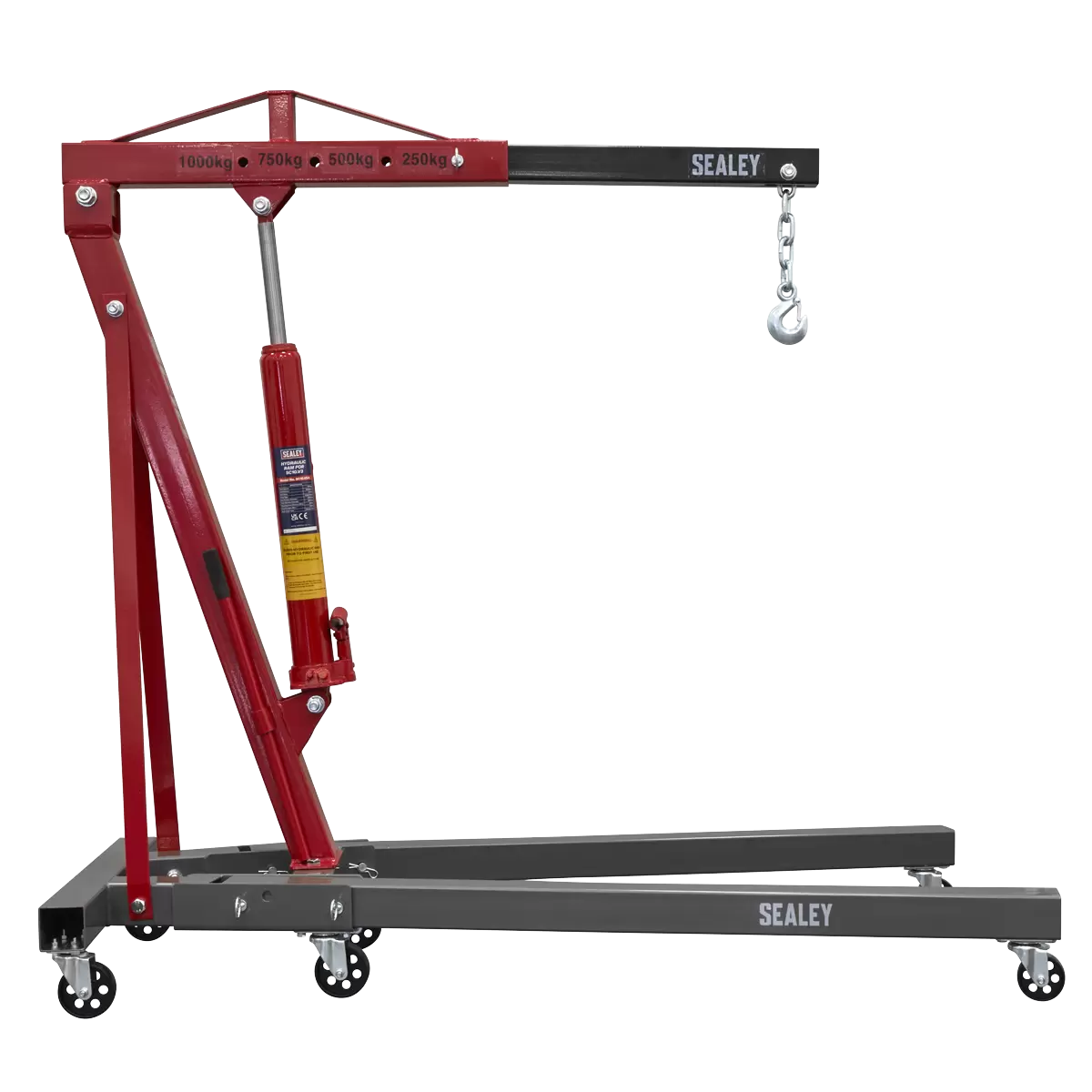

Super economy model delivered in knock-down form for reduced freight cost. Fast folding model provides easy storage and transportation with heavy-duty castors. Weighs only 67kg and is perfect for mobile or workshop use. Side pump access with removable handle.
Features
Specification
Model No SC10
Brand: Sealey
Height Jib Down: 1390mm
Height Legs Folded: 1440mm
Height of Frame: 185mm
Length Legs Extended: 1620mm
Length of Jib Position 1: 830mm
Length of Jib Position 2: 950mm
Length of Jib Position 3: 1070mm
Length of Jib Position 4: 1190mm
Length of Jib Position 5: n/a
Length: 1620mm

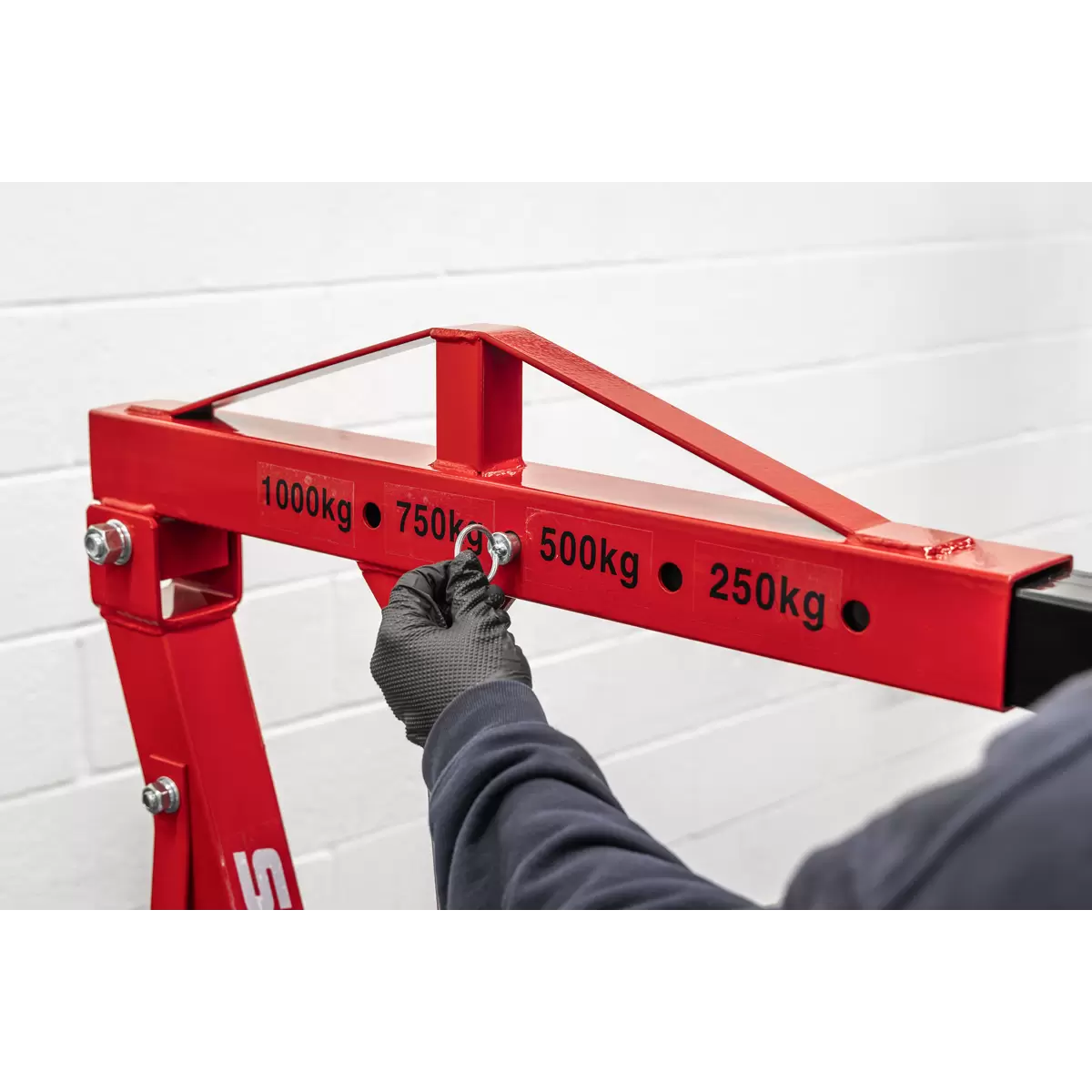

Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 750kg
Lifting Capacity in Position 3: 500kg
Lifting Capacity in Position 4: 250kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1820mm
Max. Lift Ht at Jib Position 2: 1935mm
Max. Lift Ht at Jib Position 3: 2030mm
Max. Lift Ht at Jib Position 4: 2150mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 67kg
Rear Width: 700mm
Width Front Frame: 920mm
Width Inside Front Frame: 780mm
Brand: Sealey
Height Jib Down: 1390mm
Height Legs Folded: 1440mm
Height of Frame: 185mm
Length Legs Extended: 1620mm
Length of Jib Position 1: 830mm
Length of Jib Position 2: 950mm
Length of Jib Position 3: 1070mm
Length of Jib Position 4: 1190mm
Length of Jib Position 5: n/a
Length: 1620mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 750kg
Lifting Capacity in Position 3: 500kg
Lifting Capacity in Position 4: 250kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1820mm
Max. Lift Ht at Jib Position 2: 1935mm
Max. Lift Ht at Jib Position 3: 2030mm
Max. Lift Ht at Jib Position 4: 2150mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 67kg
Rear Width: 700mm
Width Front Frame: 920mm
Width Inside Front Frame: 780mm
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8426190000
Country of Origin = CHN
