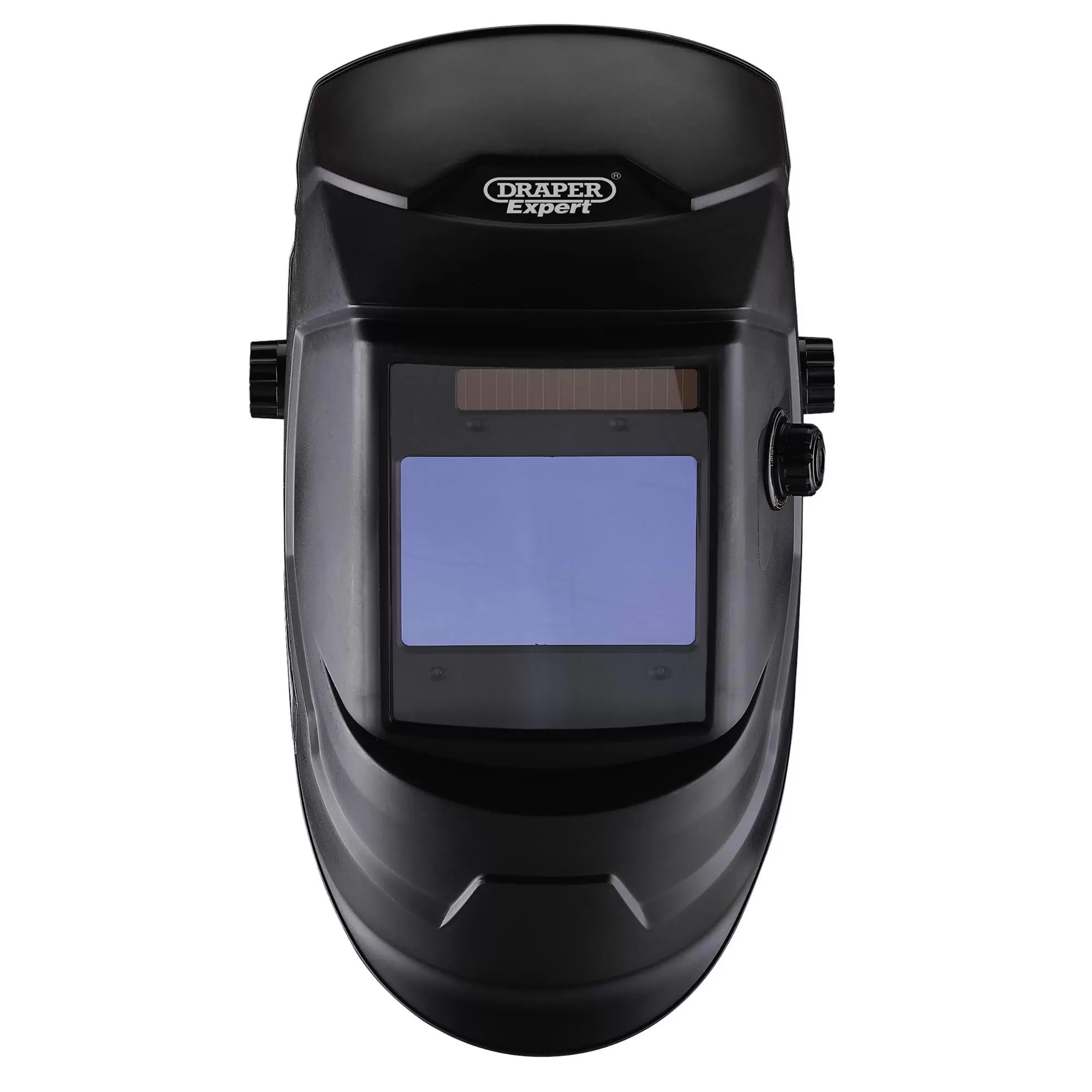

Draper Tools - 02512 - Draper Expert Auto-Darkening Multi-Use Welding Helmet, Shade 5-13

This auto-darkening welding helmet instantly switches on when the arc is struck and rapidly changes to the required amount of shade. The shade coverage includes 4, 5––9 and 9––13. The sensitivity is adjustable using the control panel and there is also a dark to light delay (stepless) function. The helmet is powered by a solar cell and lithium-ion battery (replaceable) for fast switching and low amp sensitivity. The 100 x 67mm viewing area provides decent visibility of the weld zone. It is suitable for TIG, MIG and ARC welding, plasma cutting and also grinding using the dedicated setting. The comfortable headband is adjustable using the knob to enable an optimal fit.

Suitability TIG, MIG, ARC, grinding and plasma cutting
Lens size 100 x 67mm
Shade levels 4, 5–9 and 9–13
Lens switching time 1/10,000s
ARC sensors 4
Sensitivity control Rotary dial
Operating temperature -5 to +55℃
Power supply Li-ion battery and solar
Battery 600mAh Li-ion (replaceable)
Weight 522g
