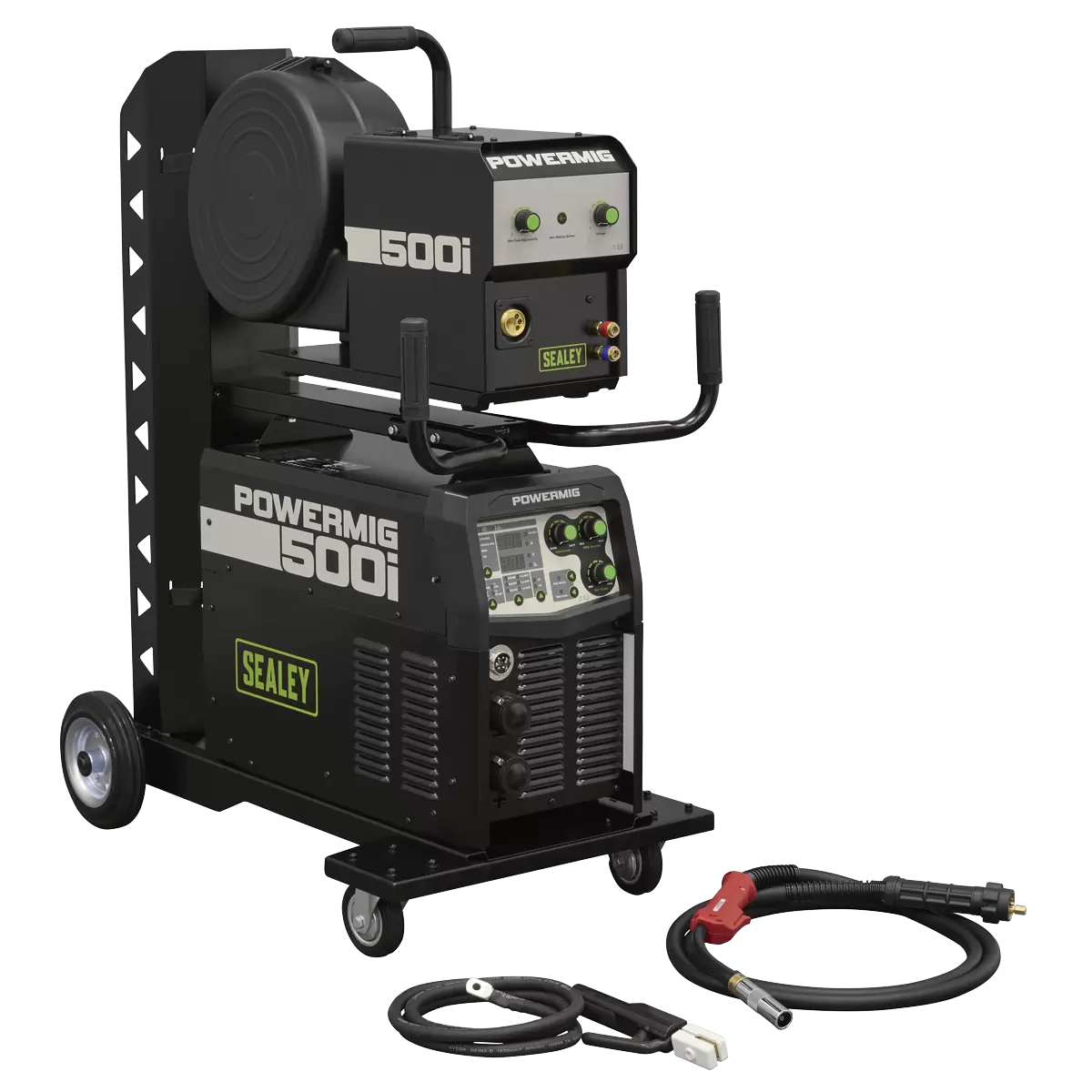

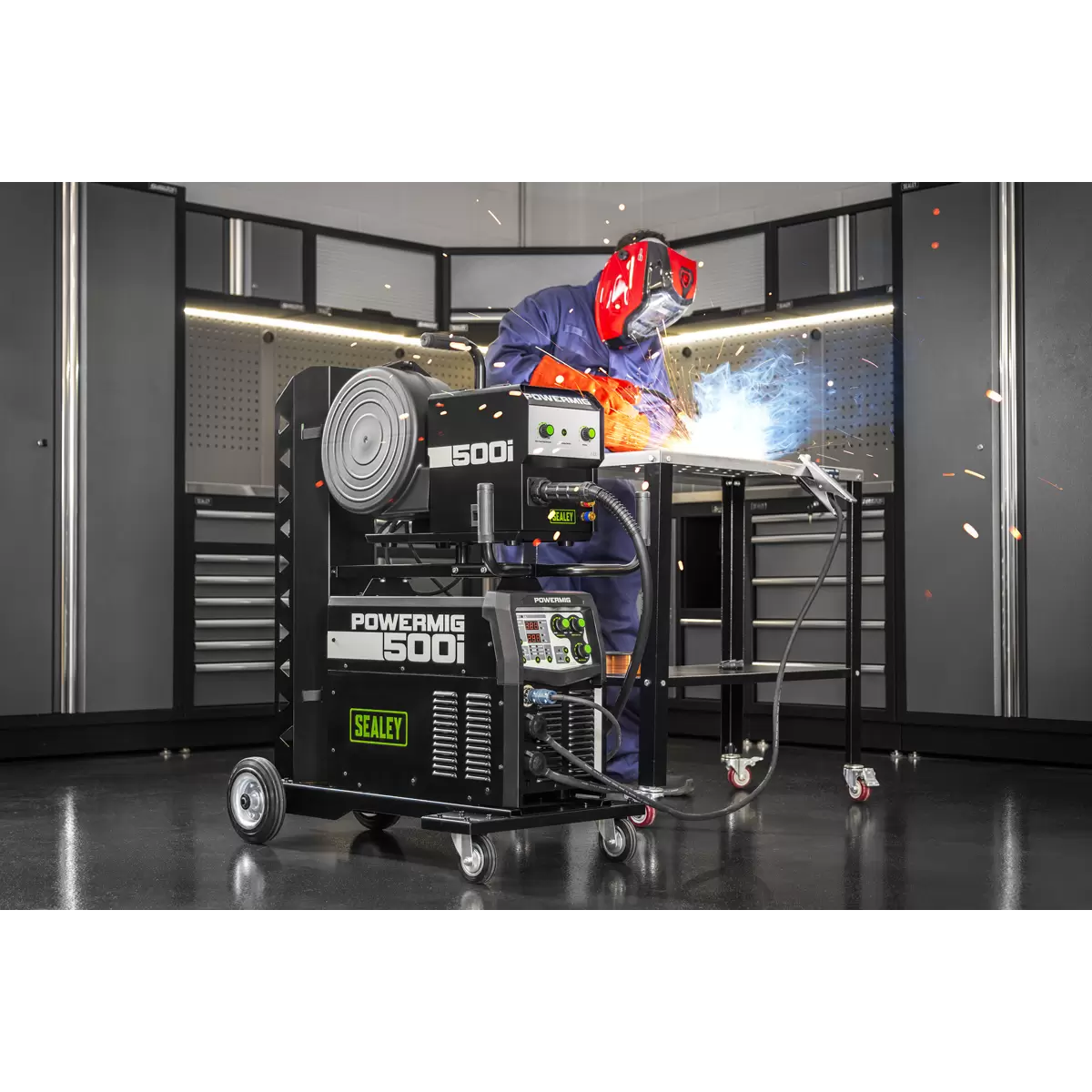

Sealey - POWERMIG500i - 500A Professional Gas/Gasless MIG/TIG/MMA Inverter Welder With Portable Wire Feeder 400V 3ph

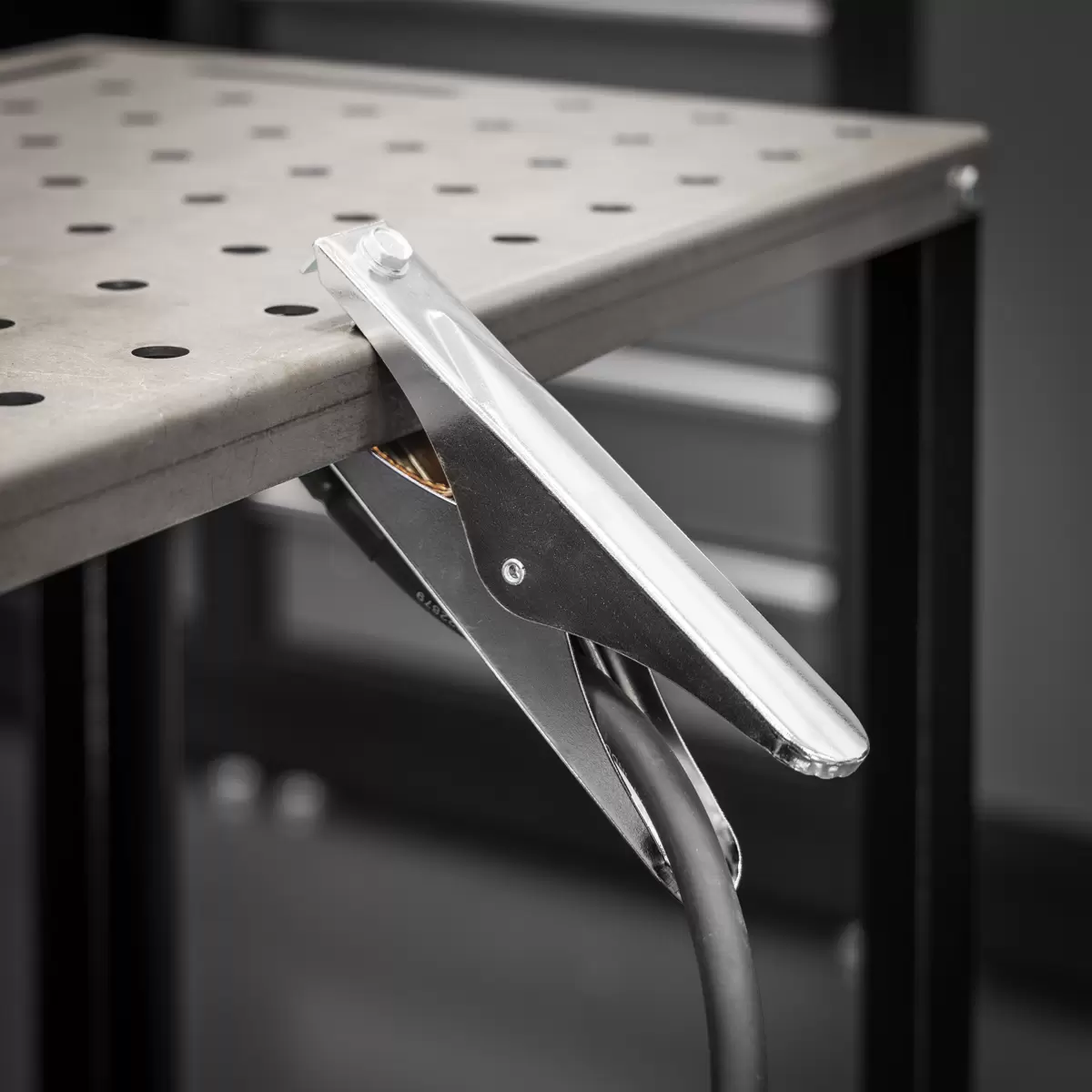

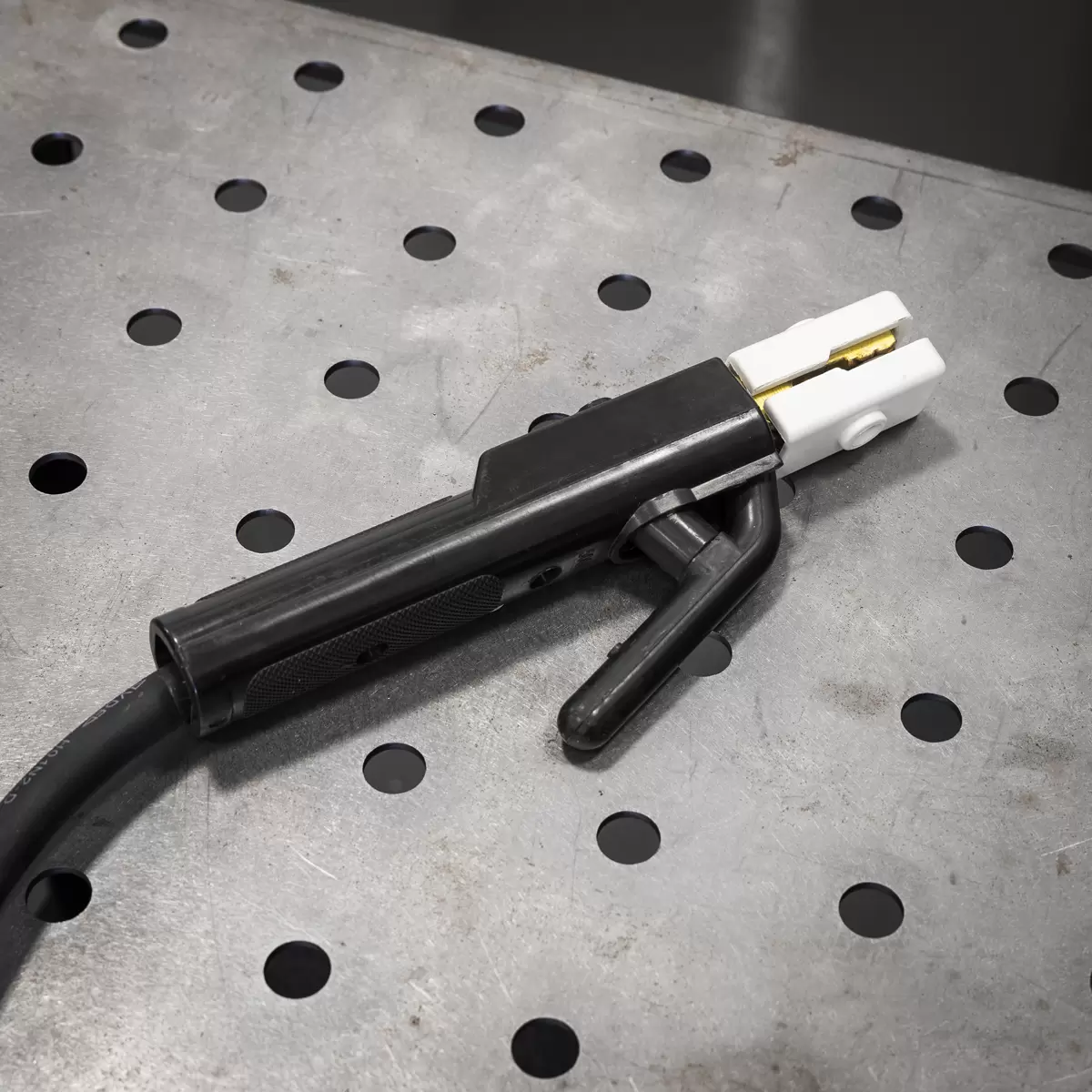

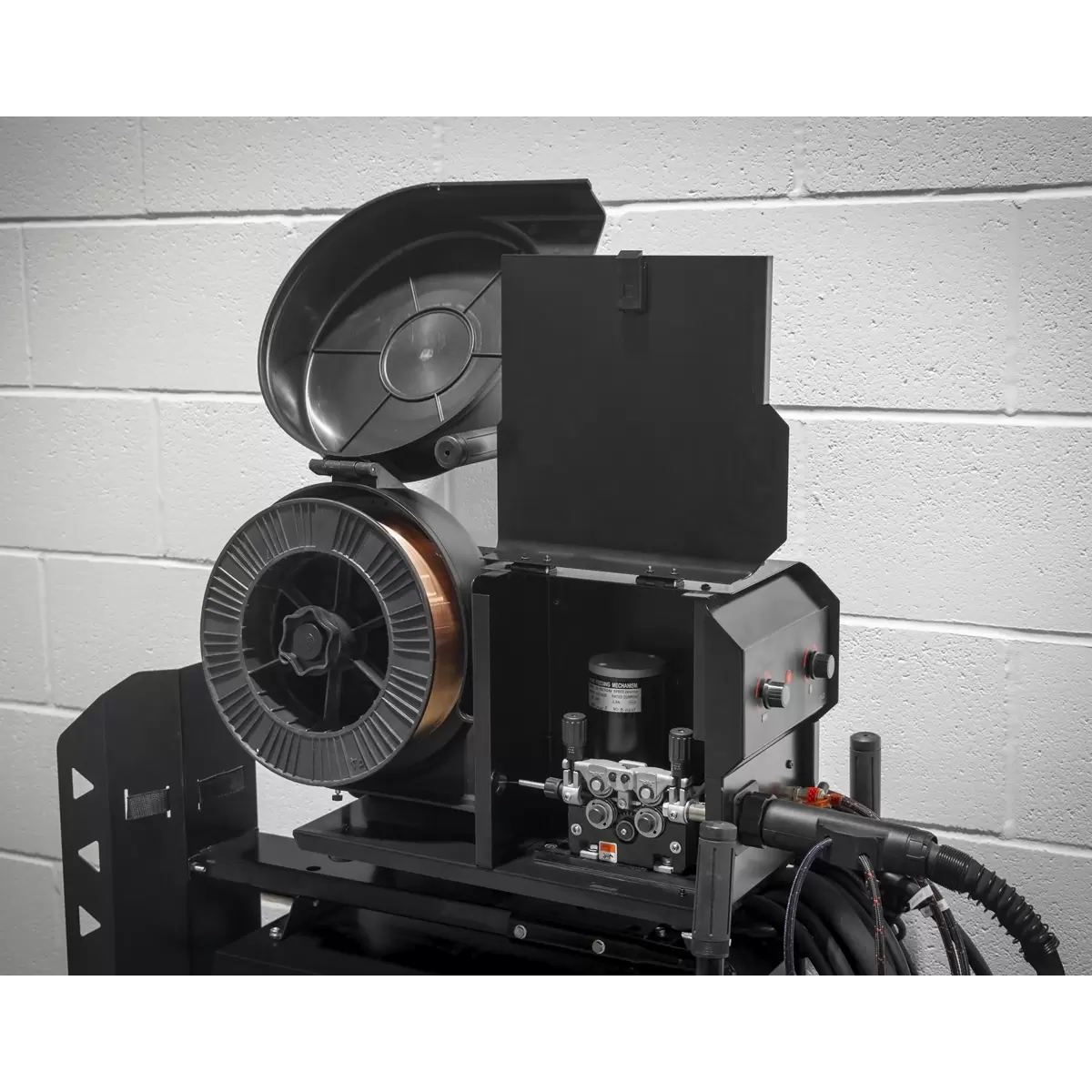

Multi process IGBT inverter Gas/Gasless MIG/TIG/MMA welder suitable for professional fabricators and workshops, as well as mechanics and technicians. Fitted with a portable wire feeder allowing access into high or tight spaces that otherwise would not be possible. Maximum output of 500A making it ideal for welding a large variety of metals including Steel, Stainless Steel up to 20mm. 2T/4T torch trigger function allowing greater precision during longer welds. Features short circuit, over-heating and over-current protection. Supplied with 2m power cable, 2m earth clamp, 3m Euro Mig torch and 2m Electrode holder. Wire capacity of 5-15kg with a diameter of 0.6mm to 1.6mm. Electrode capacity from 1.6mm to 5mm. Duty Cycle: MIG 60% @ 500A, MMA 60% @ 500A, TIG 60% @ 500A. POWERMIG500Wi is also supplied with a water cooler to prolong duty cycle and efficiency.

Model No POWERMIG500i
Brand: Sealey
Nett Weight: 42.5kg
Welding Current: 30-500A

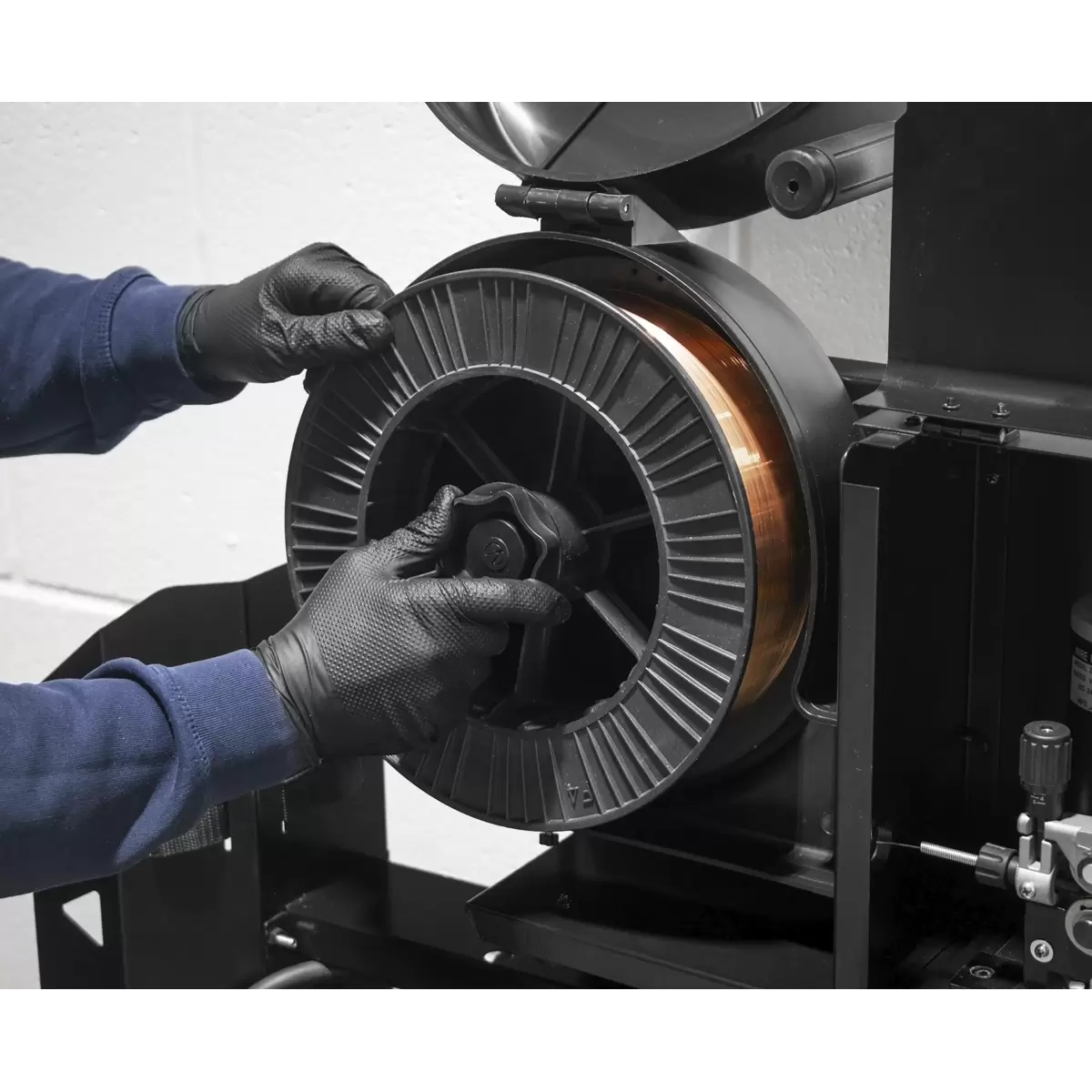

Wire Capacity: 5-15kg
Electrode Capacity: 1.6-5mm
Duty Cycle MIG: 60% @500A 100% @ 388A
Duty Cycle MMA: 60% @ 500A 100% @ 388A
Duty Cycle TIG: 60% @ 500A 100% @ 388A
Gas Type: CO2, Argon, CO2/Argon Mix

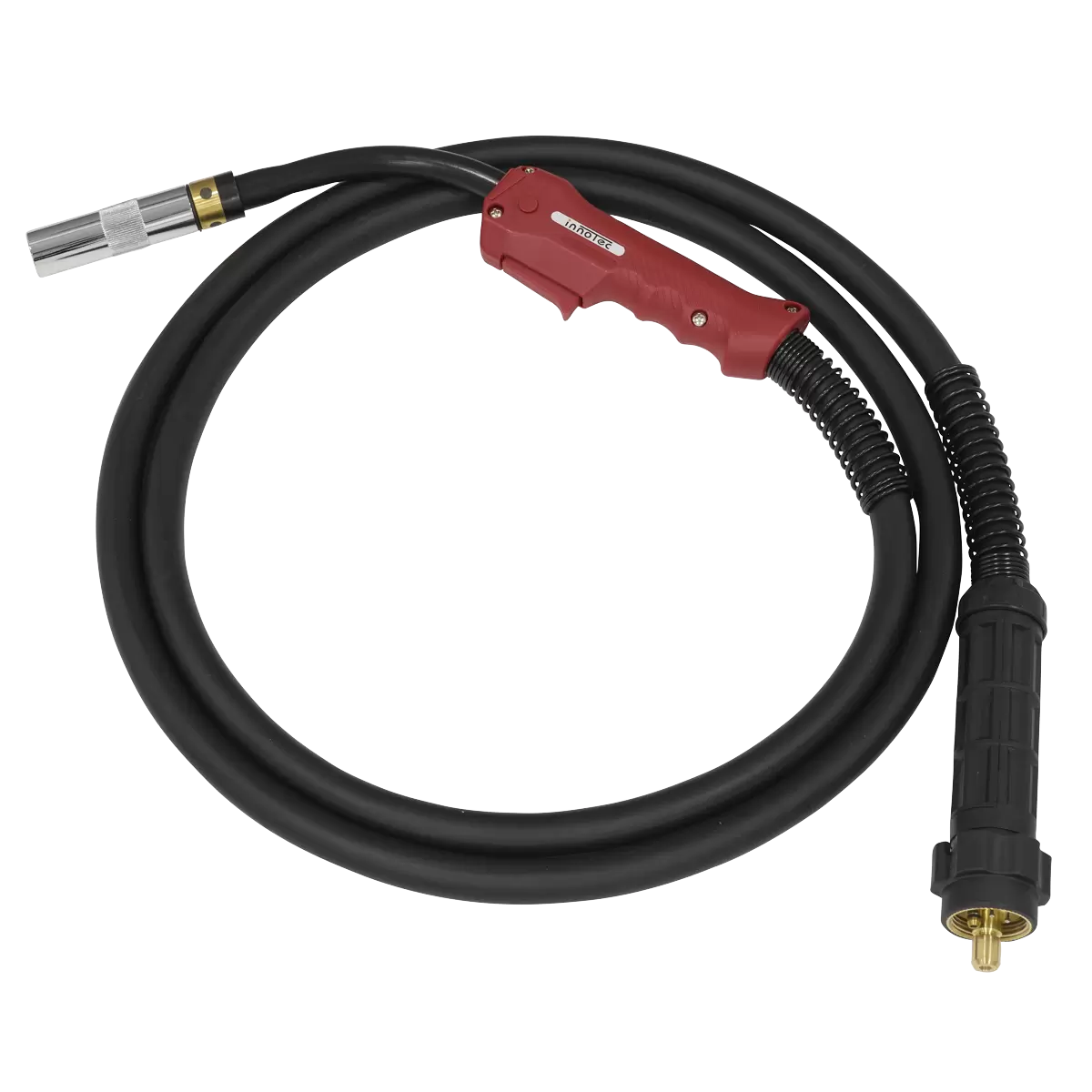

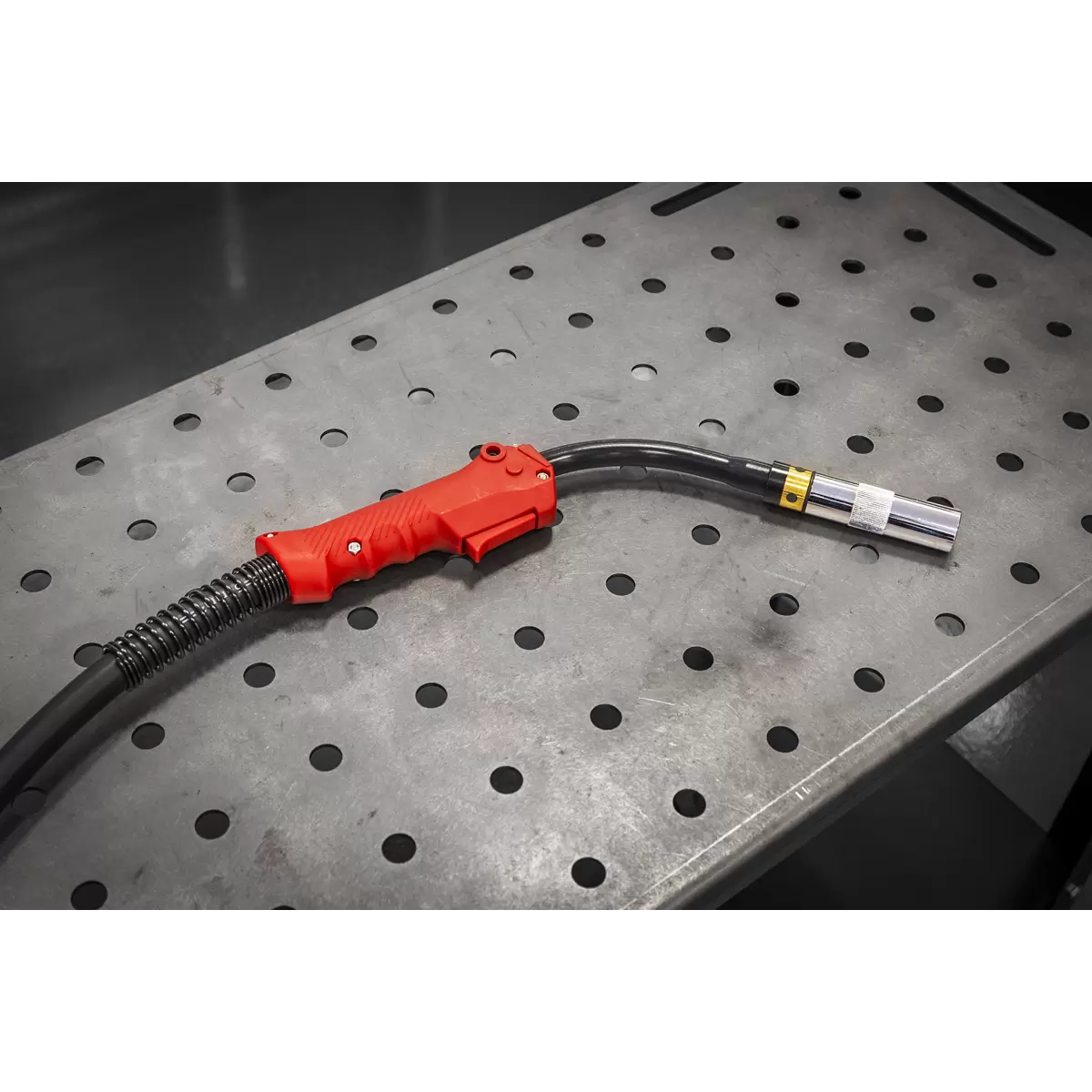

Mig Torch (inc): 3m Euro Non-Live Torch
Supply: 400V 3ph
Power Supply Cable Length: 2m
Weight: 42.5kg
IP Rating: IP21S
Absorbed Power: 19.04kW
Input Current: 39.5A (MMA), 40A (MIG)
Output Voltage: 50A/22V to 500A/40V (MMA), 30A/15.5V to 500A/39V (MIG)
No Load Voltage: 85V (MMA), 85V (MIG)
Efficeincy: 0.8
