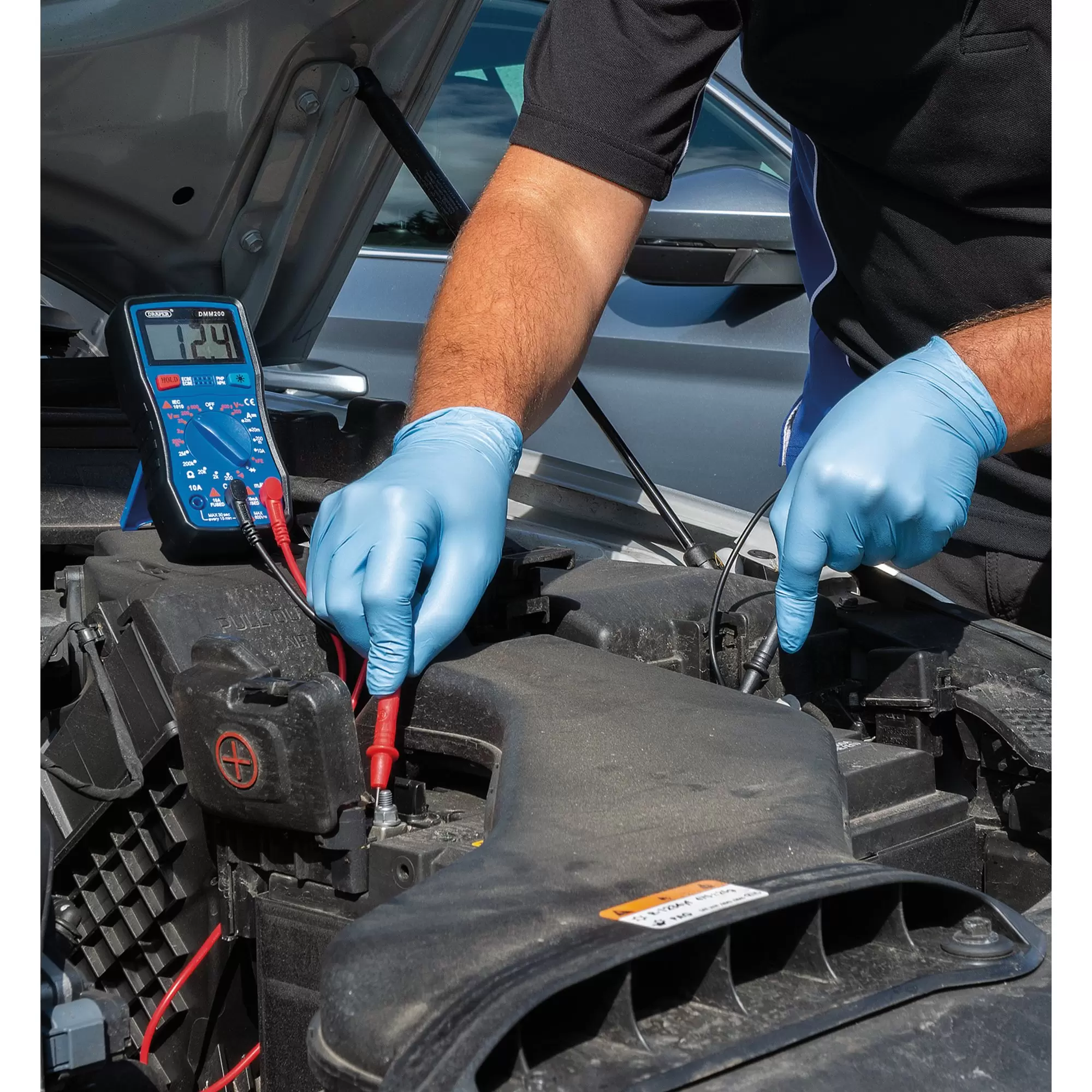

Draper Tools - 41817 - 200 Series Manual Ranging Digital Multimeter, 600V, AC/DC
SKU: 41817
Part Number: DMM200
Barcode: 5010559418176
Country of Origin: CN
Weight: 30 g
Our Price
£18.66 (inc VAT) £15.55 (ex VAT)
RRP £40.32 £33.60
Save
£21.66
£18.05
12 months Warranty included.
Description
Manual ranging capable of voltage, current, hEF and resistance testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads and 1 x 6F22 9V battery.
Features
Specification
AC Current N/A
AC Voltage 200V/600V
Automatic Power Off Yes
Capacitance N/A
DC Amps 2mA/20mA/200mA/10A
DC Current 2mA/20mA/200mA/10A
DC Voltage 200mV/2V/20V/200V/600V
Diode on/off Test Yes
Dimensions 150mm x 74mm x 43mm
Duty Ratio Yes
Dwell N/A
Frequency N/A
Resistance (Ohms) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
Symbol Unit Data Hold Yes
TACH N/A
Temperature Range -20°C - 1000°C
Weight 233g (approx.)
Battery Type 1 x PP3 9V (not supplied)
AC Voltage 200V/600V
Automatic Power Off Yes
Capacitance N/A
DC Amps 2mA/20mA/200mA/10A
DC Current 2mA/20mA/200mA/10A
DC Voltage 200mV/2V/20V/200V/600V
Diode on/off Test Yes
Dimensions 150mm x 74mm x 43mm
Duty Ratio Yes
Dwell N/A
Frequency N/A
Resistance (Ohms) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
Symbol Unit Data Hold Yes
TACH N/A
Temperature Range -20°C - 1000°C
Weight 233g (approx.)
Battery Type 1 x PP3 9V (not supplied)
Workshopping Says
Warranty Period = 12 months
