Home > Workshop Equipment > Electrical Other > Draper Tools - 41821 - Automotive Digital Multimeter

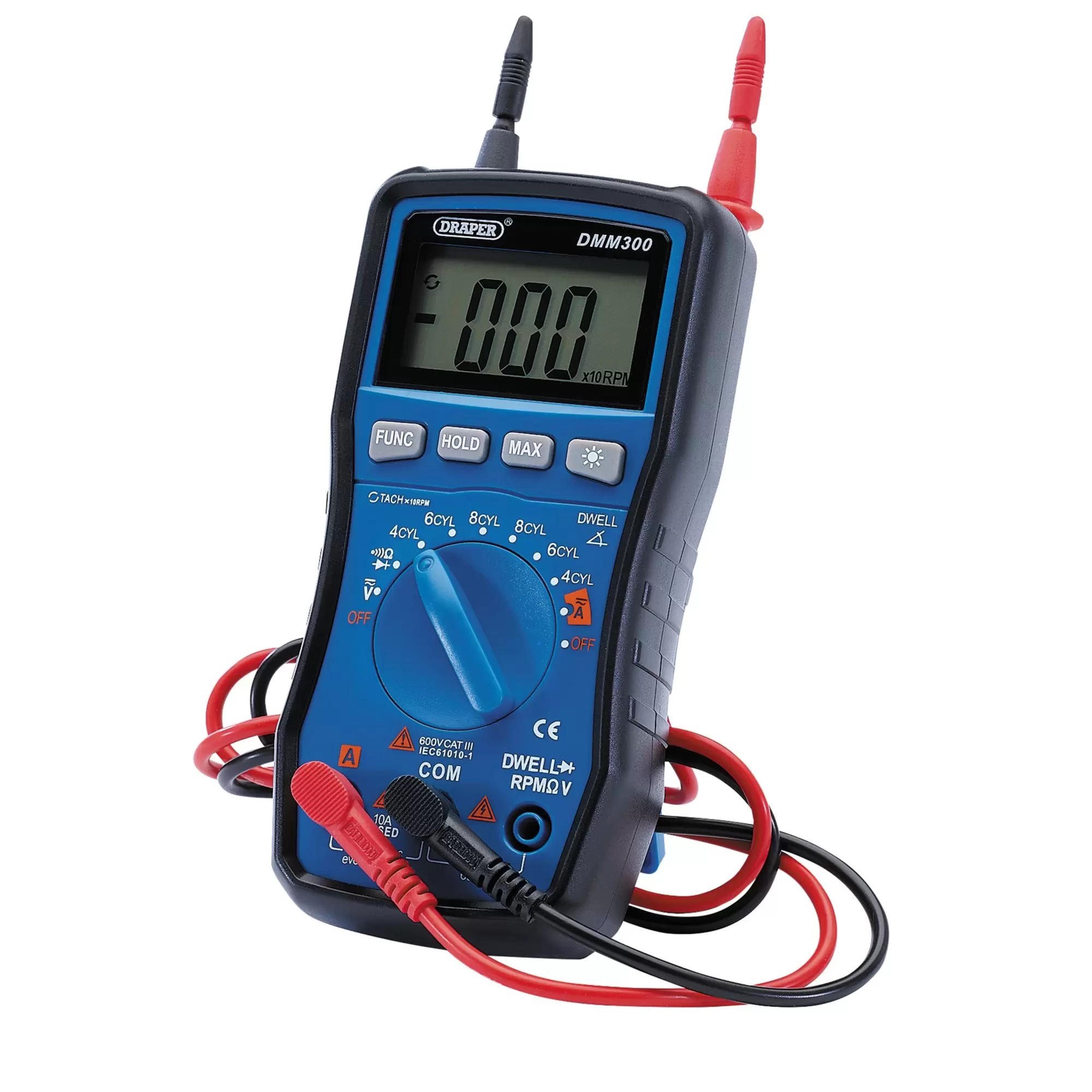

Draper Tools - 41821 - Automotive Digital Multimeter
SKU: 41821
Part Number: DMM300
Barcode: 5010559418213
Country of Origin: CN
Weight: 32 g
Our Price
£32.89 (inc VAT) £27.41 (ex VAT)
RRP £62.10 £51.75
Save
£29.21
£24.34
12 months Warranty included.
Description
Auto and manual ranging capable of voltage, current, resistance, diode and continuity testing. Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features. Supplied with test leads and a case.
Features
Specification
AC Amps 2A/10A
AC Current 2A/10A
AC Voltage 200mV/2V/20V/200V/600V
Automatic Power Off Yes
Capacitance N/A
DC Amps 2A/10A
DC Current 2A/10A
DC Voltage 200mV/2V/20V/200V/600V
Diode on/off Test Yes
Dimensions 150mm x 74mm x 43mm
Duty Ratio Yes
Dwell 4CYL, 6CYL, 8CYL
Frequency N/A
Resistance (Ohms) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Symbol Unit Data Hold Yes
TACH 4CYL/6CYL/8CYL
Temperature Range N/A
Weight 319g (approx.)
Battery Type 2 x AAA (not supplied)
AC Current 2A/10A
AC Voltage 200mV/2V/20V/200V/600V
Automatic Power Off Yes
Capacitance N/A
DC Amps 2A/10A
DC Current 2A/10A
DC Voltage 200mV/2V/20V/200V/600V
Diode on/off Test Yes
Dimensions 150mm x 74mm x 43mm
Duty Ratio Yes
Dwell 4CYL, 6CYL, 8CYL
Frequency N/A
Resistance (Ohms) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Symbol Unit Data Hold Yes
TACH 4CYL/6CYL/8CYL
Temperature Range N/A
Weight 319g (approx.)
Battery Type 2 x AAA (not supplied)
