Home > Workshop Equipment > Electrical Other > Draper Tools - 41967 - Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
Draper Tools - 41967 - Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
SKU: 41967
Part Number: DCM402
Barcode: 5010559419678
Country of Origin: CN
Weight: 40 g
Our Price
£70.69 (inc VAT) £58.91 (ex VAT)
RRP £126.30 £105.25
Save
£55.61
£46.34
12 months Warranty included.
Description

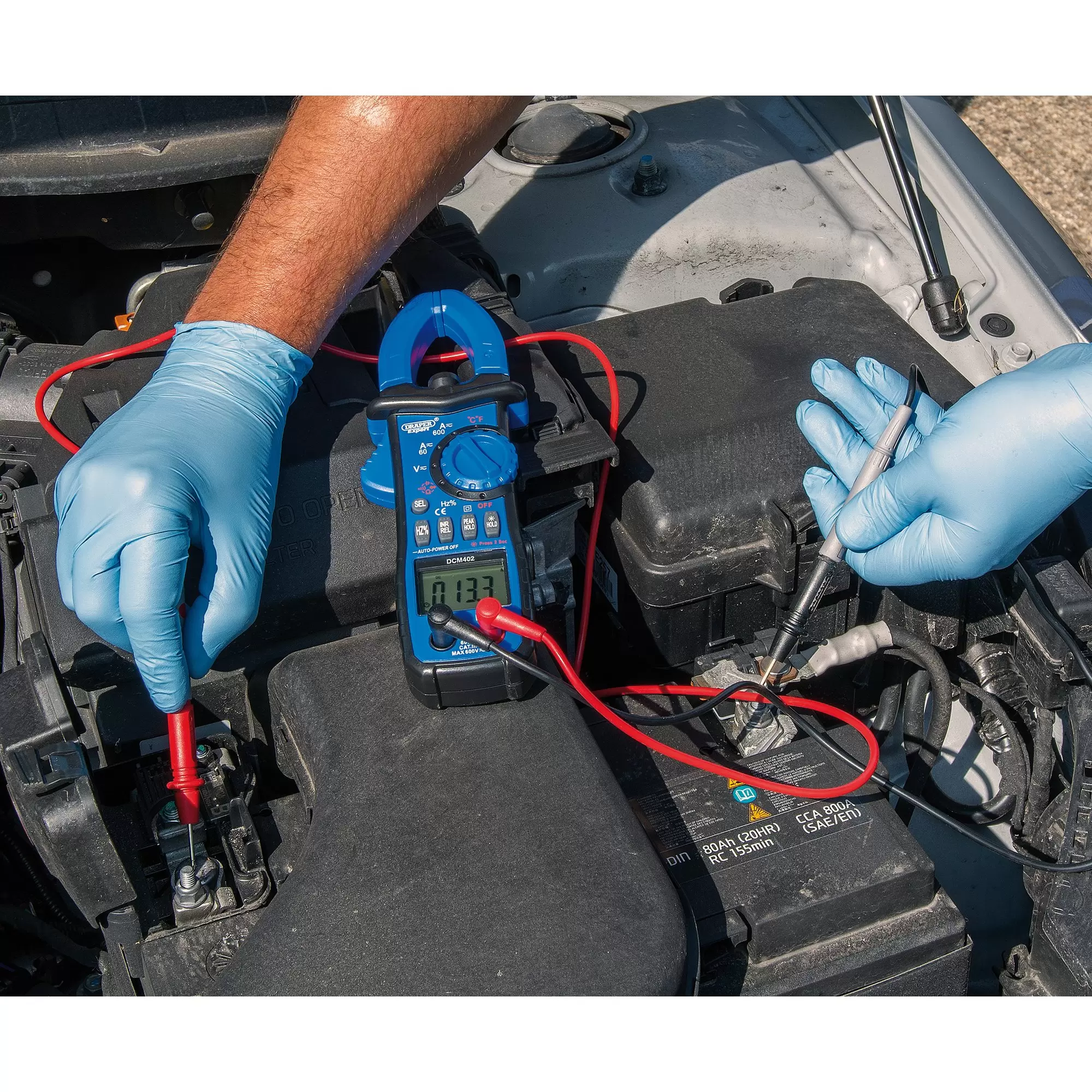

Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw-opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe, case and 3 x AAA batteries.
Features
Specification
AC Amps 60A/600A
AC Current 60A/600A
AC Voltage 6V/60V/600V
Automatic Power Off Yes
Battery 3 x AAA (not supplied)
Capacitance 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
DC Amps 60A/600A
DC Current 60A/600A
DC Voltage 600mV/6V/60V/600V
Diode on/off Test Yes
Dimensions 228mm x 158mm x 58mm
Duty Ratio Yes
Dwell N/A
Frequency 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms) 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold N/A
TACH N/A
Temperature -50 to 300ºC
Temperature Range -50°C - 1000°C/-58°F - 1832°F
Weight 400g (approx.)
AC Current 60A/600A
AC Voltage 6V/60V/600V
Automatic Power Off Yes
Battery 3 x AAA (not supplied)
Capacitance 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
DC Amps 60A/600A
DC Current 60A/600A
DC Voltage 600mV/6V/60V/600V
Diode on/off Test Yes
Dimensions 228mm x 158mm x 58mm
Duty Ratio Yes
Dwell N/A
Frequency 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms) 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold N/A
TACH N/A
Temperature -50 to 300ºC
Temperature Range -50°C - 1000°C/-58°F - 1832°F
Weight 400g (approx.)
Workshopping Says
Warranty Period = 12 months
