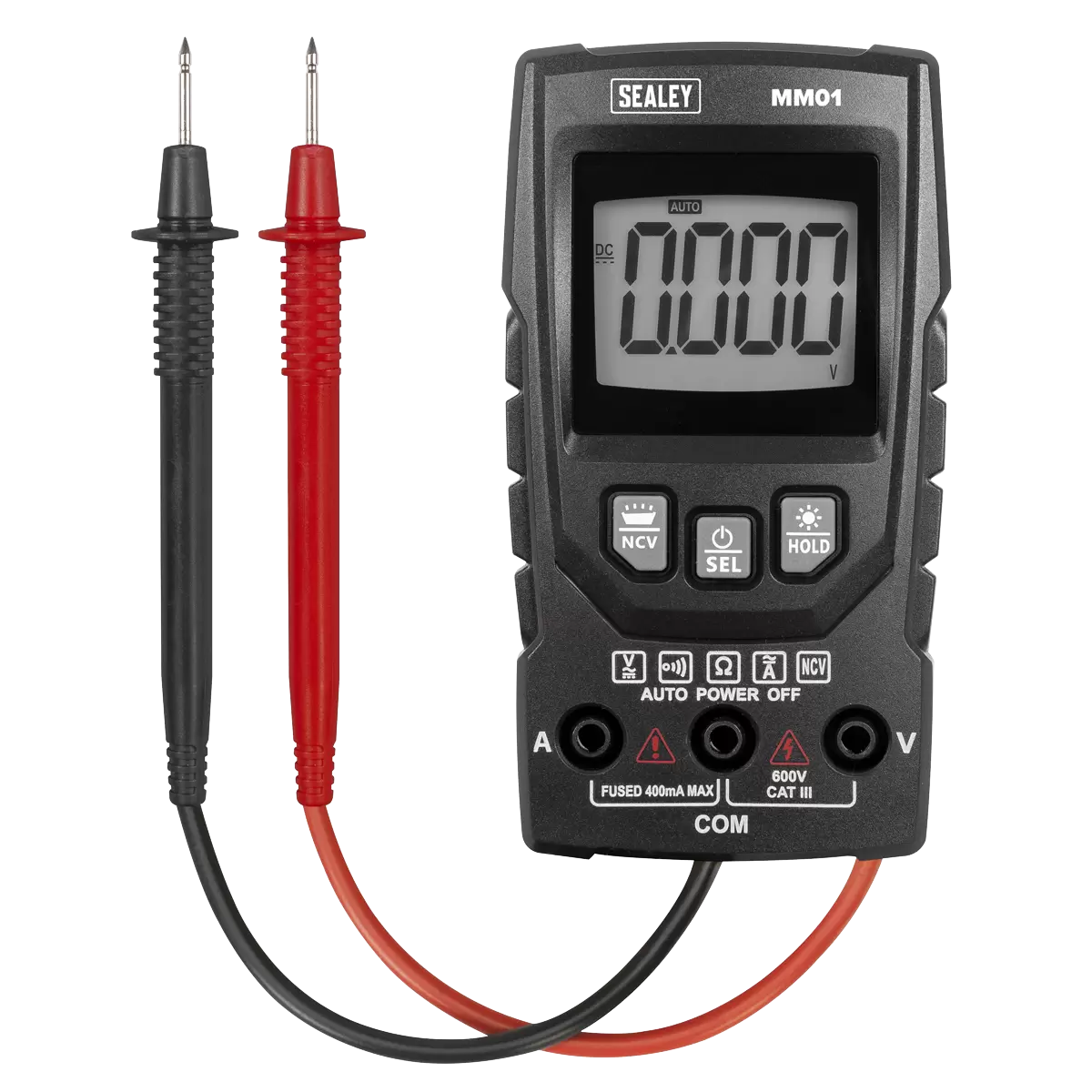

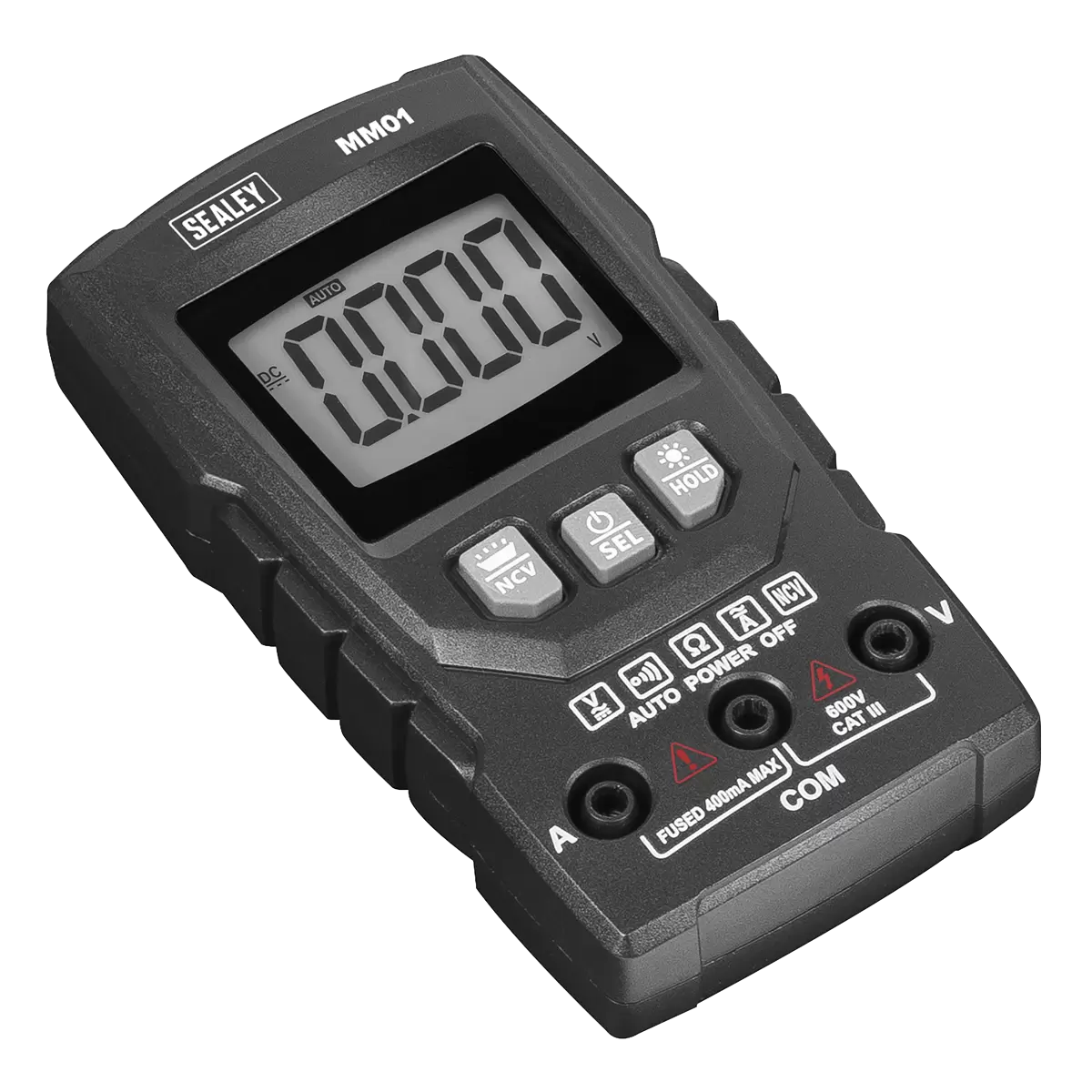

Sealey - MM01 - Auto-Ranging Digital Multimeter 6-Function
SKU: MM01
Part Number: MM01
Barcode: 5054630584091
Country of Origin: CHN
Weight: 19 g
Our Price
£14.90 (inc VAT) £12.42 (ex VAT)
RRP £23.94 £19.95
Save
£9.04
£7.53
Out of stock
1 year Warranty included.
Description

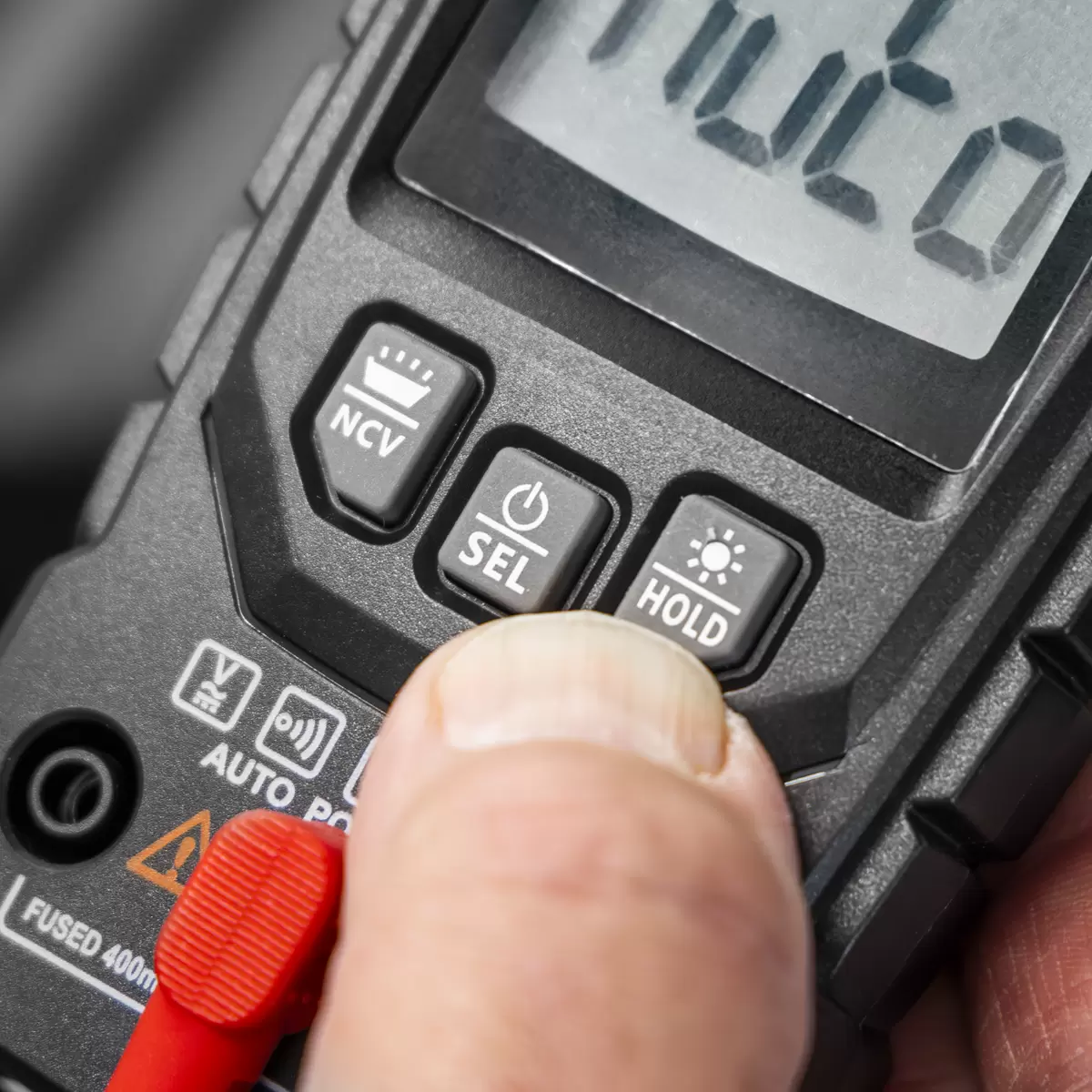

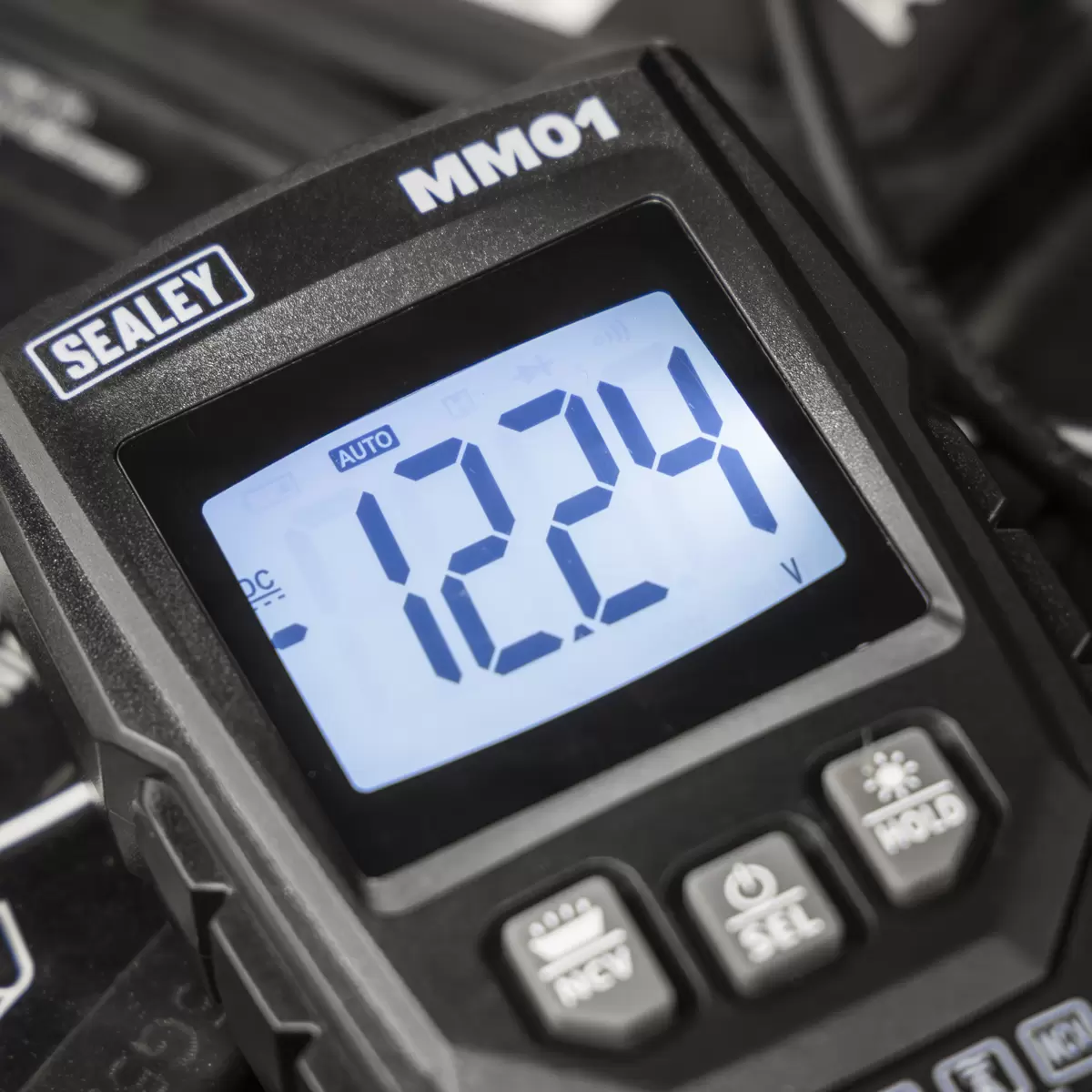

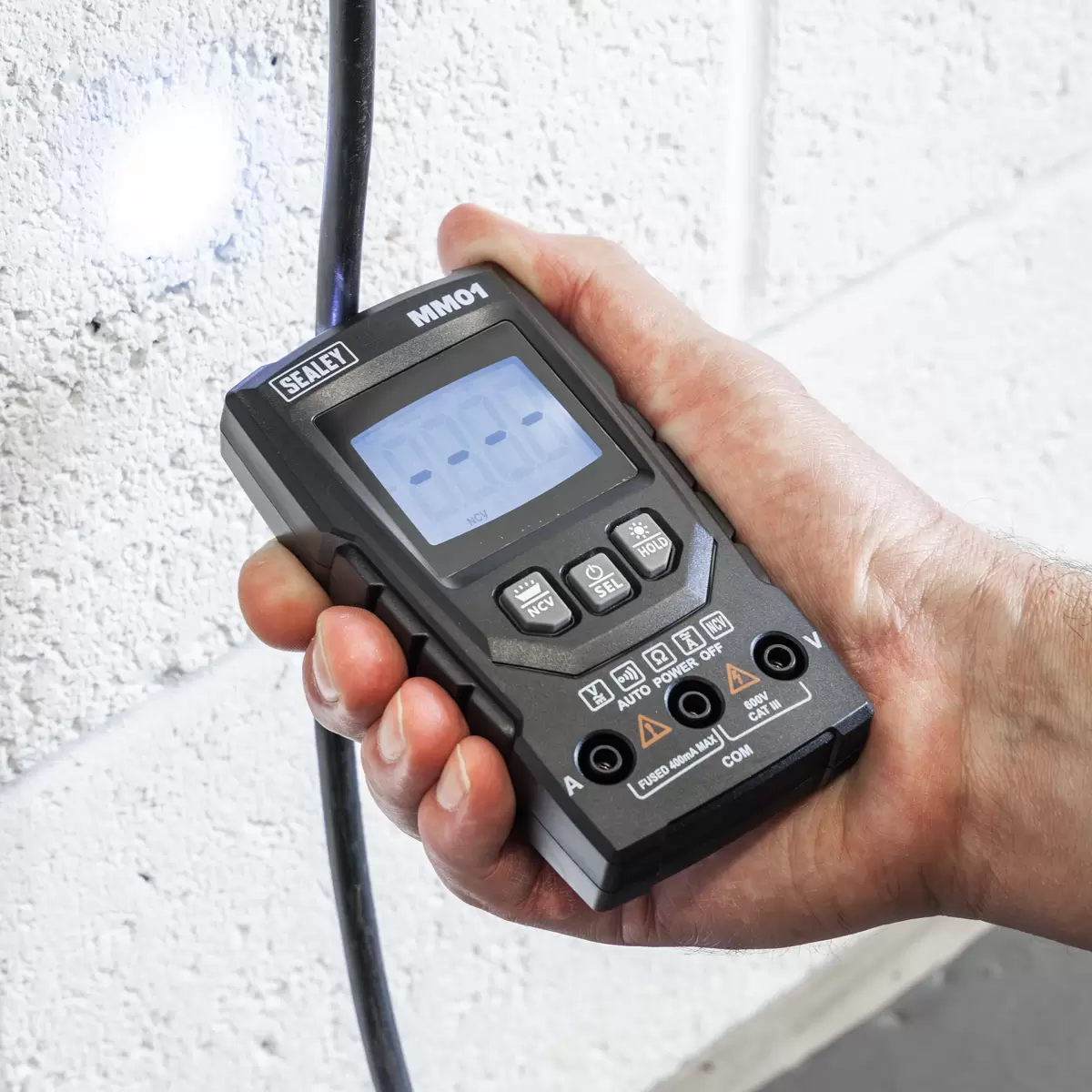

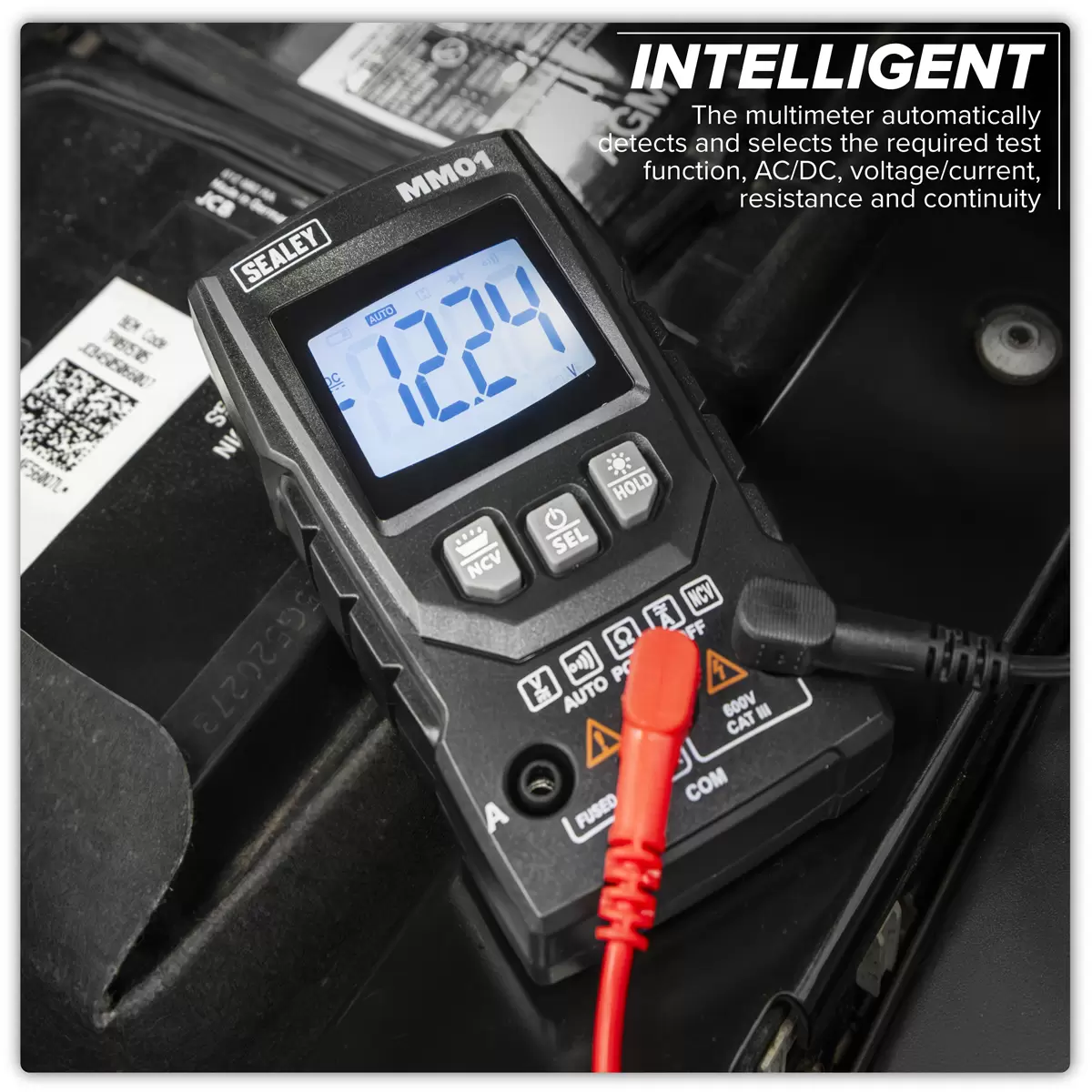

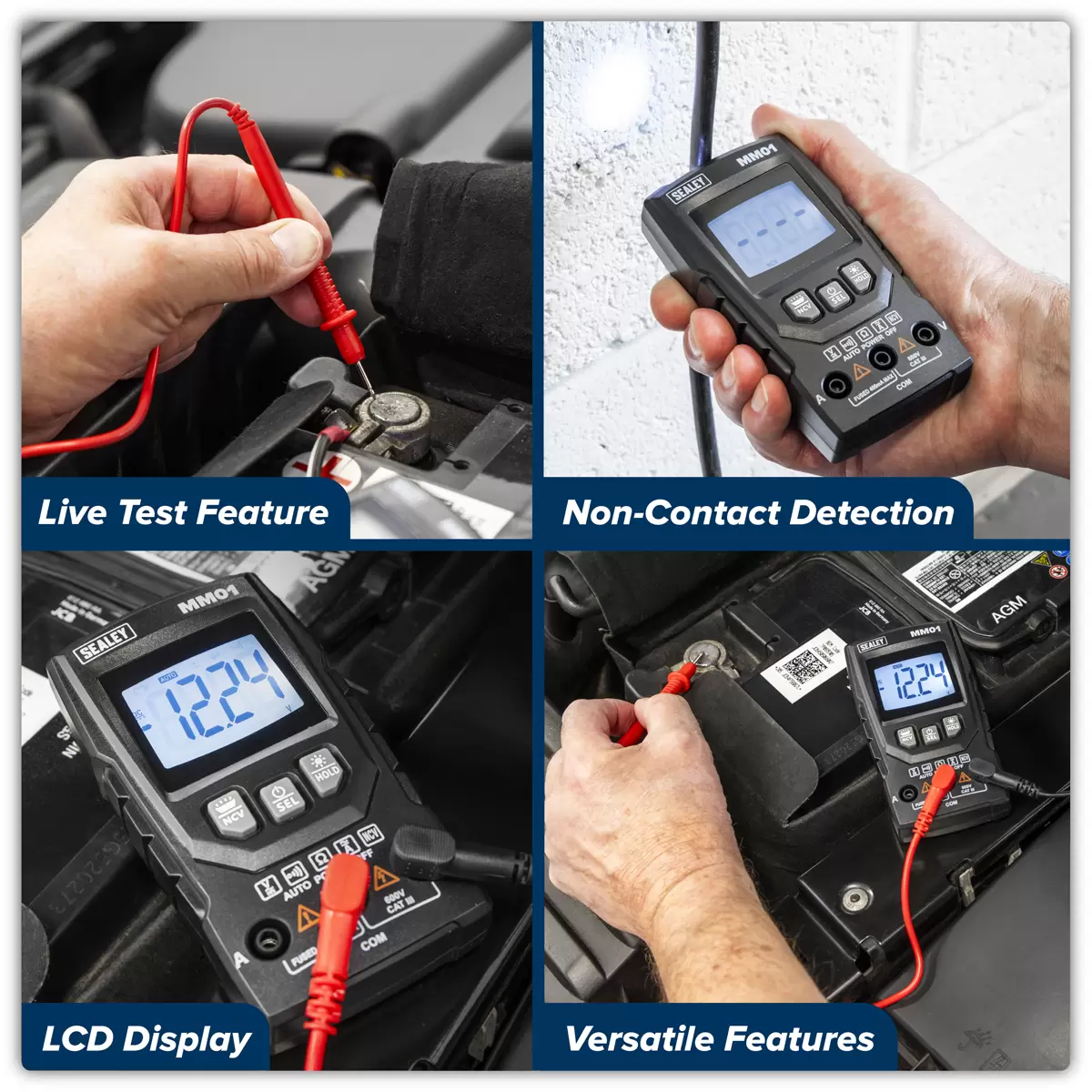

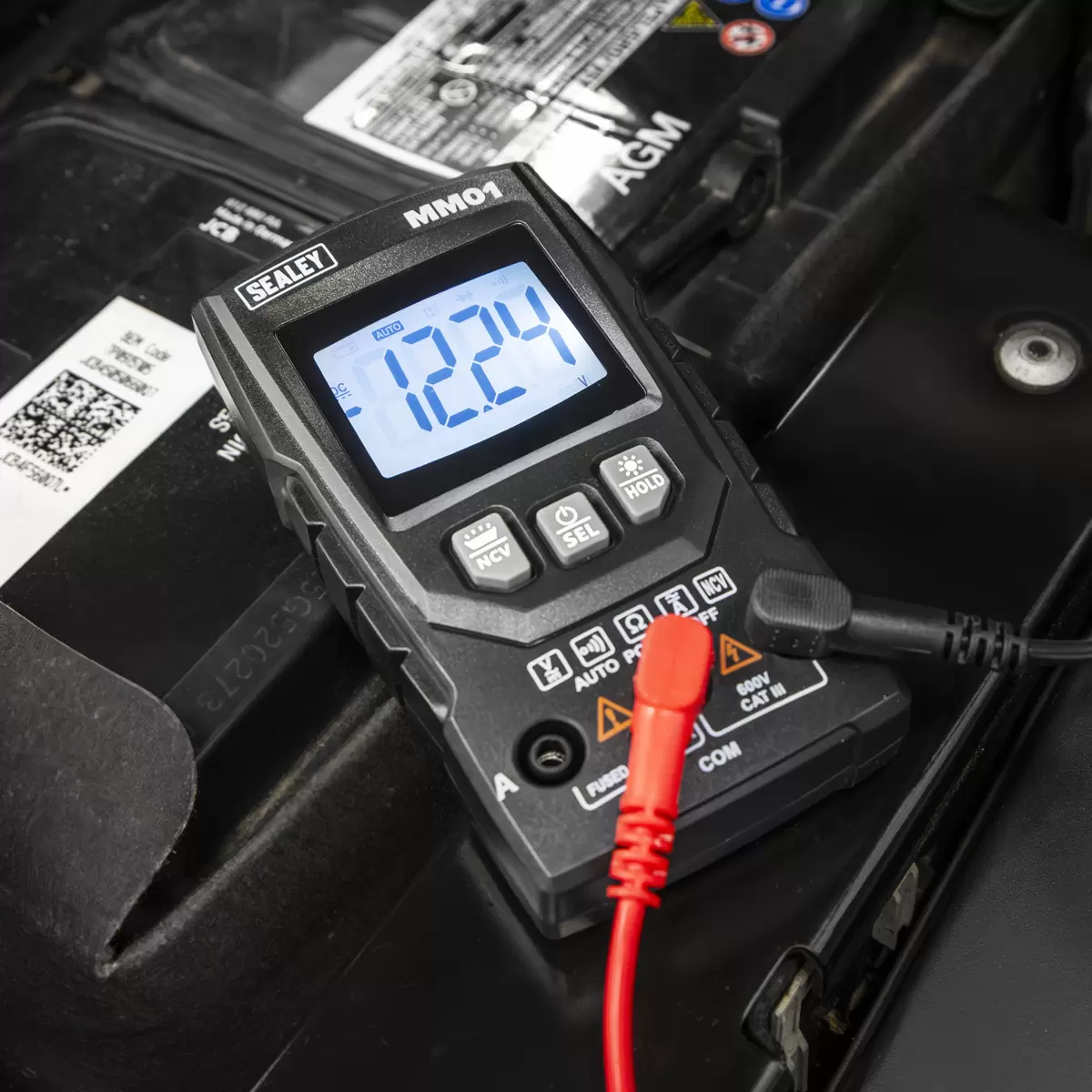

Intelligent multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity. Features data-hold, auto-power-off function, and a low battery indicator. Non-contact voltage detection (NCVD) enables one-handed use. 4000 Count high precision measurements. Easy-to-read LCD and LED worklight. Conforms to EN 61010-2 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
Features
Model No MM01
Brand: Sealey
Nett Weight: 0.156kg
DC Voltage (Accuracy): Range: 4/40/400/600V, Resolution: 0.001/0.01/0.01/1V, Accuracy: ± (1% + 3 digits/ 1% + 3 digits)
AC Voltage (Accuracy): Range: 4/40/400/600V, Resolution: 0.001/0.01/0.01/1V, Accuracy ±(1.2% +5 digits/1.5% + 10 digits)
DC Current (Accuracy): Range: 400mA, Resolution: 0.1mA, Accuracy: ± (1.2% reading + 3 digits)
AC Current (Accuracy): Range: 400mA, Resolution: 0.1mA, Accuracy: ±(1.5% + 3 digits)
Resistance (Accuracy): 4KΩ /40KΩ /400KΩ (Ohm), Resolution: 0.001/0.01/0.1 (Ohm), Accuracy: ±(1.2% + 5 digits)
Resistance (Accuracy): Range: 4MΩ /40MΩ (Ohm), Resolution: 0.001M/0.01M (Ohm), Accuracy: ±(2% + 5 digits)
Temperature (Accuracy): NO
Capacitance (Accuracy): NO
Duty Cycle: NO
Continuity: YES
Diode Test: NO
Backlit/Torch: YES
Transistor Test: NO
Hi-Impact Rubber Case: YES
Digits x Height: 4 x 16mm
Low Battery Indicator: YES
Battery: 2 x 1.5V AAA (supplied)
Information: Data-Hold, Auto-Power-Off & Live Test
Size ( L x W x D): 142 x 92 x 38mm
Nett Weight: 0.156kg
Conformity: EN 61010-2
Brand: Sealey
Nett Weight: 0.156kg
DC Voltage (Accuracy): Range: 4/40/400/600V, Resolution: 0.001/0.01/0.01/1V, Accuracy: ± (1% + 3 digits/ 1% + 3 digits)
AC Voltage (Accuracy): Range: 4/40/400/600V, Resolution: 0.001/0.01/0.01/1V, Accuracy ±(1.2% +5 digits/1.5% + 10 digits)
DC Current (Accuracy): Range: 400mA, Resolution: 0.1mA, Accuracy: ± (1.2% reading + 3 digits)
AC Current (Accuracy): Range: 400mA, Resolution: 0.1mA, Accuracy: ±(1.5% + 3 digits)
Resistance (Accuracy): 4KΩ /40KΩ /400KΩ (Ohm), Resolution: 0.001/0.01/0.1 (Ohm), Accuracy: ±(1.2% + 5 digits)
Resistance (Accuracy): Range: 4MΩ /40MΩ (Ohm), Resolution: 0.001M/0.01M (Ohm), Accuracy: ±(2% + 5 digits)
Temperature (Accuracy): NO
Capacitance (Accuracy): NO
Duty Cycle: NO
Continuity: YES
Diode Test: NO
Backlit/Torch: YES
Transistor Test: NO
Hi-Impact Rubber Case: YES
Digits x Height: 4 x 16mm
Low Battery Indicator: YES
Battery: 2 x 1.5V AAA (supplied)
Information: Data-Hold, Auto-Power-Off & Live Test
Size ( L x W x D): 142 x 92 x 38mm
Nett Weight: 0.156kg
Conformity: EN 61010-2
