Home > Hardware / Consumables > Auto Electrical > Sealey - MM03 - Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function
Sealey - MM03 - Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function
SKU: MM03
Part Number: MM03
Barcode: 5054630584084
Country of Origin: CHN
Weight: 37 g
Our Price
£33.36 (inc VAT) £27.80 (ex VAT)
RRP £47.94 £39.95
Save
£14.58
£12.15
Out of stock
1 year Warranty included.
Description

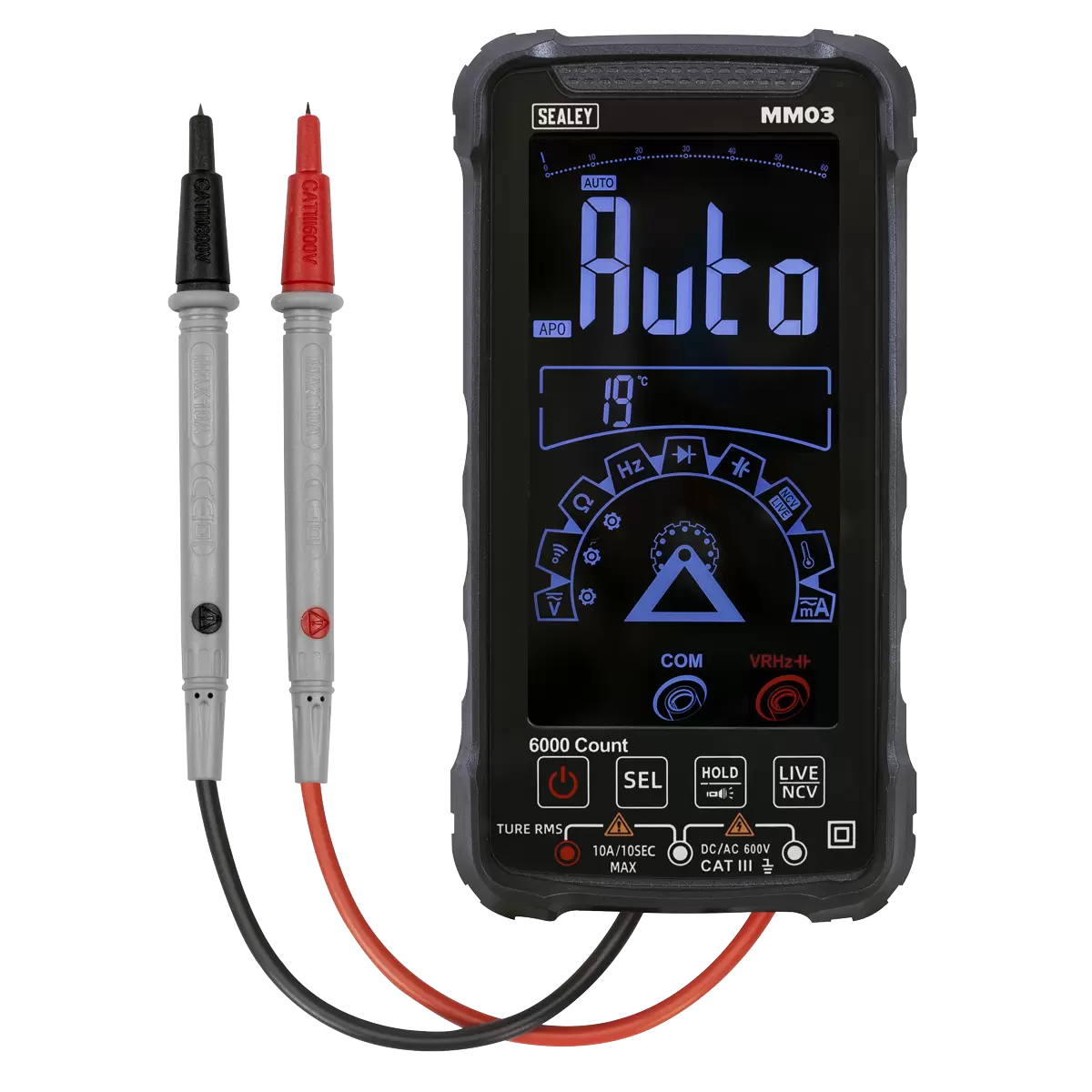

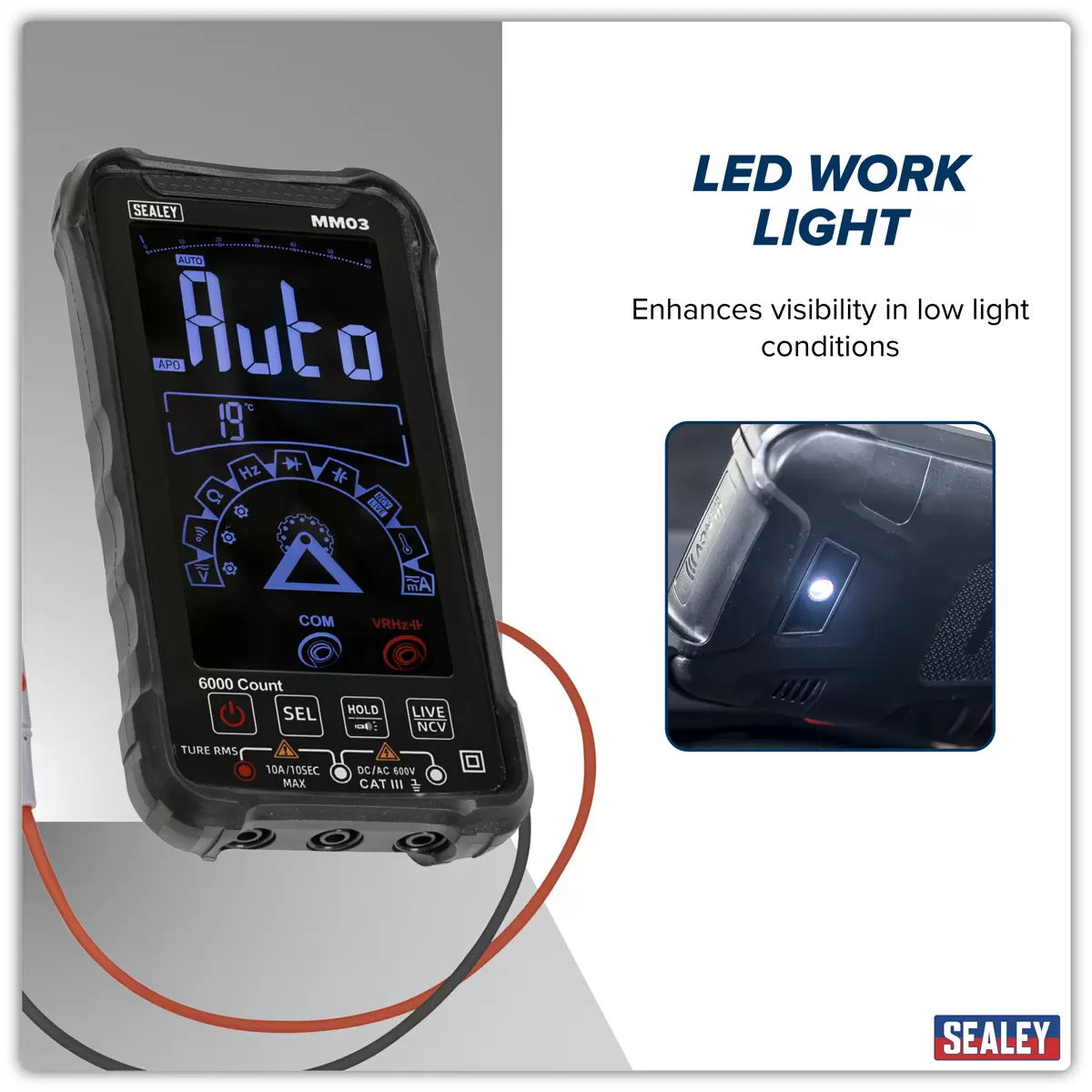

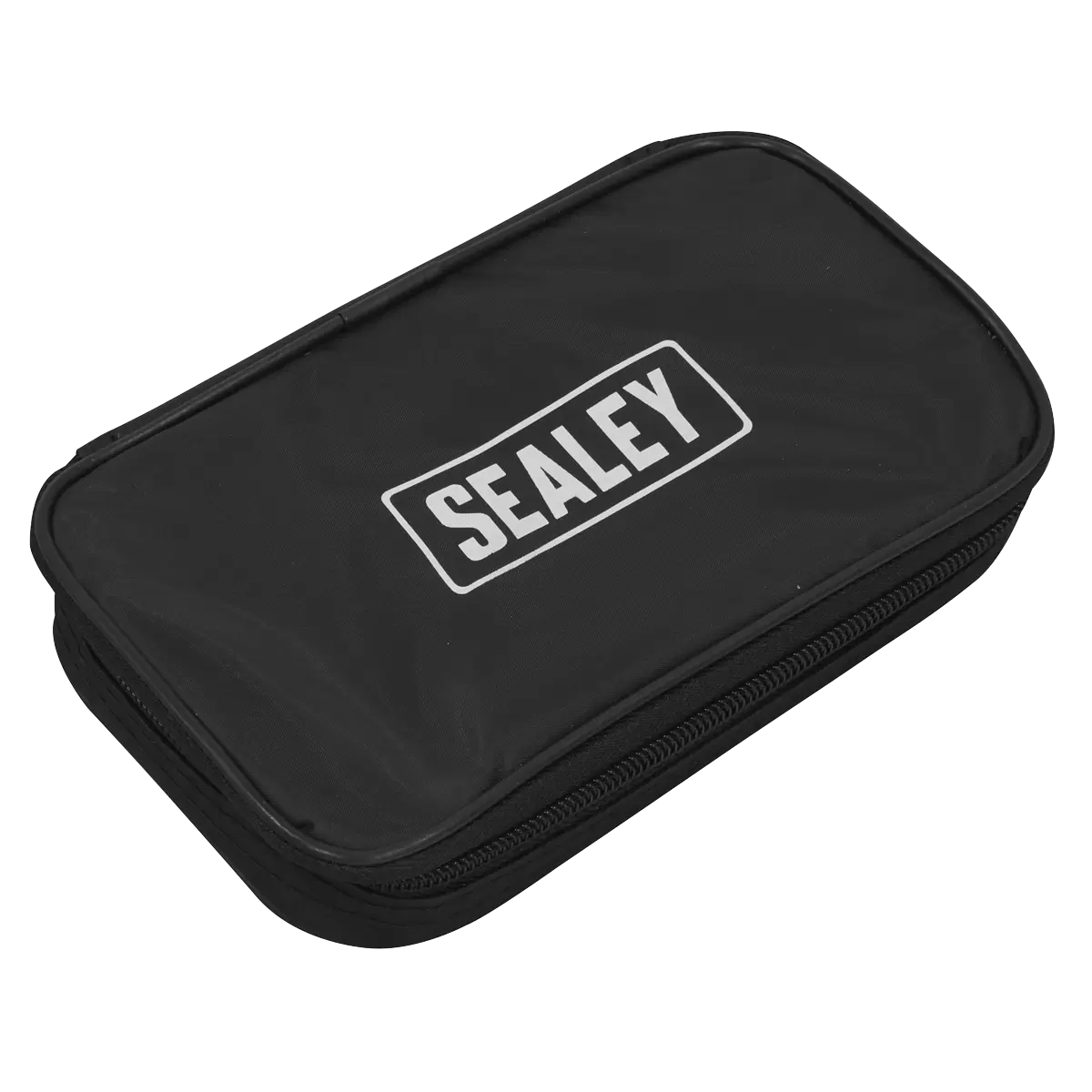

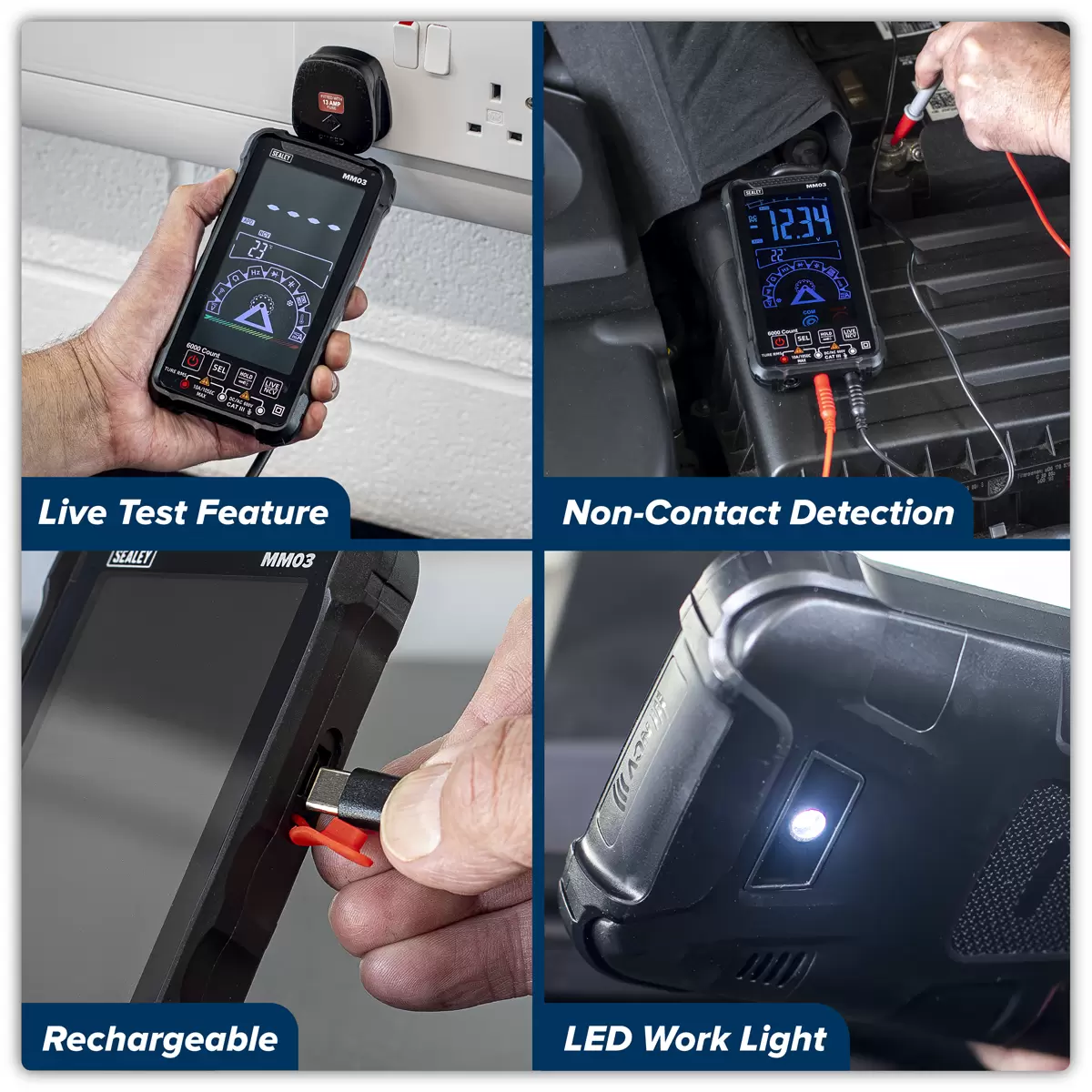

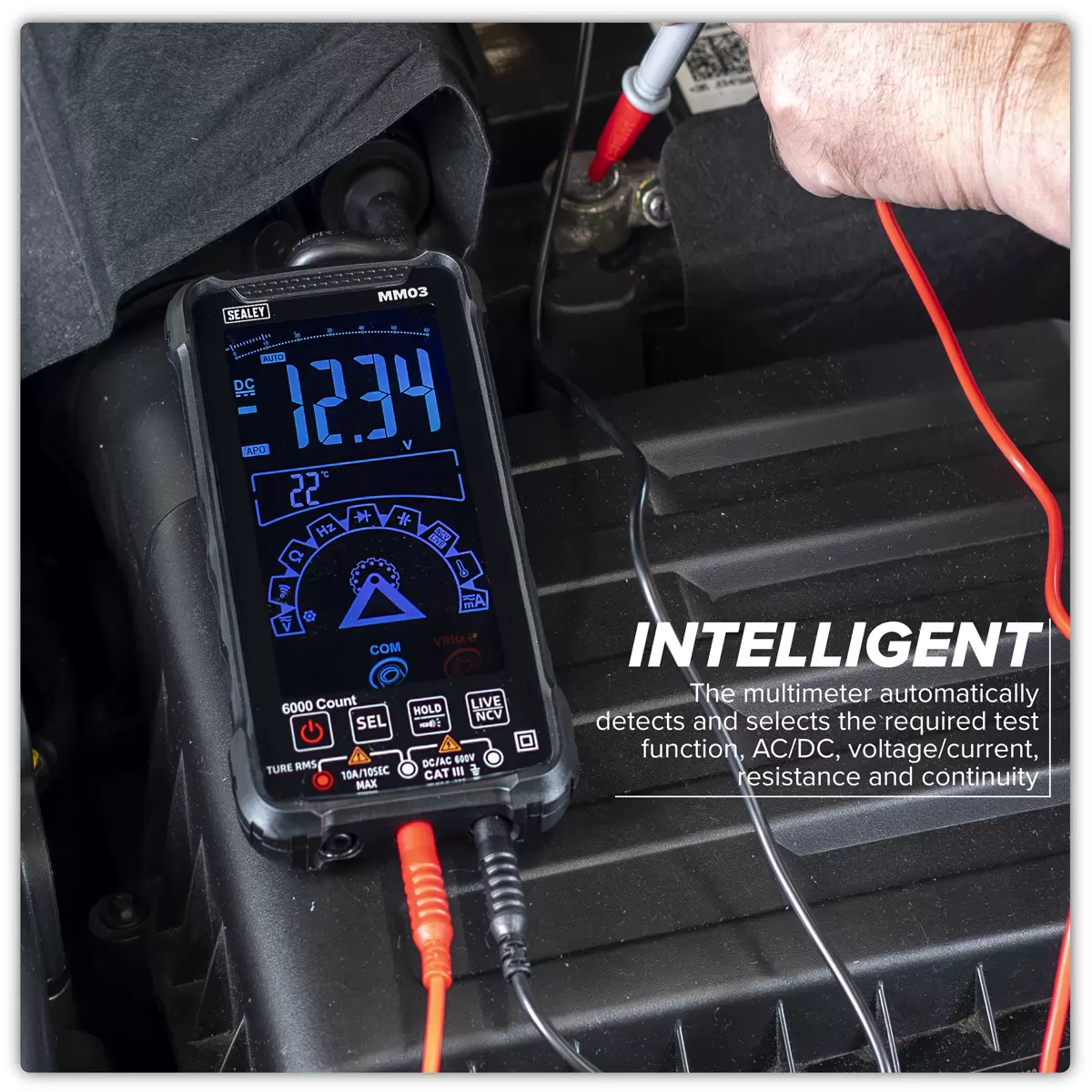

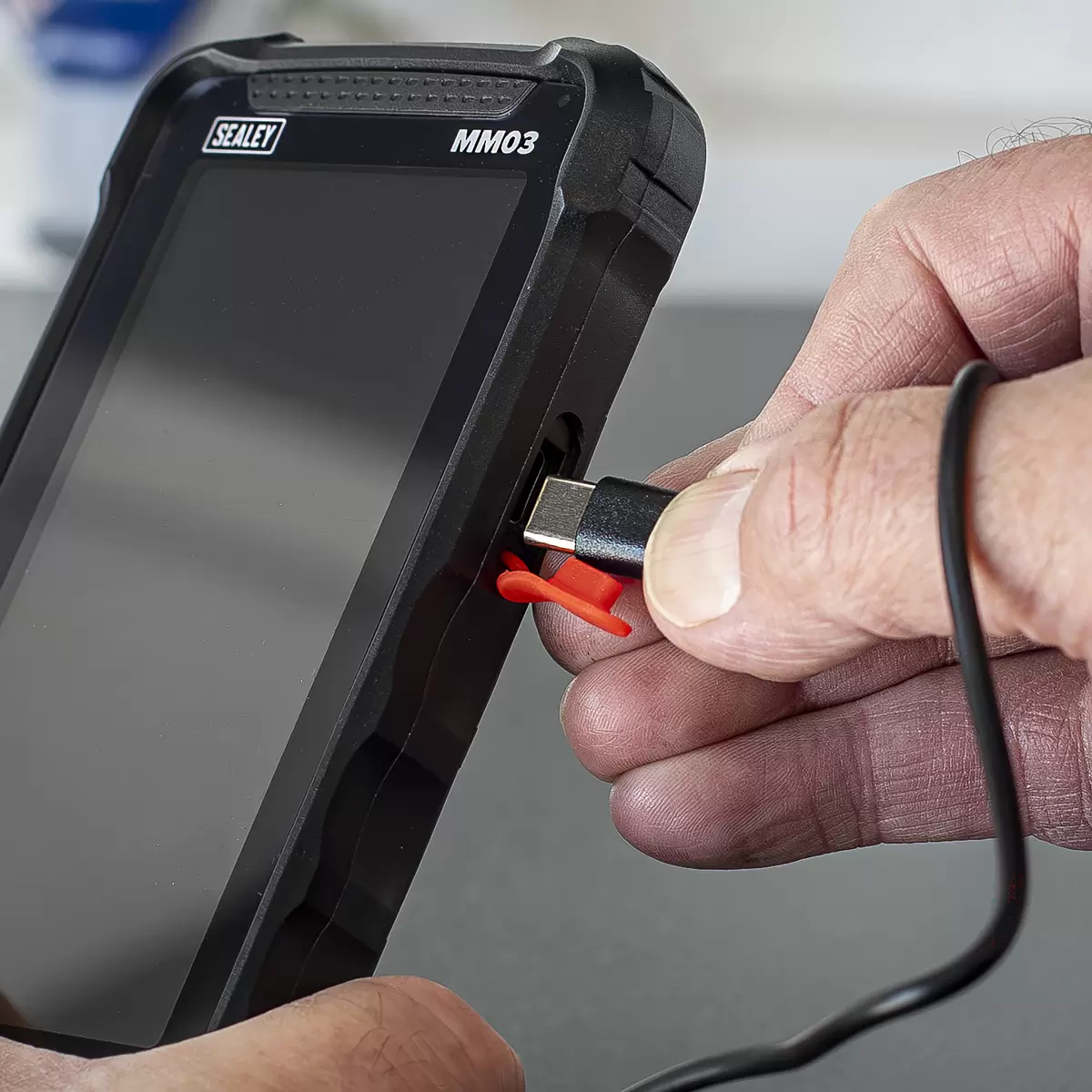

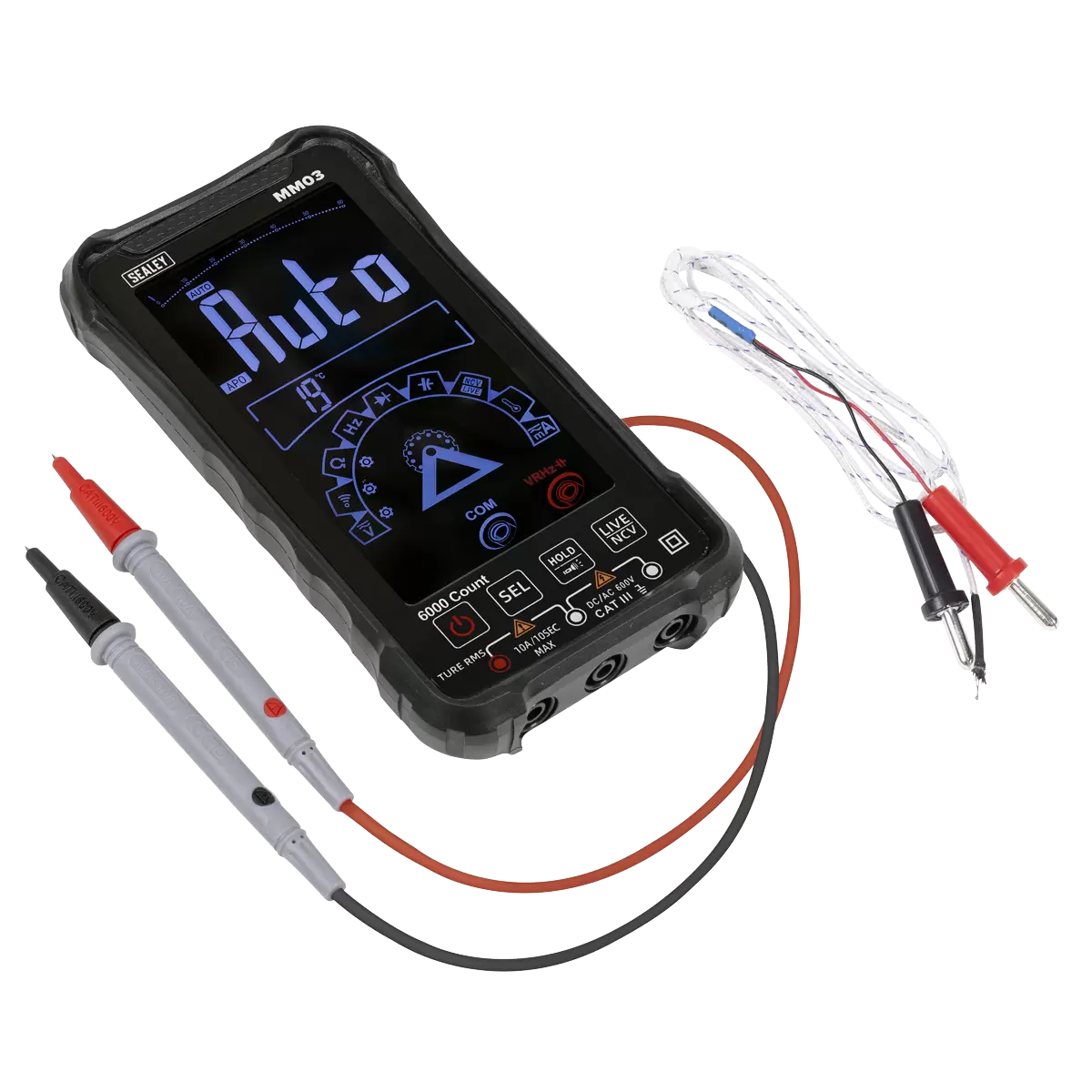

Intelligent multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity. Features temperature measurement capability, data-hold and auto-power-off function. Non-contact voltage detection (NCVD) enables one-handed use. 6000 Count high precision measurements. Live test feature can test for live feeds with a single probe. Large LCD touchscreen and LED worklight. Rechargeable, supplied with Type-C USB charging cable. Includes probes and thermocouple probe. High-impact case. Supplied in a storage case. Conforms to EN 61010-2 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
Features
Model No MM03
Brand: Sealey
Nett Weight: 0.317kg
DC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
AC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
DC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(2.5% of reading +10 digits)
AC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(3% +10 digits)
Resistance (Accuracy): Range: 600/6k/60/600k (Ohm), Resolution: 0.1/1/0.01k/0.1k (Ohm), Accuracy: =-(1.2% +3 digits)
Resistance: Range: 6M/60M (Ohm), Resolution: 0.001M/0.01M(Ohm), Accuracy: =-(2% +5 digits)
Capacitance (Accuracy): Range: 6/60/600nF, 6/60/600uF, 60mF, Resolution: 0.001/0.01/0.1nF, 0.001/0.01/0.1uF, 0.001mF, Accuracy: =(4.5% +5 digits)
Frequency (Accuracy): Range: 6/60/600Hz, 6/60/600kHz, 6MHz, Resolution: 0.001/0.01/0.1Hz, 0.001/0.01/0.1kHz, 1kHz, Accuracy: =-(0.1% +3 digits)
Temperature (Accuracy): Range: -200°C to 1200°C -328°F to 2192°F, Resolution: 1°C, Accuracy: =-(5/1/2% + 4/3/5 digits)
Auto Range: YES
Auto Scan: V/R/CONT
Duty Cycle: NO
Continuity Audible: YES
Diode Test: YES
Backlit/Torch: YES
Transistor Test: NO
Hi-Impact Rubber Case: YES
Digits x Height: 4 x 23mm
Low Battery Indicator: YES
Battery: Rechargeable 3.7V Li-ion
Information: Data-Hold, Auto-Power-Off, Integral Stand & Live Test
Size: 158 x 82 x 23mm
Nett Weight: 0.317kg
Conformity: EN 61010-2
Brand: Sealey
Nett Weight: 0.317kg
DC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
AC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
DC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(2.5% of reading +10 digits)
AC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(3% +10 digits)
Resistance (Accuracy): Range: 600/6k/60/600k (Ohm), Resolution: 0.1/1/0.01k/0.1k (Ohm), Accuracy: =-(1.2% +3 digits)
Resistance: Range: 6M/60M (Ohm), Resolution: 0.001M/0.01M(Ohm), Accuracy: =-(2% +5 digits)
Capacitance (Accuracy): Range: 6/60/600nF, 6/60/600uF, 60mF, Resolution: 0.001/0.01/0.1nF, 0.001/0.01/0.1uF, 0.001mF, Accuracy: =(4.5% +5 digits)
Frequency (Accuracy): Range: 6/60/600Hz, 6/60/600kHz, 6MHz, Resolution: 0.001/0.01/0.1Hz, 0.001/0.01/0.1kHz, 1kHz, Accuracy: =-(0.1% +3 digits)
Temperature (Accuracy): Range: -200°C to 1200°C -328°F to 2192°F, Resolution: 1°C, Accuracy: =-(5/1/2% + 4/3/5 digits)
Auto Range: YES
Auto Scan: V/R/CONT
Duty Cycle: NO
Continuity Audible: YES
Diode Test: YES
Backlit/Torch: YES
Transistor Test: NO
Hi-Impact Rubber Case: YES
Digits x Height: 4 x 23mm
Low Battery Indicator: YES
Battery: Rechargeable 3.7V Li-ion
Information: Data-Hold, Auto-Power-Off, Integral Stand & Live Test
Size: 158 x 82 x 23mm
Nett Weight: 0.317kg
Conformity: EN 61010-2
