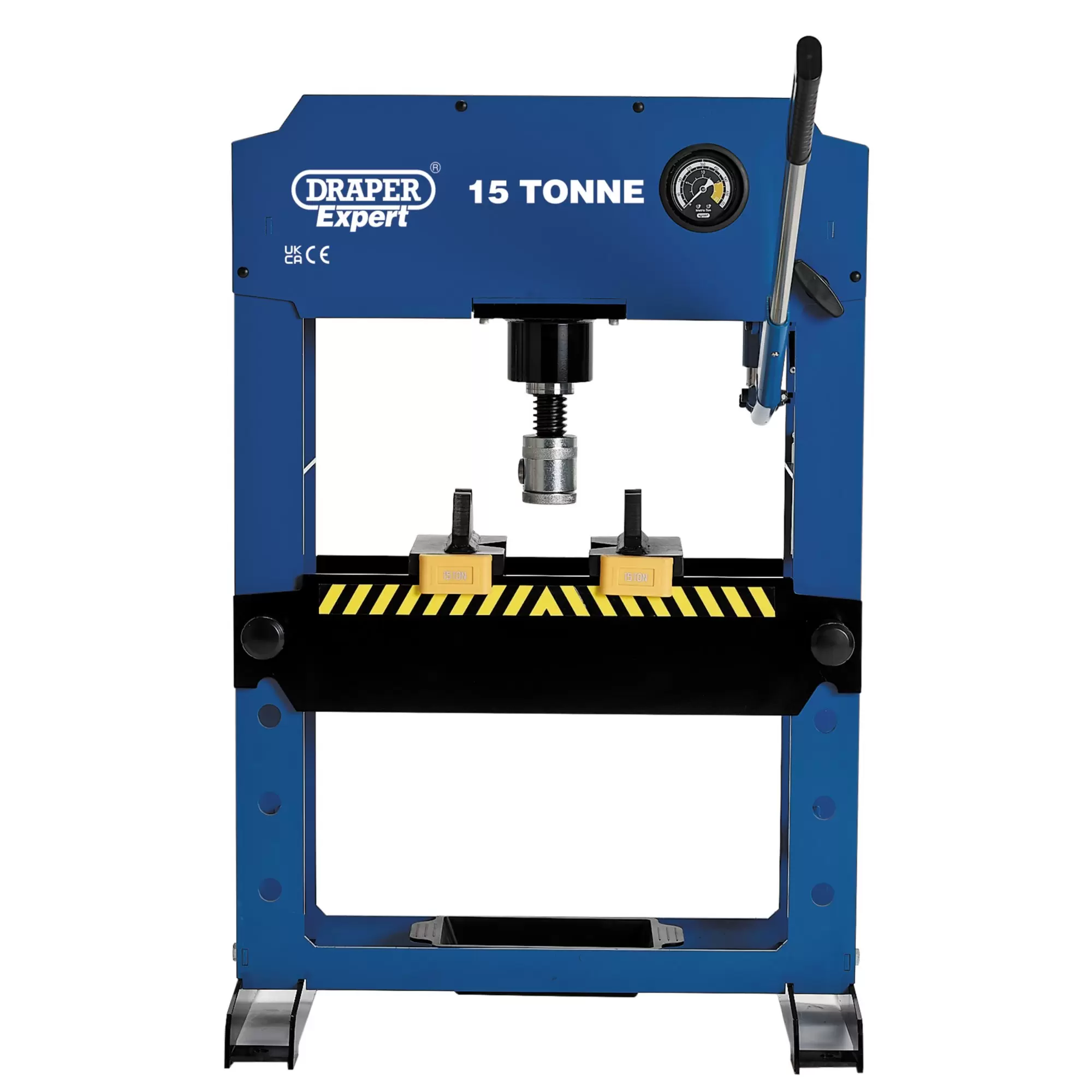

Draper Tools - 70563 - Draper Expert Hydraulic Bench Press, 15 Tonne

Robust hydraulic 15 tonne bench press with hand pump for manual hydraulic operation. There are eight adjustable table heights with a working range between 45-385mm. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.

Capacity 15 Tonne
Gauge diameter 60mm
Ram stroke 170mm
Ram diameter 50mm
Table height 45-385mm
Press pin capacity 2-15 Tonnes
Overall height 855mm
Frame dimensions (H) 810 x (W) 440 x (D) 134mm
Weight (net) 56kg
