Home > Handtools > Automotive & Service Tools > Laser - 9243 - Injector Puller Adaptor - Bosch CR Solenoid
Laser - 9243 - Injector Puller Adaptor - Bosch CR Solenoid
SKU: LAS9243
Part Number: 9243
Barcode: 5018341092436
Country of Origin: Taiwan Province of China
Weight: 81 g
Our Price
£95.46 (inc VAT) £79.55 (ex VAT)
RRP £121.92 £101.60
Save
£26.46
£22.05
Description

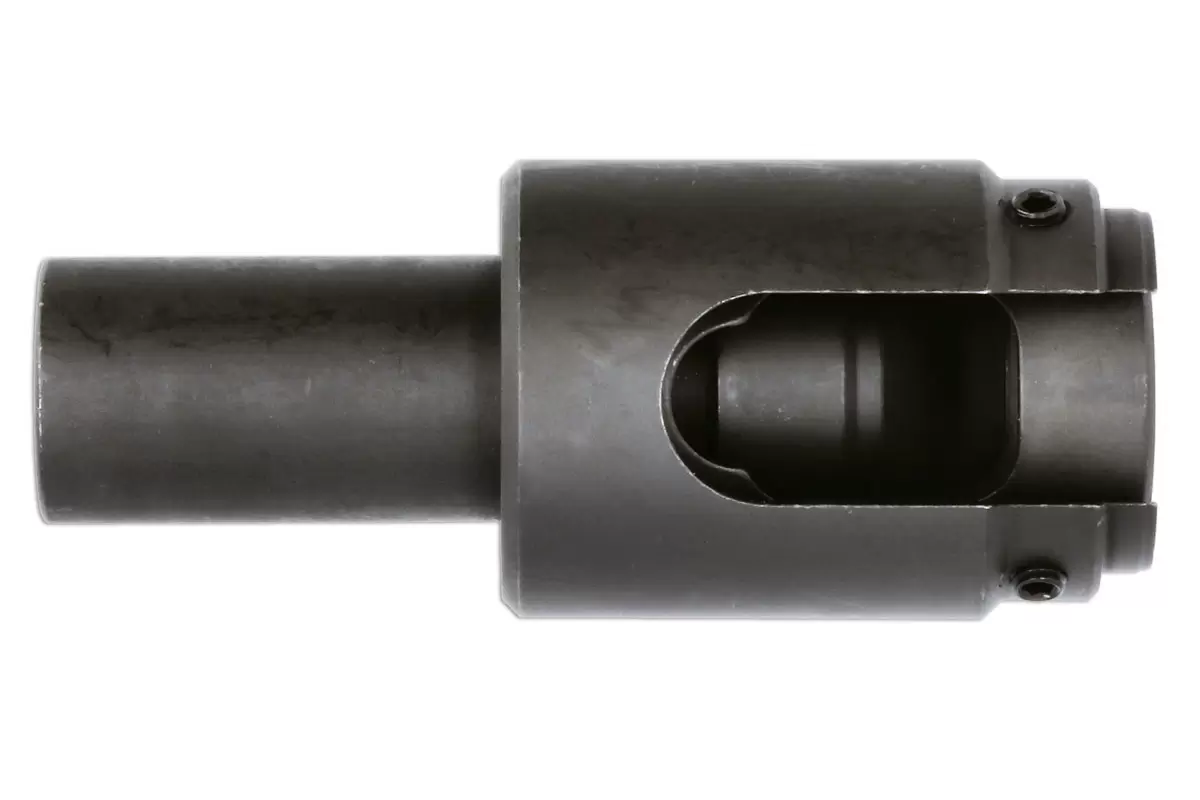

Injector Puller Adaptor - Bosch CR Solenoid
Features

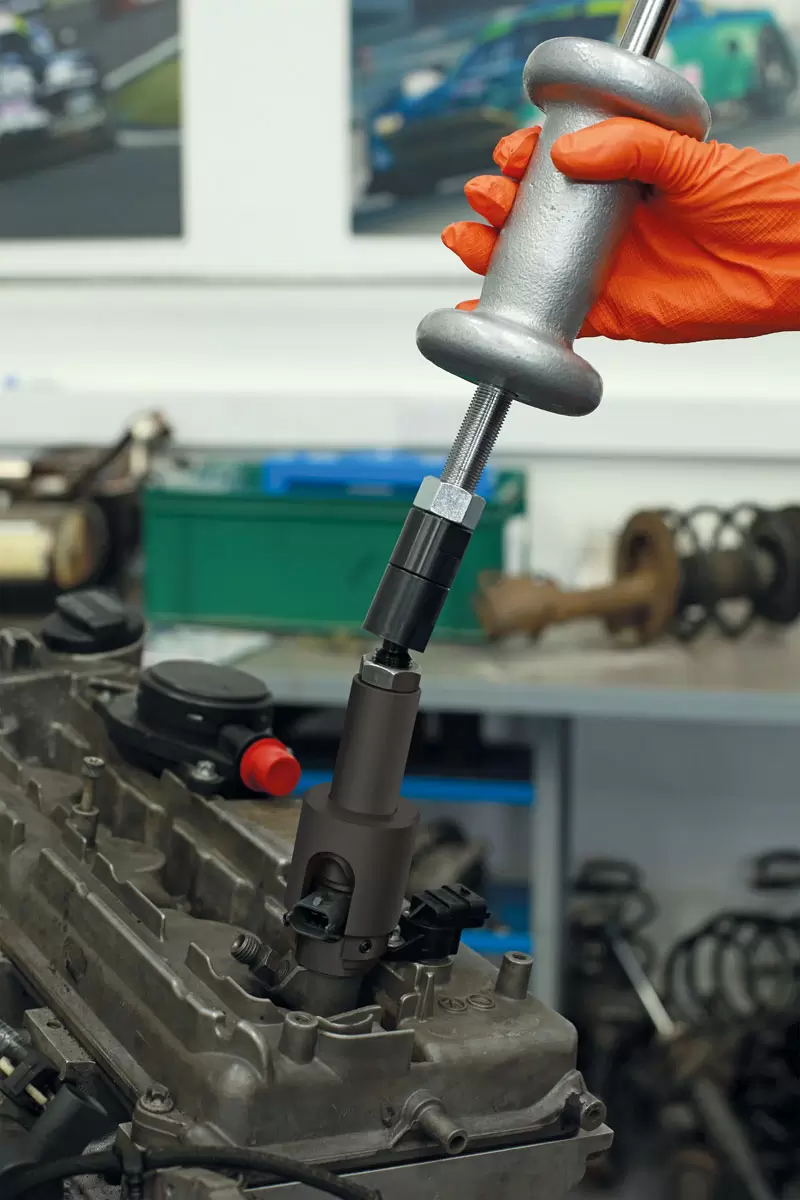

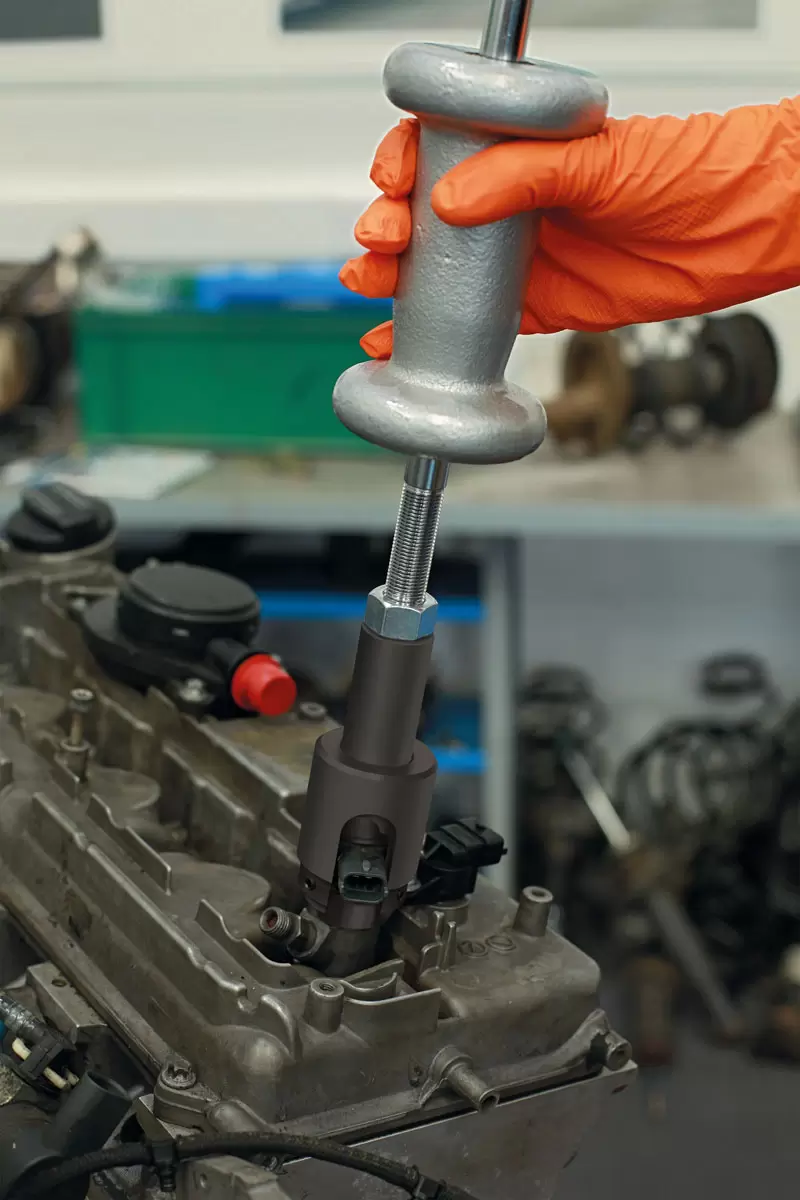

An injector extractor adaptor to allow the Bosch solenoid style injectors to be extracted using any 5/8" UNF threaded slide hammer or pneumatic extractor.
Specification
- Mounts directly onto the top of the injector, no disassembly of the injector required.
- Simple to assemble. Clamping force is secured using 4x 3mm grub screws (3mm hex key included).
- Use with a slide hammer with an 5/8" UNF thread. Please see Laser Part No. 5850 for 2.2kg (5lb) slide hammer or Part No. 4811 for 4.4kg (10lb) slide hammer.

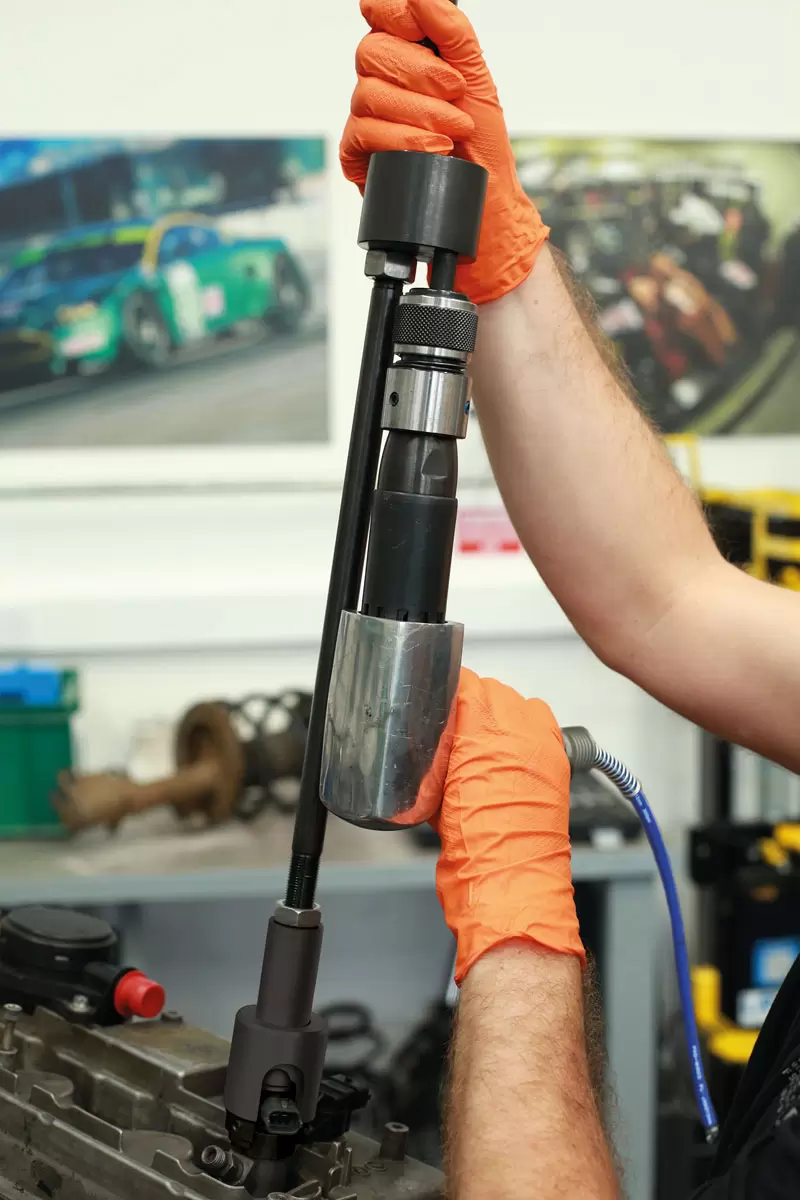

- Can be used with pneumatic extraction system, see Laser Part Nos. 6264, 6092, 6031 & 8727.
- For difficult access where an angled approach is required, please see additional adaptor Laser Part No. 6123.
