Home > Handtools > Automotive & Service Tools > Laser - 9312 - Injector Removal Tool - for Vauxhall, Opel & MG Direct Injection Petrol
Laser - 9312 - Injector Removal Tool - for Vauxhall, Opel & MG Direct Injection Petrol
SKU: LAS9312
Part Number: 9312
Barcode: 5018341093129
Country of Origin: Taiwan Province of China
Weight: 16 g
Our Price
£32.48 (inc VAT) £27.07 (ex VAT)
RRP £38.70 £32.25
Save
£6.22
£5.18
Description
The late-model 1.0L and 1.4L direct injection petrol engines used across the Vauxhall, Opel, and MG ranges feature a small, centrally mounted fuel injector.
Features

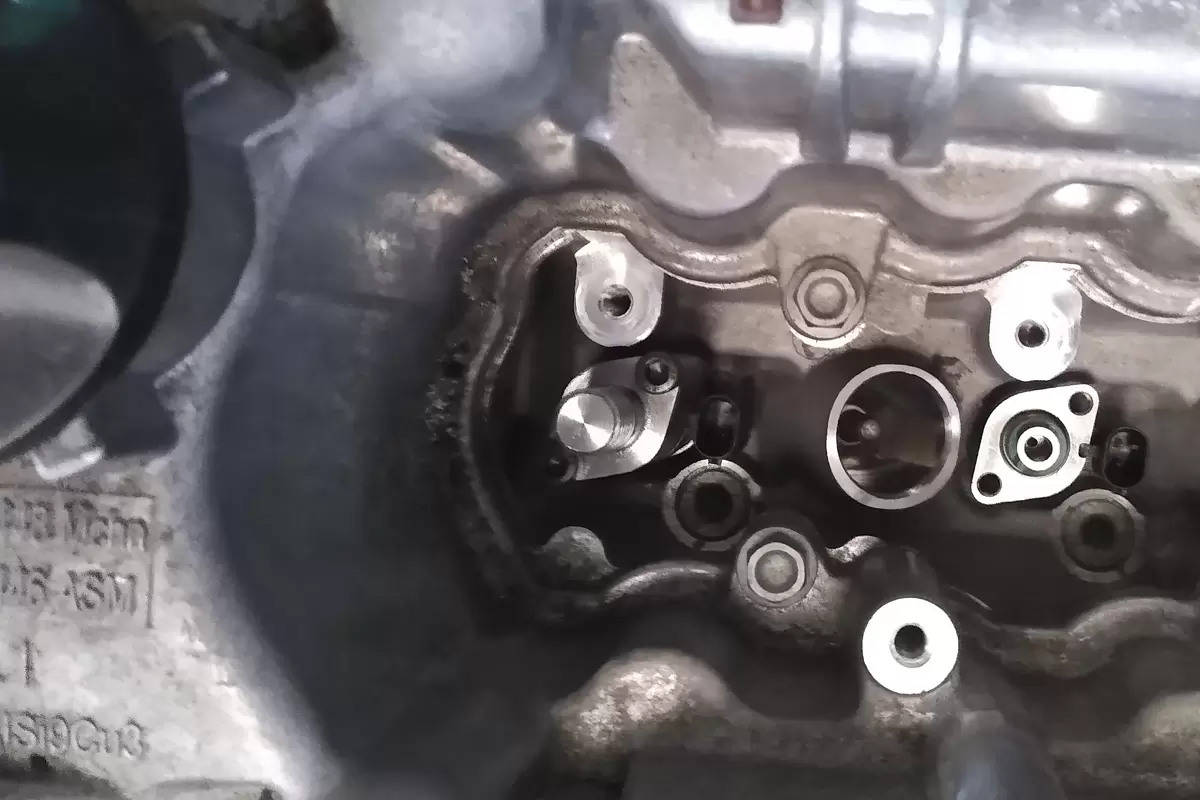

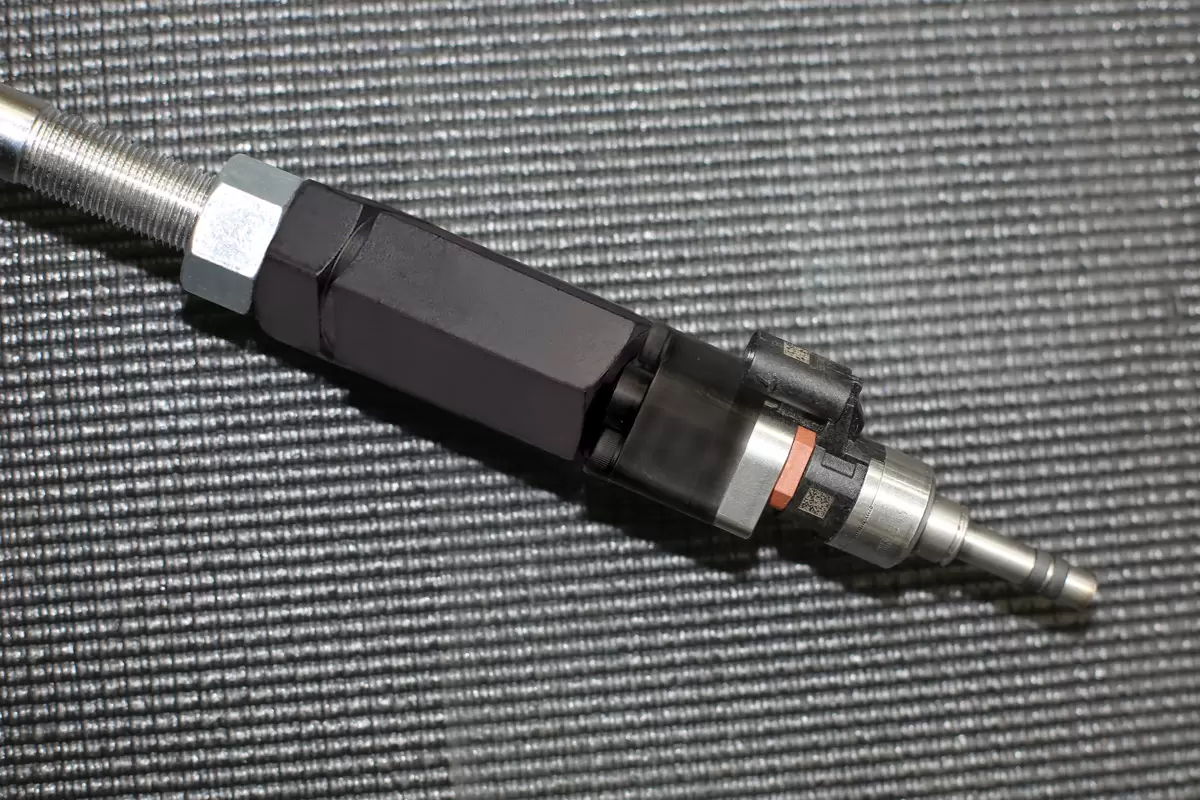

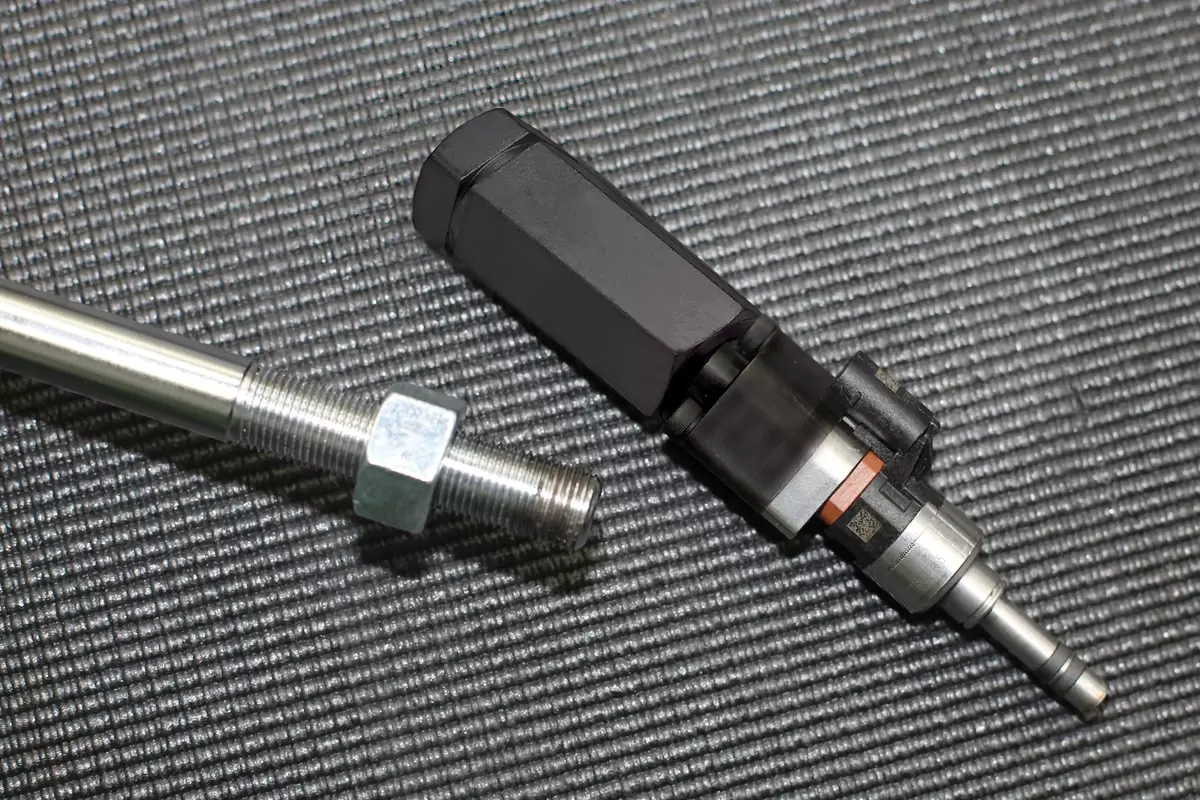

These injectors are positioned low between the camshafts and in line with the spark plugs. It has become apparent that removing these injectors requires significant force. The most efficient method is to use an appropriately sized slide hammer and adaptor. The Laser 9312 Injector Removal Adaptor is specifically designed to bolt directly to the injector’s fuel rail mounting, allowing the attachment of a 5/8" UNF threaded slide hammer, such as the Laser 2.2kg Slide Hammer (available separately, Part No. 5850). NOTE: The injectors are angled toward the front of the engine and must be pulled at the same angle to avoid bending.
Specification
- Petrol injector 5/8" UNF slide hammer adaptor.
- Applications include: MG ZS (2017 - 2021), Vauxhall/Opel Adam (2016 - 2020), Astra K (2015 - 2019), Corsa E (2015 - 2020) & Mokka X (2018 - 2020).
- Engine code applications include: 1.0L LE1/B10, 1.4L LDD/D14XEL, D14XER, LE2/D14XFL, D14XFT, LUJ/D14NE, D14NEH, D14NEJ, LUJ/D14NEL & 1.5L 15E4E.
- Manufactured from carbon steel, with a black phosphate finish & alloy steel screws.
- Designed to bolt directly to the 2-bolt fuel pipe mounting plate & used with a 5/8" threaded slide hammer, such as Laser Part No. 5850. Equivalent to OEM TEN00140.
Downloads
Description
The late-model 1.0L and 1.4L direct injection petrol engines used across the Vauxhall, Opel, and MG ranges feature a small, centrally mounted fuel injector.
Features
These injectors are positioned low between the camshafts and in line with the spark plugs. It has become apparent that removing these injectors requires significant force. The most efficient method is to use an appropriately sized slide hammer and adaptor. The Laser 9312 Injector Removal Adaptor is specifically designed to bolt directly to the injector’s fuel rail mounting, allowing the attachment of a 5/8" UNF threaded slide hammer, such as the Laser 2.2kg Slide Hammer (available separately, Part No. 5850). NOTE: The injectors are angled toward the front of the engine and must be pulled at the same angle to avoid bending.
Specification
- Petrol injector 5/8" UNF slide hammer adaptor.
- Applications include: MG ZS (2017 - 2021), Vauxhall/Opel Adam (2016 - 2020), Astra K (2015 - 2019), Corsa E (2015 - 2020) & Mokka X (2018 - 2020).
- Engine code applications include: 1.0L LE1/B10, 1.4L LDD/D14XEL, D14XER, LE2/D14XFL, D14XFT, LUJ/D14NE, D14NEH, D14NEJ, LUJ/D14NEL & 1.5L 15E4E.
- Manufactured from carbon steel, with a black phosphate finish & alloy steel screws.
- Designed to bolt directly to the 2-bolt fuel pipe mounting plate & used with a 5/8" threaded slide hammer, such as Laser Part No. 5850. Equivalent to OEM TEN00140.
