SIP - 08258 - VSDD 5.5kW 8bar 200ltr 400v Rotary Screw Compressor
SKU: SIP08258
Part Number: 08258
Barcode: 5012713082582
Country of Origin: CN
Weight: 254.00 Kg
Our Price
£3,525.11 (inc VAT) £2,937.59 (ex VAT)
RRP £4,079.99 £3,399.99
Save
£554.88
£462.40
Out of stock
SIP 2-YEAR Warranty included.
Description

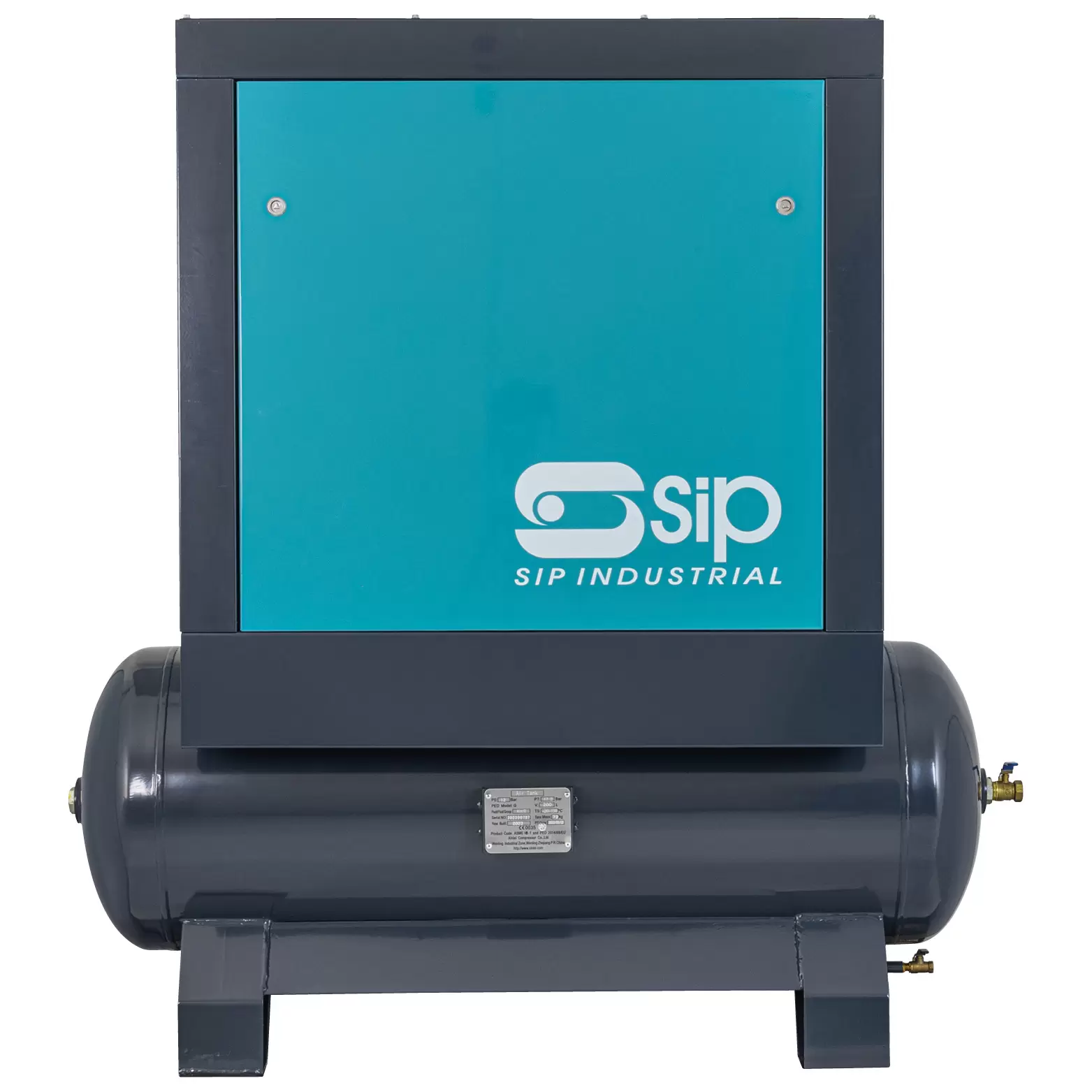

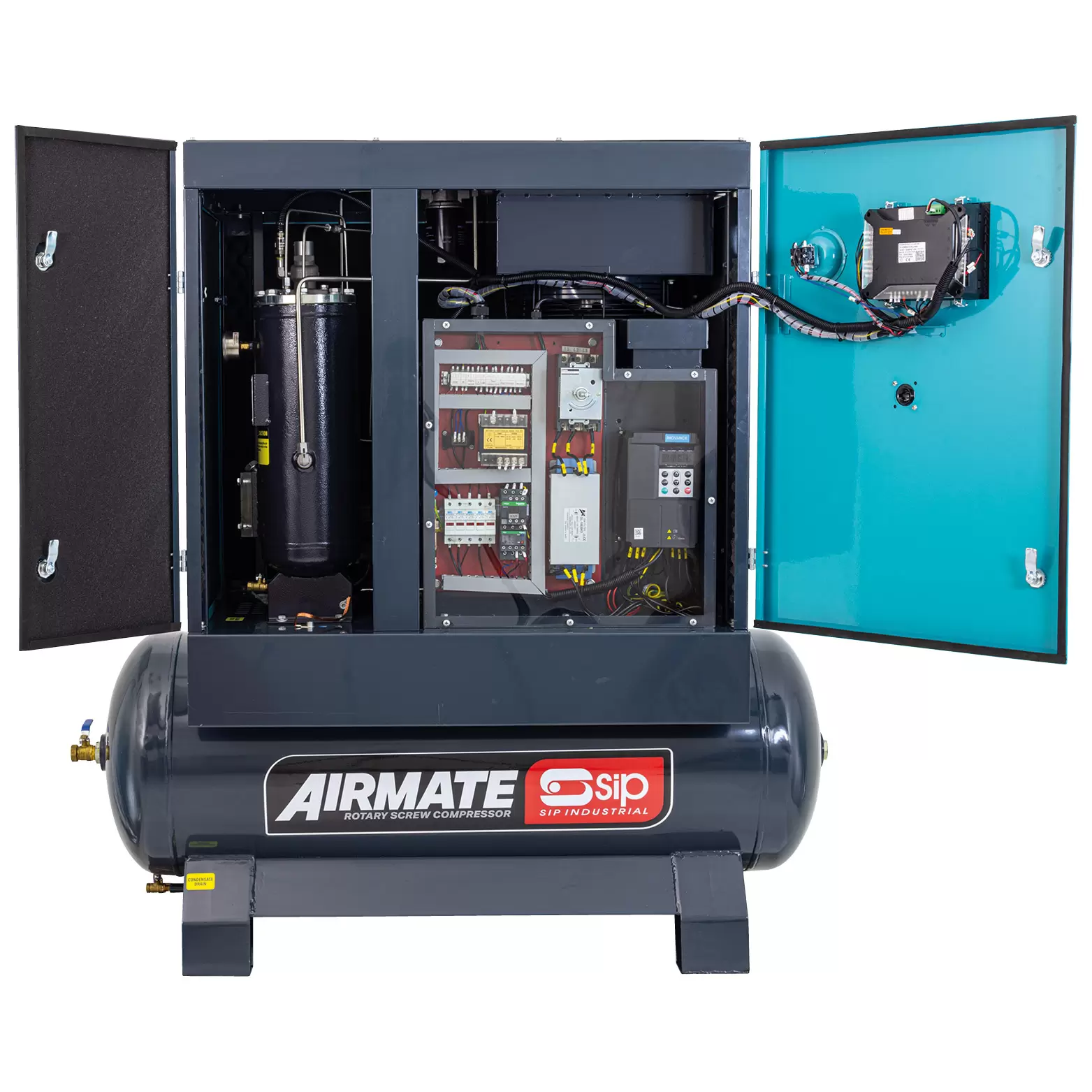

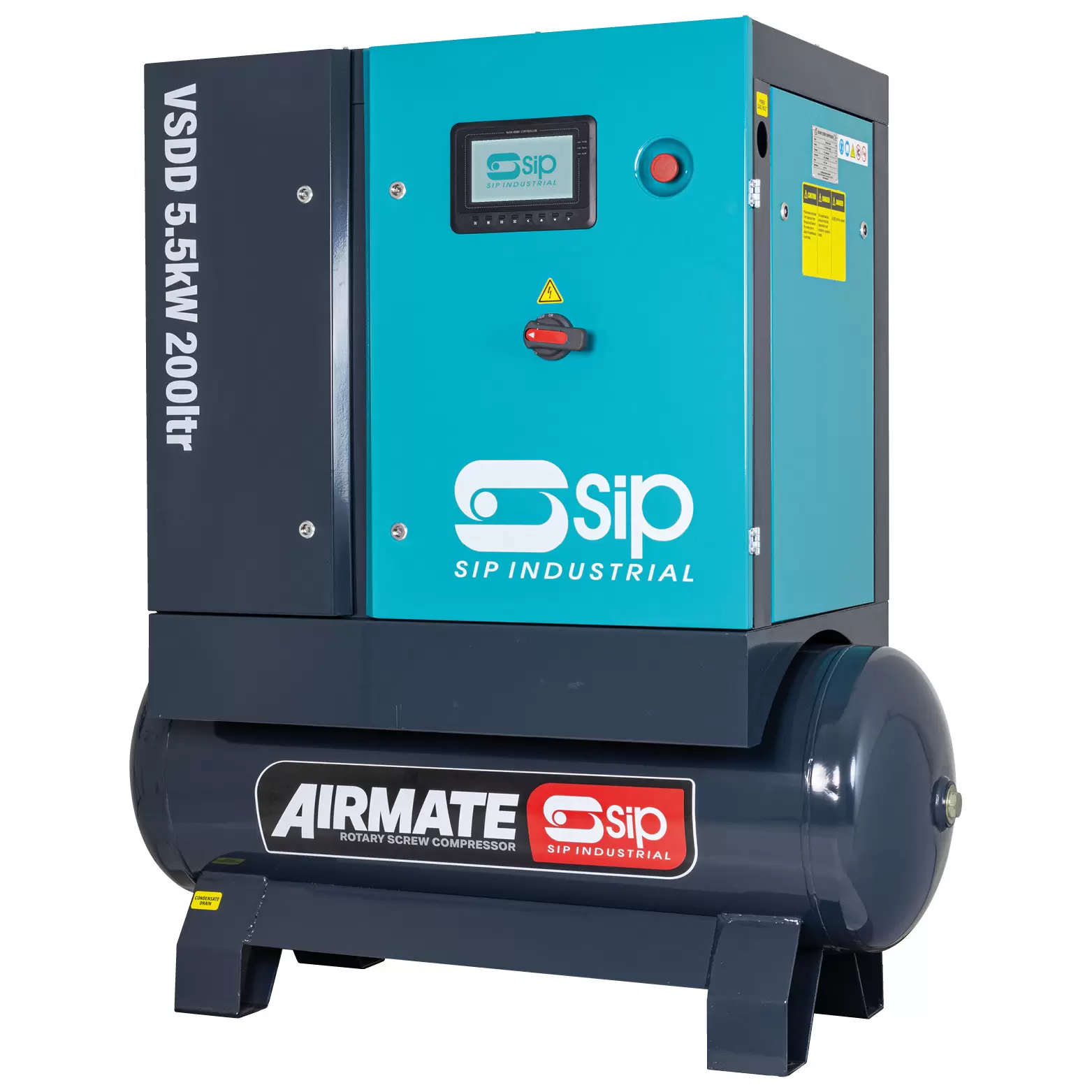

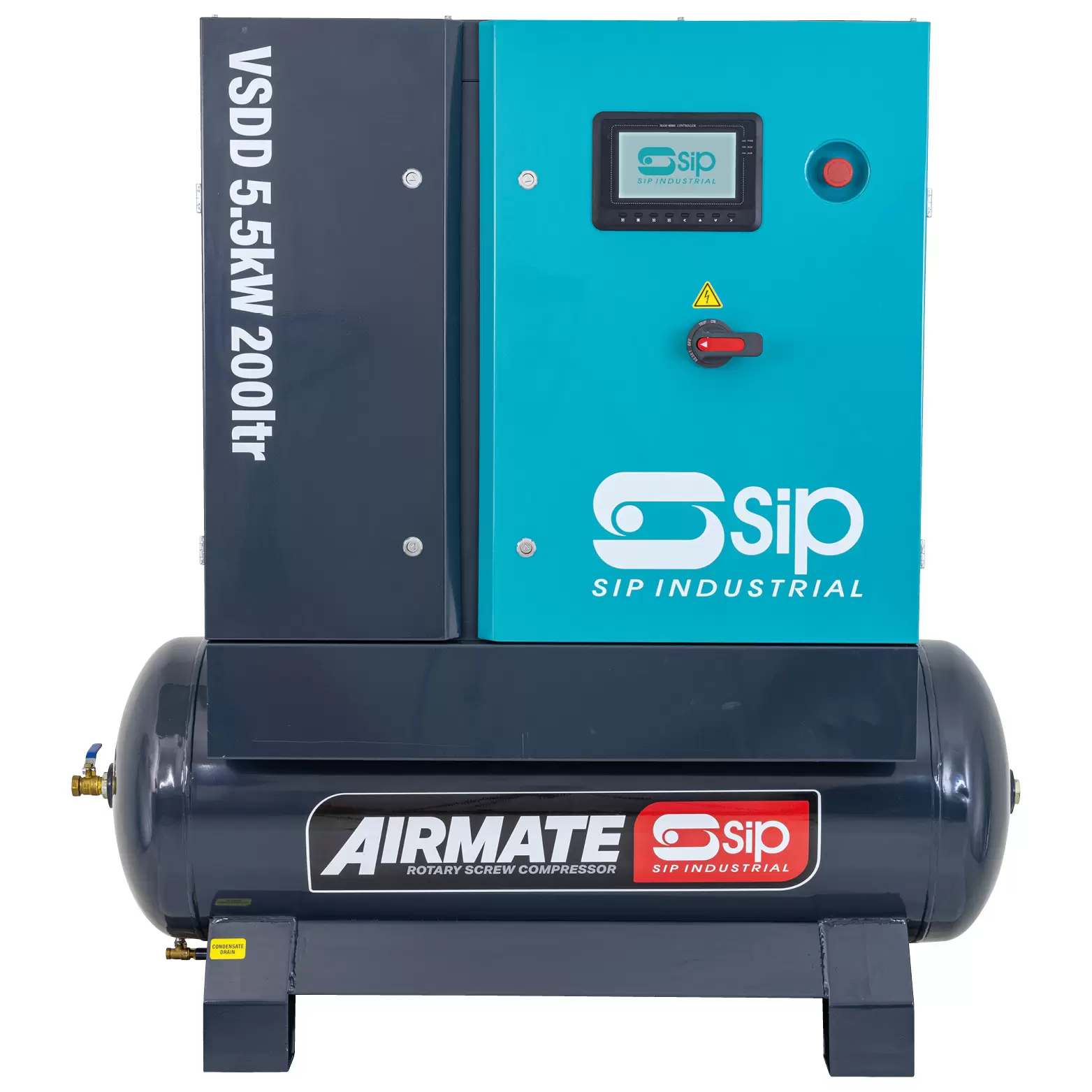

The SIP VSDD 5.5kW 8bar 200ltr 400v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor. This 4th generation compressor is designed for continuous use or where multiple operators require compressed air at one time.
With a motor output of 5.5kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 200ltr receiver tank.
Features
• Direct drive transmission for improved power transfer
• Variable speed 5.5kW motor delivers even power distribution
• Heavy-duty silenced cabinet ensures reduced noise operation

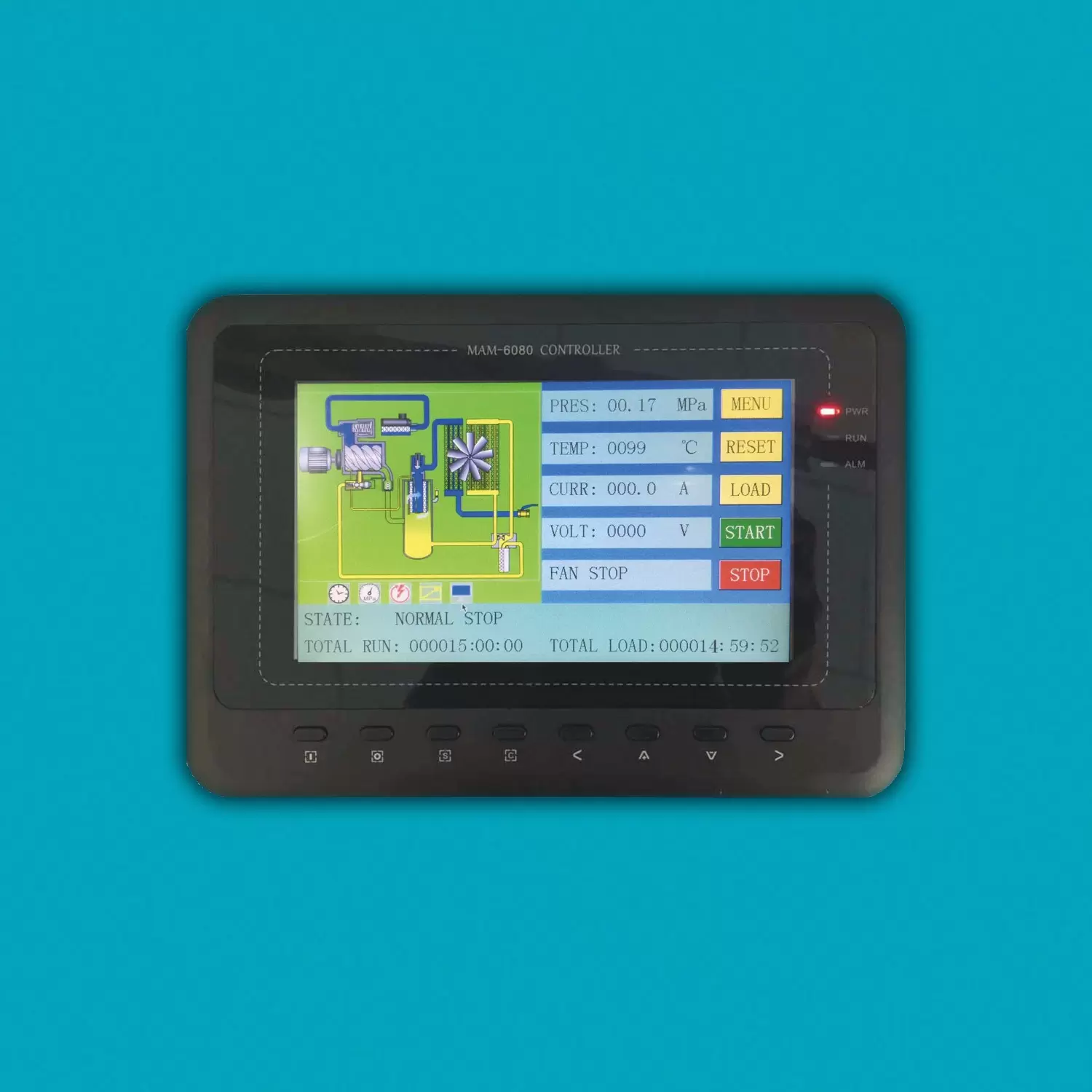

• Colour touchscreen for real-time diagnostic information
• All-in-one design minimises lost work area space
• Variable speed 5.5kW motor delivers even power distribution
• Heavy-duty silenced cabinet ensures reduced noise operation
• Colour touchscreen for real-time diagnostic information
• All-in-one design minimises lost work area space
Specification
ITEM NO. 08258
Input Supply 400v (32A)
Rated Input: 7kW
Motor Power: 5.5kW (7hp)
IE4 Motor: Yes
Max. Pressure: 116psi (8bar)
Free Air Delivery (FAD): 25CFM (720ltr/min)
Receiver Size: 200ltr
Cooling Type: Fan Cooled
Transmission Type: Direct Drive
Start-Up Mode: Inverter Soft Start
Refrigerated Dryer: N/A
Outlet Connector: 3/4" BSPP
Noise Level: 62dB(A)
Workshopping Says
⚠️ Electrical Supply Required
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
