In stock
Home > Workshop Equipment > Compressors, Air Tools and Accessories > SIP - 08299 - Compressor Particulate & Oil Filtration System
SIP - 08299 - Compressor Particulate & Oil Filtration System
SKU: SIP08299
Part Number: 08299
Barcode: 5012713009787
Country of Origin: CN
Weight: 4.17 Kg
Our Price
£607.50 (inc VAT) £506.25 (ex VAT)
RRP £719.99 £599.99
Save
£112.49
£93.74
N/A Warranty included.
Description
The SIP Compressor Particulate & Oil Filtration System is designed to collect air particle contaminants including water droplets, oils, dirt and dust before powering air tools, air-powered equipment and ring main systems reliant on compressed air. This ensures a higher quality of compressed air is supplied and helps to extend service life.

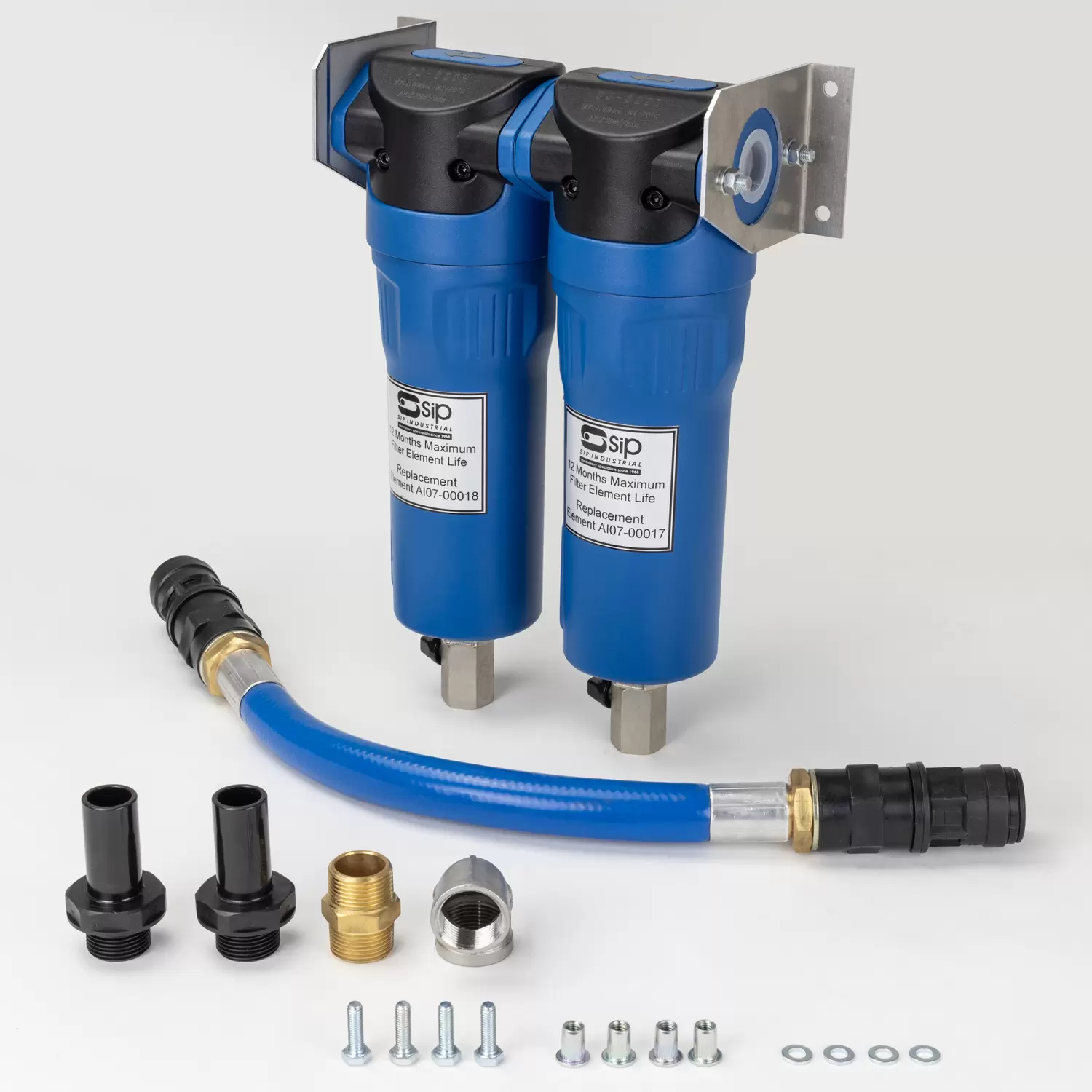

Consisting of a particulate filter, coalescing filter, adaptor and housing kit plus brackets and fixings, it can be fitted to the compressor or on walls. Compatible for the complete SIP VSDD Variable Speed and SIP RS Fixed Speed Rotary Screw Compressor ranges.
This system is designed to achieve air quality level 2-4-2 using ISO8573-1 as a reference standard, ensuring enhanced air purity when paired with a refrigerated dryer.
Features
• Collects air particle contaminants including water droplets, oils, dirt and dust
• Achieves air quality level 2-4-2 using ISO 8573-1 as reference if paired with dryer
• Includes particulate and coalescing filters, adaptor, housing kit, bracket, fixings
• Helps to extend the life of tools and machinery powered by compressed air
• Suitable for the SIP VSDD and SIP RS Rotary Screw Compressor ranges
• Achieves air quality level 2-4-2 using ISO 8573-1 as reference if paired with dryer
• Includes particulate and coalescing filters, adaptor, housing kit, bracket, fixings
• Helps to extend the life of tools and machinery powered by compressed air
• Suitable for the SIP VSDD and SIP RS Rotary Screw Compressor ranges
Specification
ITEM NO. 08299
Kit Contents: ≤ ⌀ 1µm particulate filter, 1x ≤ ⌀ 0.01µm coalescing filter, adaptor, housing kit, brackets, fixings
Air Quality Level: 2-4-2 (ISO 8573-1*)
Workshopping Says
Suitable for the complete SIP VSDD Variable Speed and SIP RS Fixed Speed Rotary Screw Compressor ranges. 1x ≤ ⌀ 1µm particulate filter, 1x ≤ ⌀ 0.01µm coalescing filter, adaptor, housing kit, brackets and fixing kit.
Description
The SIP Compressor Particulate & Oil Filtration System is designed to collect air particle contaminants including water droplets, oils, dirt and dust before powering air tools, air-powered equipment and ring main systems reliant on compressed air. This ensures a higher quality of compressed air is supplied and helps to extend service life.
Consisting of a particulate filter, coalescing filter, adaptor and housing kit plus brackets and fixings, it can be fitted to the compressor or on walls. Compatible for the complete SIP VSDD Variable Speed and SIP RS Fixed Speed Rotary Screw Compressor ranges.
This system is designed to achieve air quality level 2-4-2 using ISO8573-1 as a reference standard, ensuring enhanced air purity when paired with a refrigerated dryer.
Features
• Collects air particle contaminants including water droplets, oils, dirt and dust
• Achieves air quality level 2-4-2 using ISO 8573-1 as reference if paired with dryer
• Includes particulate and coalescing filters, adaptor, housing kit, bracket, fixings
• Helps to extend the life of tools and machinery powered by compressed air
• Suitable for the SIP VSDD and SIP RS Rotary Screw Compressor ranges
• Achieves air quality level 2-4-2 using ISO 8573-1 as reference if paired with dryer
• Includes particulate and coalescing filters, adaptor, housing kit, bracket, fixings
• Helps to extend the life of tools and machinery powered by compressed air
• Suitable for the SIP VSDD and SIP RS Rotary Screw Compressor ranges
Specification
ITEM NO. 08299
Kit Contents: ≤ ⌀ 1µm particulate filter, 1x ≤ ⌀ 0.01µm coalescing filter, adaptor, housing kit, brackets, fixings
Air Quality Level: 2-4-2 (ISO 8573-1*)
Workshopping Says
Suitable for the complete SIP VSDD Variable Speed and SIP RS Fixed Speed Rotary Screw Compressor ranges. 1x ≤ ⌀ 1µm particulate filter, 1x ≤ ⌀ 0.01µm coalescing filter, adaptor, housing kit, brackets and fixing kit.
