Evolution Power Tools - EVLR255TBL - R255TBL Portable Table Saw 240V 1650W
Our Price
£320.33 (inc VAT) £266.94 (ex VAT)
RRP £364.01 £303.34
Description
Features

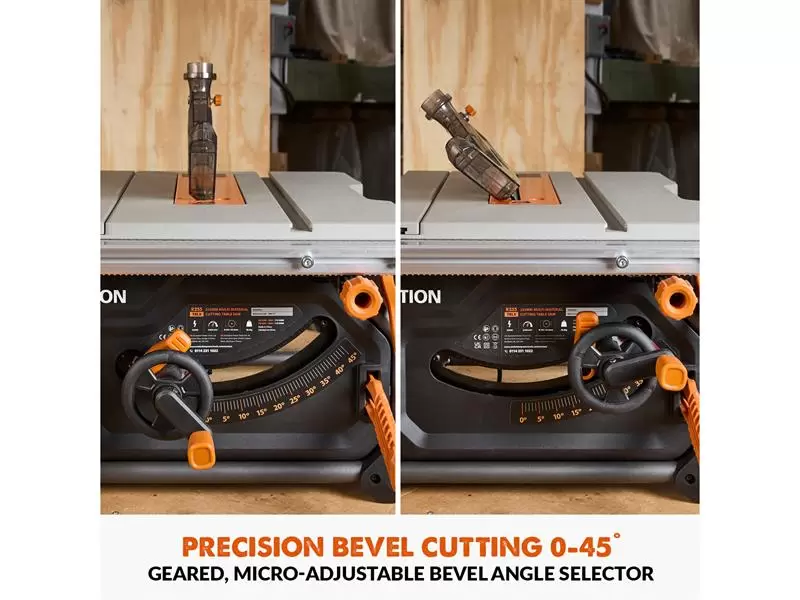

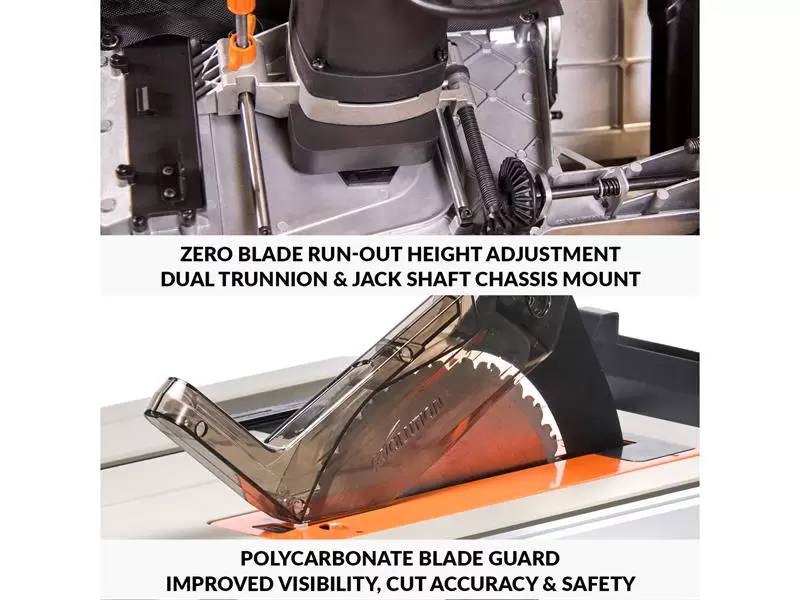

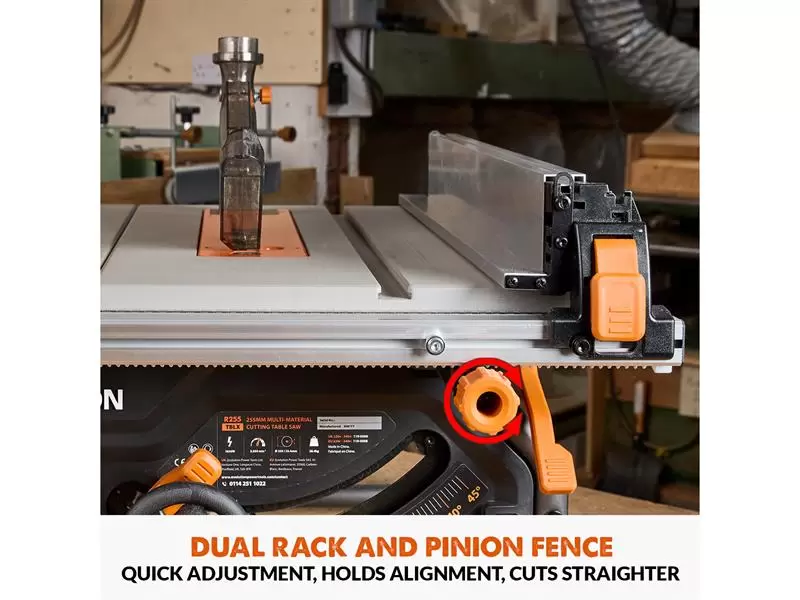

It features a dual rack & pinion rip-fence for accurate, repeatable cuts. A gear-driven blade height and angle adjustment mechanism makes repeat cuts easy and accurate. Our patented Blade-to-Rip-Fence Parallelism Adjustment allows for perfectly aligned cuts in full-size sheets with no binding or kickback. The R255TBL also features a metal throat plate with corner height adjustment as standard, there's no plastic here.
The R255TBL is more versatile. The integrated mitre sled uses an industry-standard channel profile for compatibility with 3rd party accessories, and our own mitre guide. It features a wider, thick, cast aluminium table top designed to excel at handling 8x4 sheets but still weighs less than the RAGE5-S. Add in improved dust extraction, Multi-material cutting ability, tool free set-up and adjustment and you have the most versatile table saw we've ever made.

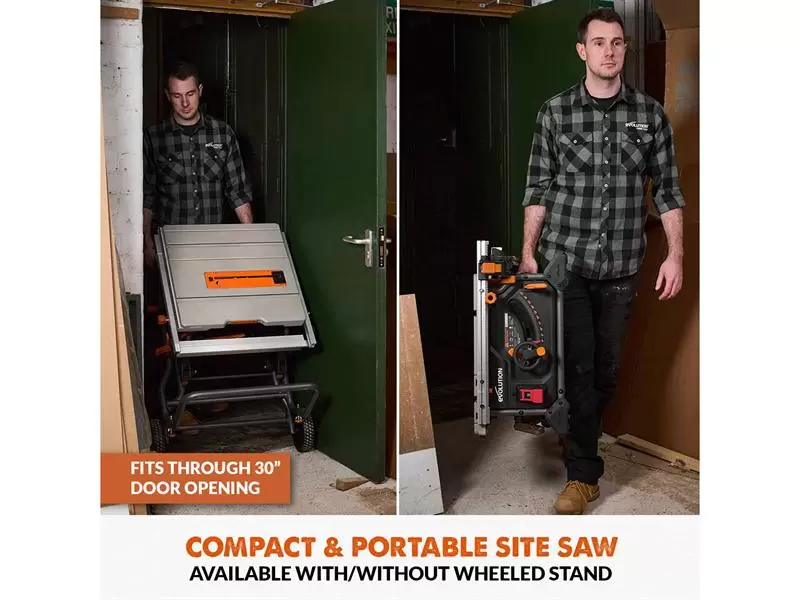

This R255TBL Table Saw is more portable. Mounted within a light, roll-cage chassis, with integral carry handles. It’s an easy one man carry without the wheeled stand, and superbly mobile on its large all-terrain wheels when you buy the matching stand, it easily passes straight through a standard width internal door (32in) making it the perfect jobsite saw.
Specification

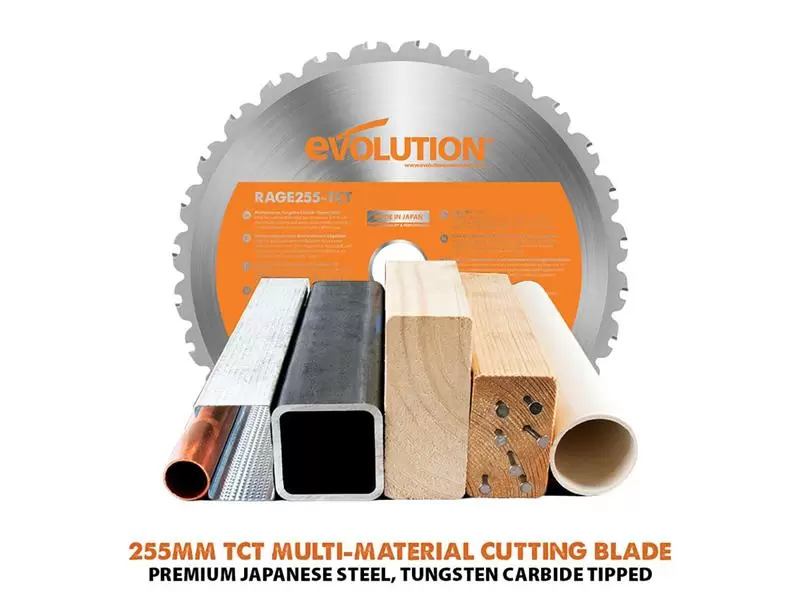

Supplied with: 1 x Multi-Material TCT Blade 255 x 25.4mm x 24T, 1 x Blade Guard with Dust Extraction Port, 1 x Built In Crosscut Sled, 1 x Dust Extraction 90° Elbow, 1 x Mitre Gauge, 1 x Adjustable Rip Fence, 1 x Push Stick, 1 x Riving Knife, 1 x Blade Changing Spanners and Assorted Fixings.
Specifications:
Input Power: 1,650W
No Load Speed: 2,500/min.
Max. Bevel (Left): 45° (-2 to 47° with stop washers removed)
Blade Dia. x Bore: 255 x 25.4mm
Max. Depth of Cut: @0°: 85mm, @45°: 58mm
Mild Steel Plate (Max. Thickness): 6mm
Rip Capacity: Right of the blade 650mm, Left of the blade 371mm
Riving Knife Thickness 1.8mm
Dimensions: (with Leg Assembly) 1050mm x 750mm x 940mm, (without Leg Assembly) 880 x 730 x 330mm
Max./Min. Table Dimensions 1200 x 640mm/745 x 640mm
Storage Dimensions: folded with stand (HxDxW) 1110 x 760 x 850mm
Weight: 21.2kg
