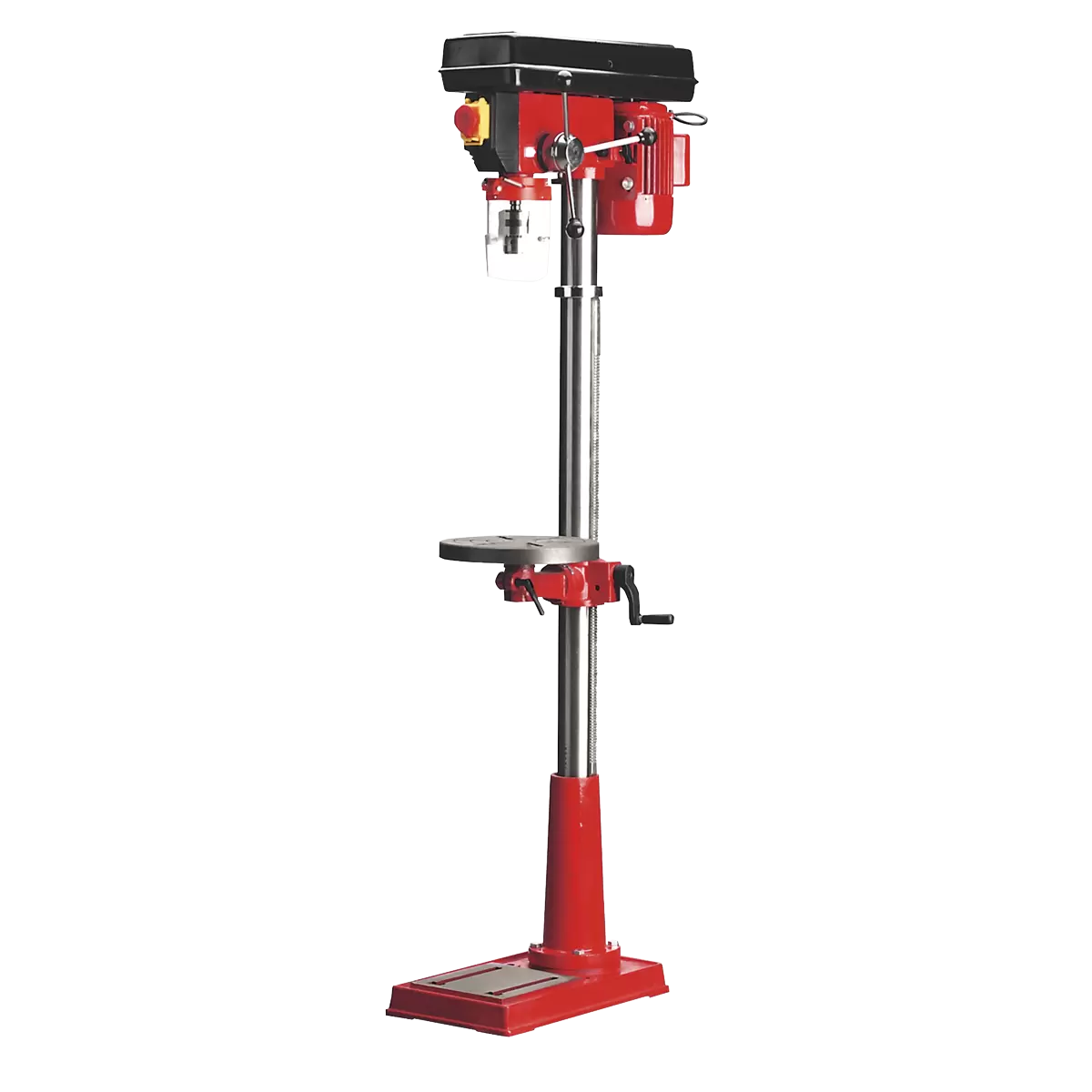

Sealey - GDM140F - Floor Standing Pillar Drill 12-Speed 370W/230V
SKU: GDM140F
Part Number: GDM140F
Barcode: 5024209088855
Country of Origin: CHN
Weight: 47.00 Kg
Our Price
£335.59 (inc VAT) £279.66 (ex VAT)
RRP £431.94 £359.95
Save
£96.35
£80.29
1 year Warranty included.
Description

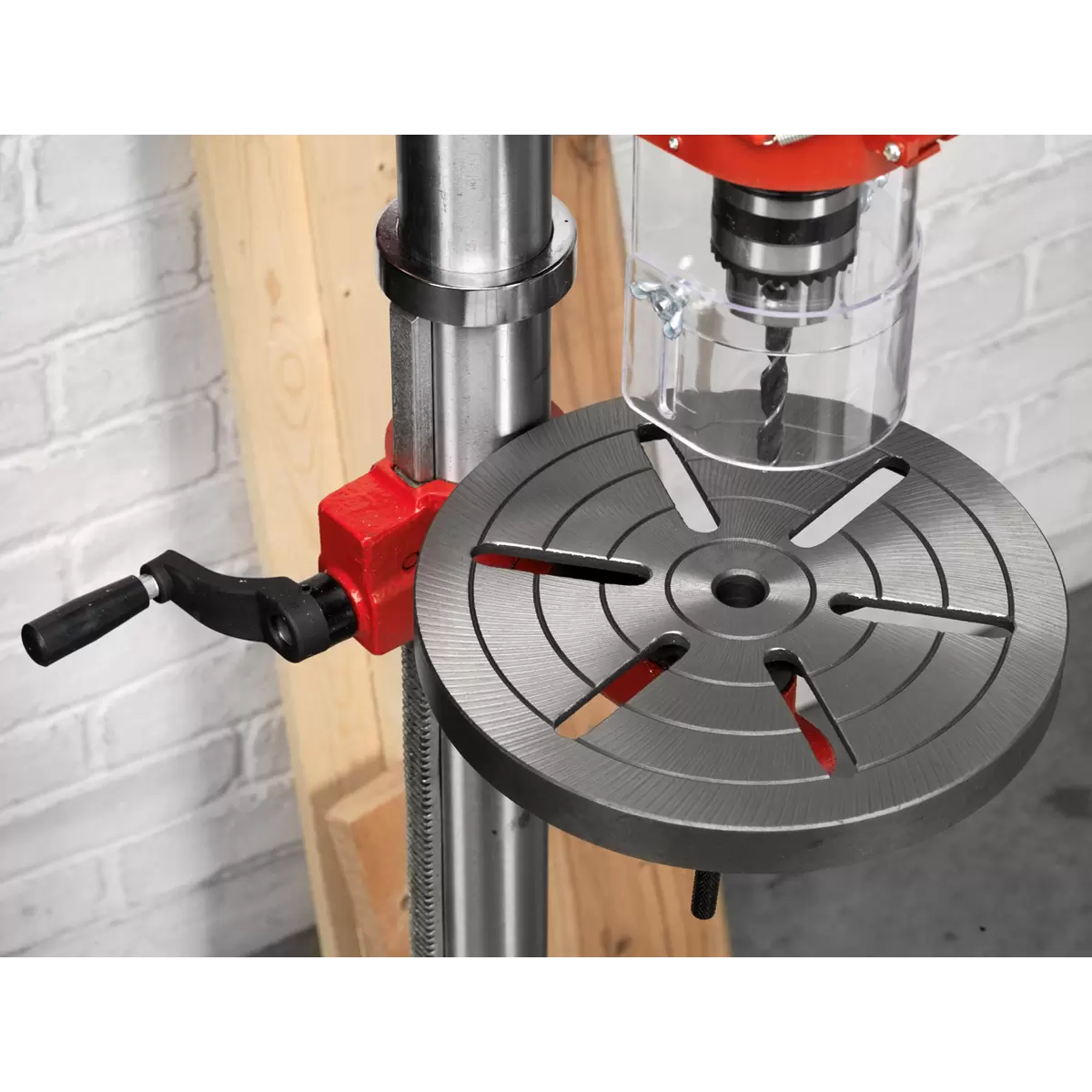

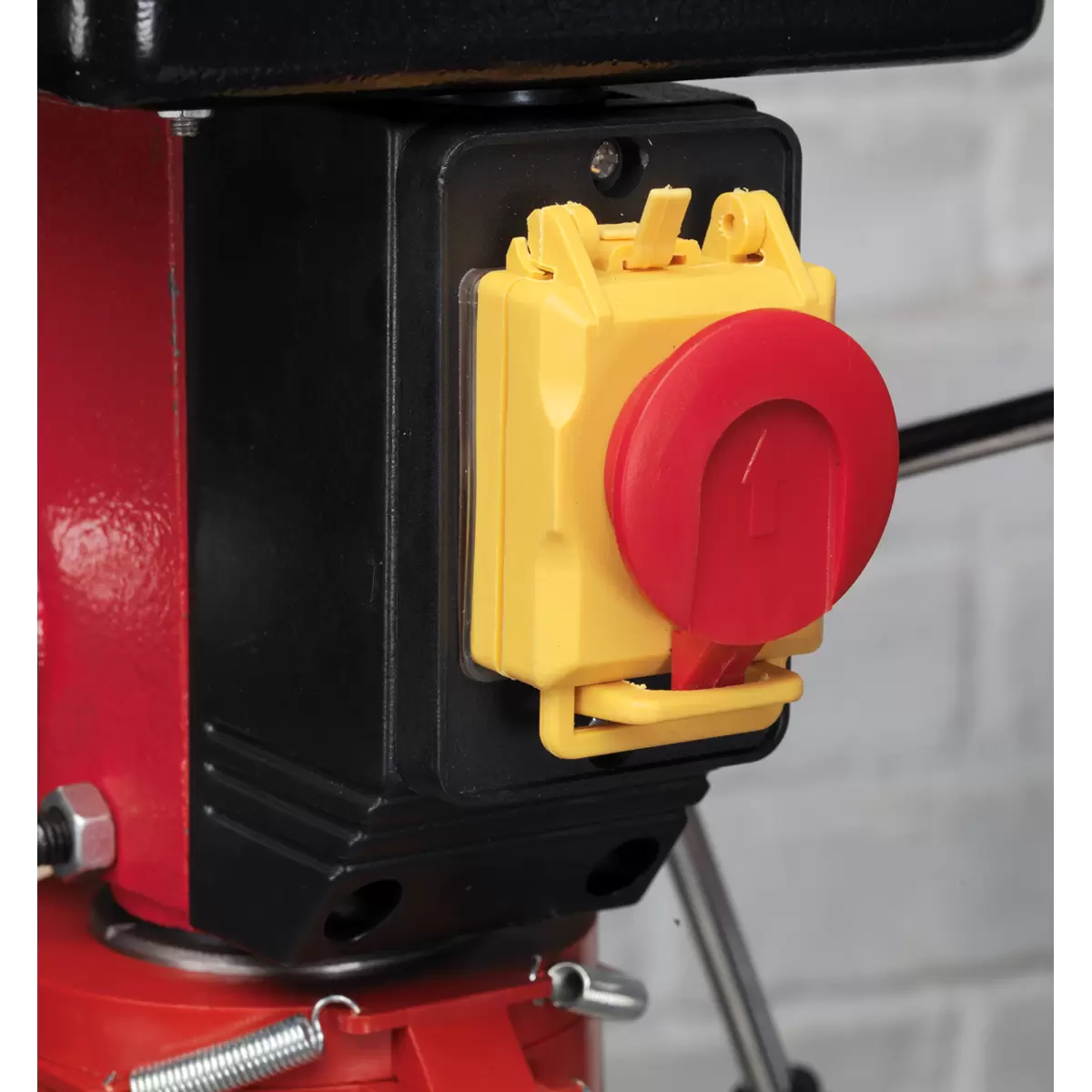

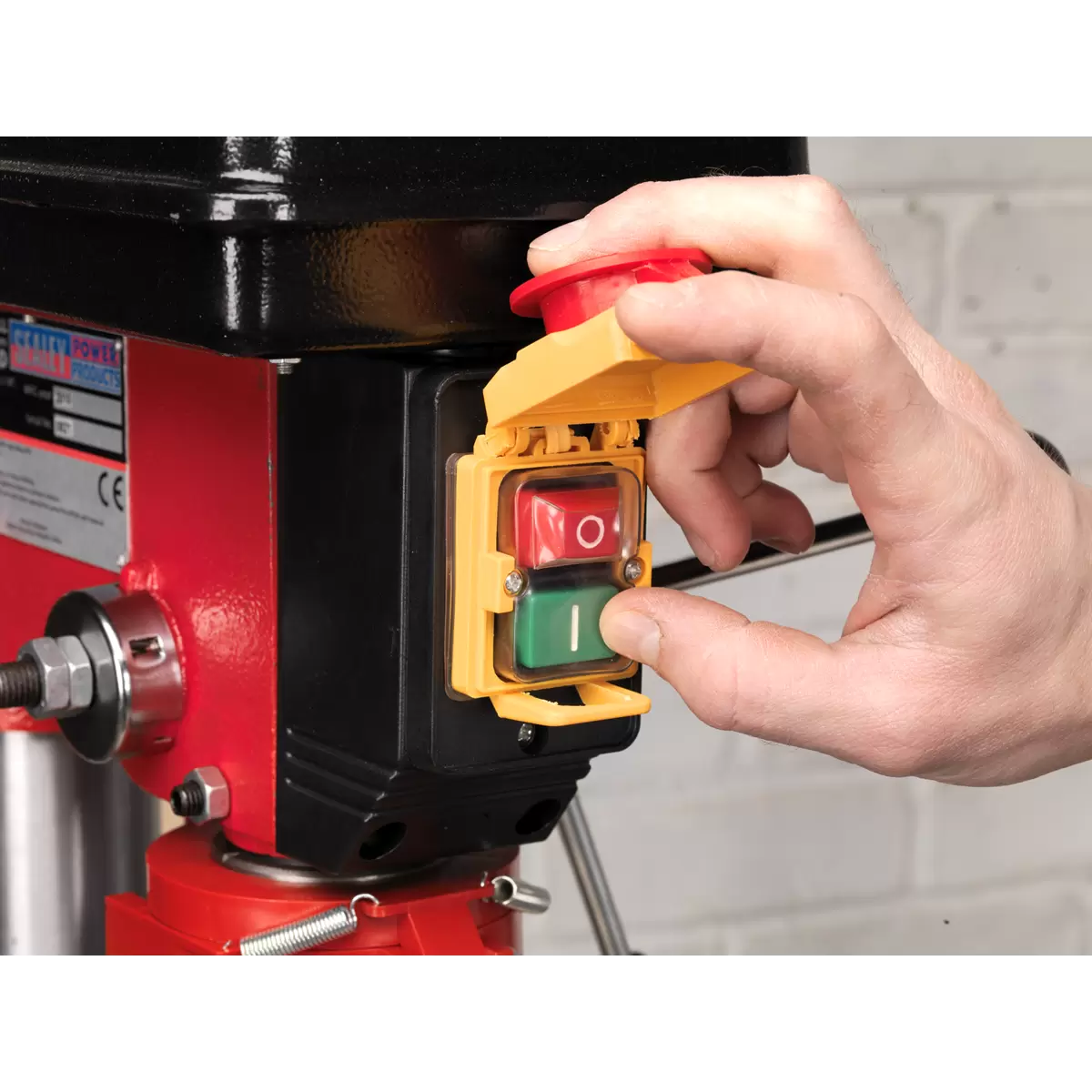

For a small premium over the cost of a bench drill, you can avoid tying up valuable bench space. This floor standing drill has adjustable tilting table and rise and fall height adjustment by rack and pinion. Fully CE certificated and approved for use in educational establishments and the industrial workplace. Fitted with no-load voltage switch and locking cover to prevent accidental starting. Mortise attachment available, order Model No. MA10.
Features
Specification
Model No GDM140F
Base Size: 420 x 250mm
Brand: Sealey
Collar Diameter: Ø60mm
Column Diameter: Ø60mm

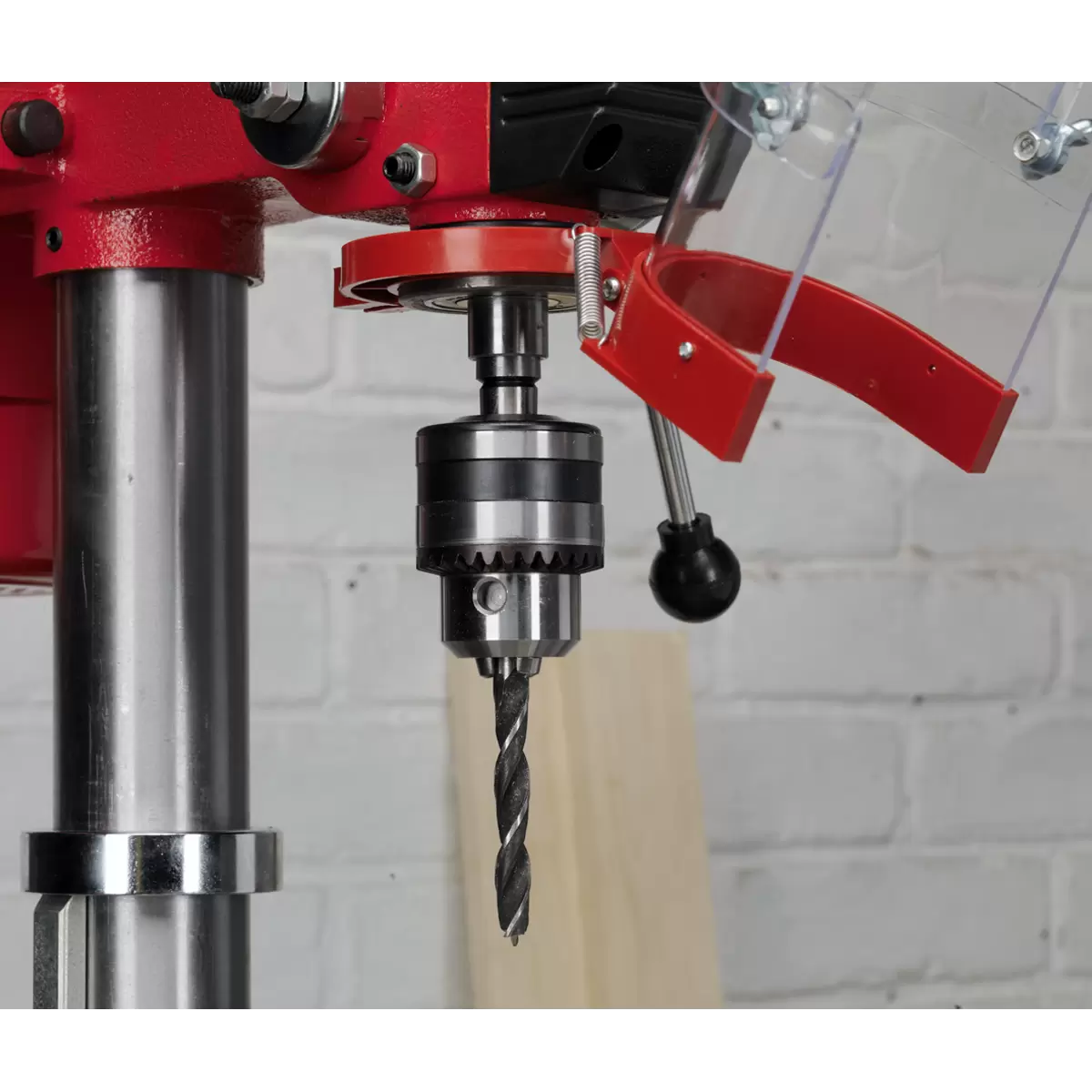

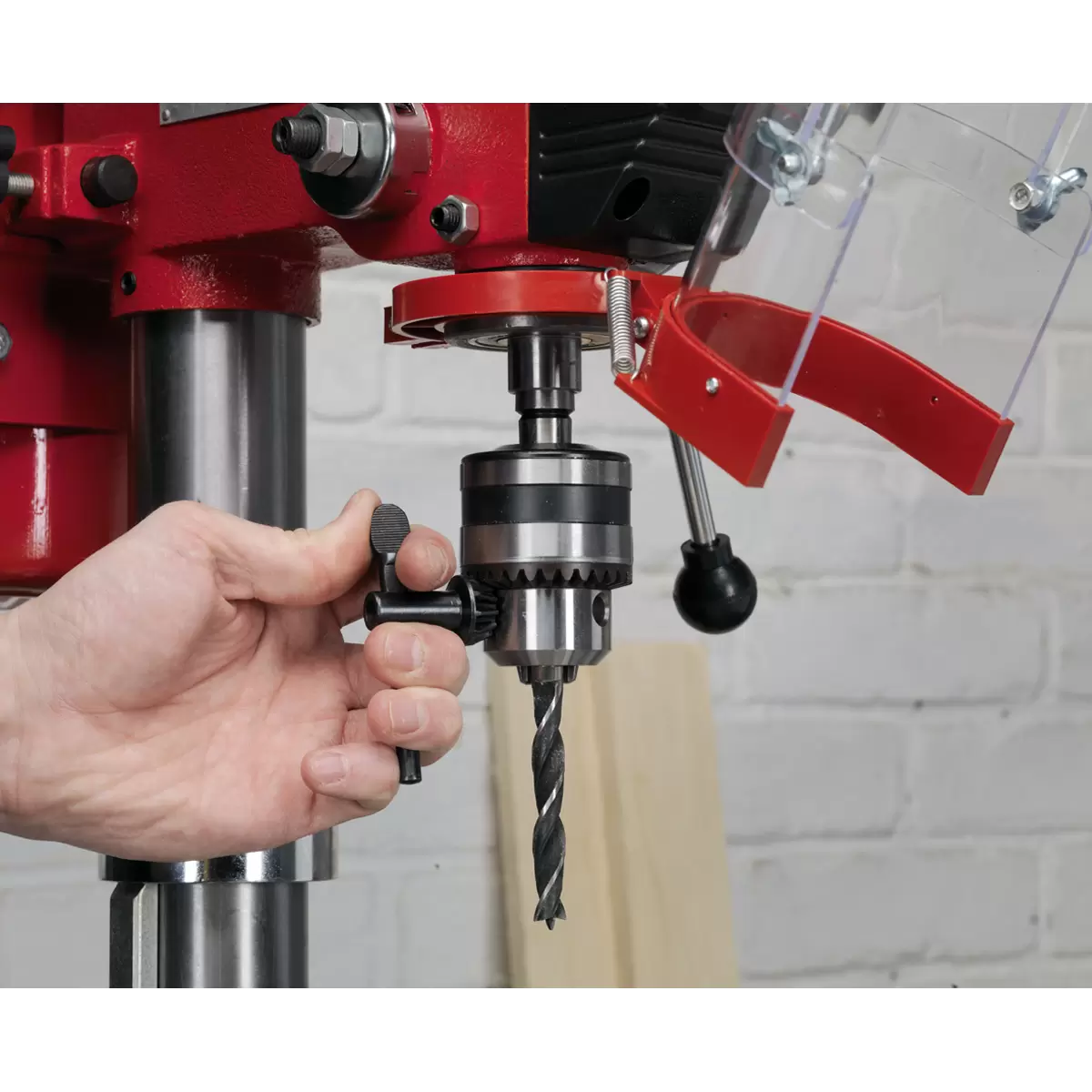

Drilling Capacity (Chuck Size): Ø16mm
Maximum Distance Spindle to Base: 1200mm
Maximum Distance Spindle to Table: 810mm
Motor Power: 370W
Nett Weight: 41.0kg
Number of Speeds: 12
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 1500mm
Speed Range: 210-2580rpm
Spindle Centre to Column: 127mm
Spindle Nose Taper: MT2
Spindle Travel: 60mm
Supply: 230V
Swing: 254mm
Working Base Surface Size: 190 x 215mm

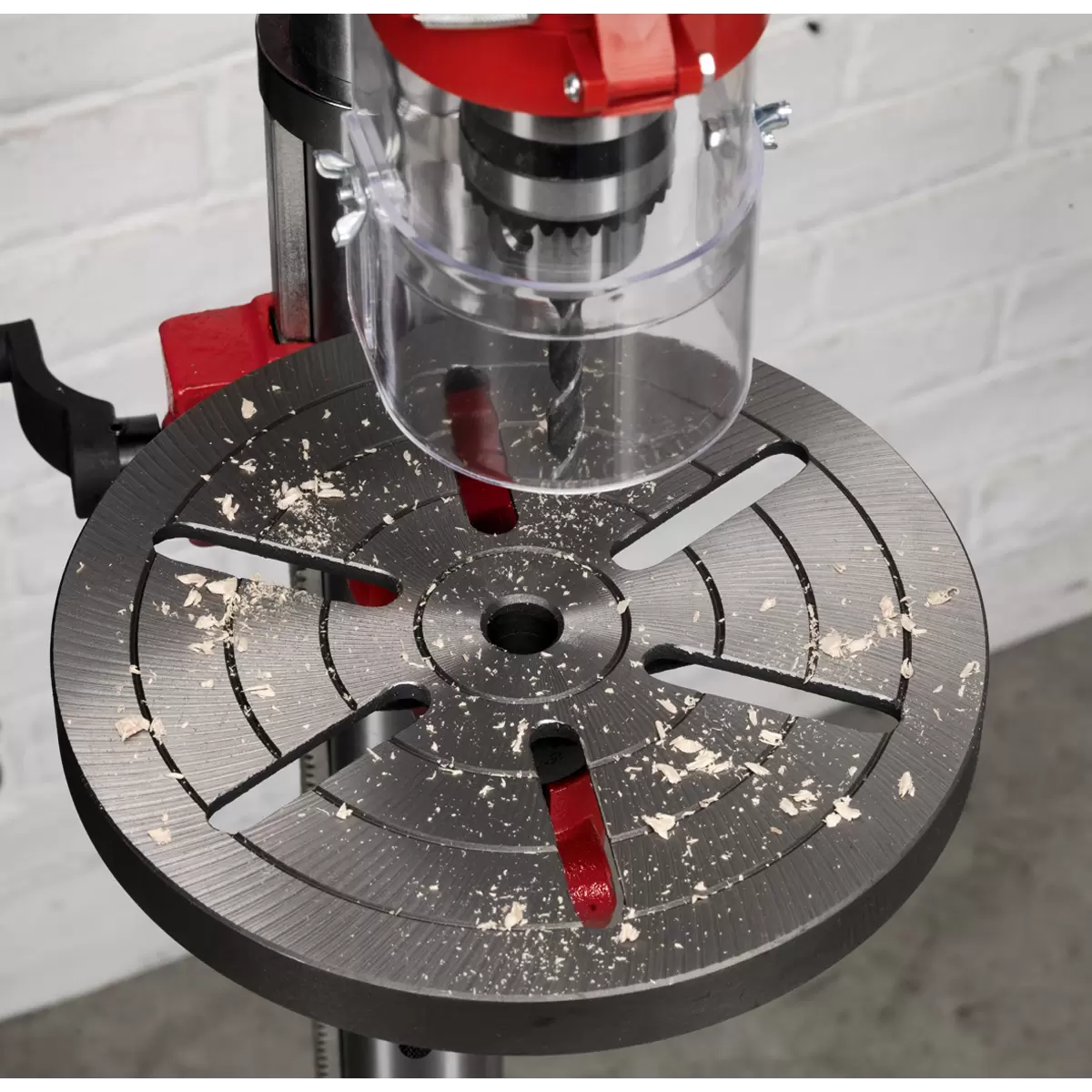

Working Table Surface Size: Ø248mm
Base Size: 420 x 250mm
Brand: Sealey
Collar Diameter: Ø60mm
Column Diameter: Ø60mm
Drilling Capacity (Chuck Size): Ø16mm
Maximum Distance Spindle to Base: 1200mm
Maximum Distance Spindle to Table: 810mm
Motor Power: 370W
Nett Weight: 41.0kg
Number of Speeds: 12
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 1500mm
Speed Range: 210-2580rpm
Spindle Centre to Column: 127mm
Spindle Nose Taper: MT2
Spindle Travel: 60mm
Supply: 230V
Swing: 254mm
Working Base Surface Size: 190 x 215mm
Working Table Surface Size: Ø248mm
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8459290000
Country of Origin = CHN
