Home > Workshop Equipment > Drilling > SIP - 01718 - Pro F20 12-Speed 1100w 400v Floor Pillar Drill

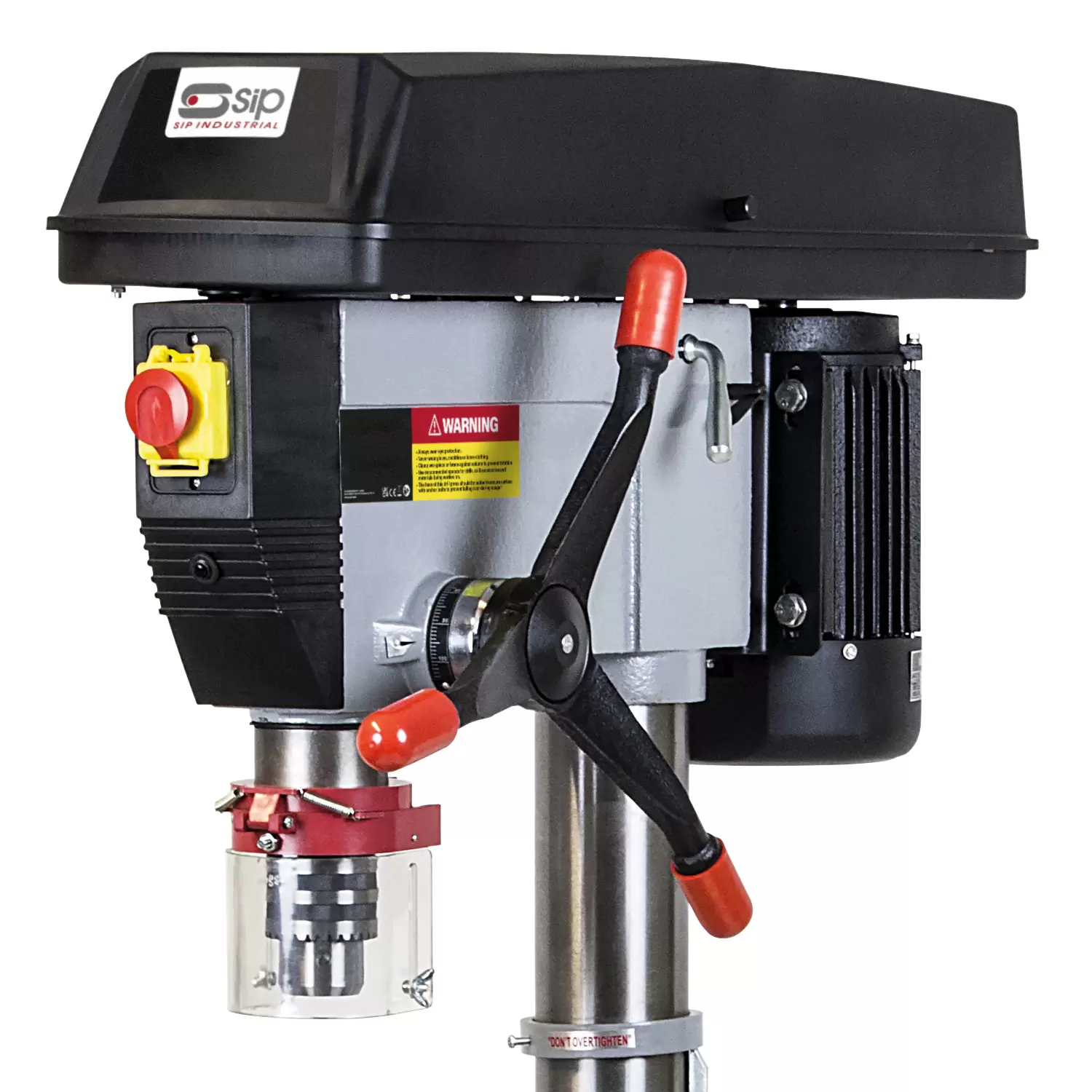

SIP - 01718 - Pro F20 12-Speed 1100w 400v Floor Pillar Drill
SKU: SIP01718
Part Number: 01718
Barcode: 5012713017188
Country of Origin: CN
Weight: 107.40 Kg
Our Price
£850.49 (inc VAT) £708.74 (ex VAT)
RRP £995.99 £829.99
Save
£145.50
£121.25
SIP 2-YEAR Warranty included.
Description

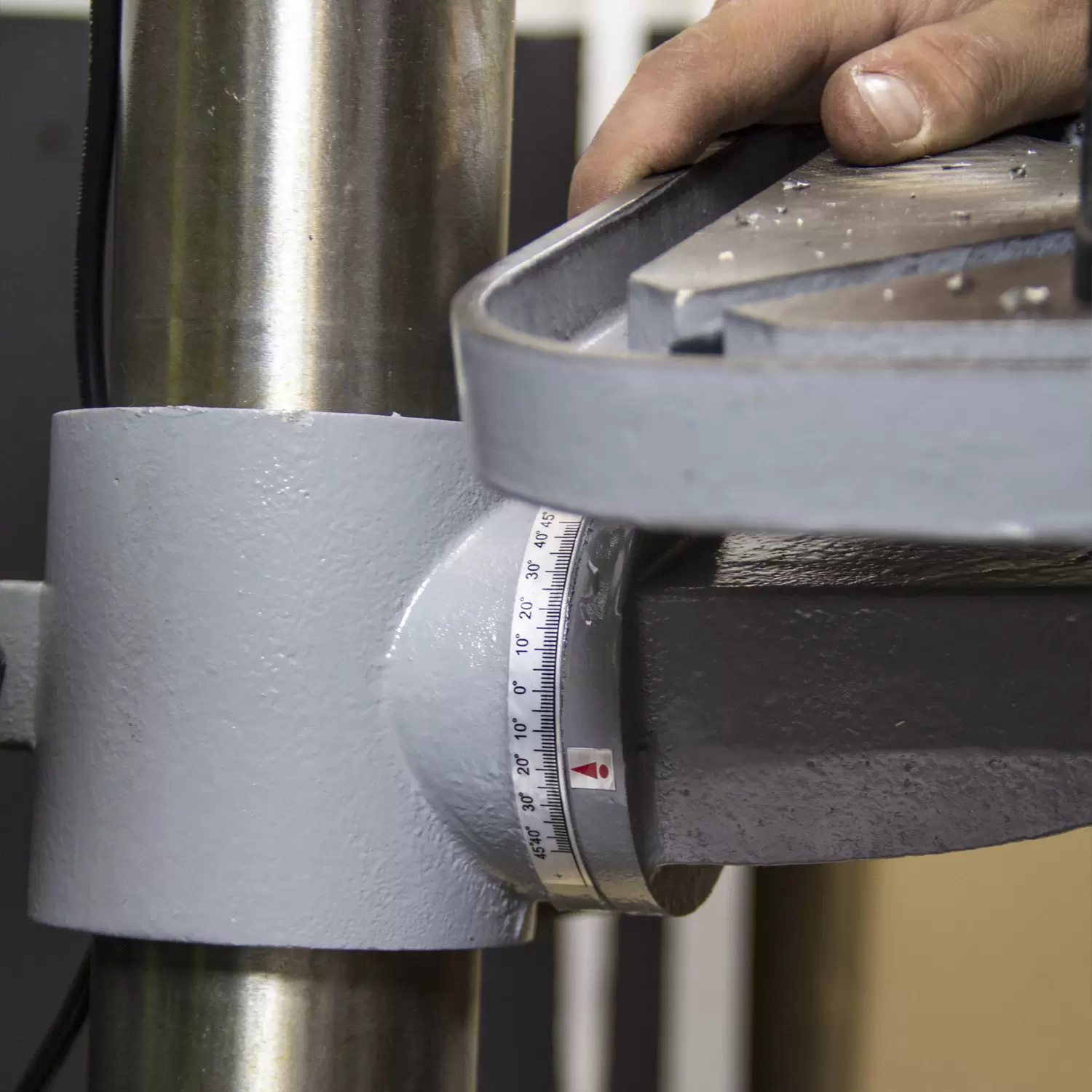

The SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned to enable accurate drilling.
Plus, it's MT4 fitting allows for a larger drilling capacity.
Features
• 12 spindle speeds powered by a 1100w motor from a 400v 3-phase supply
• Supports a variety of drilling applications
• High-power brushless induction motor
• Fitted with drilling depth stop

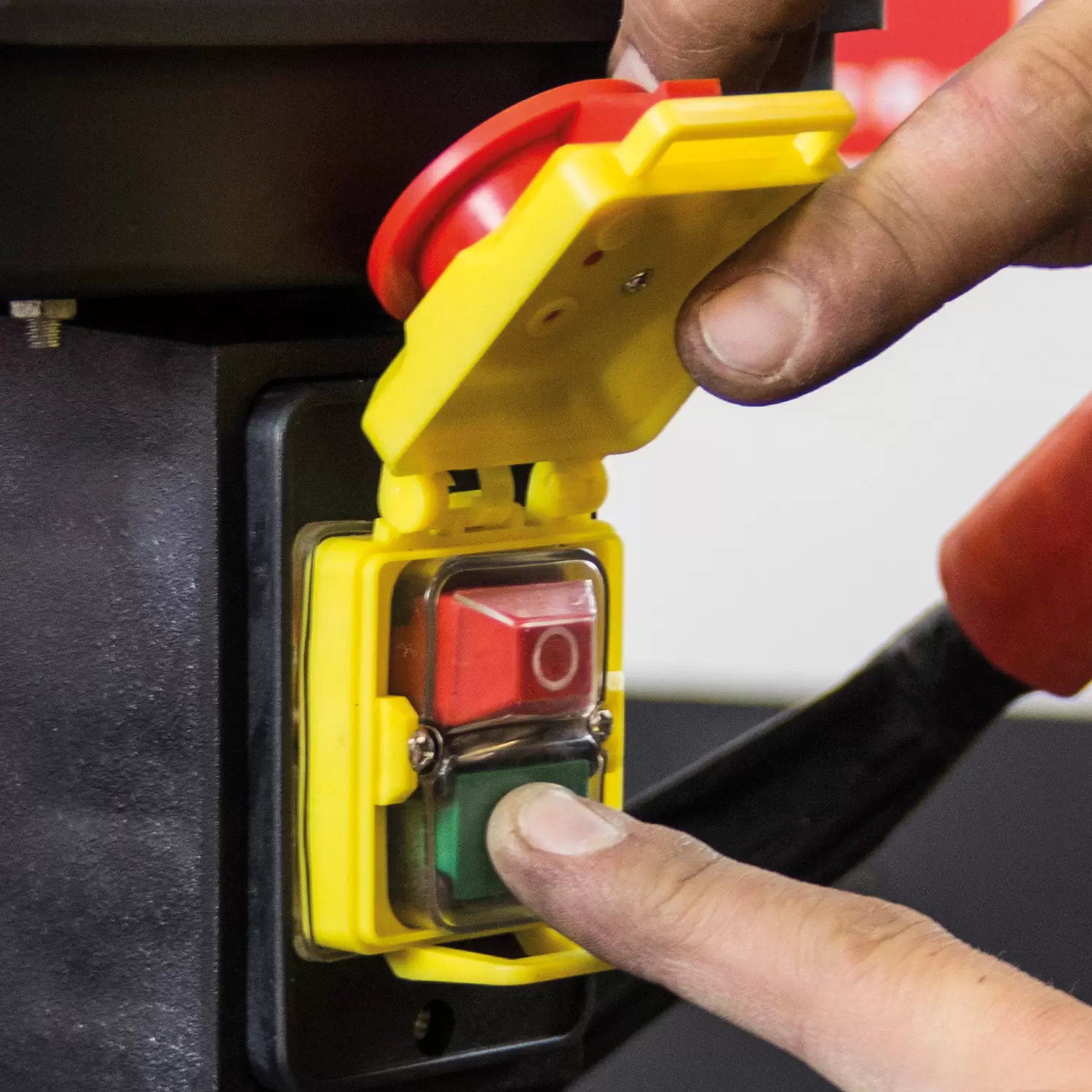

• Safety interlock switch for safe motor belt adjustment
• Supports a variety of drilling applications
• High-power brushless induction motor
• Fitted with drilling depth stop
• Safety interlock switch for safe motor belt adjustment
Specification
ITEM NO. 01718
Input Voltage: 400v 3-PHASE
Motor Power: 1100w
No. of Speeds: 12 speeds
Speed Range: 150rpm - 2500rpm
Drill Bit Size: 5mm - 20mm
Max. Drilling Capacity: 32mm
Spindle Taper: MT4
Table Size: 420mm x 470mm

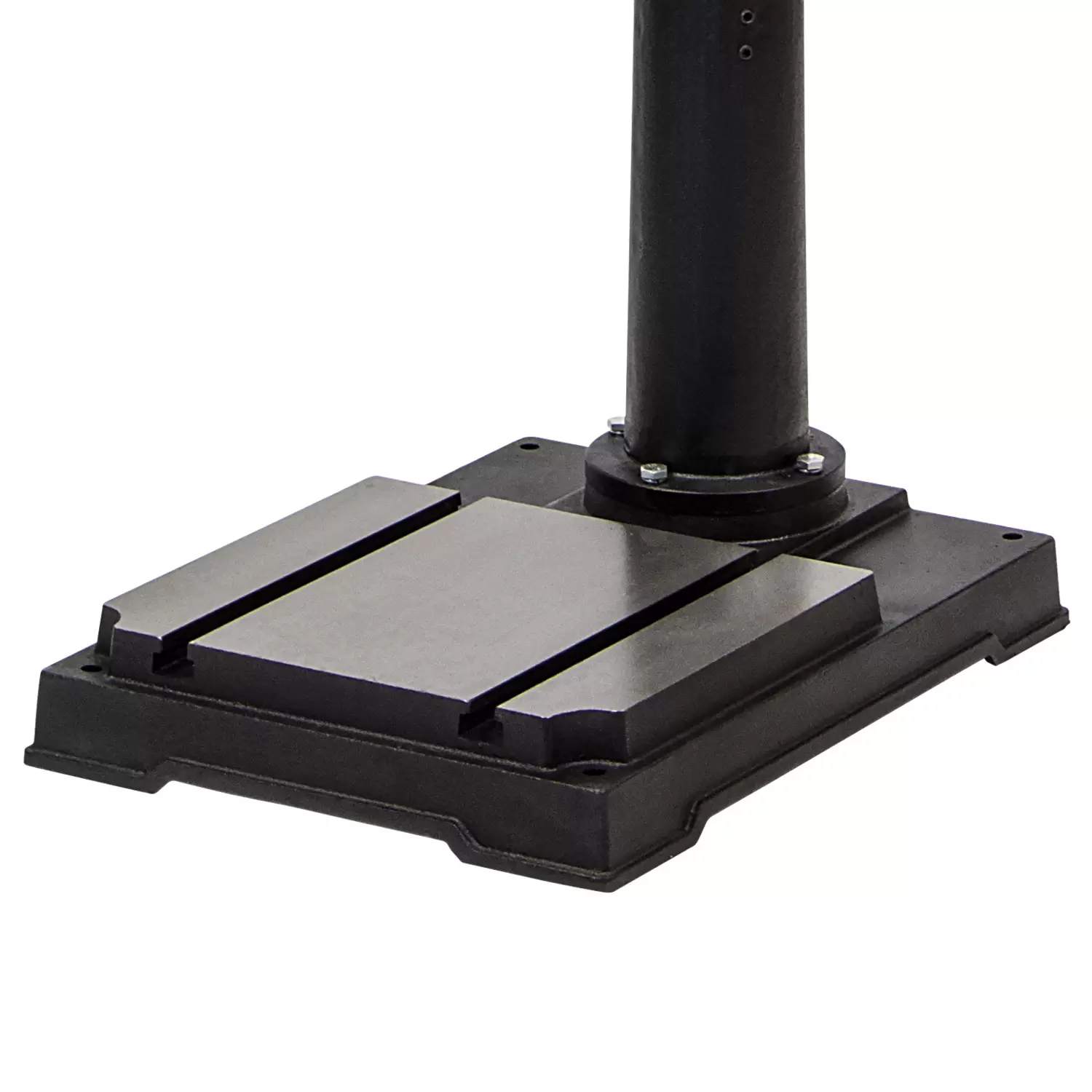

Base Size: 570mm x 425mm
Column Diameter: Ø 92mm
Swing: 506mm
Height: 1720mm
Spindle Travel: 120mm
Collar Diameter: Ø 92mm
Max. Distance: 620mm (chuck to table) / 1095mm (chuck to base)
Workshopping Says
Suitable for ferrous and non-ferrous metals, woods and plastics. The MT4 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, heavy-duty use for larger hole drilling with engineering workshop components, plus metalwork and woodwork environments.
Description
The SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned to enable accurate drilling.
Plus, it's MT4 fitting allows for a larger drilling capacity.
Features
• 12 spindle speeds powered by a 1100w motor from a 400v 3-phase supply
• Supports a variety of drilling applications
• High-power brushless induction motor
• Fitted with drilling depth stop
• Safety interlock switch for safe motor belt adjustment
• Supports a variety of drilling applications
• High-power brushless induction motor
• Fitted with drilling depth stop
• Safety interlock switch for safe motor belt adjustment
Specification
ITEM NO. 01718
Input Voltage: 400v 3-PHASE
Motor Power: 1100w
No. of Speeds: 12 speeds
Speed Range: 150rpm - 2500rpm
Drill Bit Size: 5mm - 20mm
Max. Drilling Capacity: 32mm
Spindle Taper: MT4
Table Size: 420mm x 470mm
Base Size: 570mm x 425mm
Column Diameter: Ø 92mm
Swing: 506mm
Height: 1720mm
Spindle Travel: 120mm
Collar Diameter: Ø 92mm
Max. Distance: 620mm (chuck to table) / 1095mm (chuck to base)
Workshopping Says
Suitable for ferrous and non-ferrous metals, woods and plastics. The MT4 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, heavy-duty use for larger hole drilling with engineering workshop components, plus metalwork and woodwork environments.
