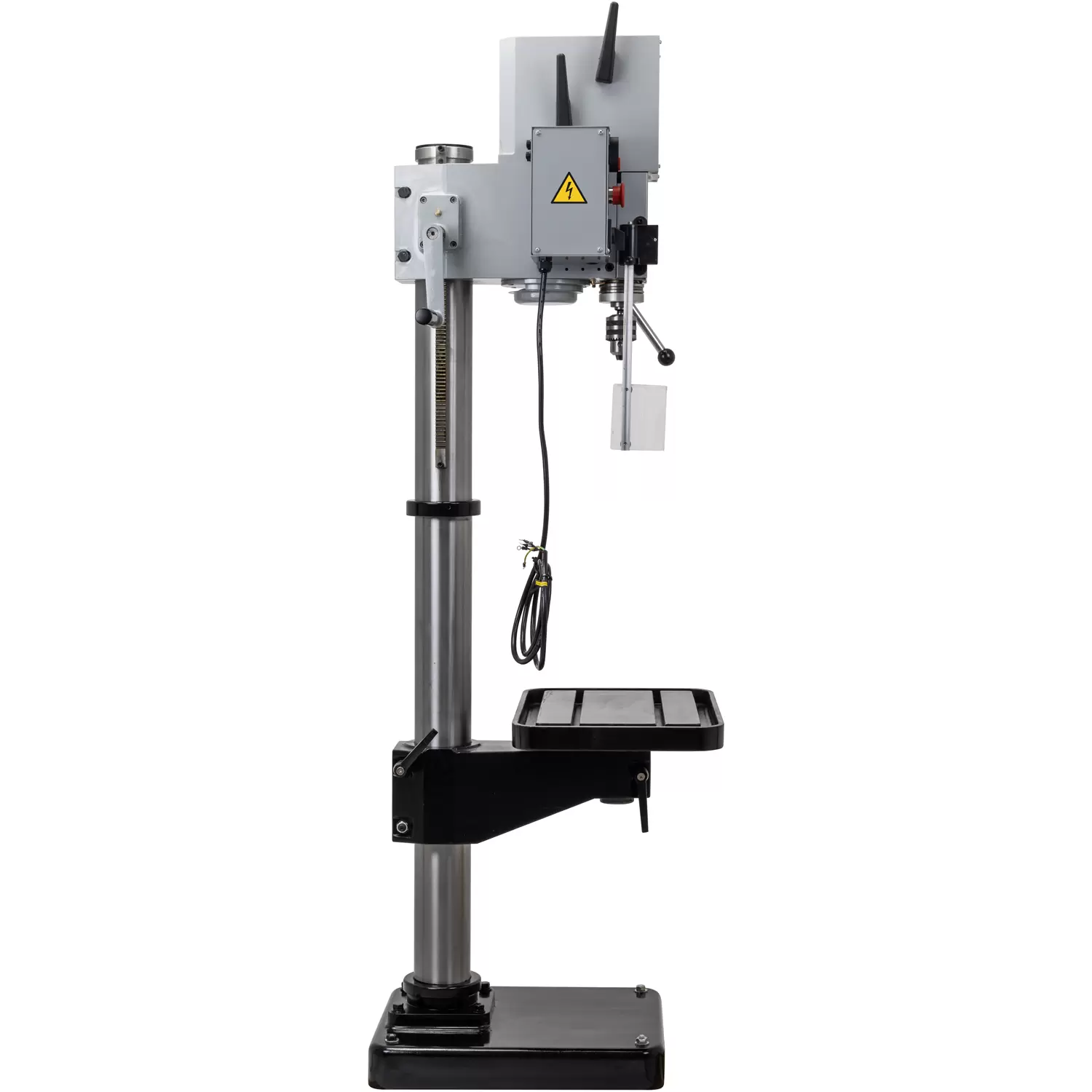

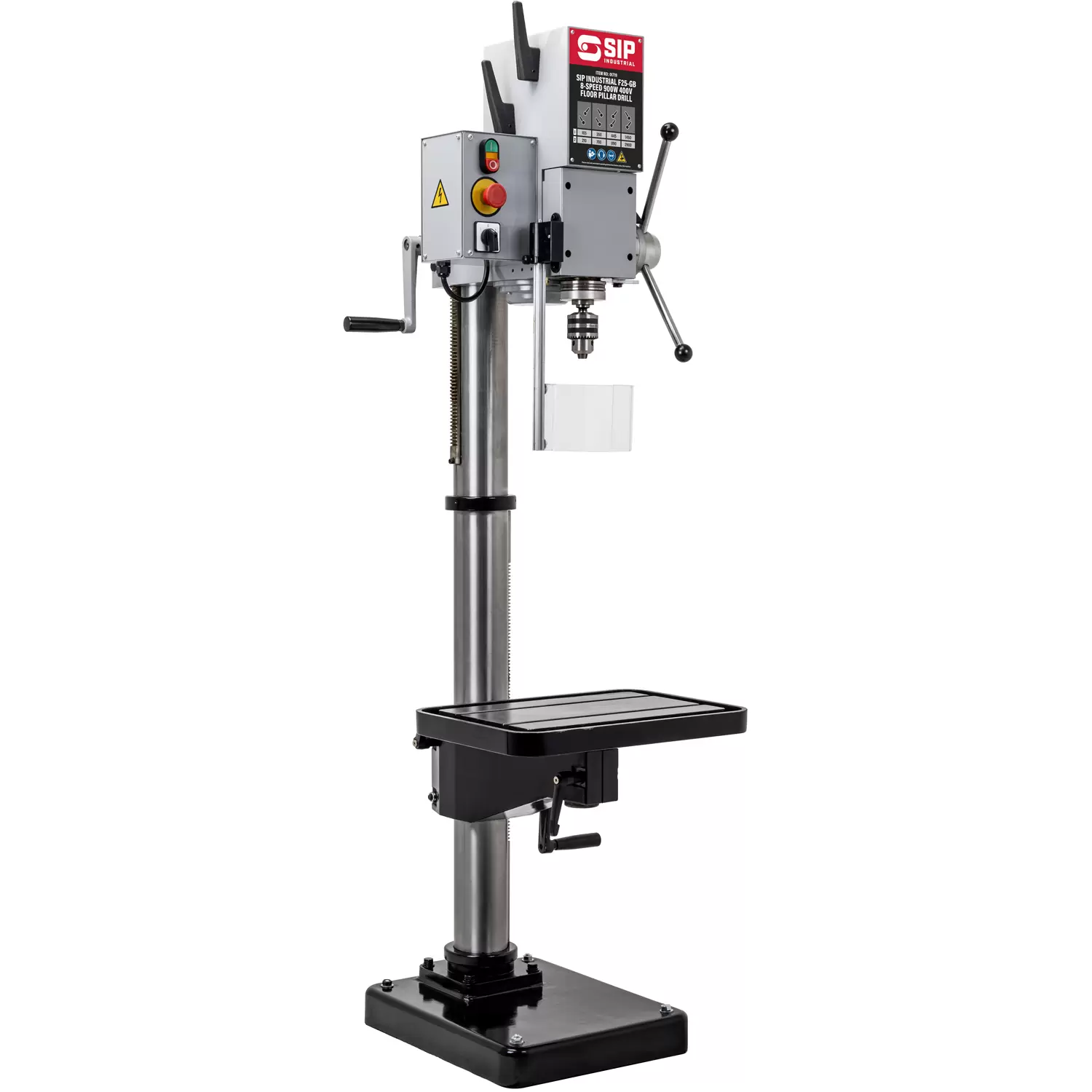

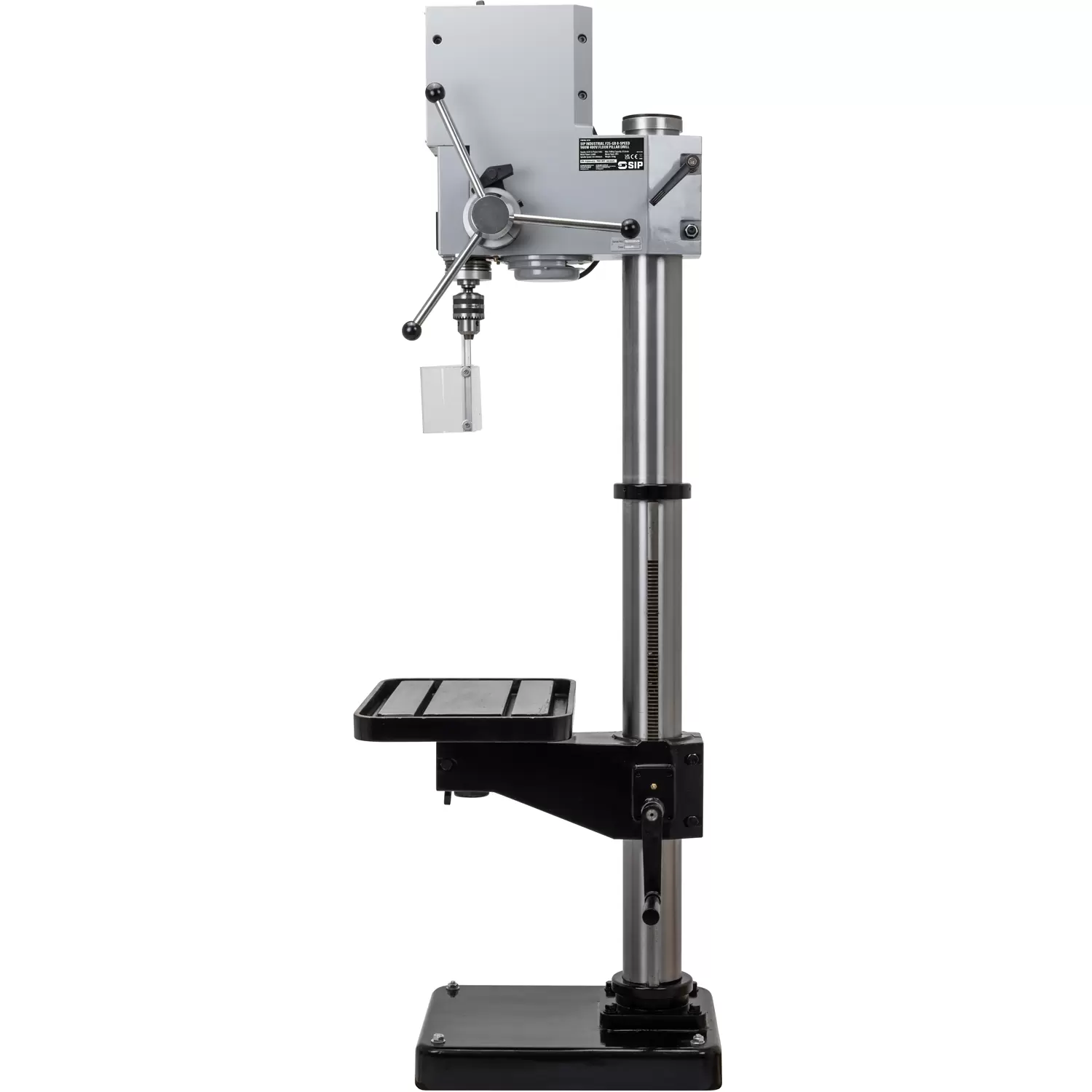

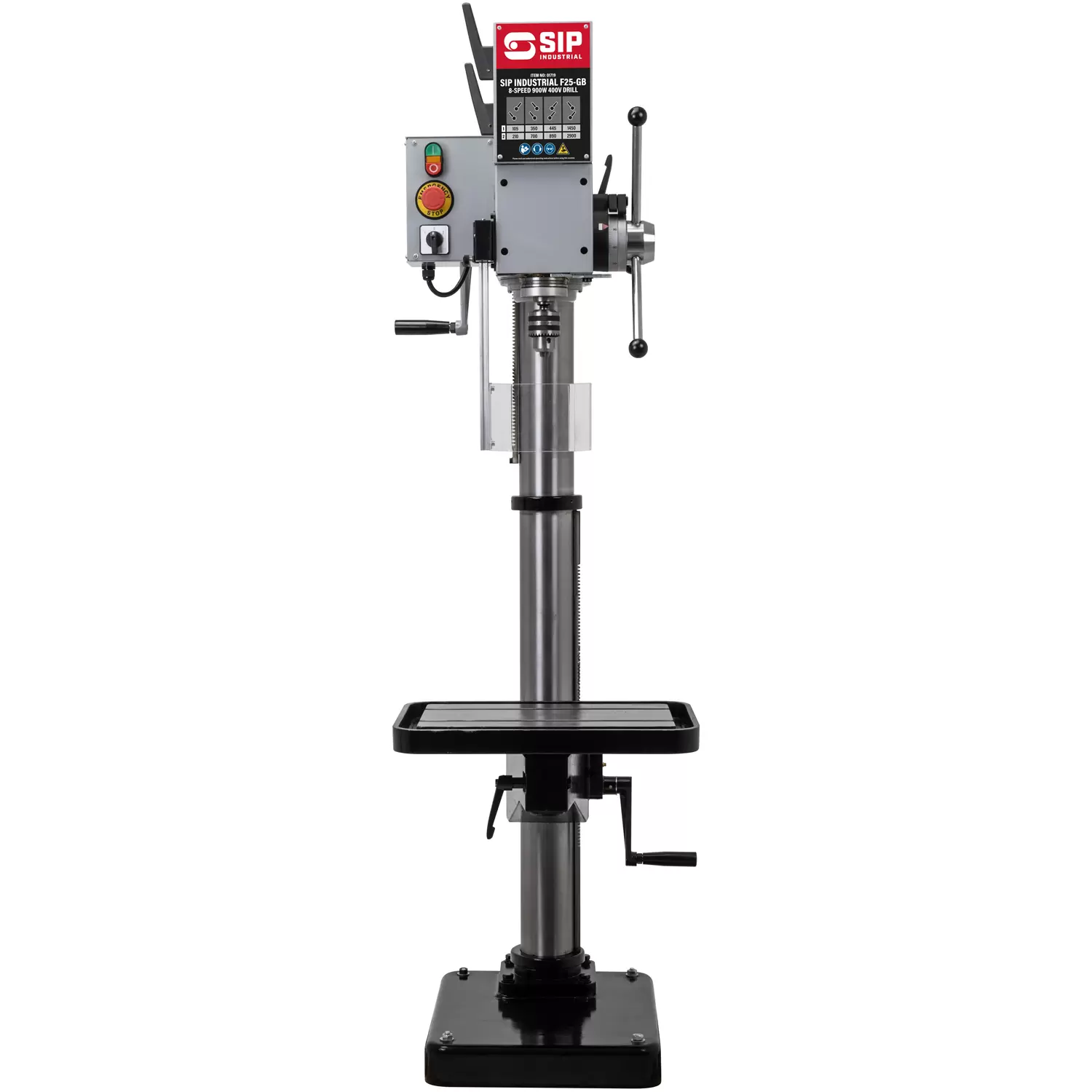

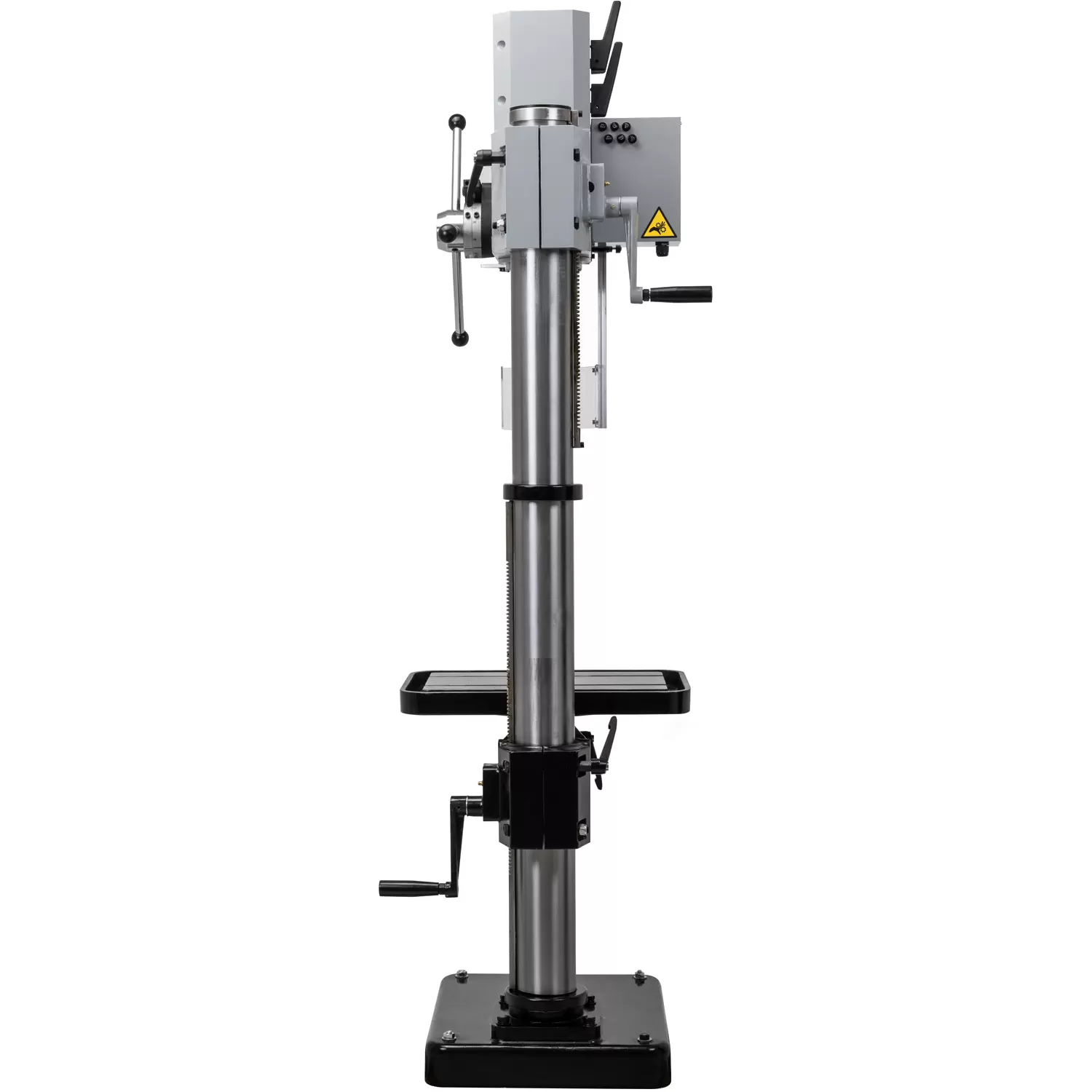

SIP - 01719 - Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill
SKU: SIP01719
Part Number: 01719
Barcode: 5012713009848
Country of Origin: CN
Weight: 190.00 Kg
Our Price
£4,290.29 (inc VAT) £3,575.24 (ex VAT)
RRP £5,062.54 £4,218.78
Save
£772.25
£643.54
SIP 2-YEAR Warranty included.
Description
The SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.
Featuring an 8-speed gear drive transmission, this drill delivers high torque output across a consistent 105rpm - 2900rpm spindle speed for powerful and precise drilling up to max. ⌀ 25mm. This allows the operator to set the exact spindle speed needed to drill the material.
A gear drive transmission eliminates belt slippage as no manual pulley speed adjustments are required, meaning quicker and easier speed changes for reduced downtime and increased productivity.
Features

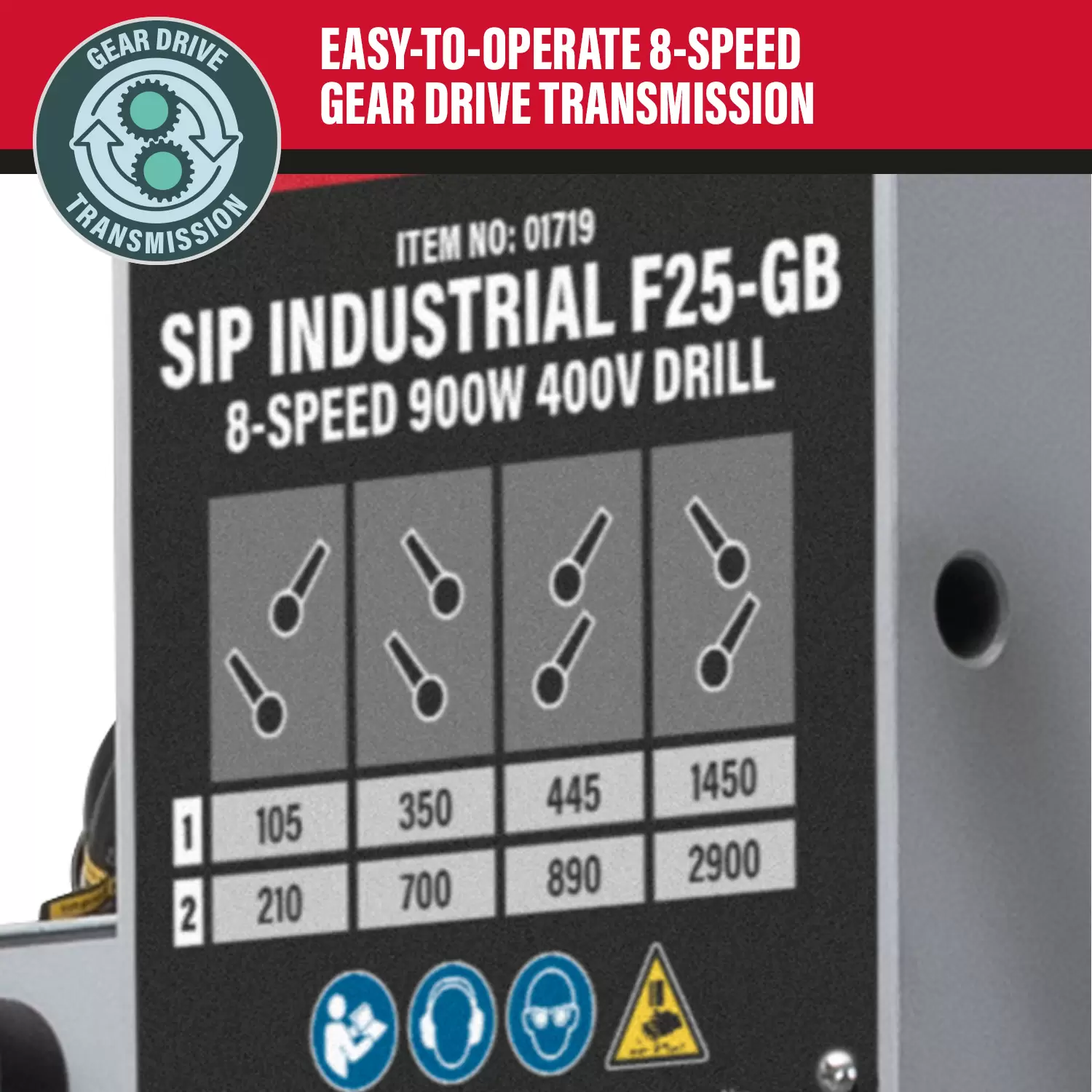

• 8-speed gear drive transmission with wide 105-2900rpm speed range

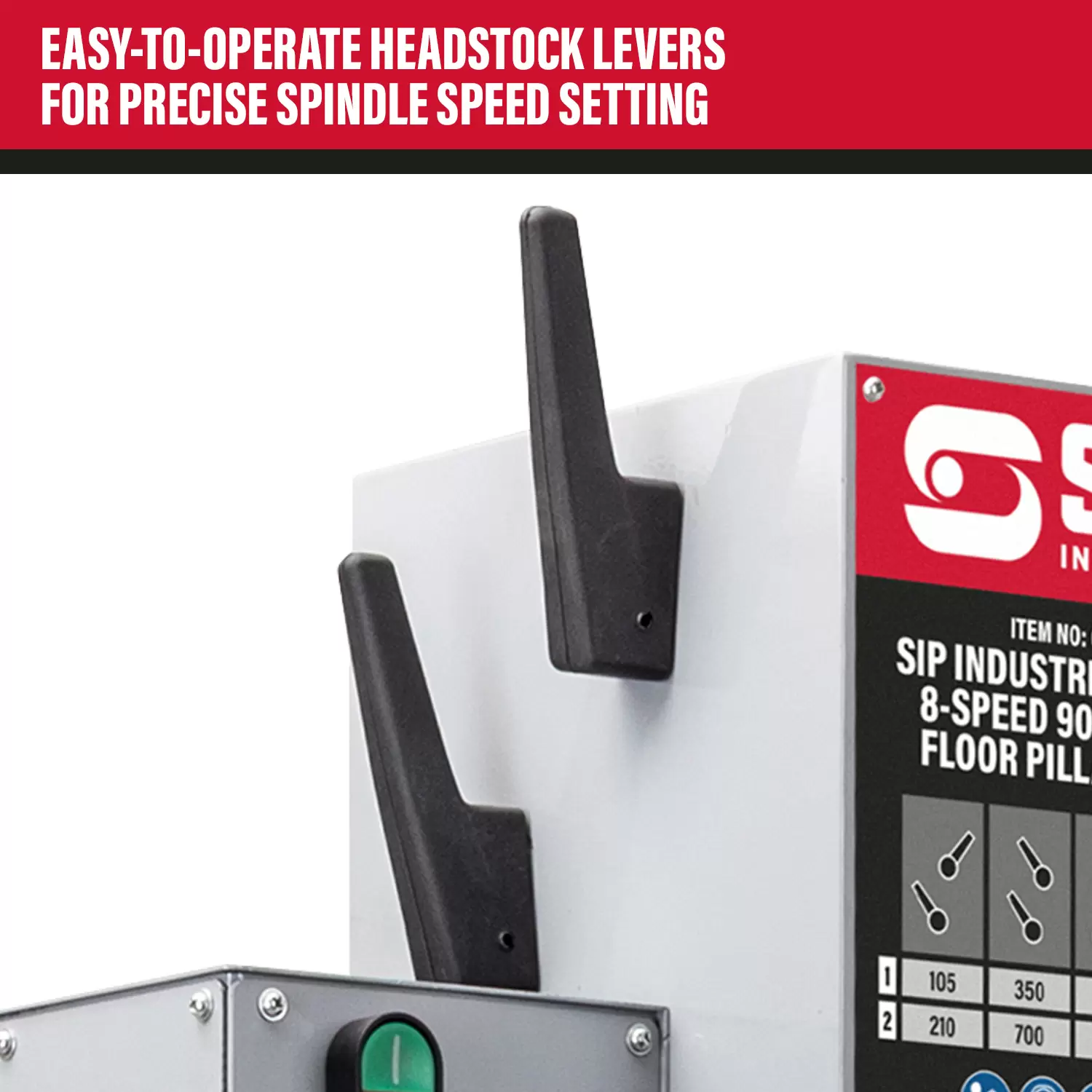

• Easy-to-operate headstock levers for precise spindle speed setting
• High torque output for consistent drilling power and max. ⌀ 25mm

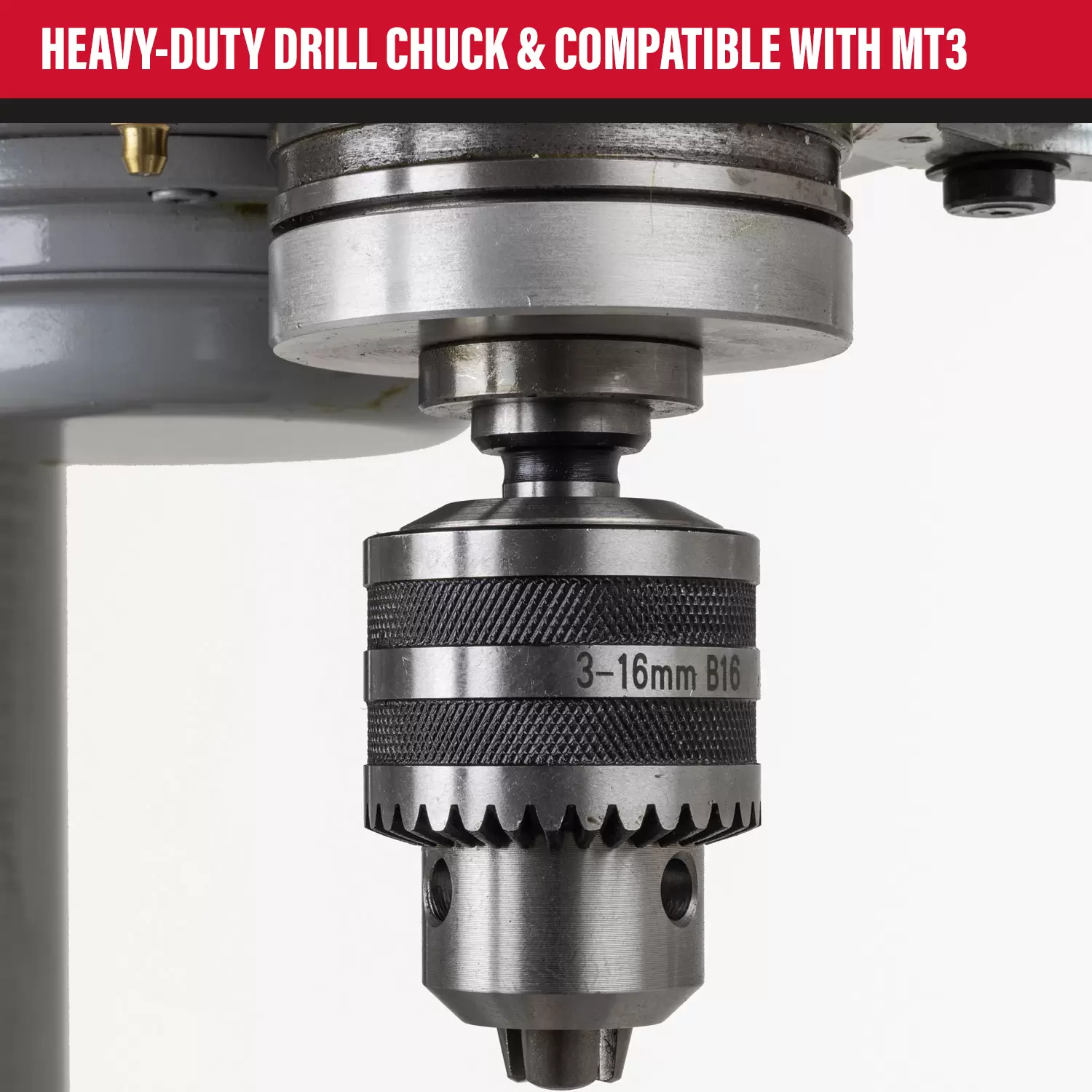

• Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)

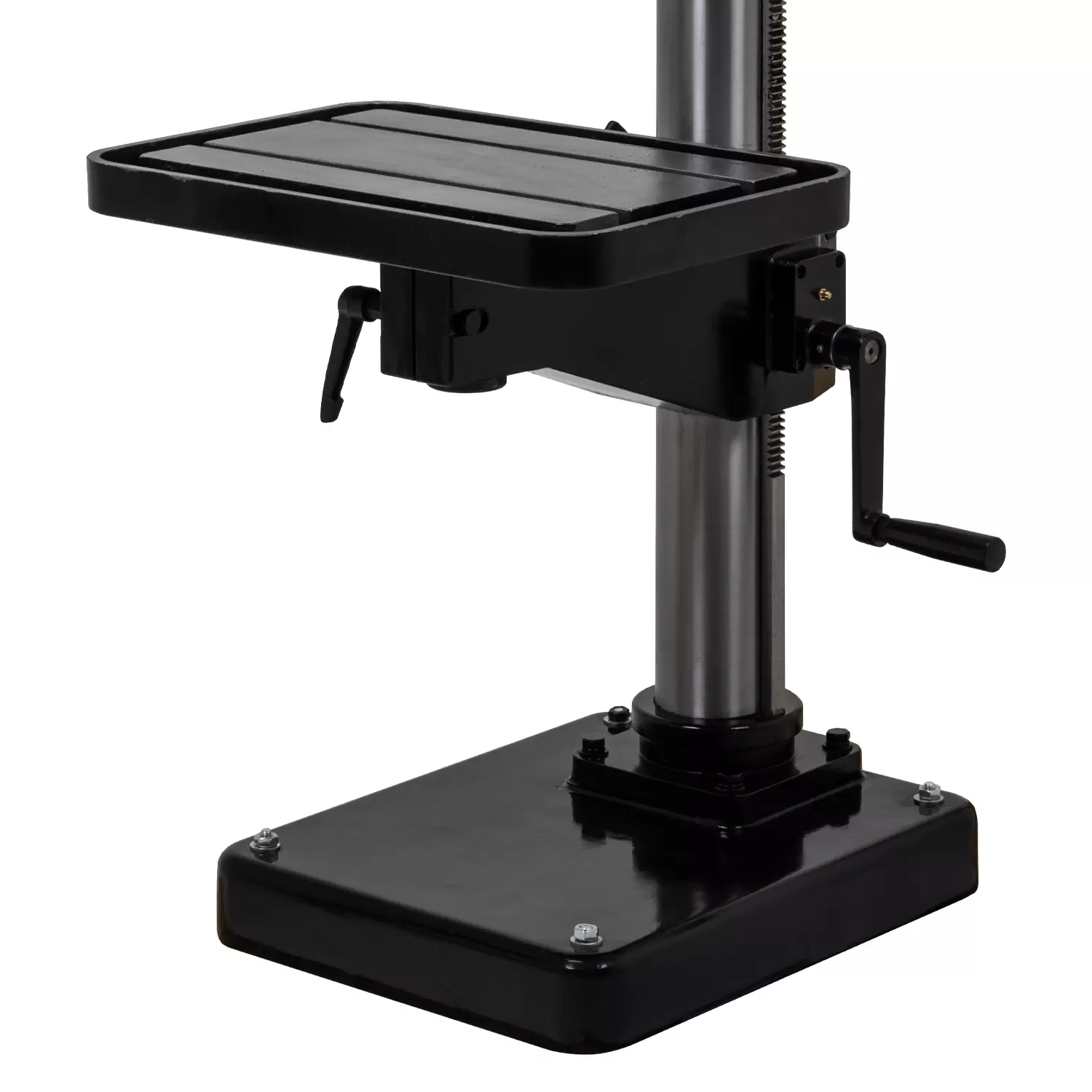

• Heavy baseplate and central column to minimise vibration for stable drilling
• Easy-to-operate headstock levers for precise spindle speed setting
• High torque output for consistent drilling power and max. ⌀ 25mm
• Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)
• Heavy baseplate and central column to minimise vibration for stable drilling
Specification
ITEM NO. 01719
Input Supply: 400v (16A)
Motor Power: 900w
No. of Speeds: 8 speeds
Speed Range: 105rpm - 2900rpm
Max. Drilling Capacity: 25mm
Spindle Taper: MT3

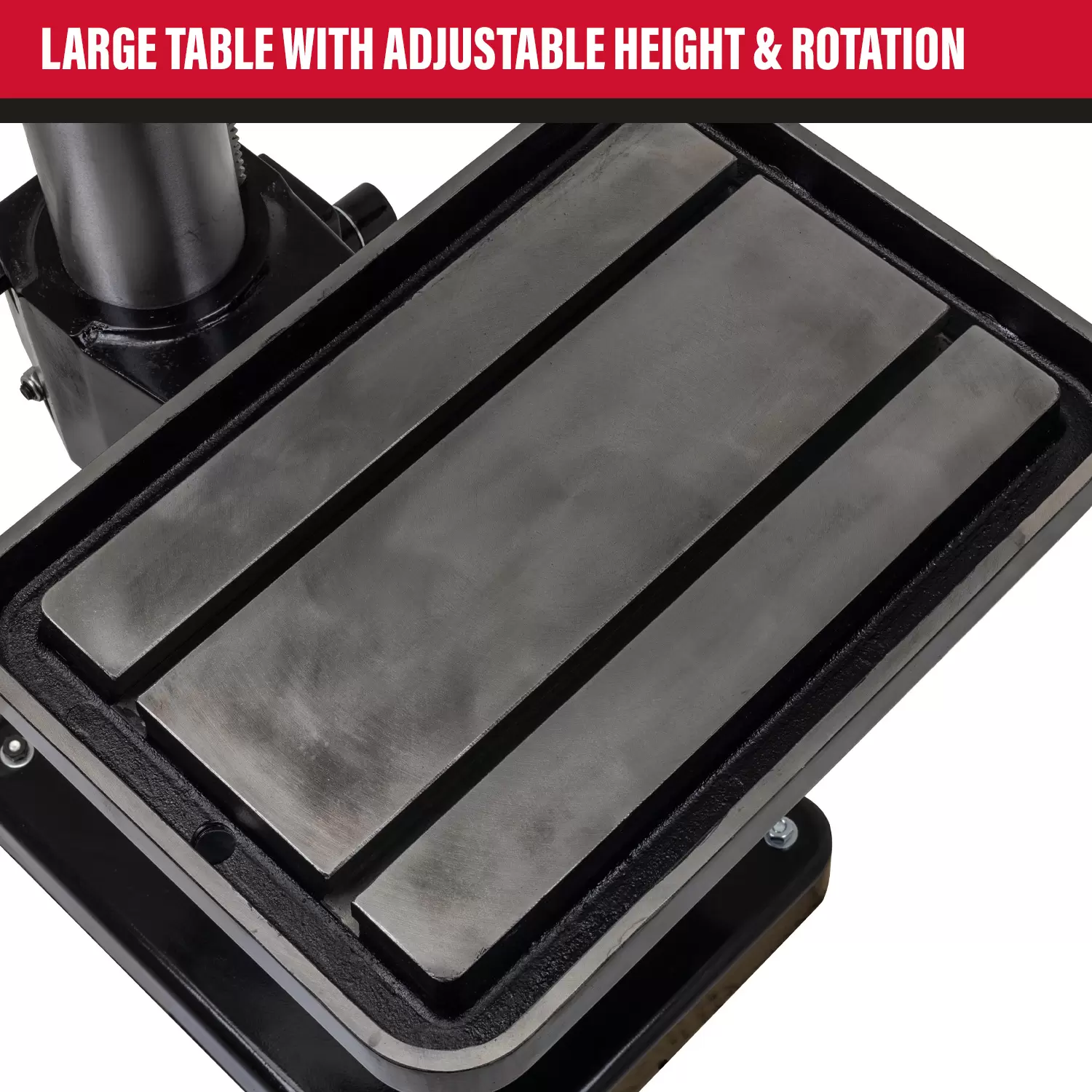

Table Size: 450mm x 320mm
Base Size: 405mm x 390mm
Column Diameter ⌀ 100mm
Swing: 608mm
Height: 1508mm
Spindle Travel: 125mm
Collar Diameter: ⌀ 130mm
Max. Distance: 905mm (spindle to table)
Workshopping Says

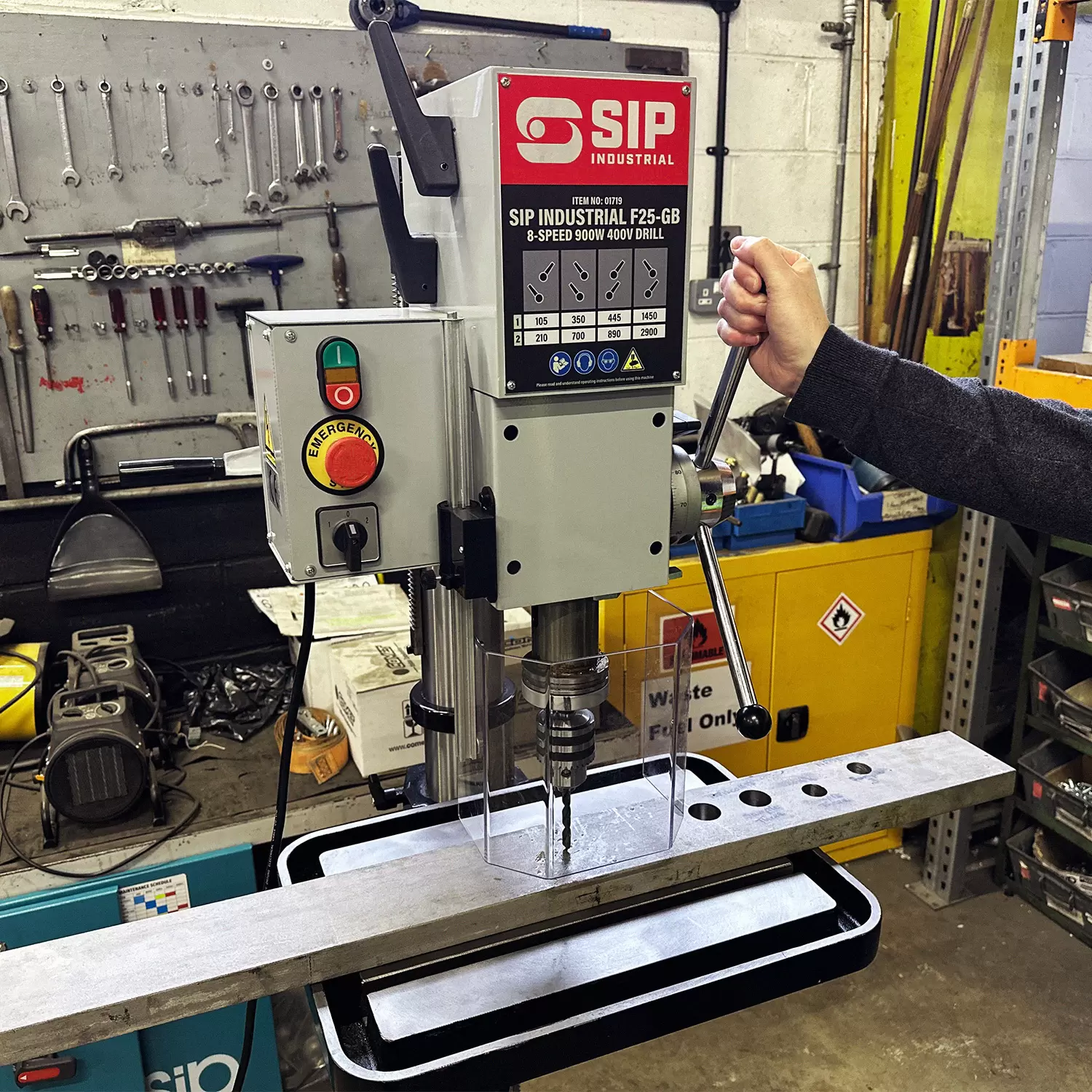

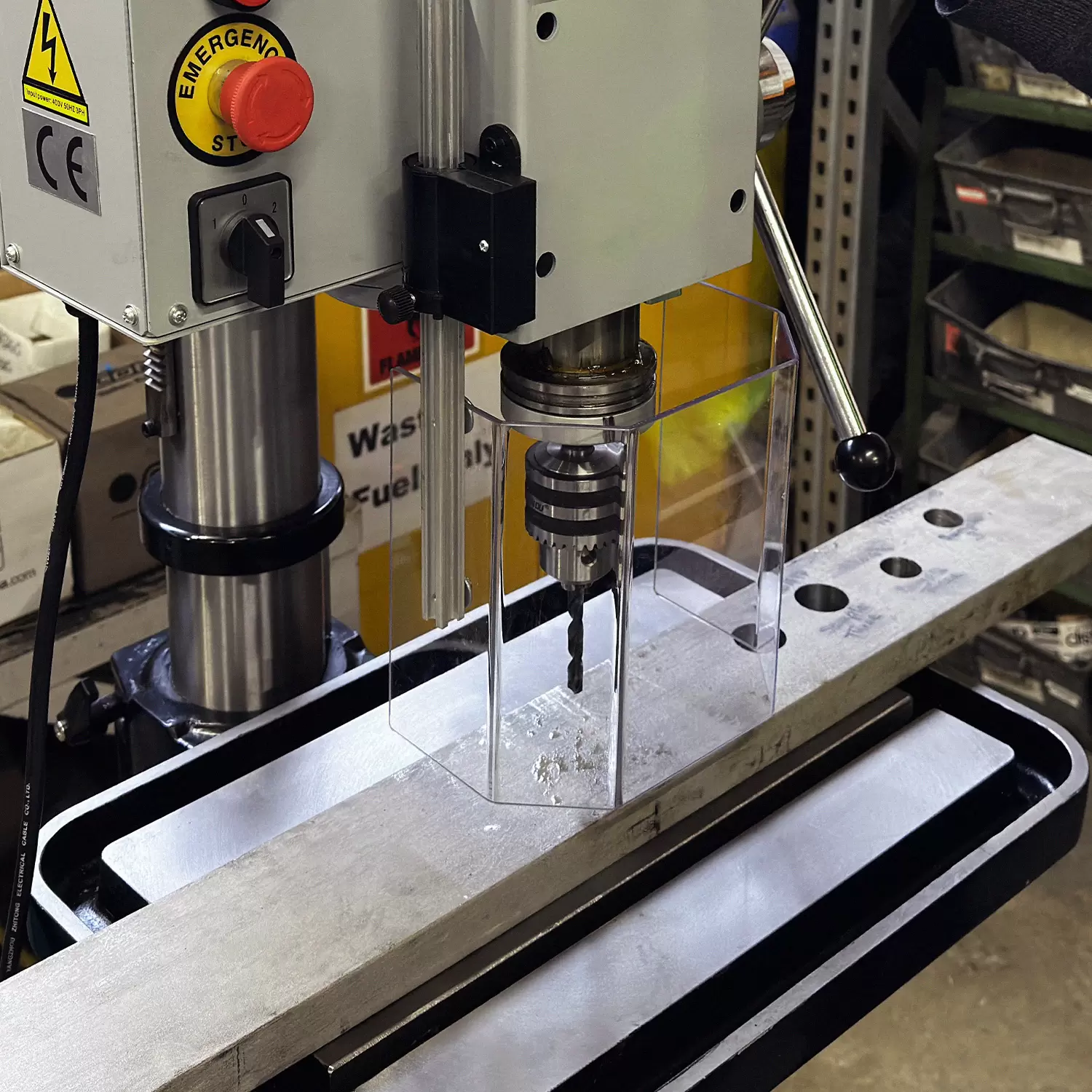

Designed for professional metalworking and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures. 1x SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 3), 1x drill drift, 1x chuck key, 1x Y-type socket wrench and 2x handles for headstock and table.
