SIP - 01720 - Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill
SKU: SIP01720
Part Number: 01720
Barcode: 5012713009855
Country of Origin: CN
Weight: 380.00 Kg
Our Price
£5,151.59 (inc VAT) £4,292.99 (ex VAT)
RRP £5,399.99 £4,499.99
Save
£248.40
£207.00
SIP 2-YEAR Warranty included.
Description

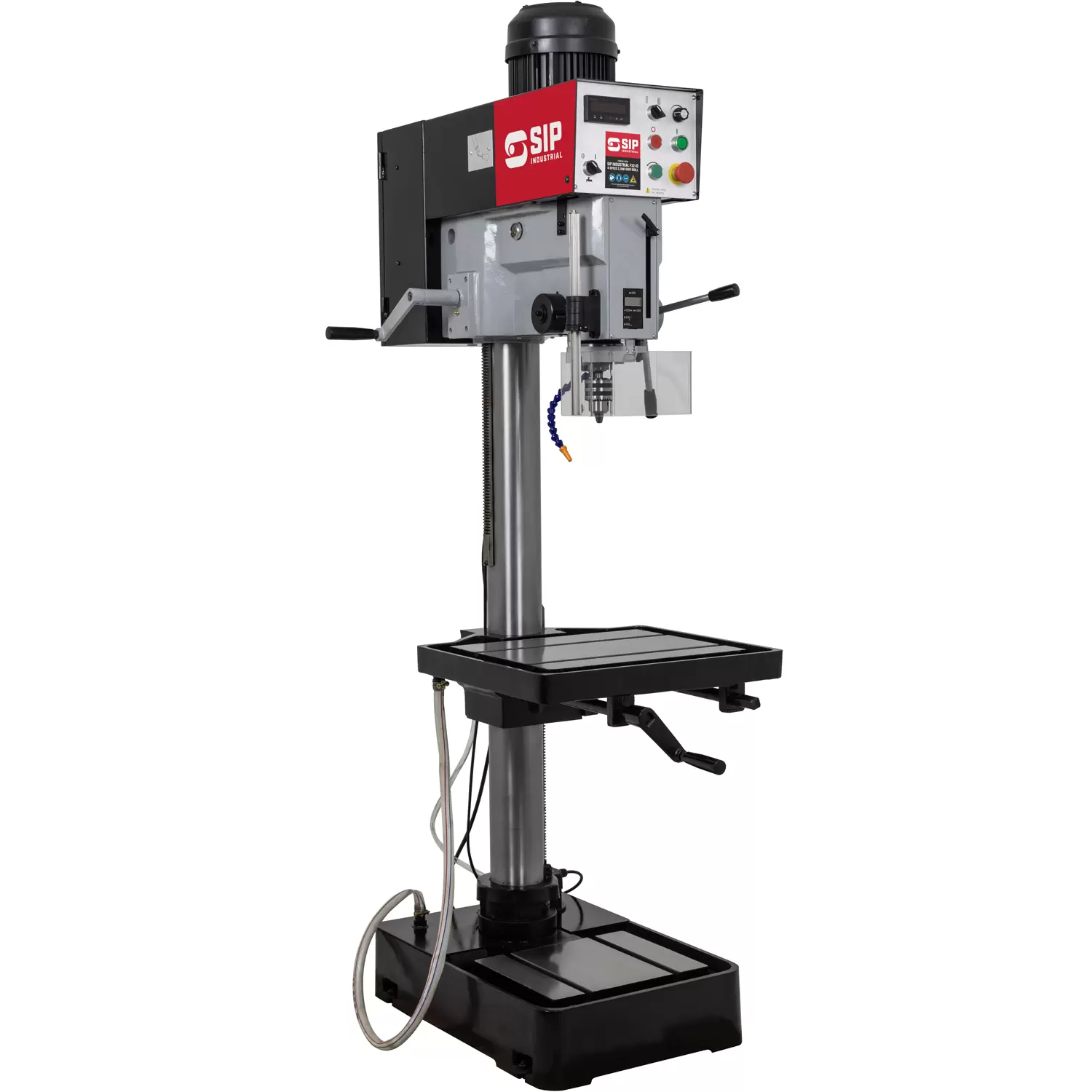

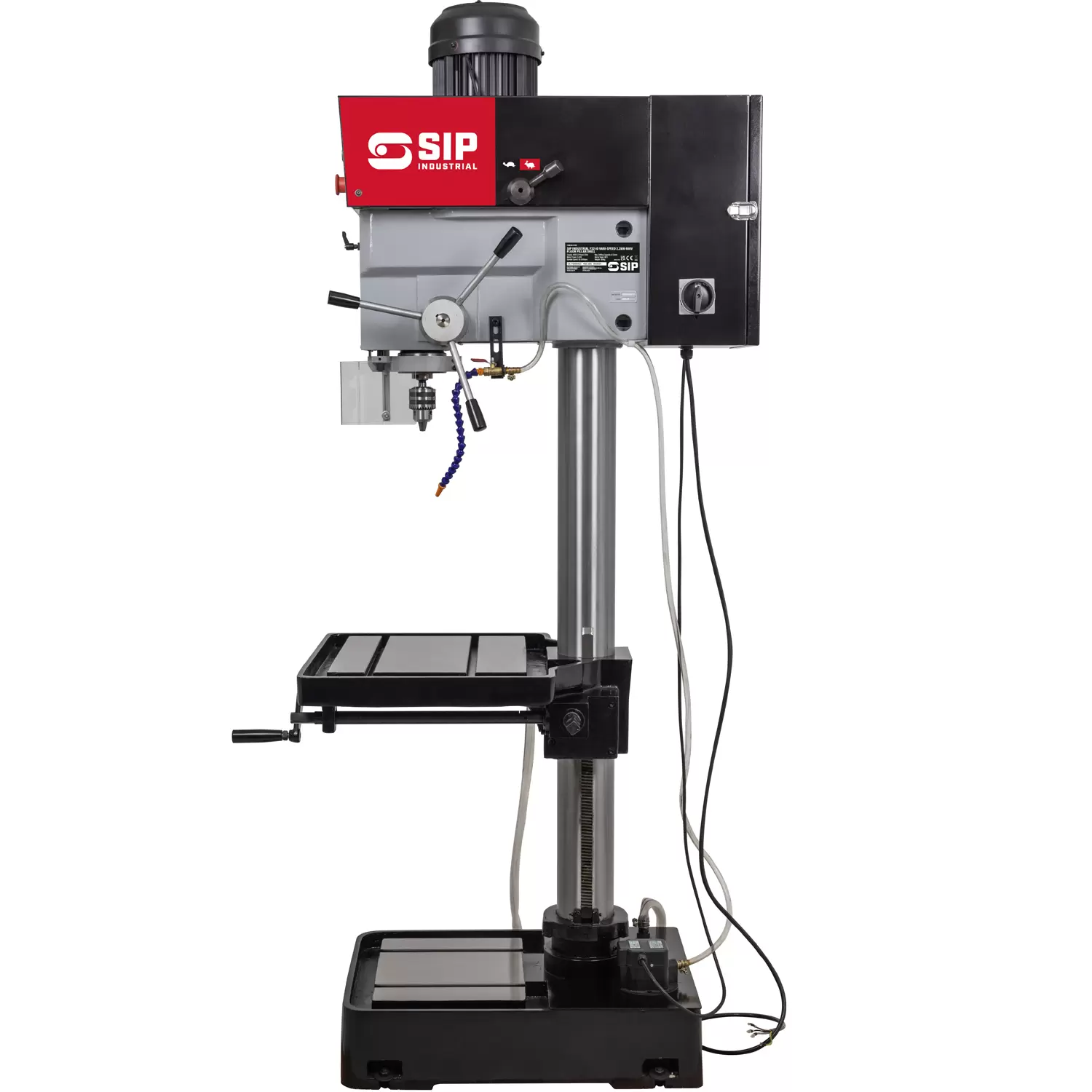

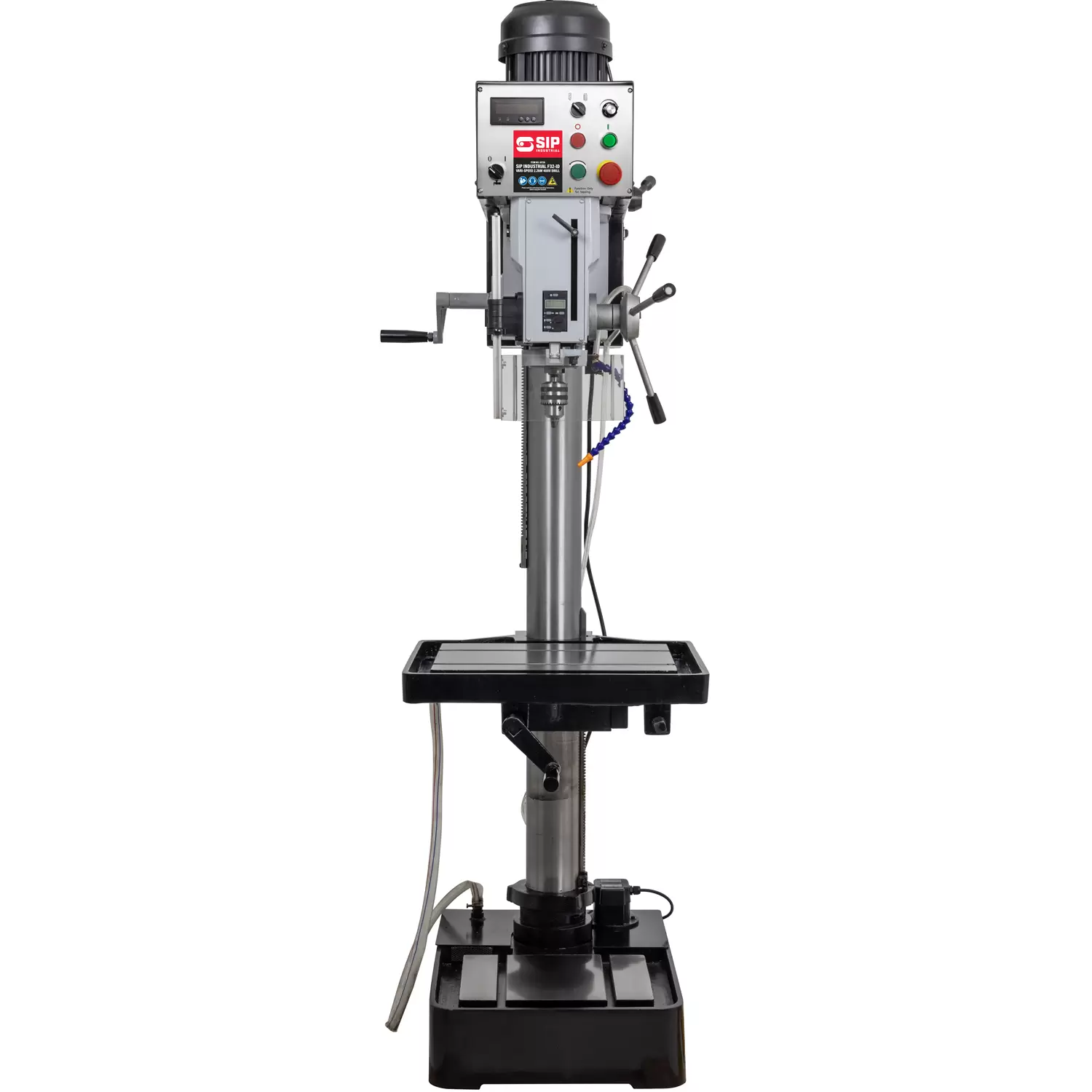

The SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.
Featuring a variable frequency drive inverter transmission, the drill delivers high torque output across a consistent 65rpm - 2000rpm spindle speed for powerful and precise drilling of up to max. ⌀ 32mm. A tapping function allows threading of high-quality screw holes up to max. ⌀ 19mm.
Engineered for demanding production environments, this adjustable and heavy-duty drill also features enhanced safety features to protect operators.
Features

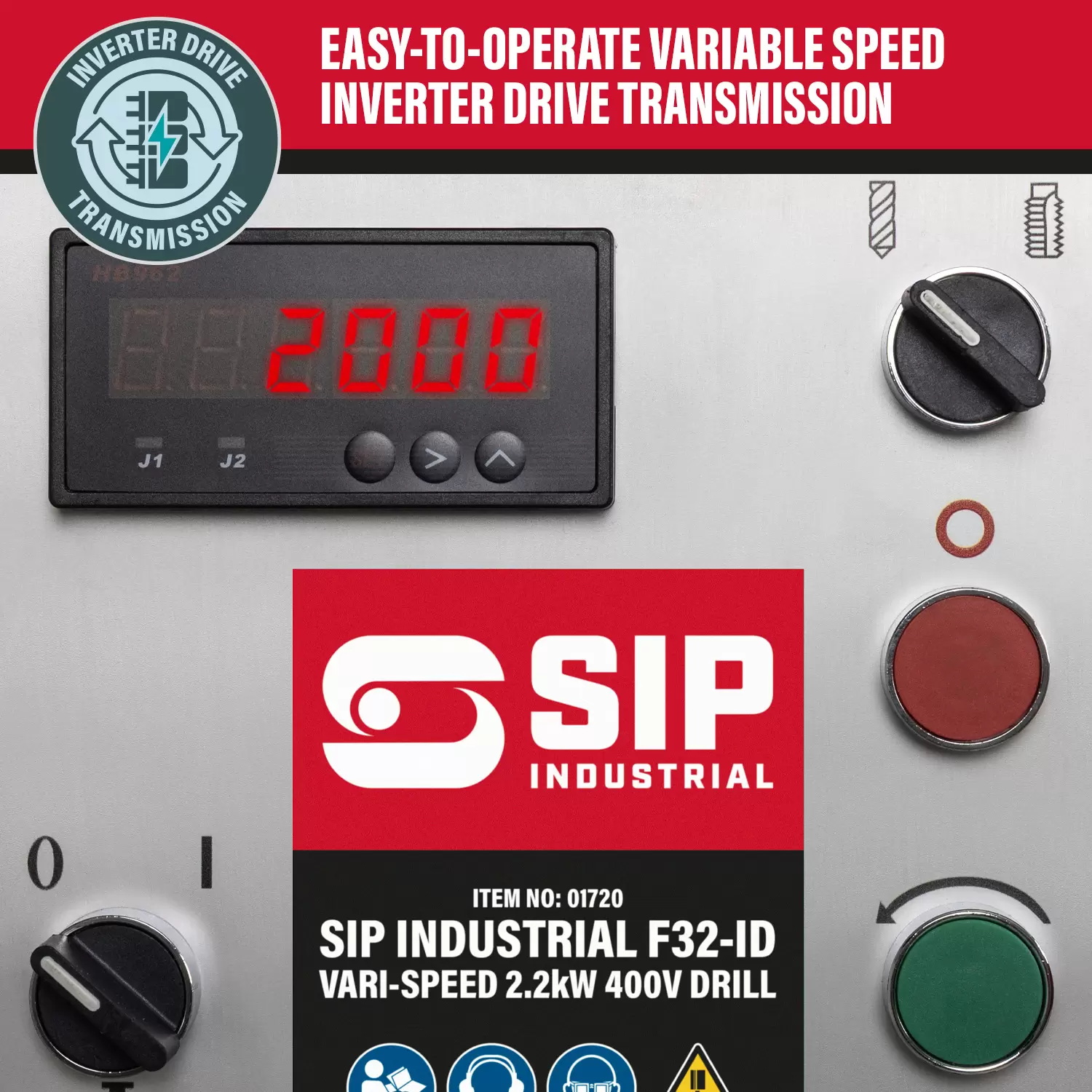

• Variable frequency inverter drive transmission with wide 65-2000rpm speed range
• Infinitely variable control dial for precise spindle speed setting
• High torque output for consistent drilling power of up to max. ⌀ 32mm

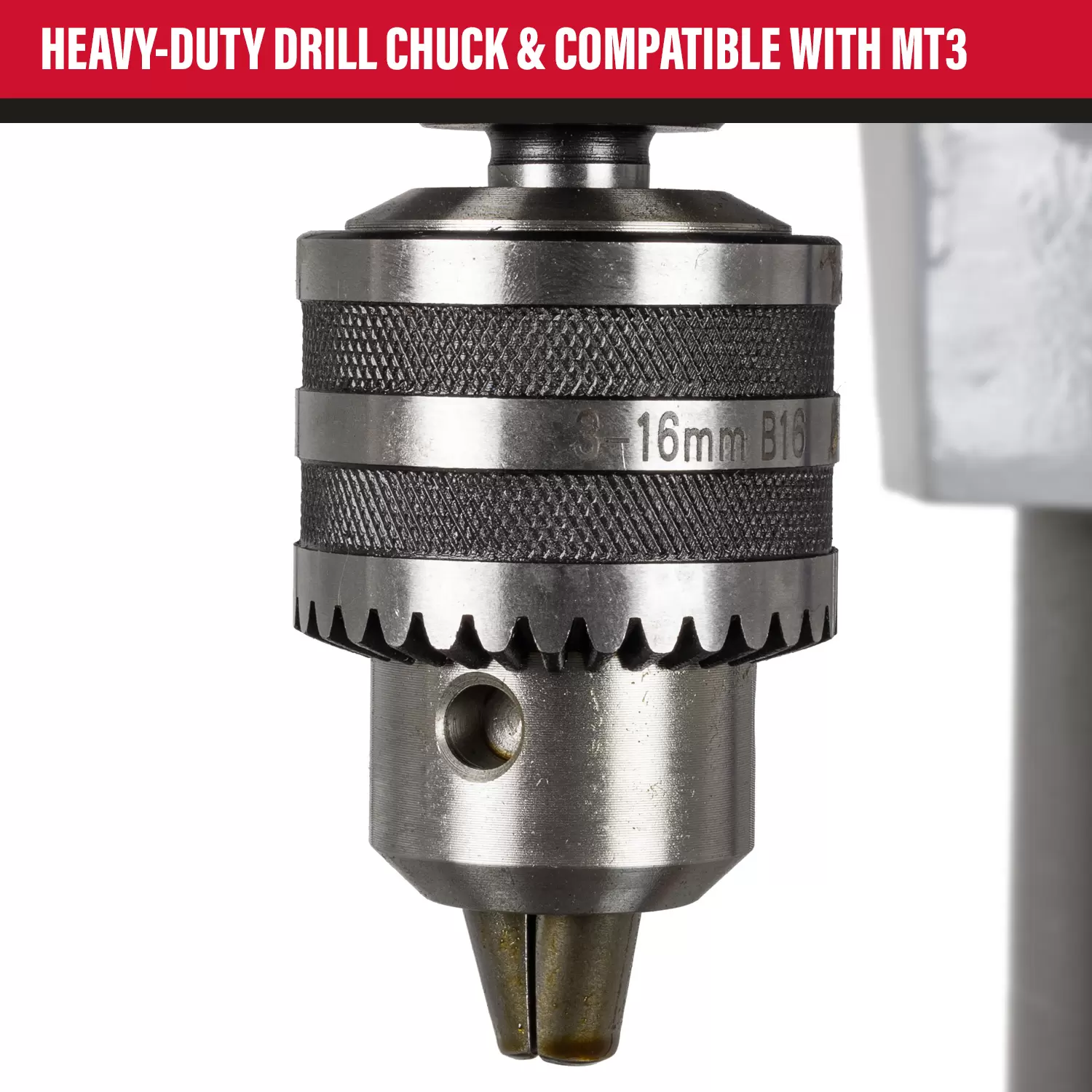

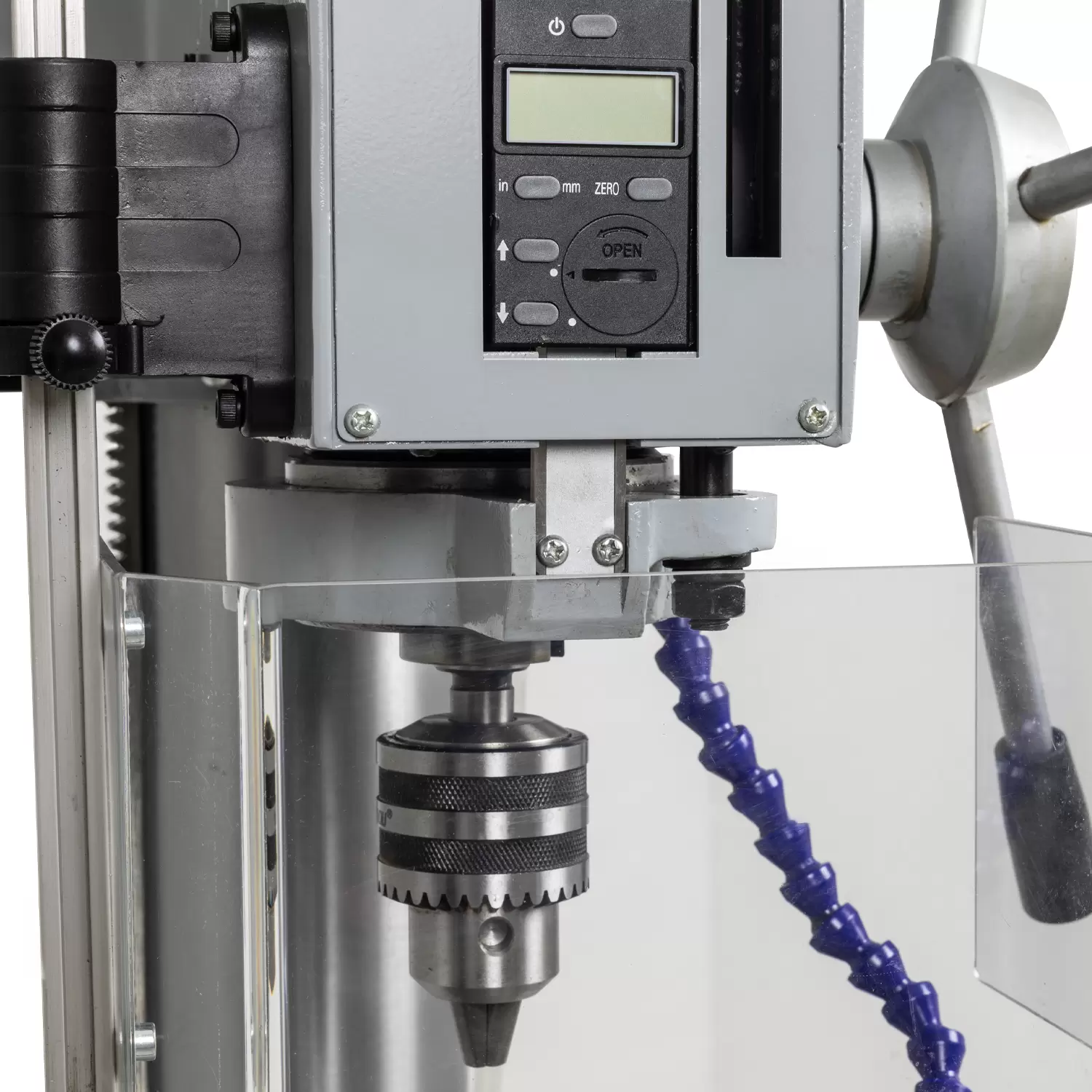

• Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)

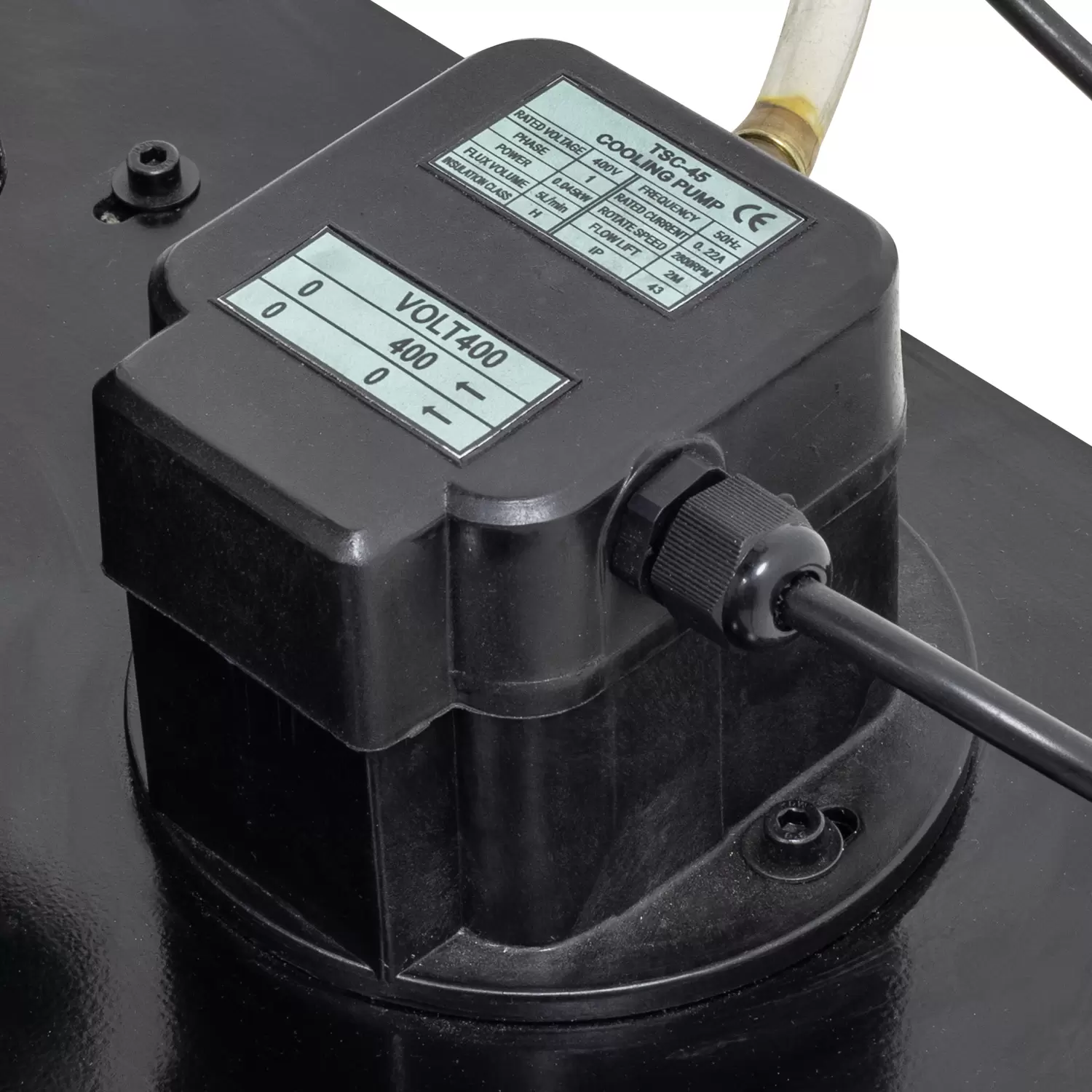

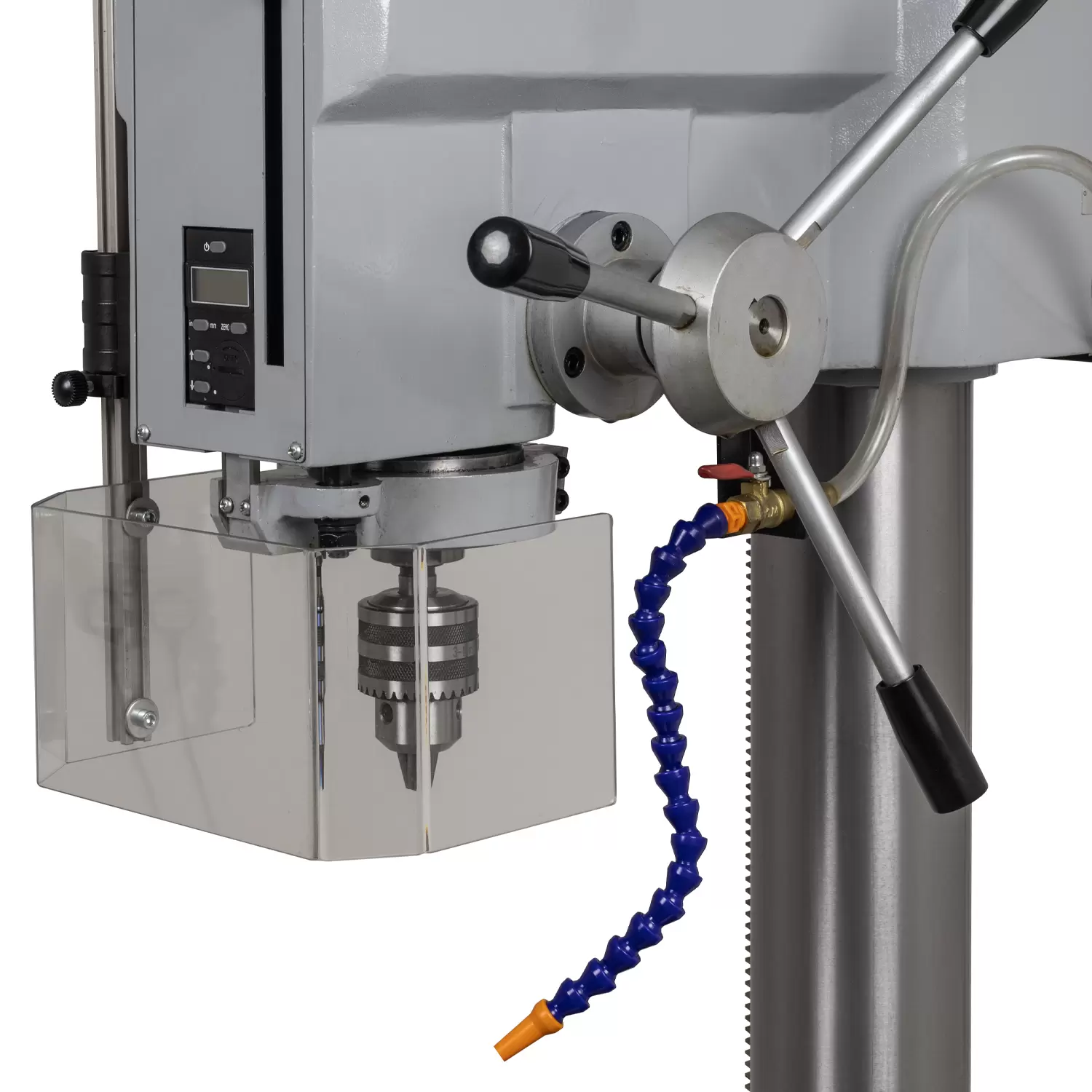

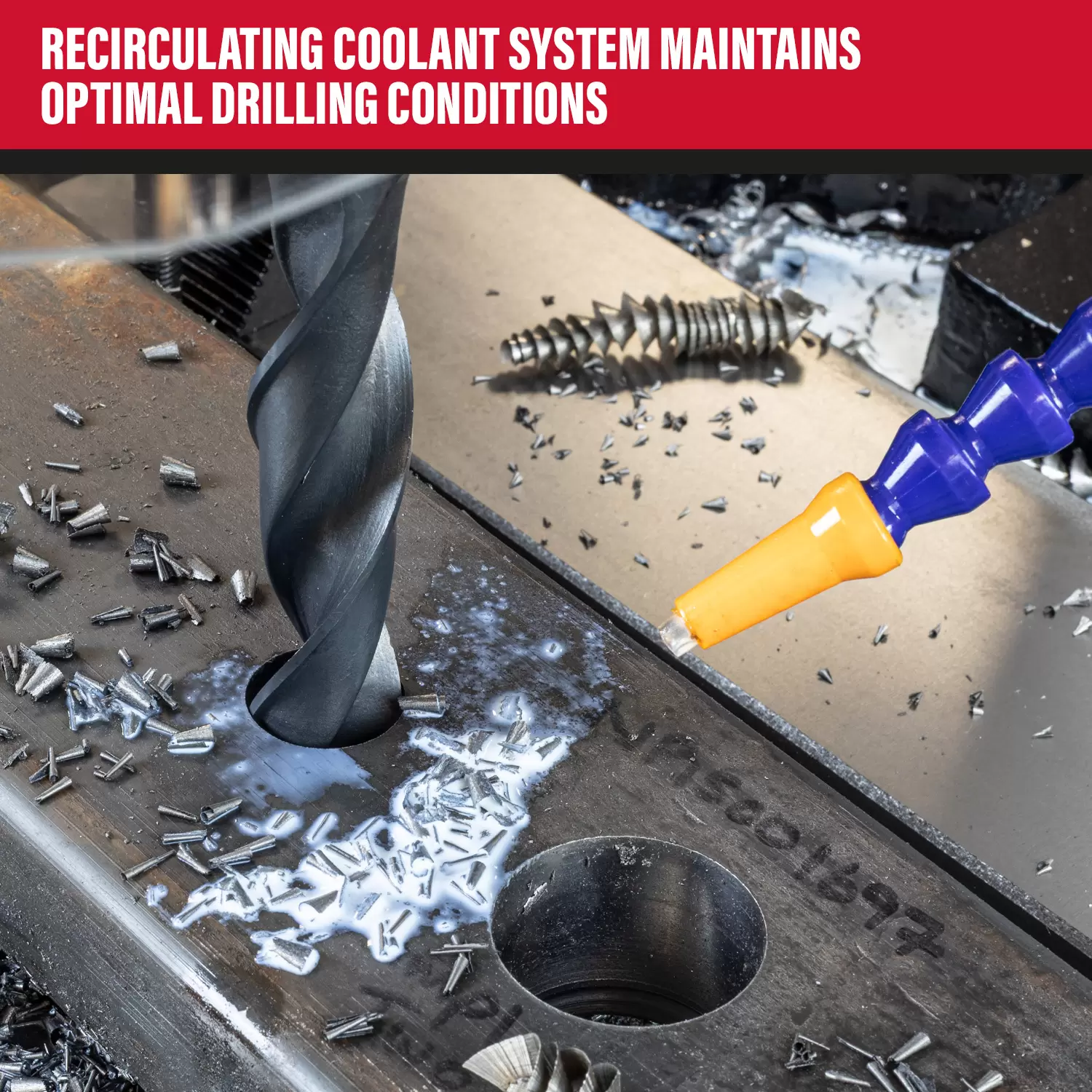

• Recirculating coolant system maintains optimal drilling conditions
• Infinitely variable control dial for precise spindle speed setting
• High torque output for consistent drilling power of up to max. ⌀ 32mm
• Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)
• Recirculating coolant system maintains optimal drilling conditions
Specification
ITEM NO. 01720
Input Supply: 400v (16A)
Motor Power: 2.2kW
No. of Speeds: 65rpm - 540rpm (low) / 245rpm - 2000rpm (high)
Max. Drilling Capacity: 32mm
Max. Tapping Capacity: 19mm
Spindle Taper: MT3

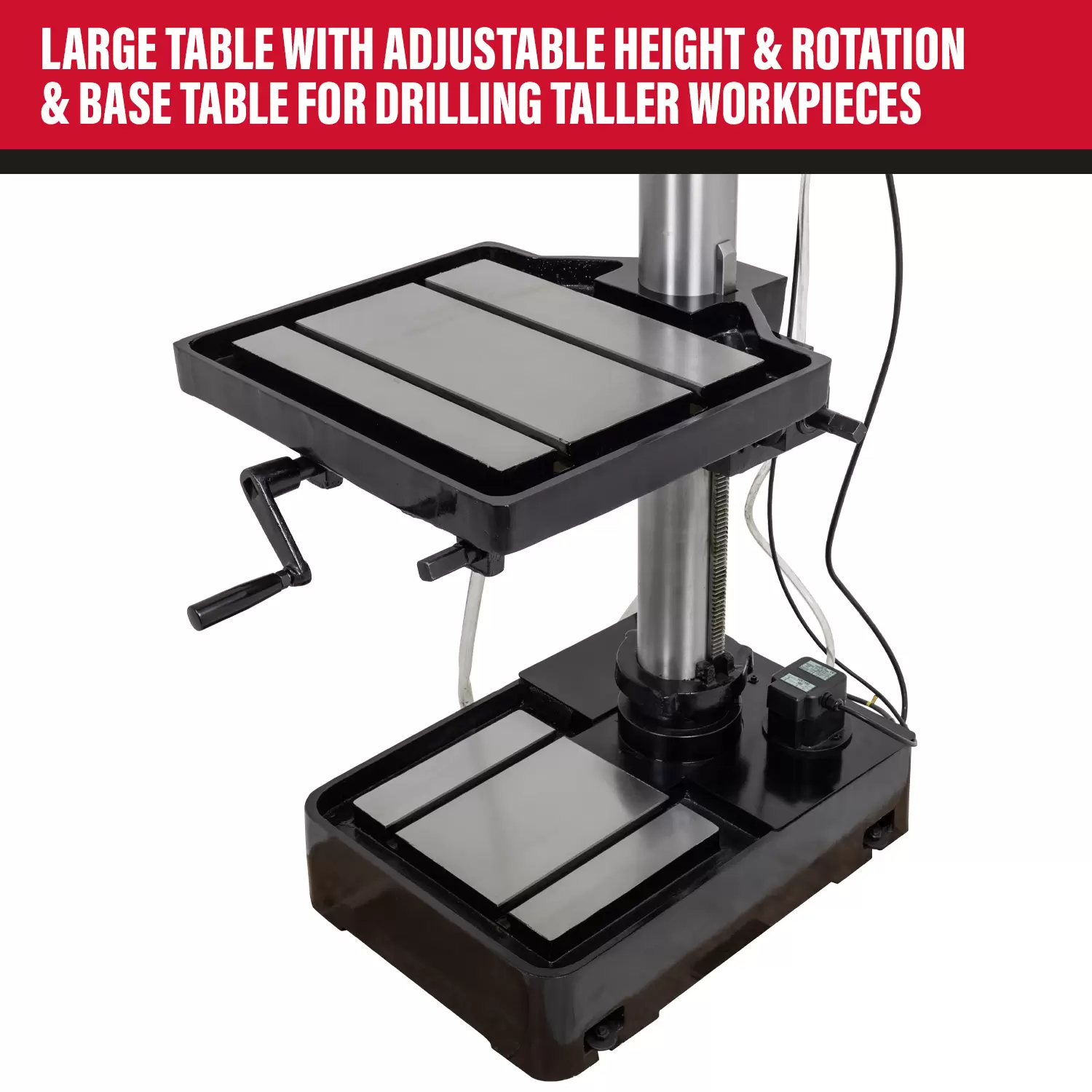

Table Size: 560mm x 475mm
Base Size: 688mm x 486mm
Column Diameter ⌀ 115mm
Swing: 530mm
Height: 1665mm
Spindle Travel: 150mm
Collar Diameter: ⌀ 174mm
Max. Distance: 530mm (spindle to table) / 1180mm (spindle to base)
Workshopping Says

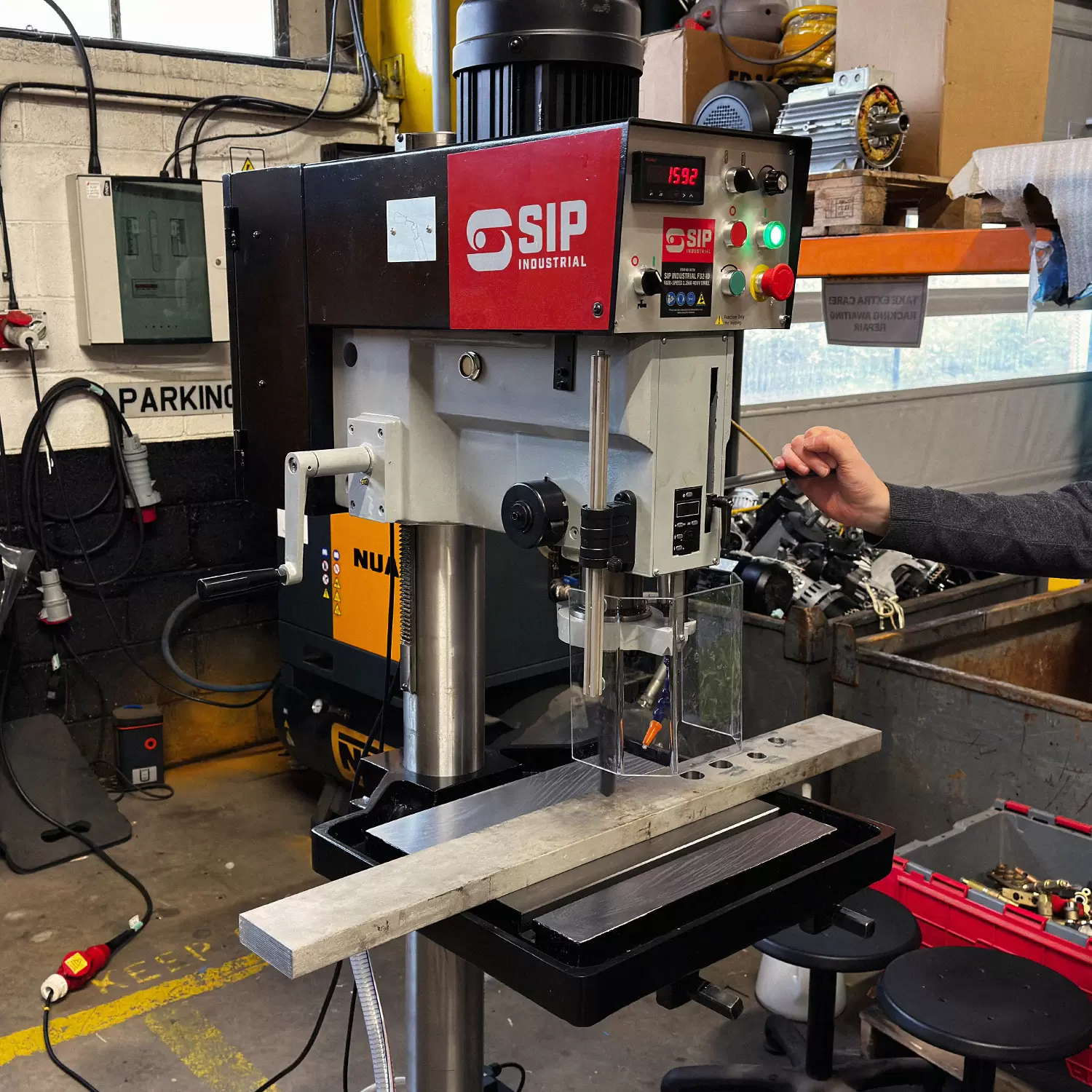

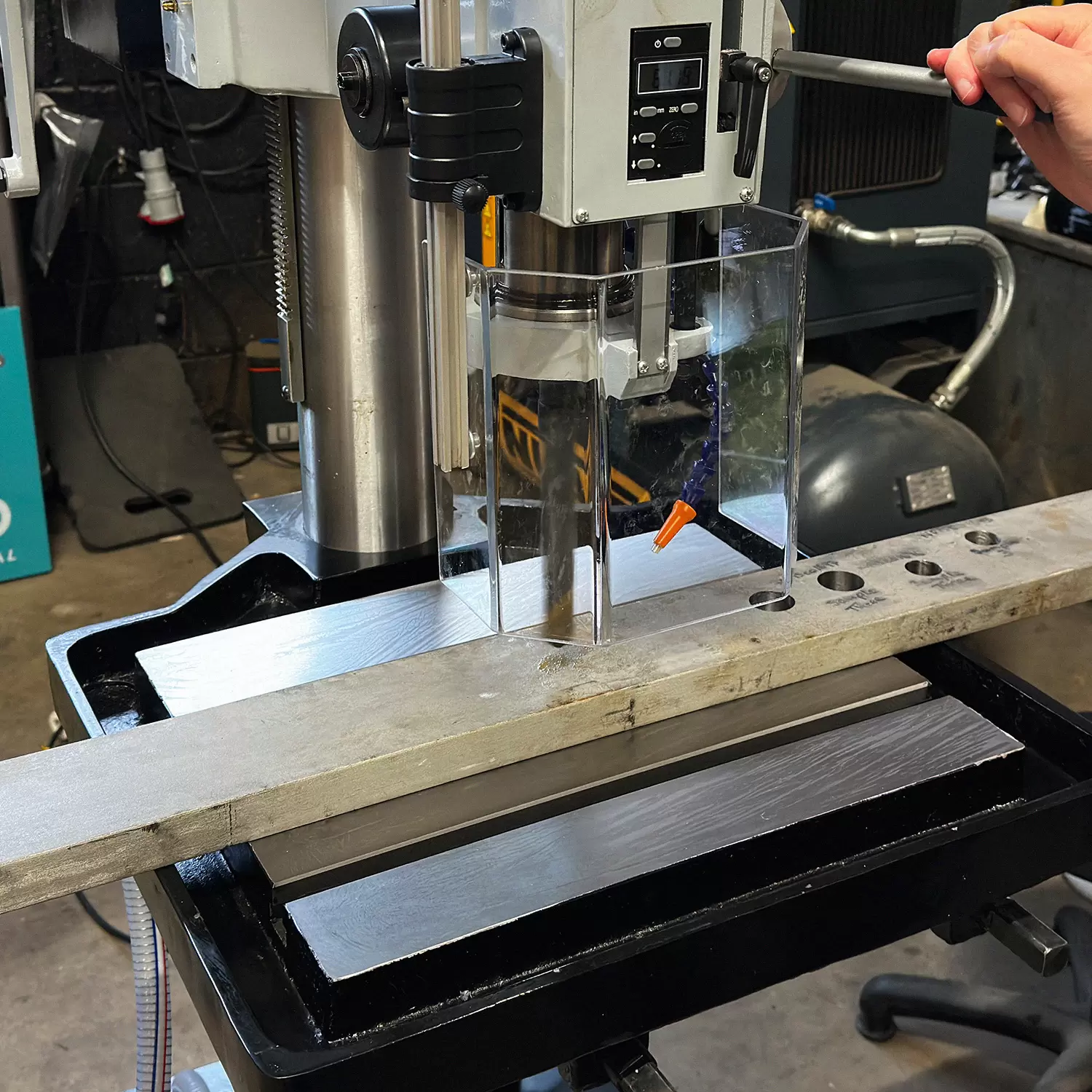

Designed for professional metalworking and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures. 1x SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 3), 1x drill drift, 1x chuck key, 1x, cranking handle, 1x Y-type socket wrench and 2x handles for headstock and table.
