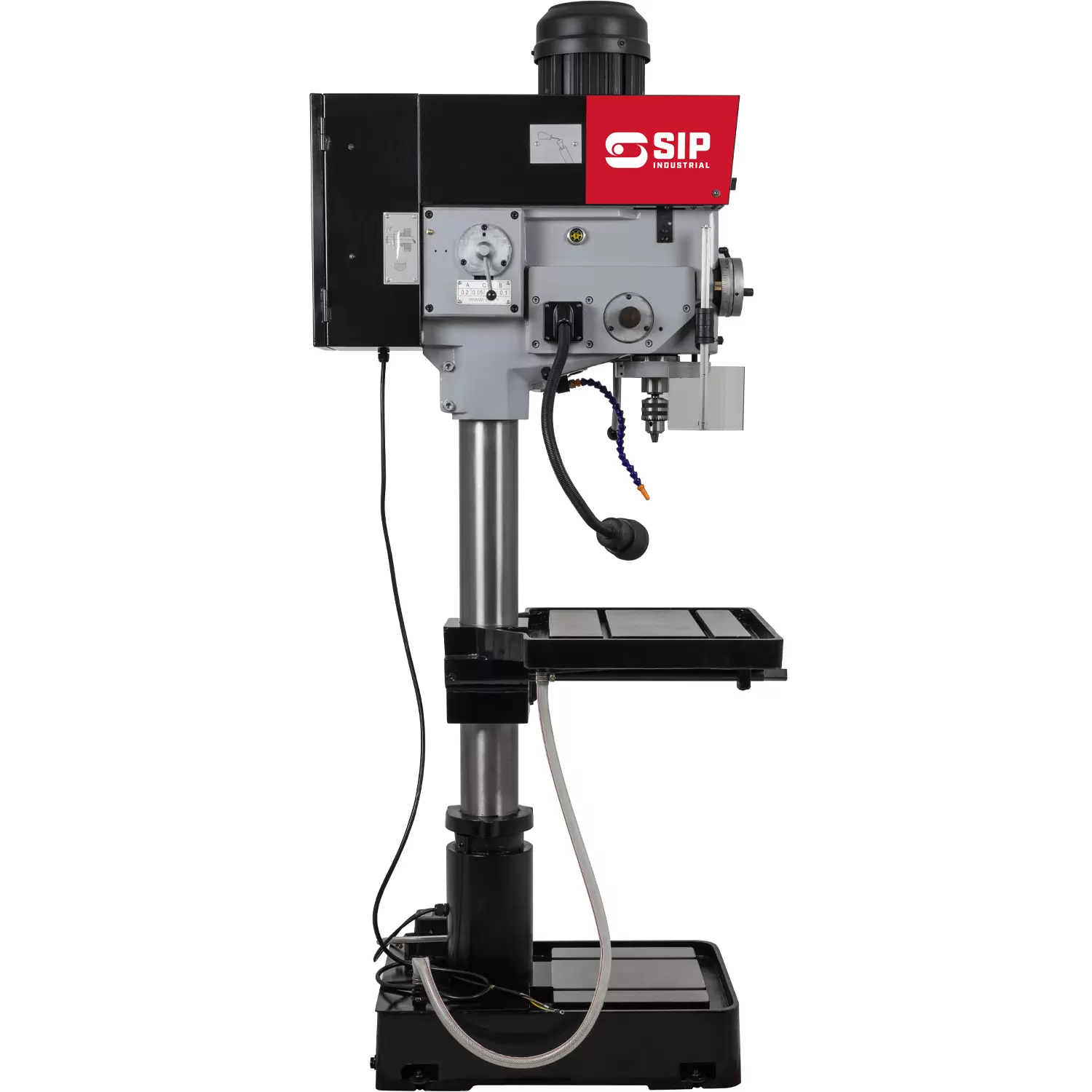

SIP - 01721 - Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill
SKU: SIP01721
Part Number: 01721
Barcode: 5012713009862
Country of Origin: CN
Weight: 430.00 Kg
Our Price
£6,496.73 (inc VAT) £5,413.94 (ex VAT)
RRP £7,666.14 £6,388.45
Save
£1,169.41
£974.51
SIP 2-YEAR Warranty included.
Description

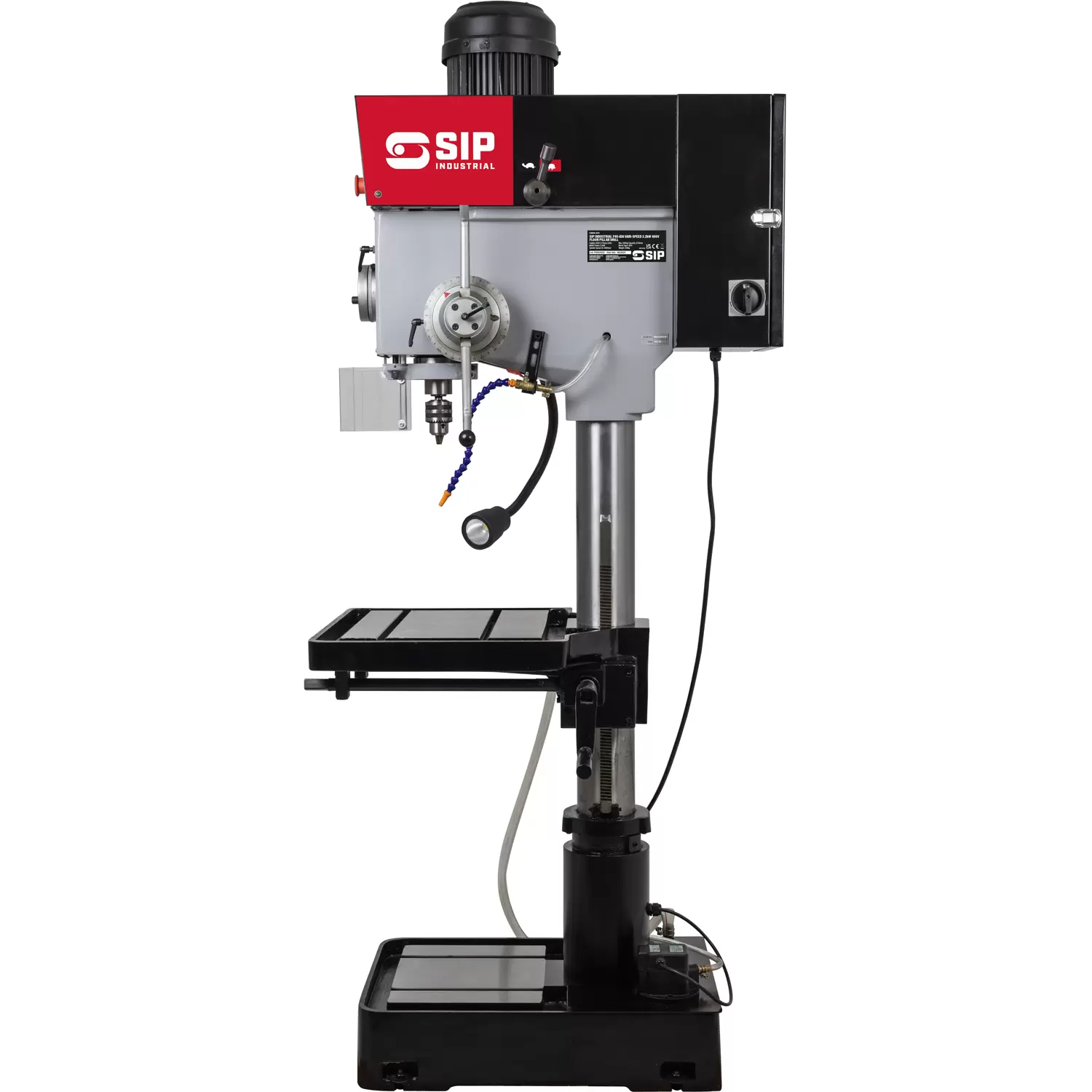

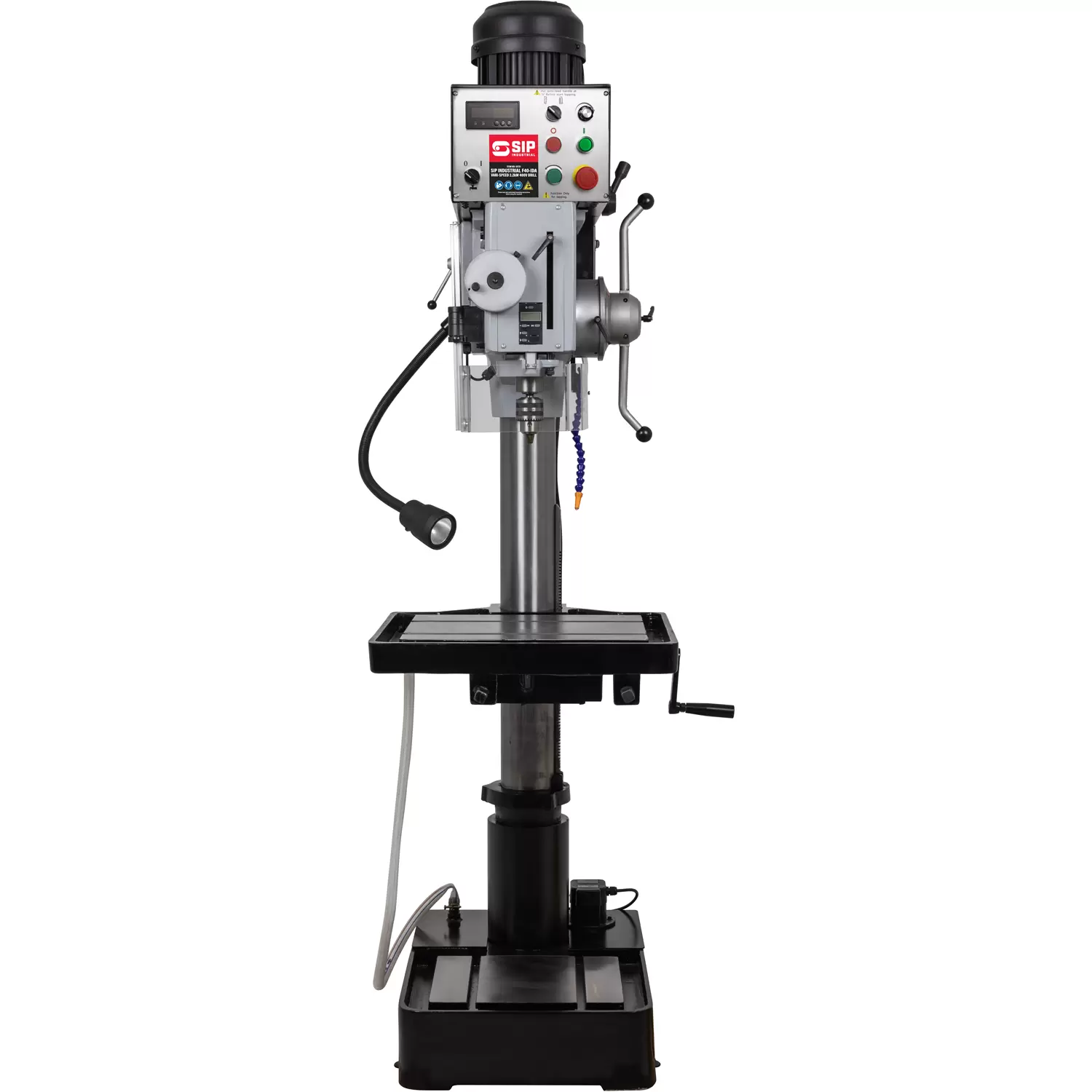

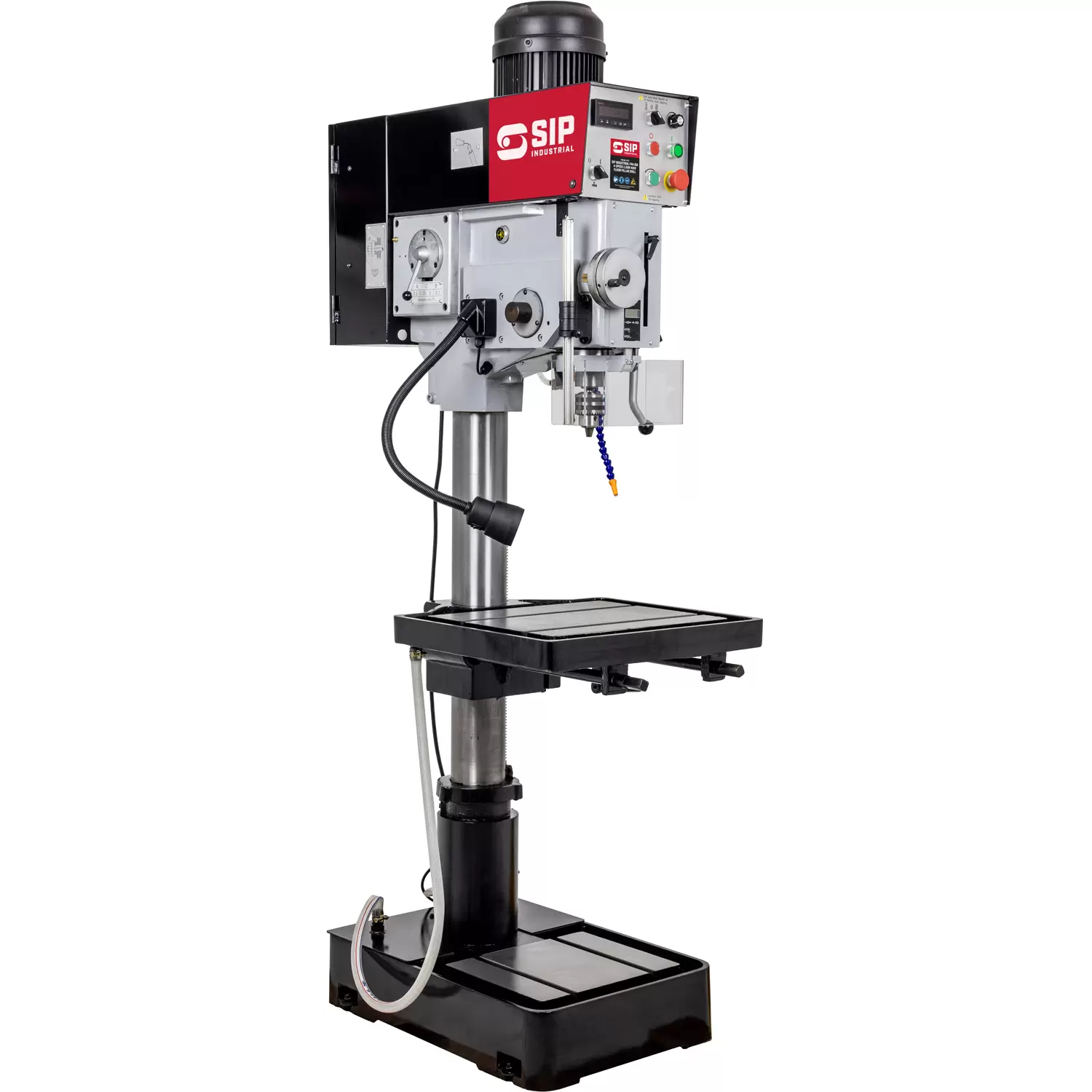

The SIP Industrial F40-IDA 2.2kW 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.

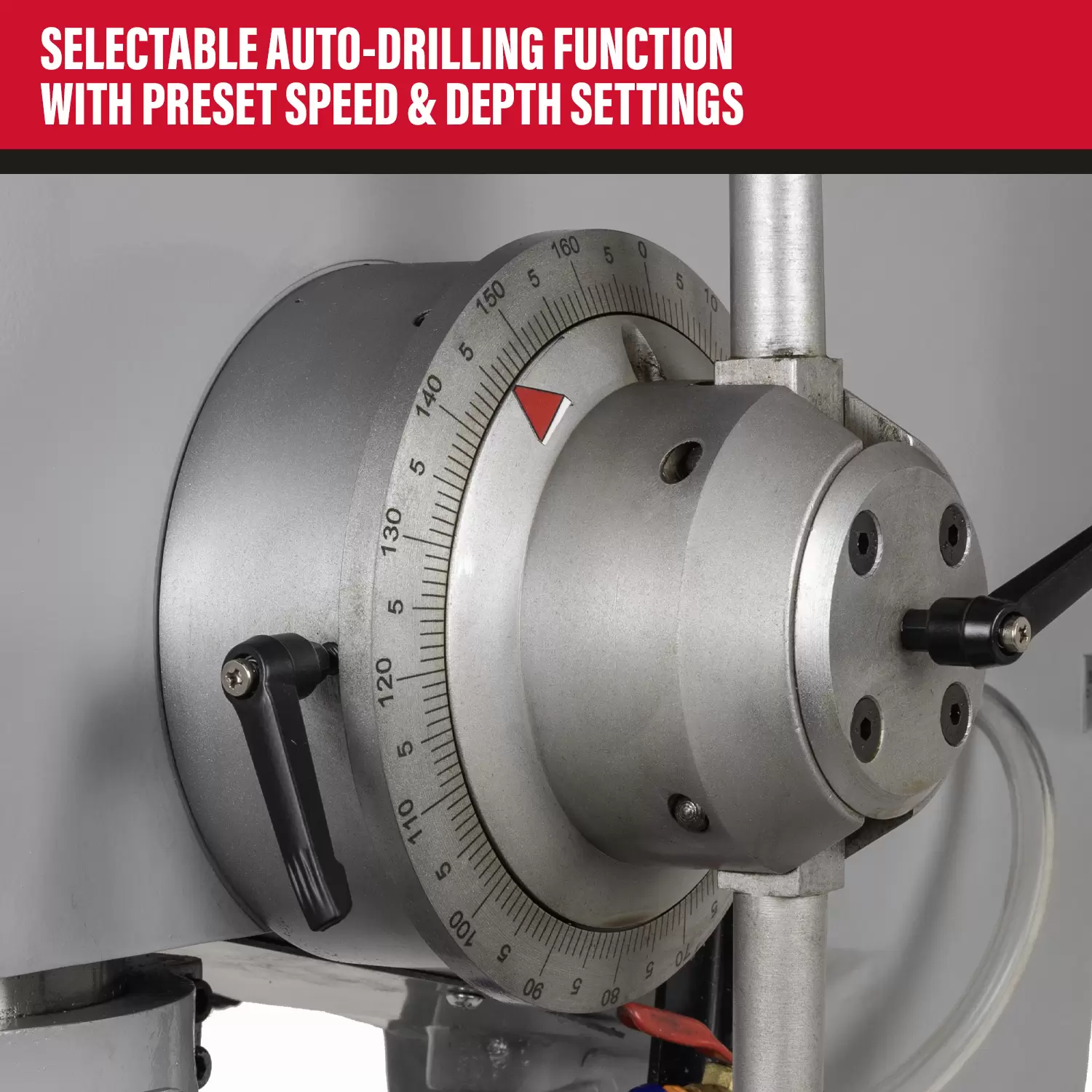

Featuring a variable frequency drive inverter transmission, the drill delivers high torque output across a consistent 65rpm to 2000rpm spindle speed for powerful and precise drilling of up to max. ⌀ 40mm. An integrated auto-drilling function also increases workshop efficiency, particularly during repetitive tasks.
Engineered for demanding production environments, this adjustable and heavy-duty drill also features enhanced safety features to protect operators.
Features

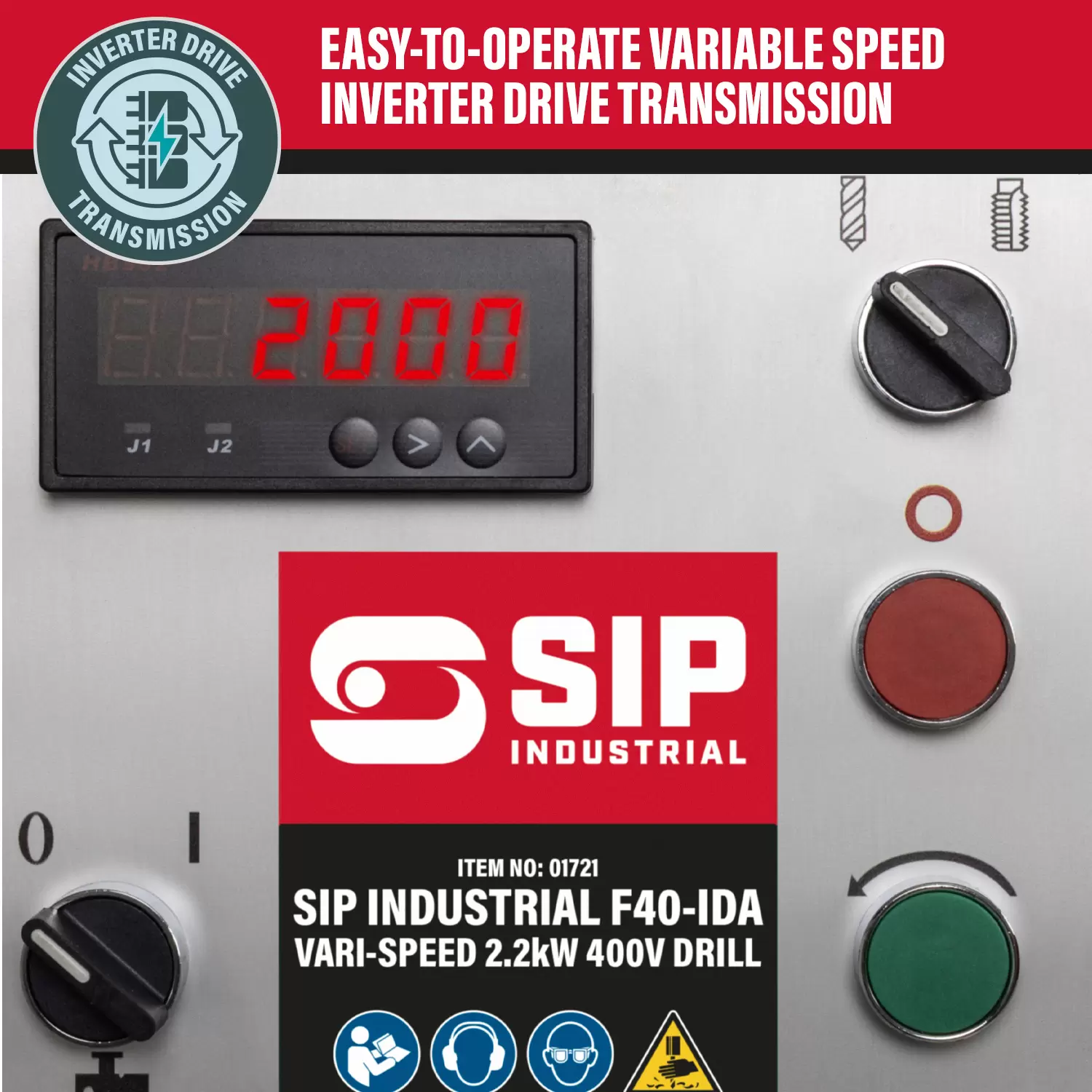

• Variable frequency inverter drive transmission with wide 65-2000rpm speed range
• Infinitely variable control dial for precise spindle speed setting
• High torque output for consistent drilling power of up to max. ⌀ 40mm

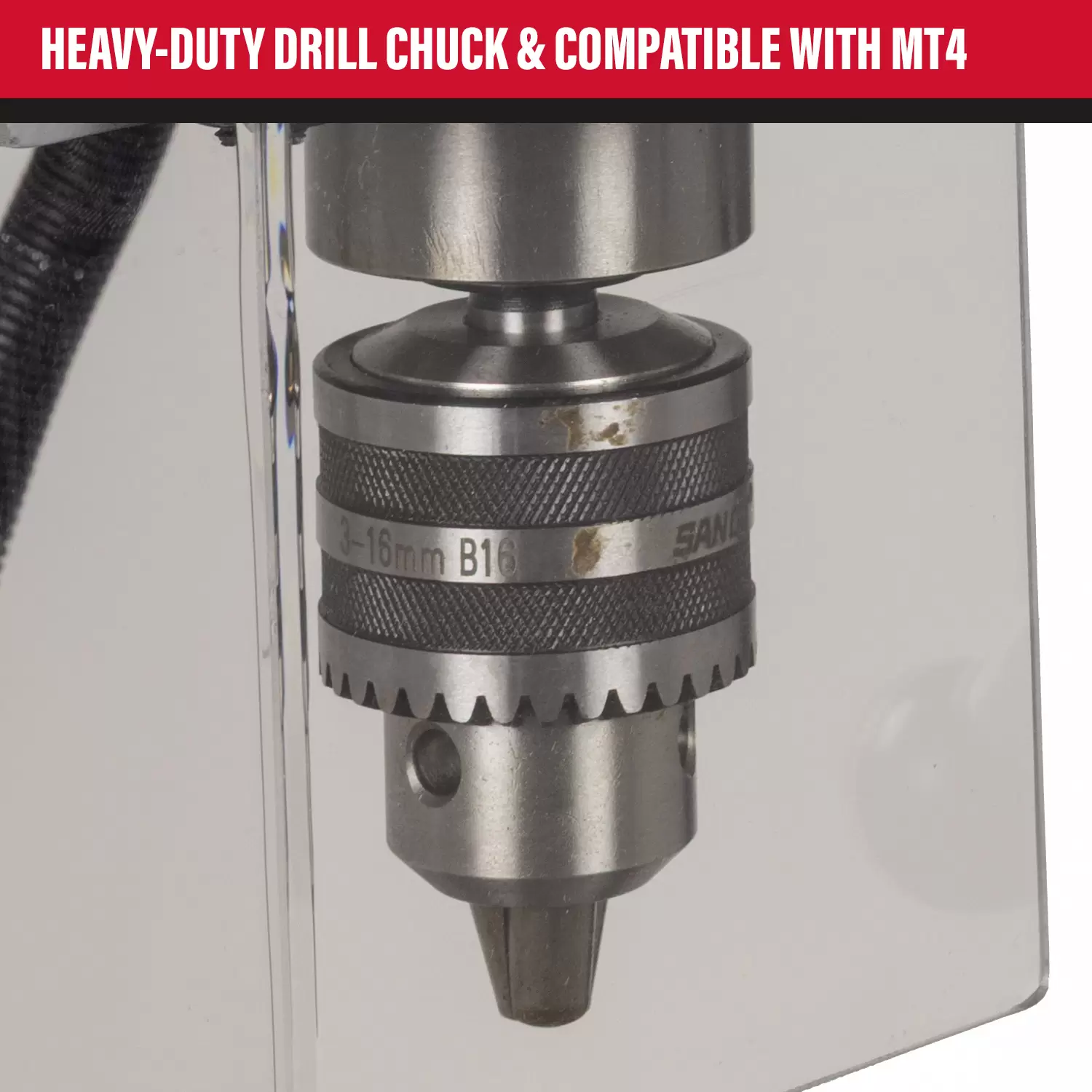

• Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 4)

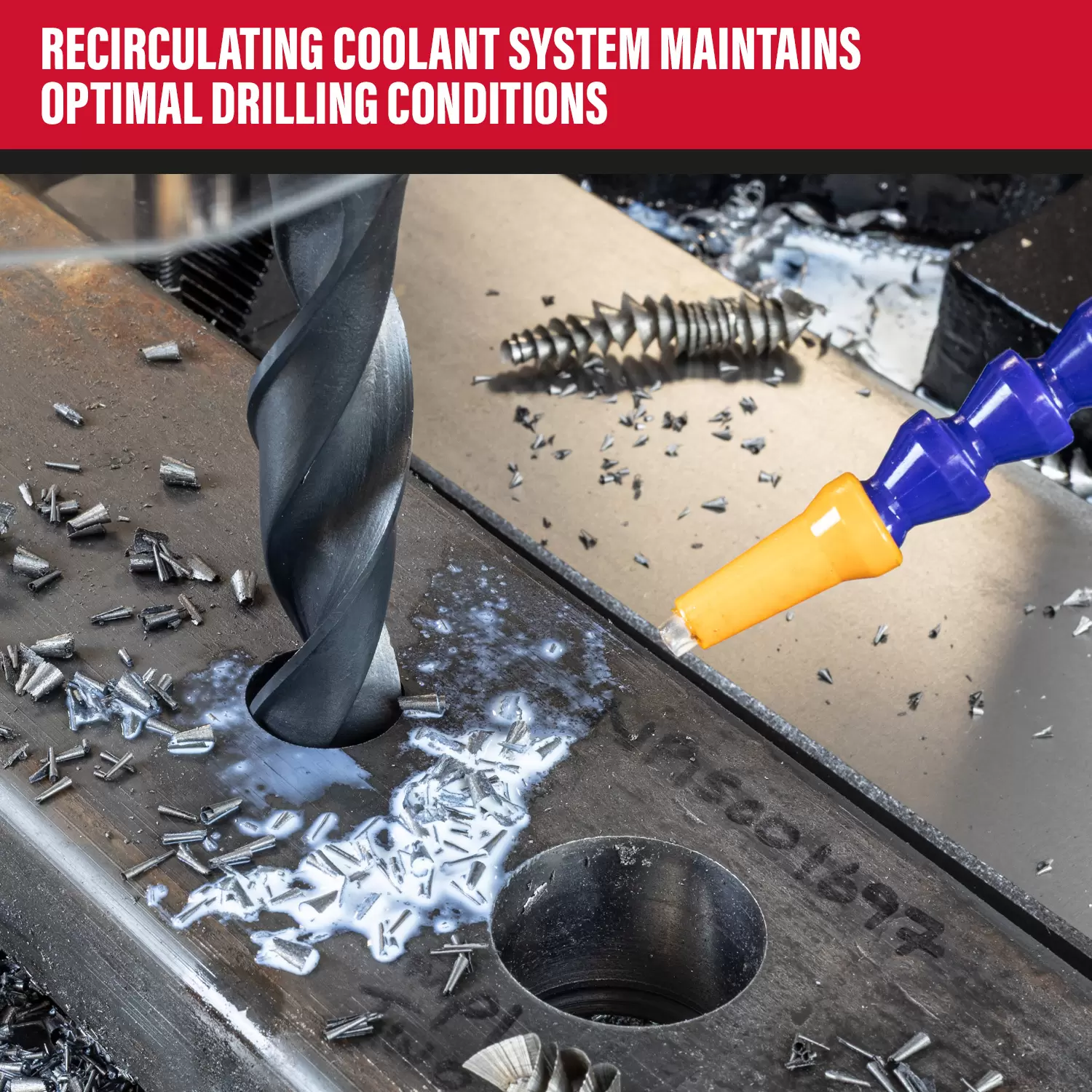

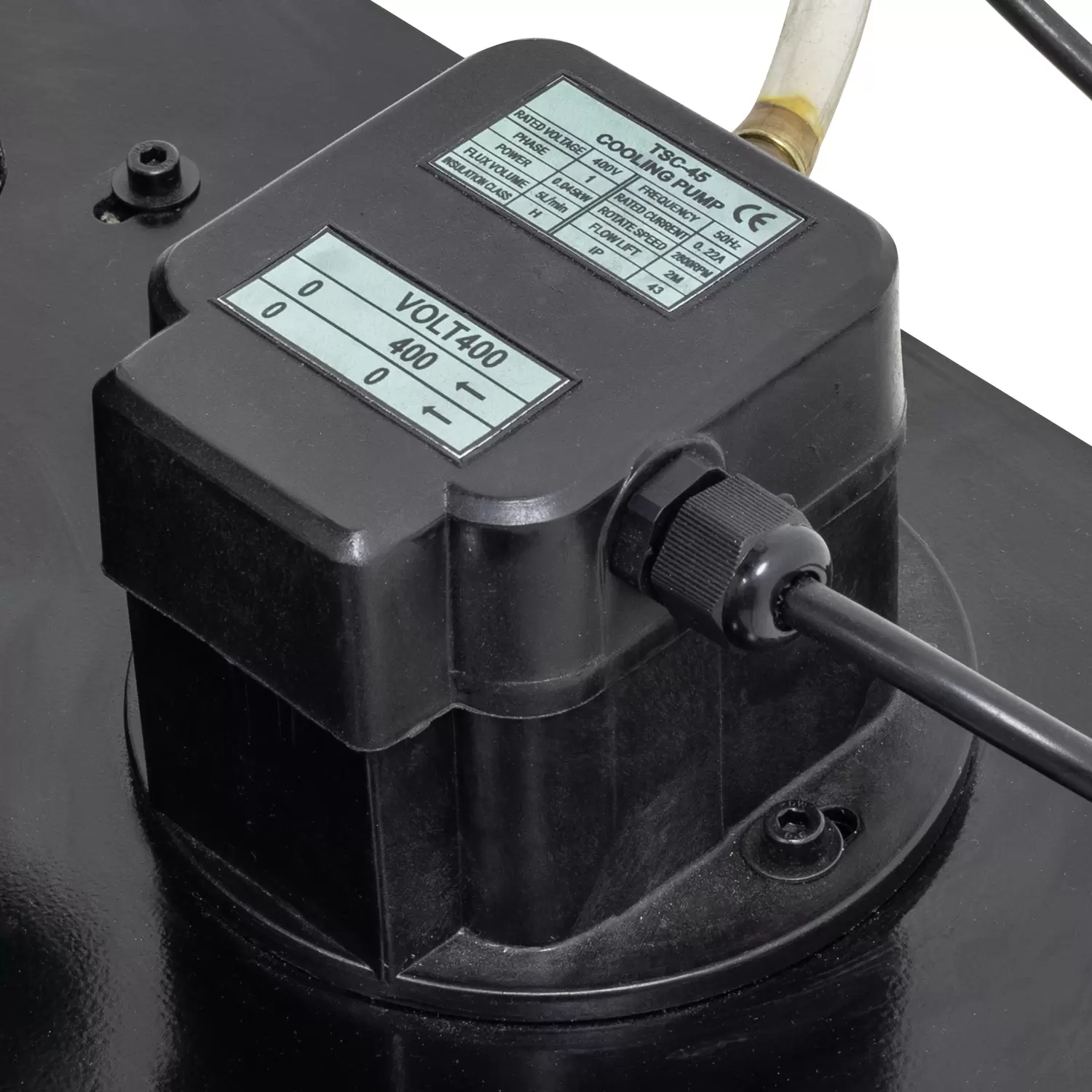

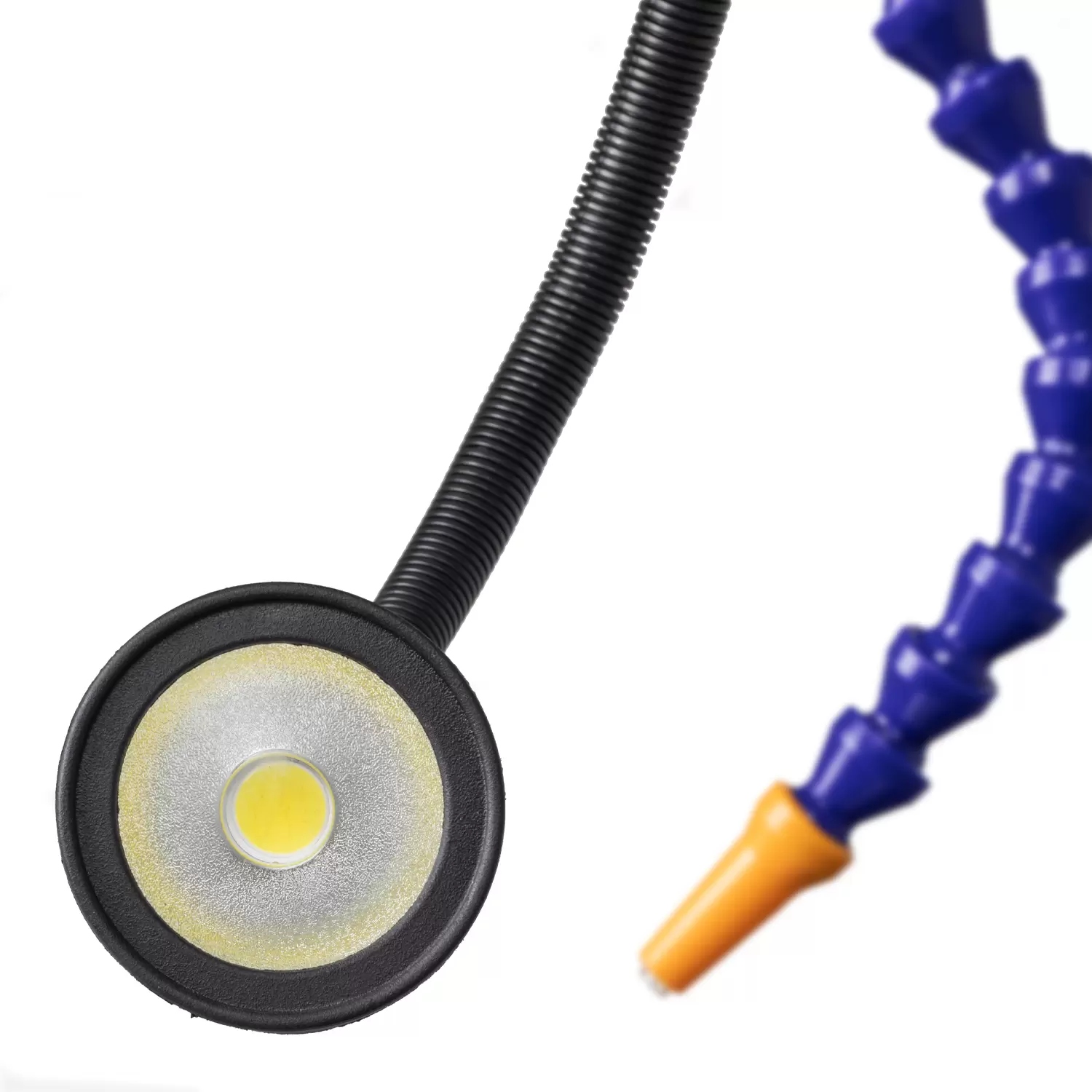

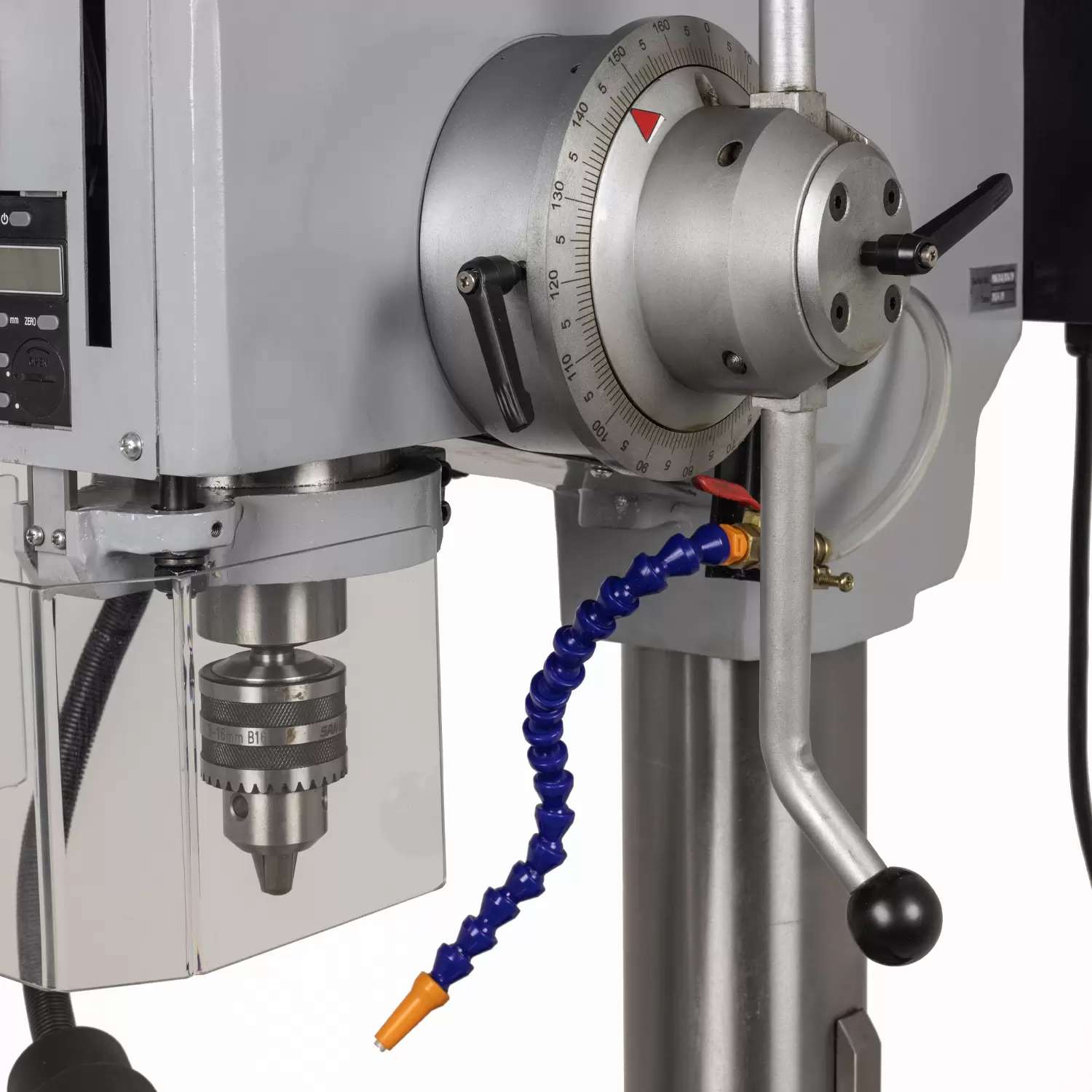

• Recirculating coolant system maintains optimal drilling conditions
• Infinitely variable control dial for precise spindle speed setting
• High torque output for consistent drilling power of up to max. ⌀ 40mm
• Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 4)
• Recirculating coolant system maintains optimal drilling conditions
Specification
ITEM NO. 01721
Input Supply: 400v (16A)
Motor Power: 2.2kW
No. of Speeds: 65rpm - 540rpm (low) / 245rpm - 2000rpm (high)
Max. Drilling Capacity: 40mm
Max. Tapping Capacity: 25mm
Spindle Taper: MT4

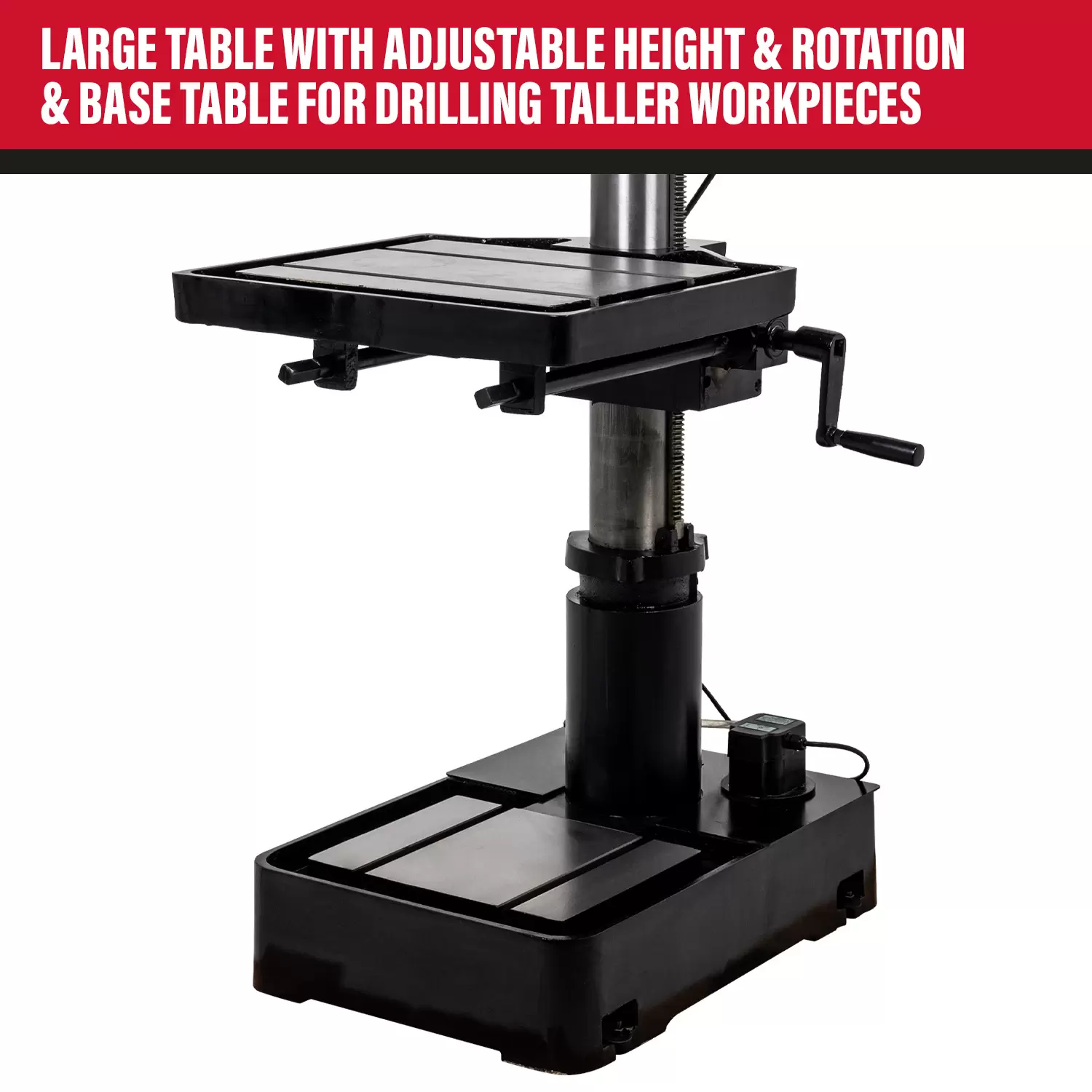

Table Size: 560mm x 475mm
Base Size: 688mm x 486mm
Column Diameter ⌀ 115mm
Swing: 530mm
Height: 2040mm
Spindle Travel: 150mm
Collar Diameter: ⌀ 174mm
Max. Distance: 605mm (spindle to table) / 1150mm (spindle to base)
Workshopping Says

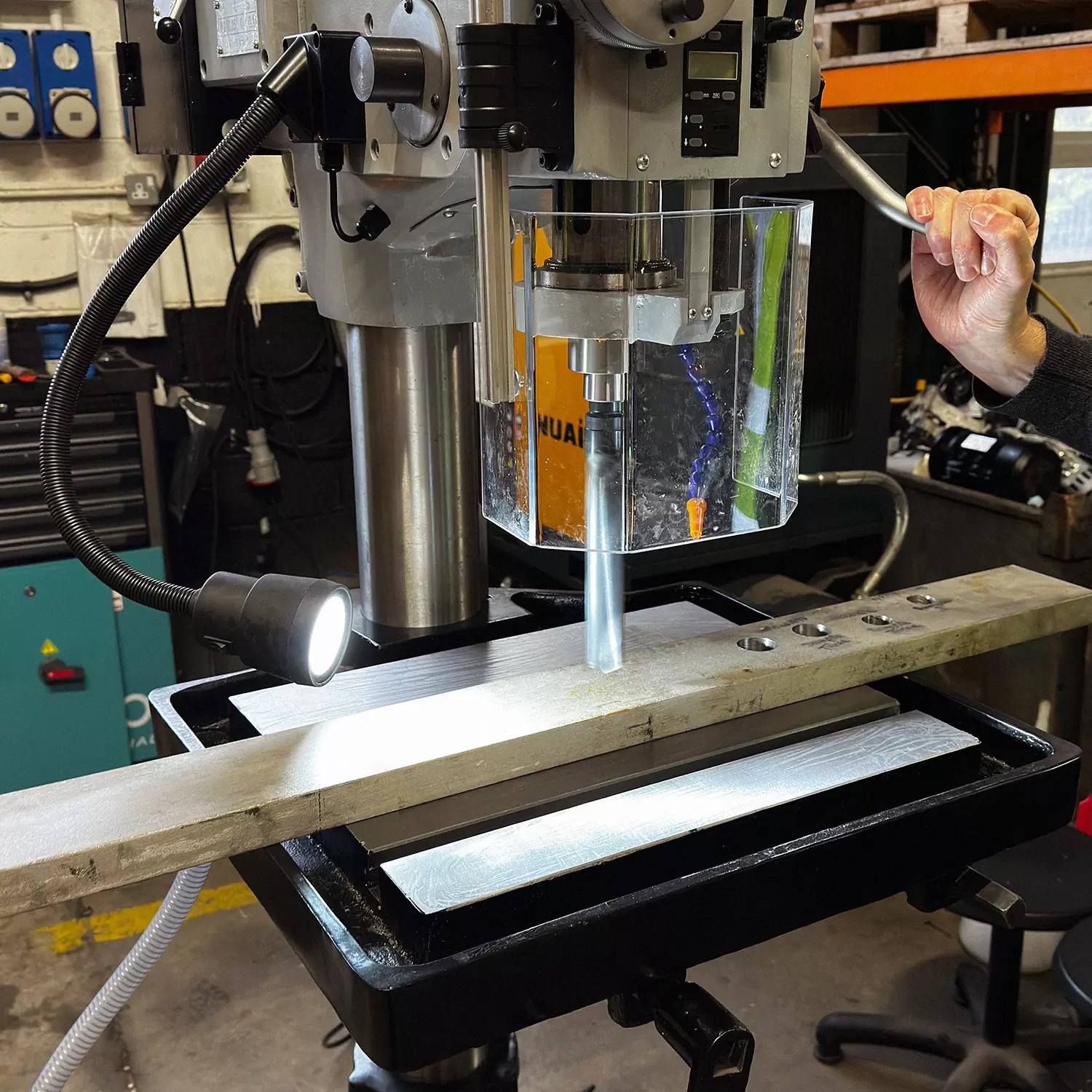

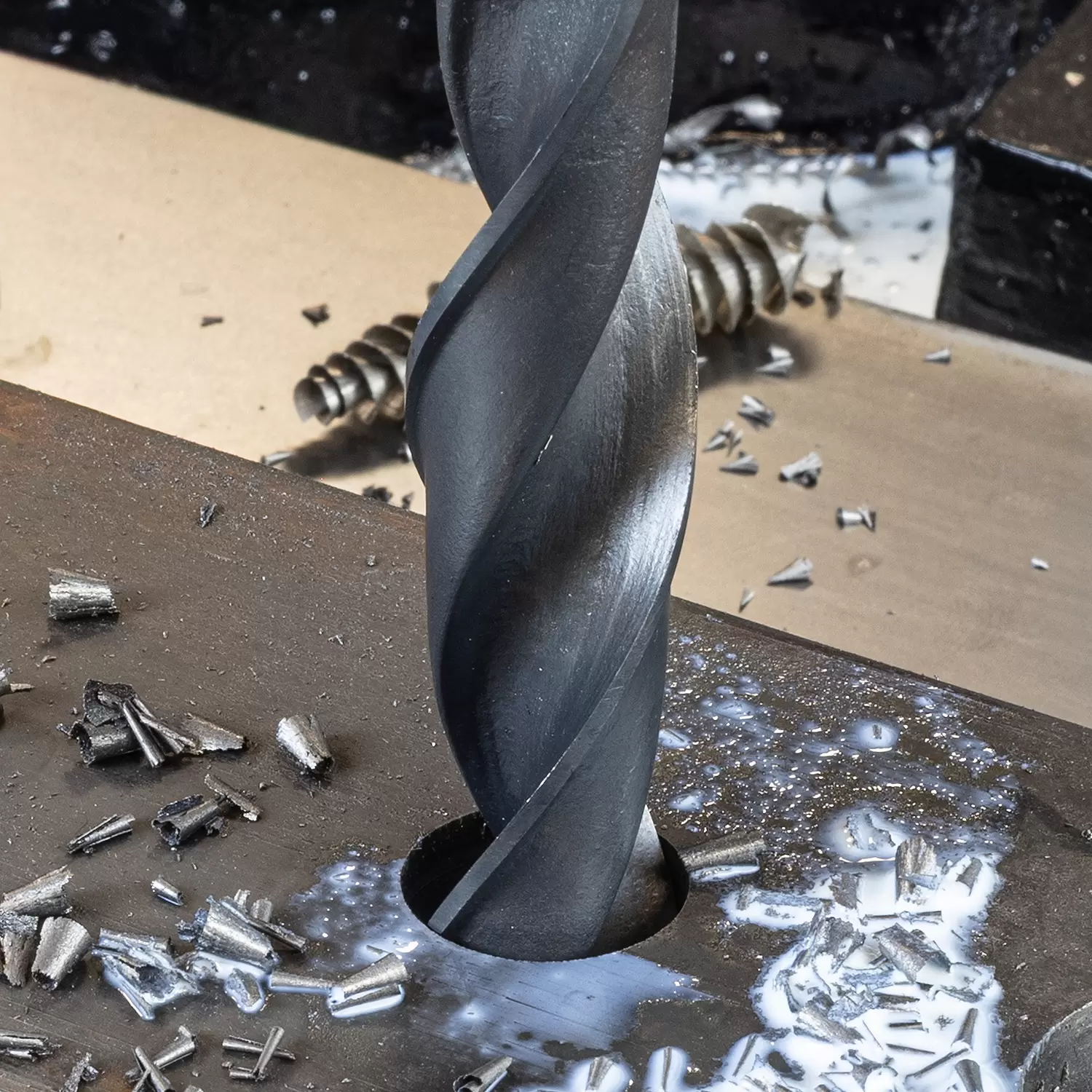

Designed for professional metalworking and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures. 1x SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 4), 1x drill drift, 1x chuck key, 1x, cranking handle, 1x Y-type socket wrench and 2x handles for headstock and table.
