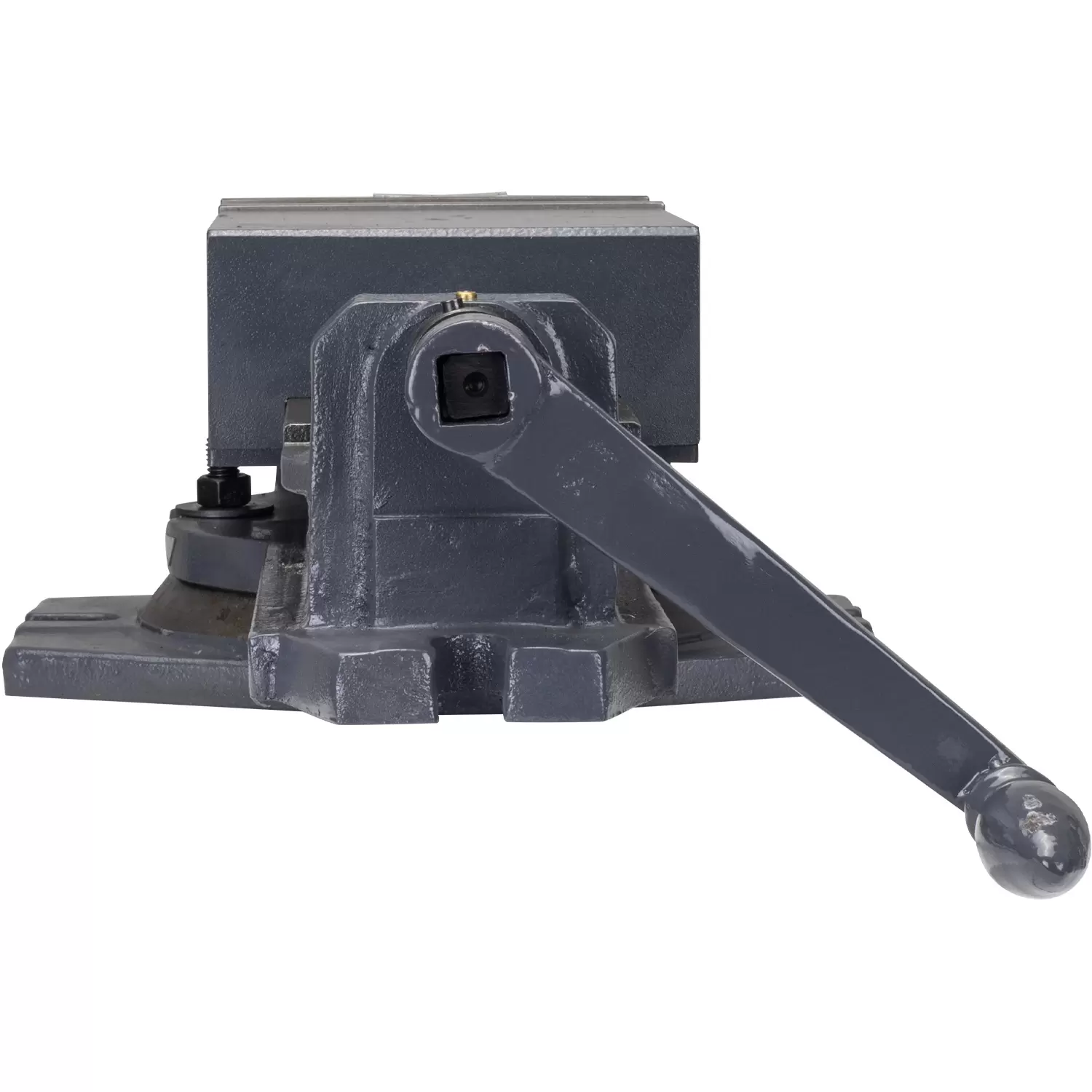

SIP - 01728 - 4" Swivel Machine Vice
SKU: SIP01728
Part Number: 01728
Barcode: 5012713010011
Country of Origin: CN
Weight: 15.00 Kg
Our Price
£175.93 (inc VAT) £146.61 (ex VAT)
RRP £179.99 £149.99
Save
£4.06
£3.38
N/A Warranty included.
Description
The SIP 4" Swivel Machine Vice enables simple horizontal 0° to 360° rotation, meaning workpieces do not need to be unclamped to be repositioned. This helps to reduce the set-up time required when machining, maintains drilling accuracy and improves tool access.
Offering maximum versatility in professional metalworking and fabrication, this vice is compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
Features

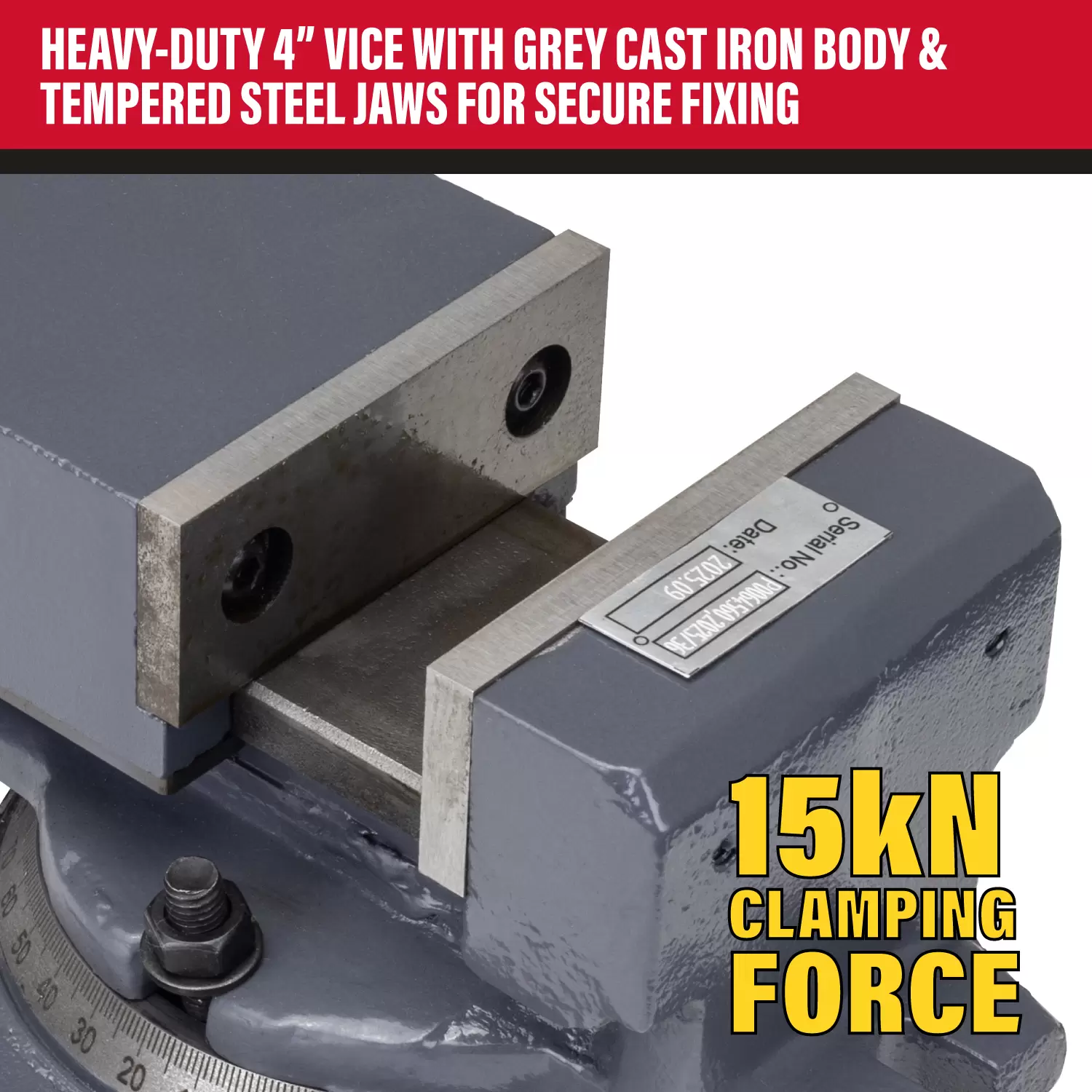

• Heavy-duty 4" machine vice with grey cast iron body and tempered steel jaws

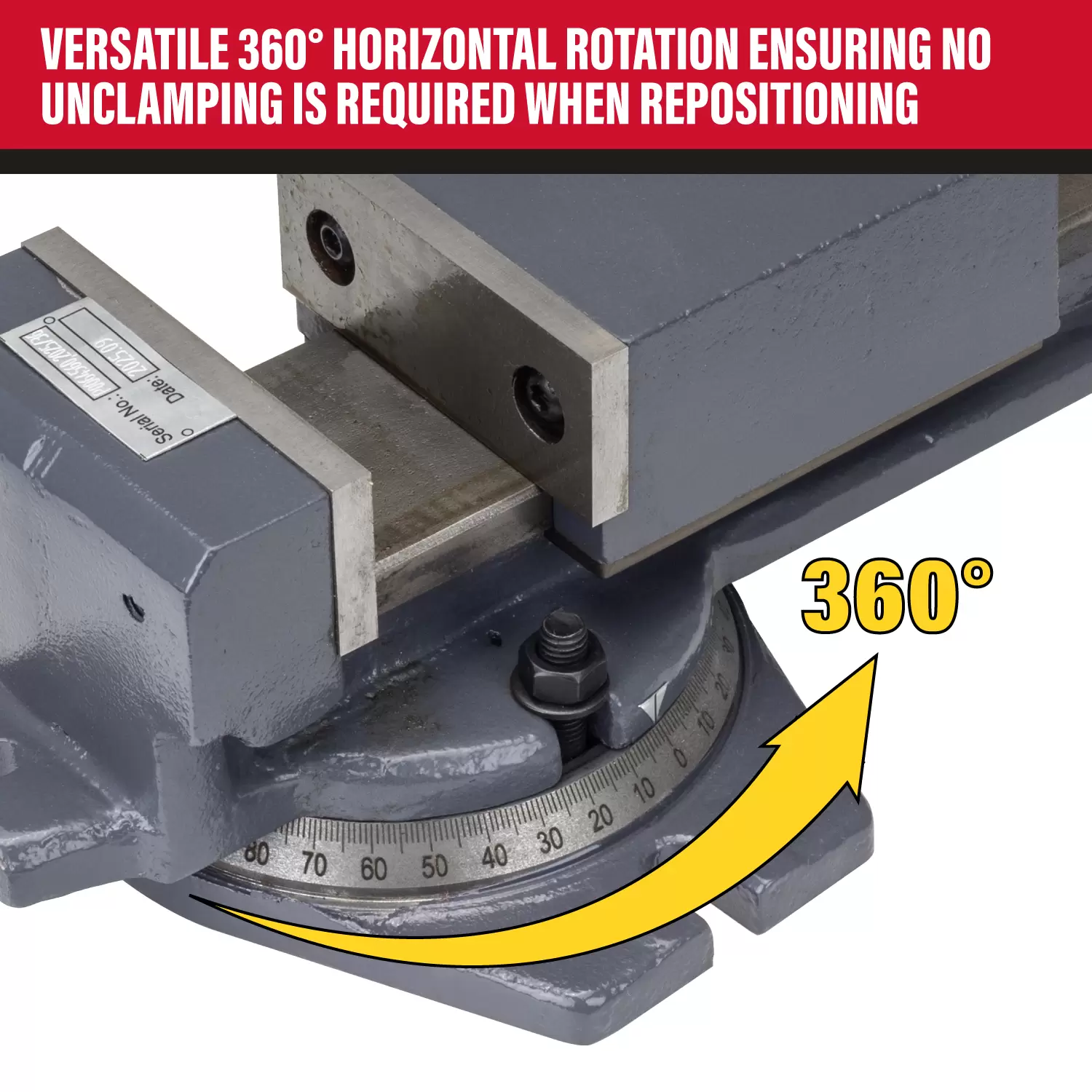

• Swivel base allows 0° to 360° rotation without unclamping the workpiece
• Adjustable design reduces set-up time, maintains accuracy and improves access
• Angle gauge for precise set-up for accuracy in complex or repetitive machining
• Perfect for use in professional metalwork and fabrication workshops
• Swivel base allows 0° to 360° rotation without unclamping the workpiece
• Adjustable design reduces set-up time, maintains accuracy and improves access
• Angle gauge for precise set-up for accuracy in complex or repetitive machining
• Perfect for use in professional metalwork and fabrication workshops
Specification
ITEM NO. 01728
Jaw Width: 4" (101mm)
Jaw Opening: 4" (101mm)
Jaw Depth: 1.5" (38mm)
Clamping Force: 15kN
Vice Height: 4.56" (116mm)
Base Type: Swivel
Base Size: 7.75" (197mm) x 5.75" (146mm)
Composition: Grey cast iron (body), quenched/tempered structural steel (jaws)
Mounting Hole Size: 13mm
Accuracy / Parallelism: 0.05mm / 100mm
Workshopping Says
Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: suitable for milling, grinding and light machining, slotting and face or end milling. 1x SIP 4" Swivel Machine Vice.
