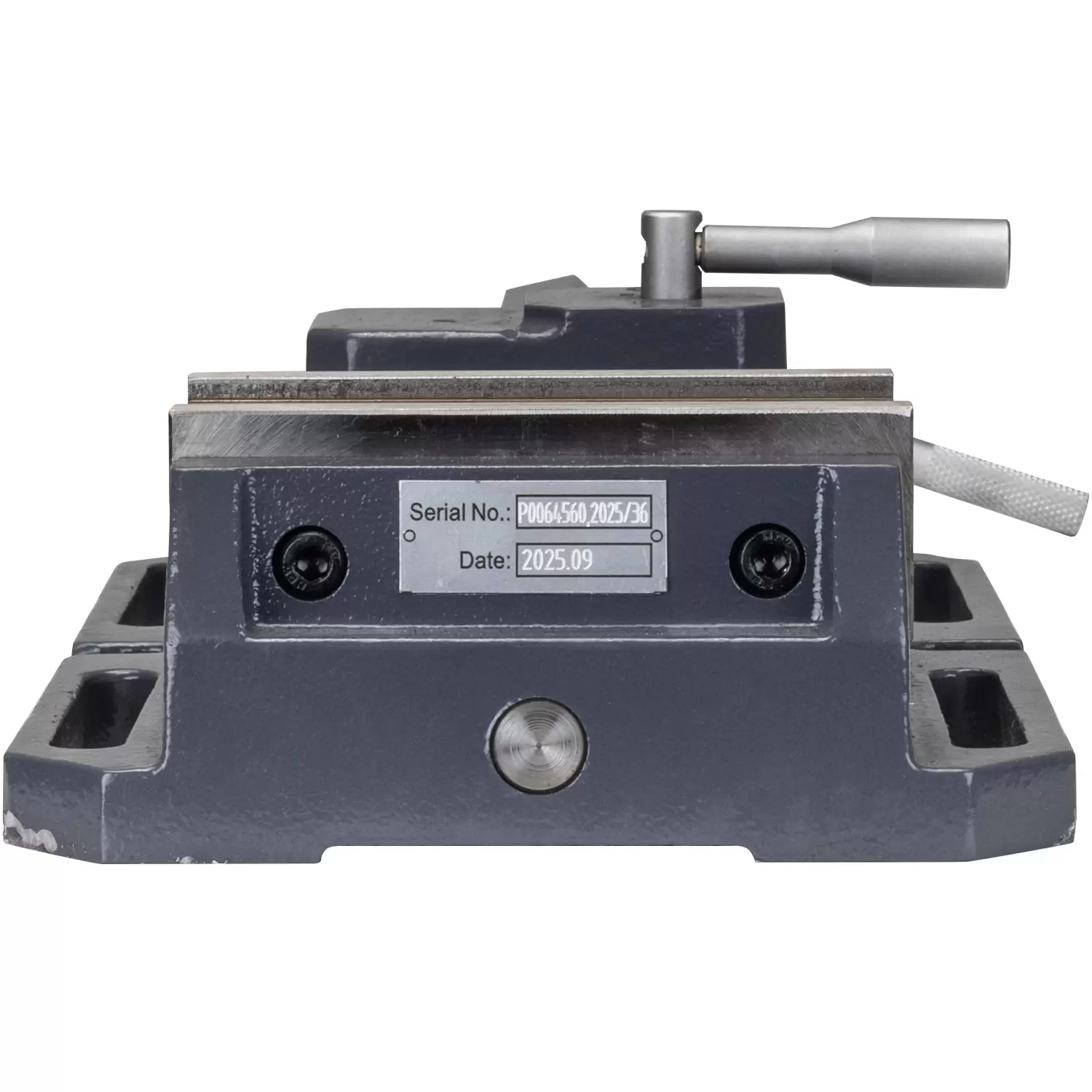

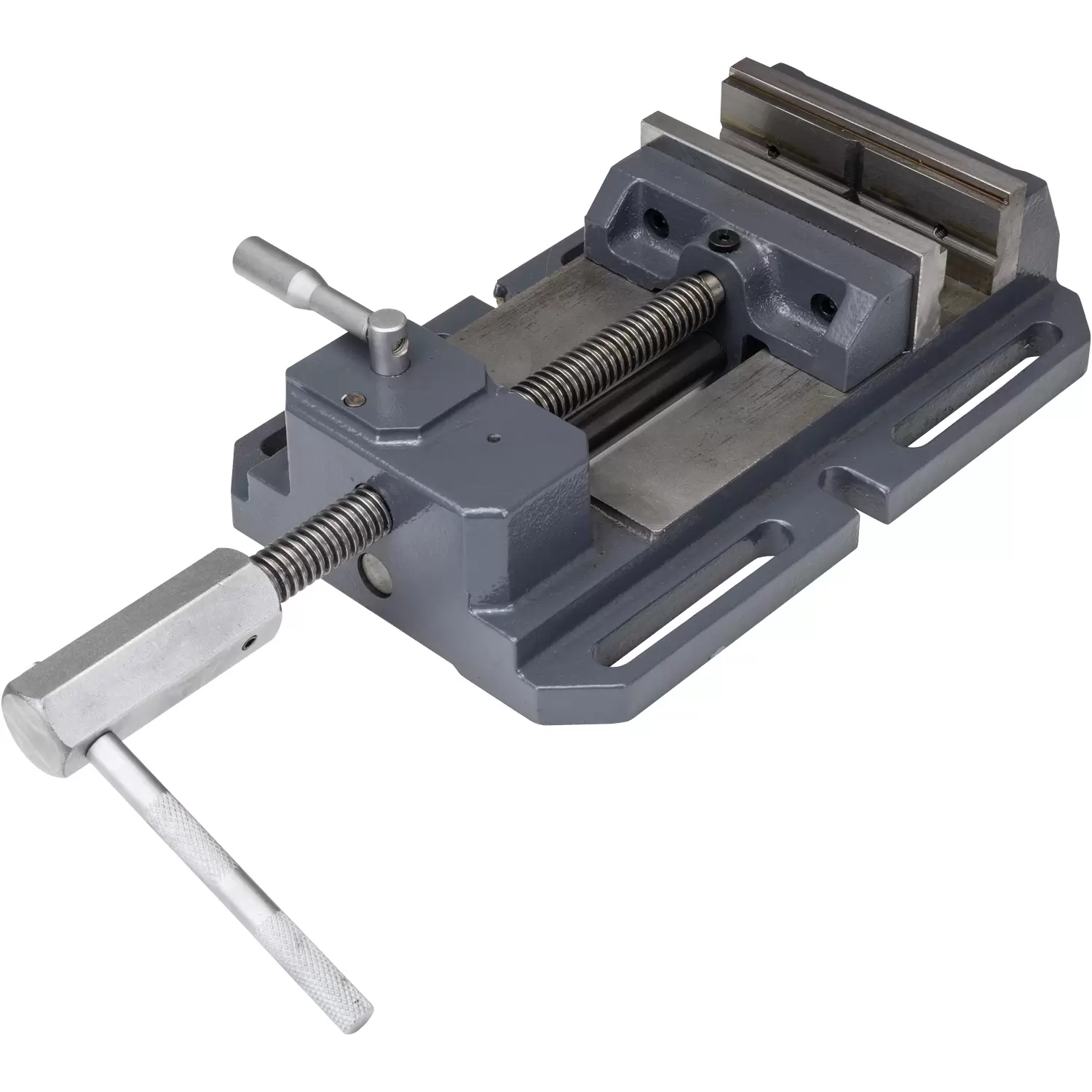

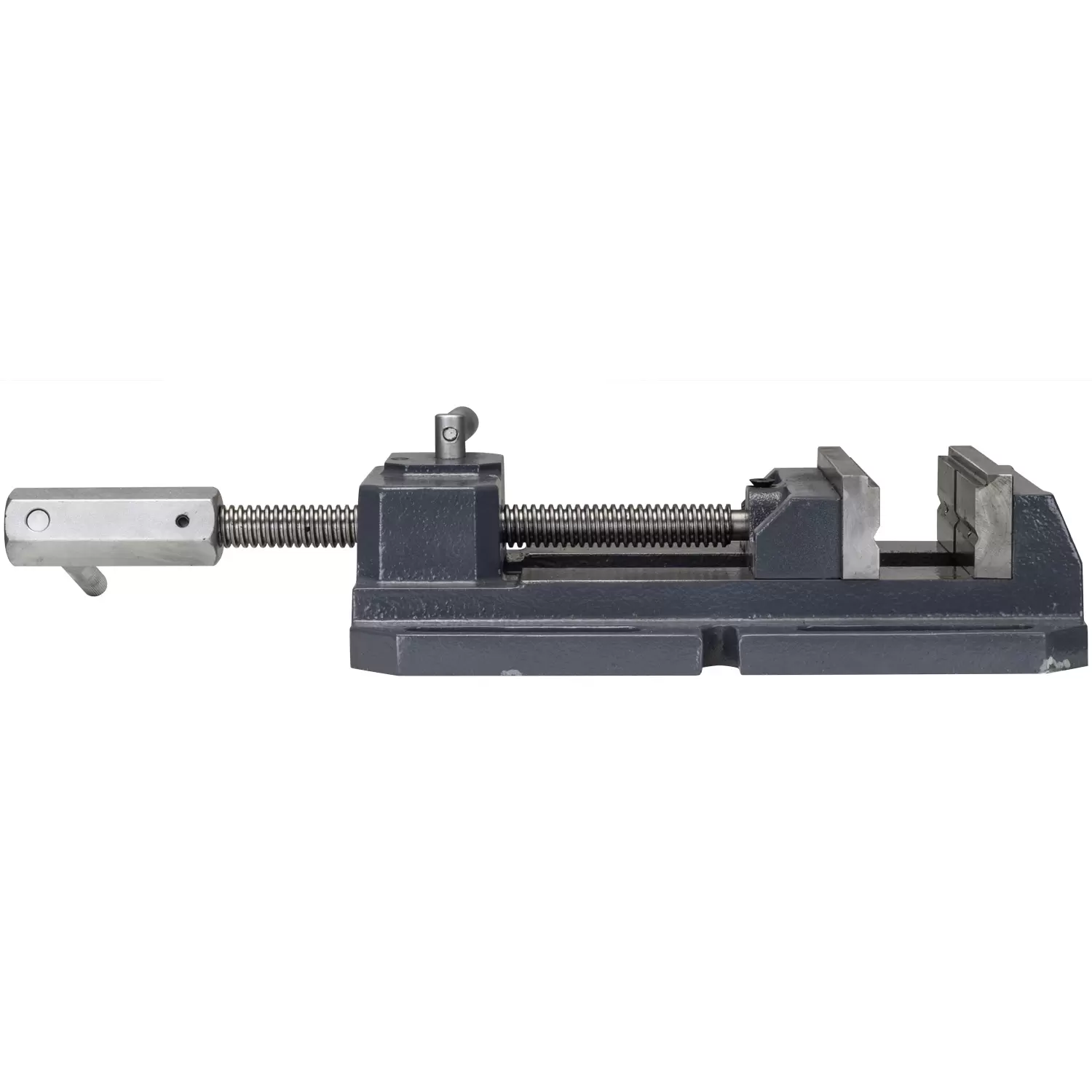

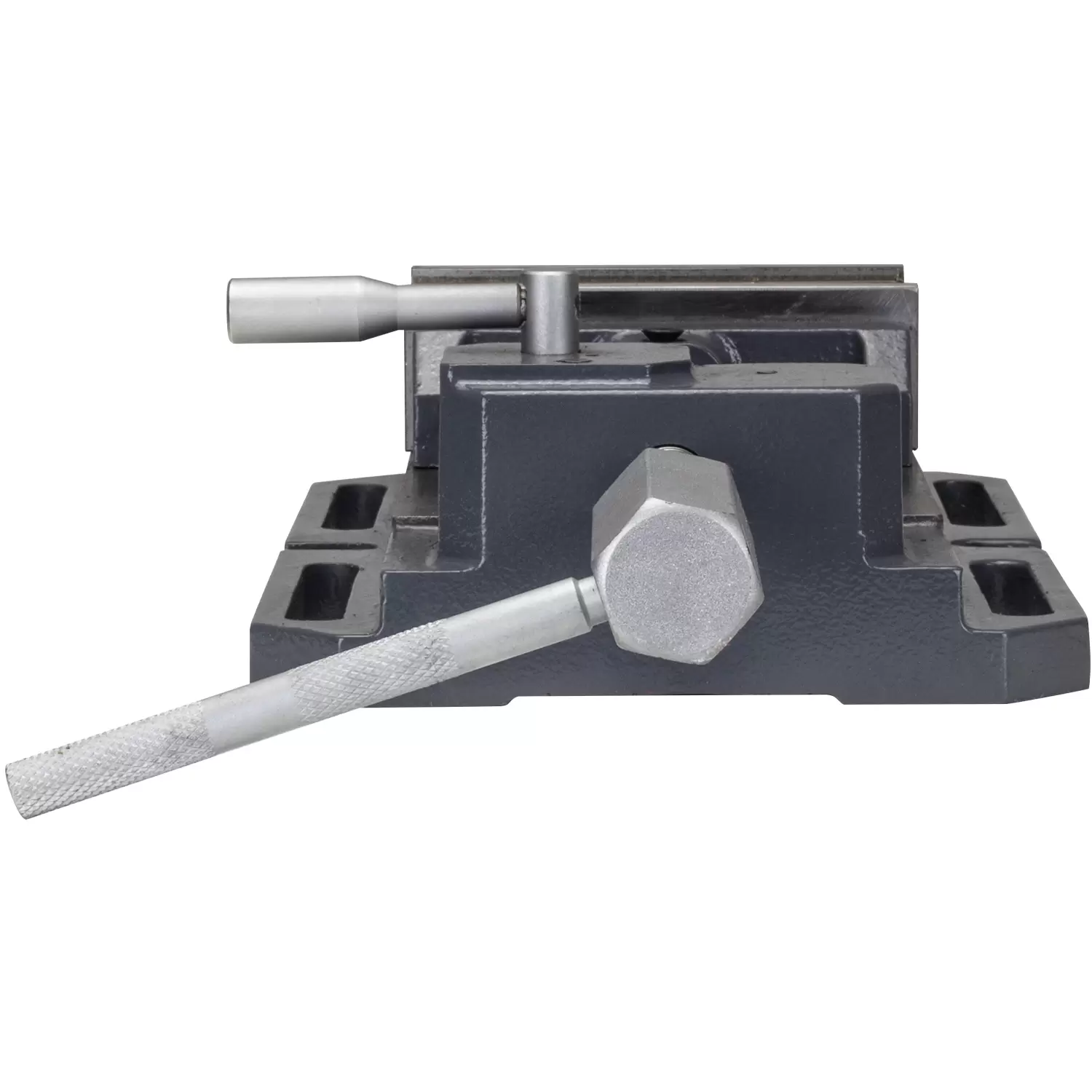

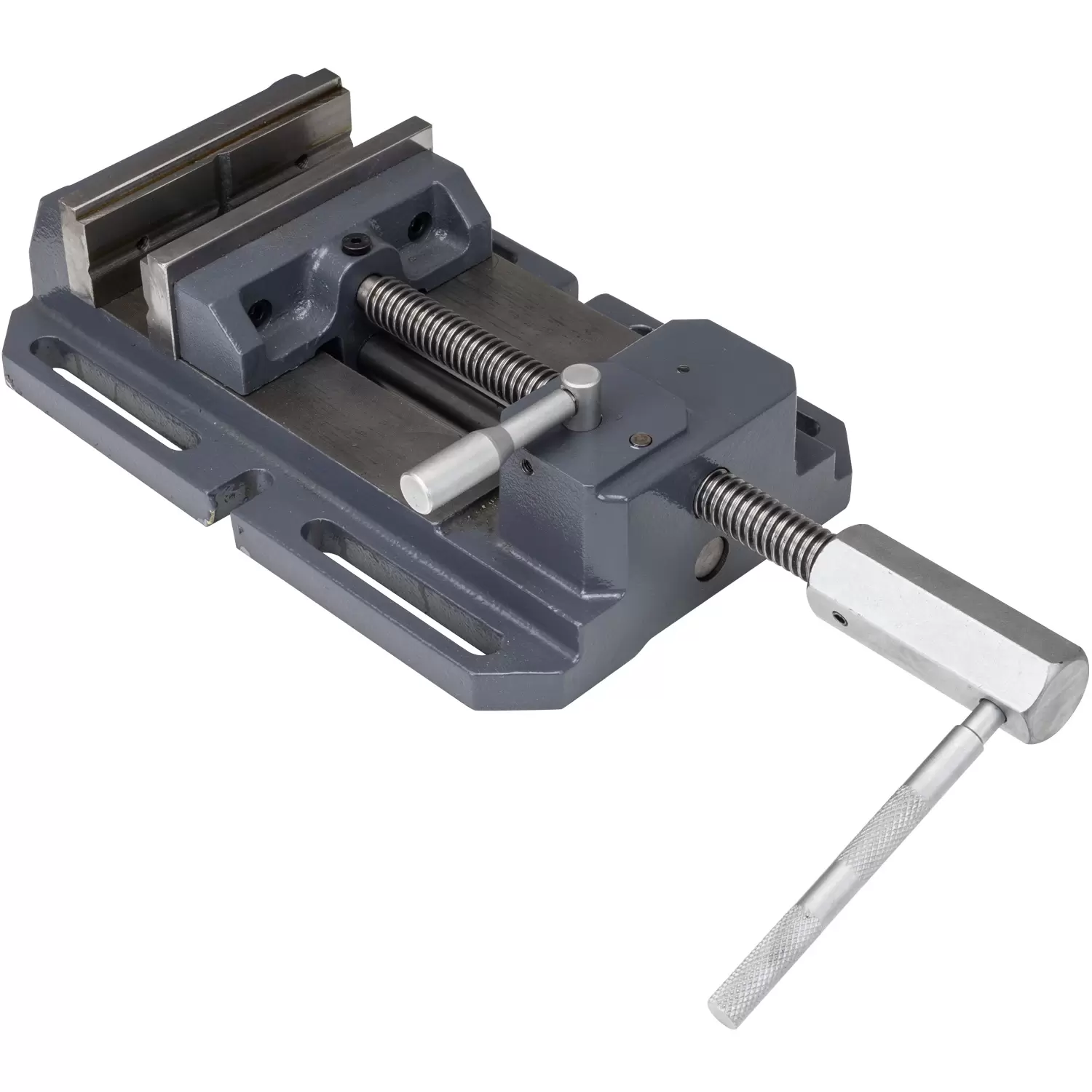

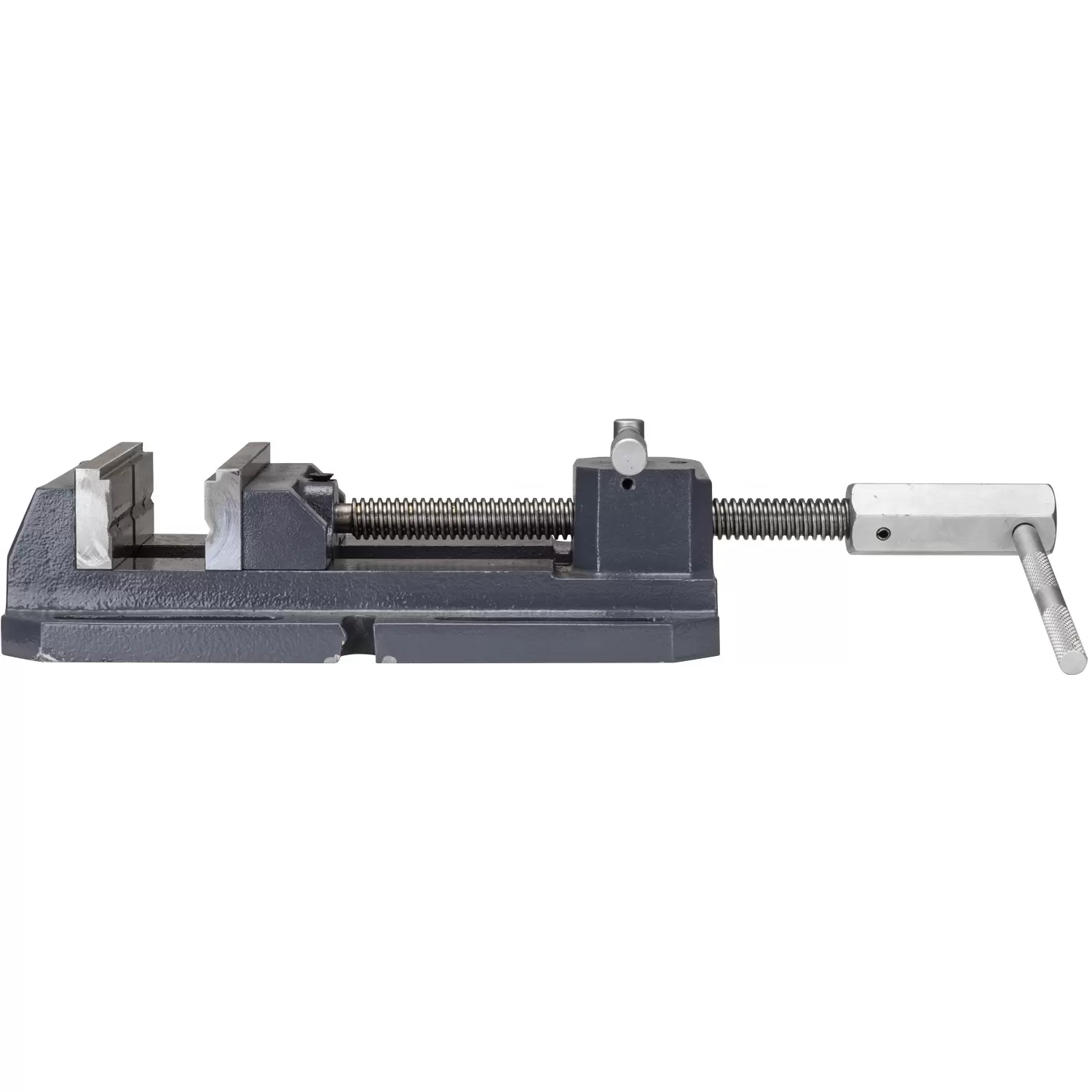

SIP - 01730 - 5.5" Quick Lock Machine Vice
SKU: SIP01730
Part Number: 01730
Barcode: 5012713010035
Country of Origin: CN
Weight: 12.00 Kg
Our Price
£164.21 (inc VAT) £136.84 (ex VAT)
RRP £167.99 £139.99
Save
£3.78
£3.15
N/A Warranty included.
Description
The SIP 5.5" Quick Lock Machine Vice enables workpieces to be secured quickly and efficiently when machining in professional metalwork and fabrication.
It easily slides into position against the workpiece to boost efficiency by reducing set-up time required when machining or during changeovers. The slotted base helps to maintain drilling accuracy and safety, and can be secured to the drill press table for added stability.
Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
Features

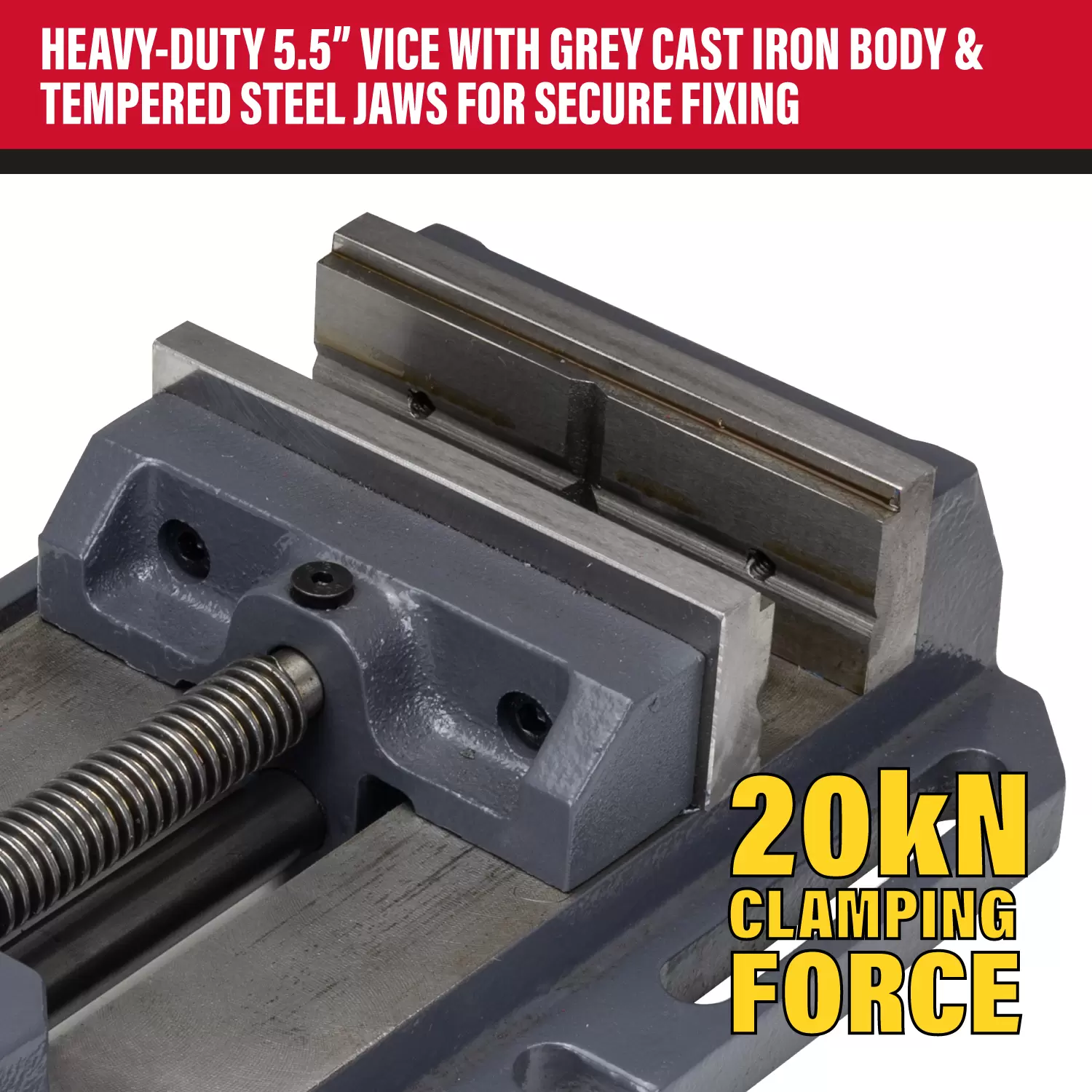

• Heavy-duty 5.5" machine vice with grey cast iron body and tempered steel jaws

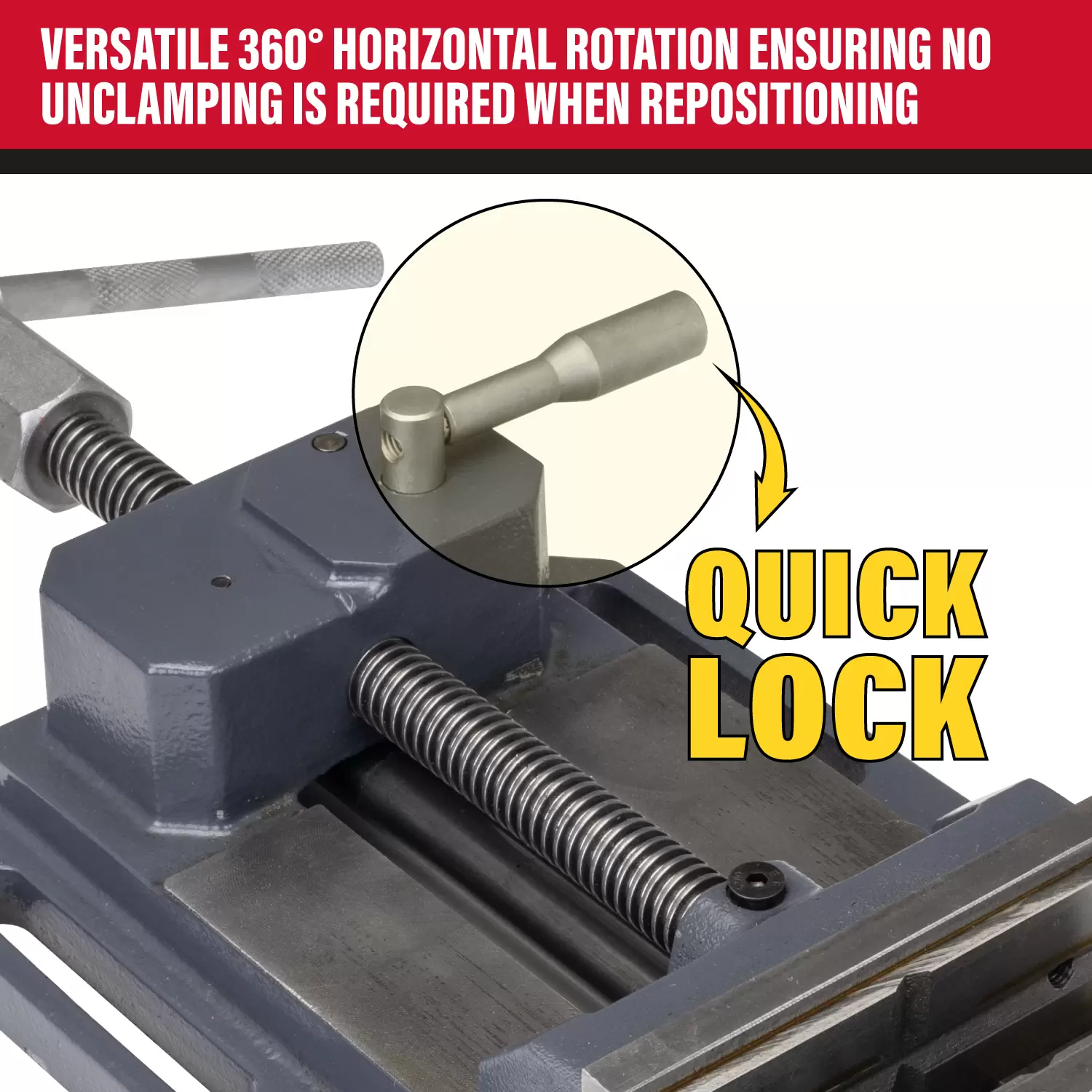

• Speedy Quick Lock clamping helps reduce set-up time and maintains accuracy
• Boosts efficiency for set-up and changeover in busy production environments
• Slotted base allows secure fixing to the drill press table for added stability
• Perfect for use in professional metalwork and fabrication workshops
• Speedy Quick Lock clamping helps reduce set-up time and maintains accuracy
• Boosts efficiency for set-up and changeover in busy production environments
• Slotted base allows secure fixing to the drill press table for added stability
• Perfect for use in professional metalwork and fabrication workshops
Specification
ITEM NO. 01730
Jaw Width: 5.5" (140mm)
Jaw Opening: 5.5" (140mm)
Jaw Depth: 2" (51mm)
Clamping Force: 20kN
Vice Height: 3.19" (81mm)
Base Type: Fixed

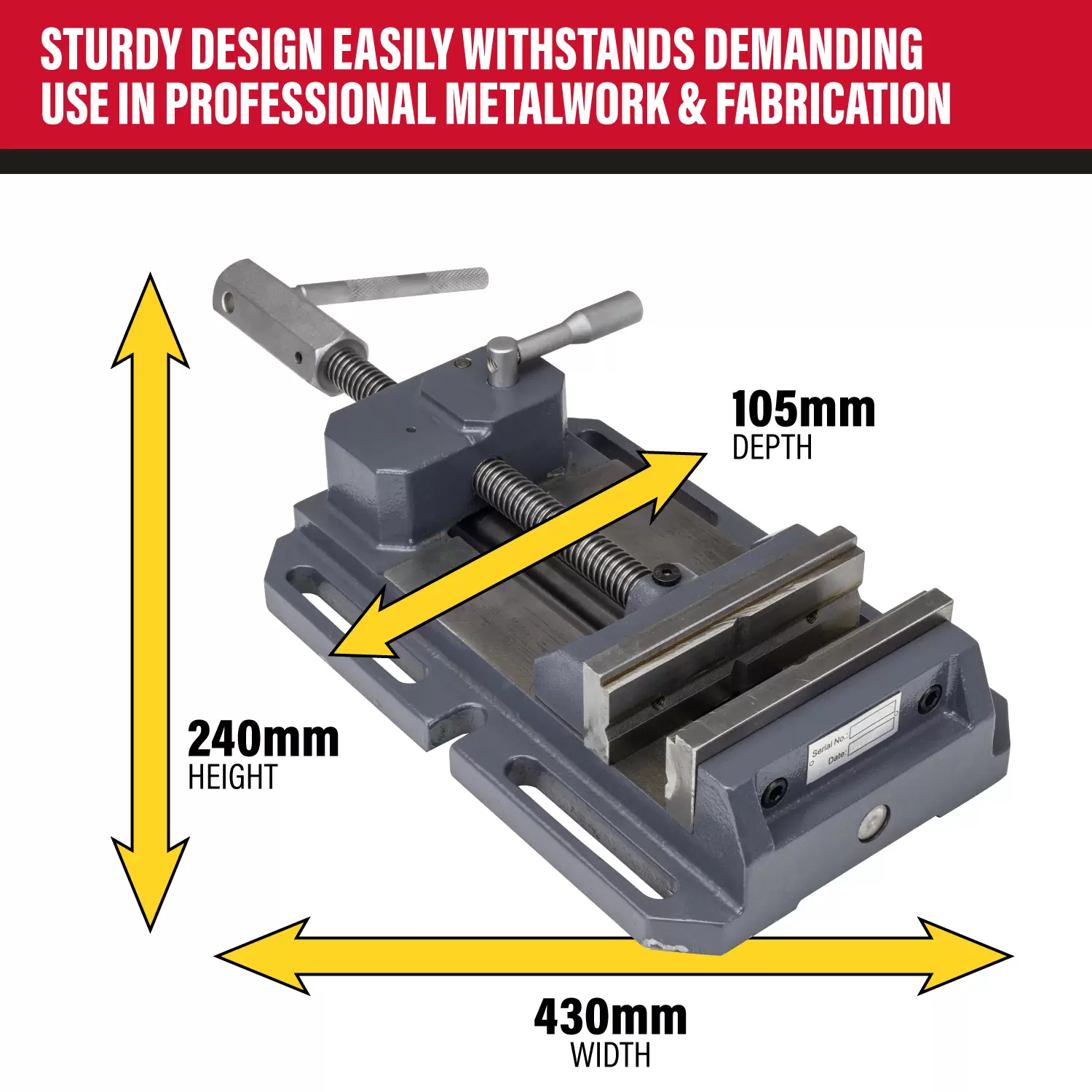

Base Size: 17" (430mm) x 9.5" (240mm)
Composition: Grey cast iron (body), quenched/tempered structural steel (jaws)
Mounting Hole Size: 14mm
Accuracy / Parallelism: 0.05mm / 100mm
Workshopping Says
Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: small castings, brackets and flanges. Suitable for pillar drill drilling, milling, grinding and light to medium-duty work. 1x SIP 5.5" Quick Lock Machine Vice.
