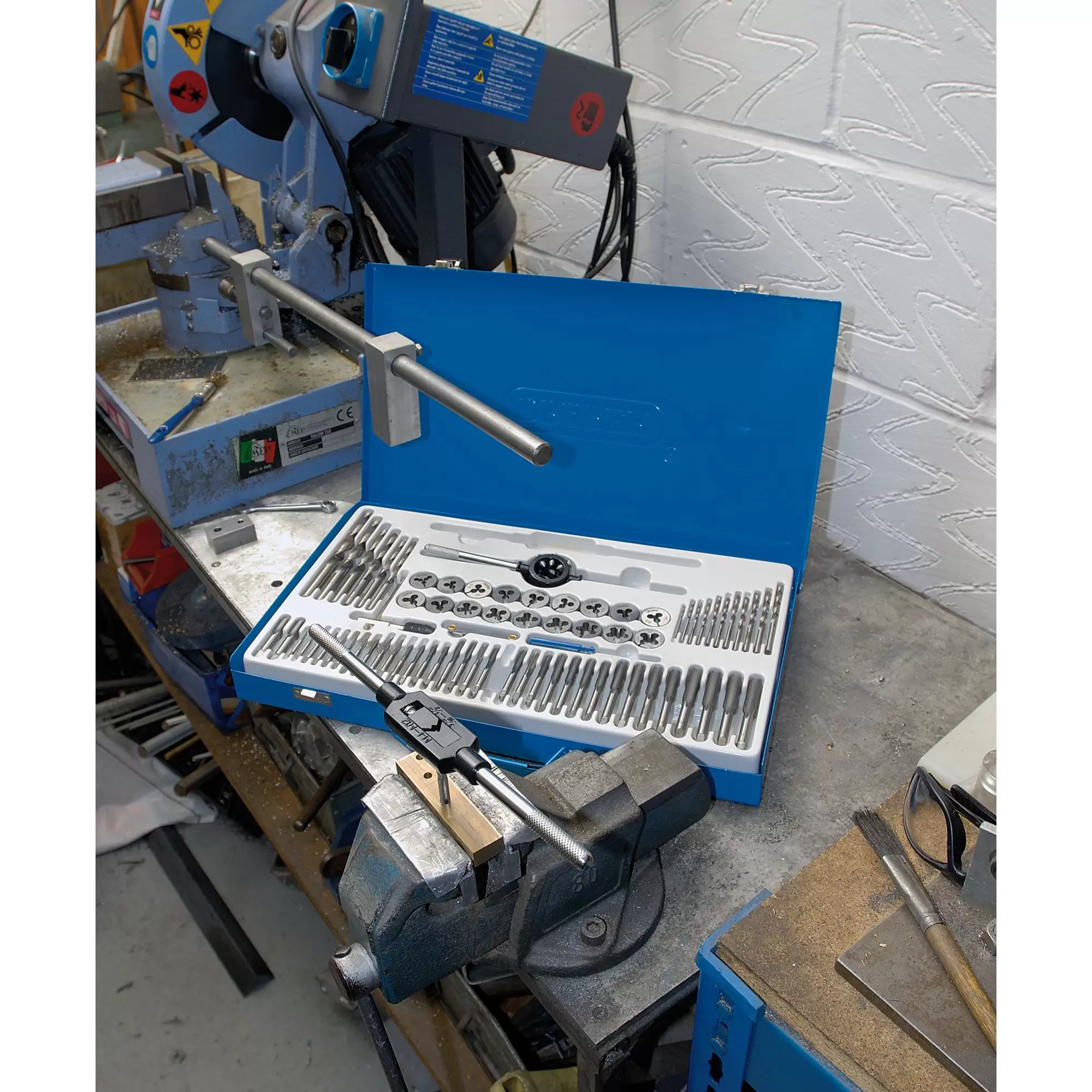

Draper Tools - 79205 - Combination Tap and Die Set Metric and BSP (76 Piece)

Manufactured from carbon steel. Taps and dies suitable for cleaning and cutting threads on mild steel and aluminium. Supplied with the correct drill bits for tapping. Contents held in plastic insert within steel storage case. Carton packed.

9 x metric coarse dies: 3 x 0.5, 3.5 x 0.6, 4 x 0.7, 4.5 x 0.75, 5 x 0.8, 6 x 1.0, 8 x 1.25, 10 x 1.5, 12 x 1.75 - 1" O/D 8 x metric fine dies: 2 x 0.25, 3 x 0.35, 4 x 0.5, 5 x 0.5, 6 x 0.75, 8 x 1.0, 10 x 1.25, 12 x 1.25 - 1" O/D 1 x BSP die 1/8" BSP 17 x metric taper taps: 3 x 0.5, 3.5 x 0.6, 4 x 0.7, 4.5 x 0.75, 5 x 0.8, 6 x 1.0, 8 x 1.25, 10 x 1.5, 12 x 1.75 - 1" O/D, 2 x 0.25, 3 x 0.35, 4 x 0.5, 5 x 0.5, 6 x 0.75, 8 x 1.0, 10 x 1.25, 12 x 1.25 - 1" O/D 17 x metric plug taps (bottoming): 3 x 0.5, 3.5 x 0.6, 4 x 0.7, 4.5 x 0.75, 5 x 0.8, 6 x 1.0, 8 x 1.25, 10 x 1.5, 12 x 1.75 - 1" O/D, 2 x 0.25, 3 x 0.35, 4 x 0.5, 5 x 0.5, 6 x 0.75, 8 x 1.0, 10 x 1.25, 12 x 1.25 - 1" O/D 1 x taper tap 1/8" BSP 1 x tap wrench - American pattern 1/2" capacity 1 x 'T' type tap wrench 1/4" capacity 1 x die holder 1" O/D with guide 17 x HSS twist drills: 1.7, 2.5, 2.6, 2.9, 3.3, 3.5, 3.8, 4.2, 4.5, 5.0, 5.3, 6.8, 7.0, 8.5, 8.8, 10.3, and 10.7mm 1 x screw-pitch gauge 1 x screwdriver 1 x 1/8" BSP tap (bottoming)
