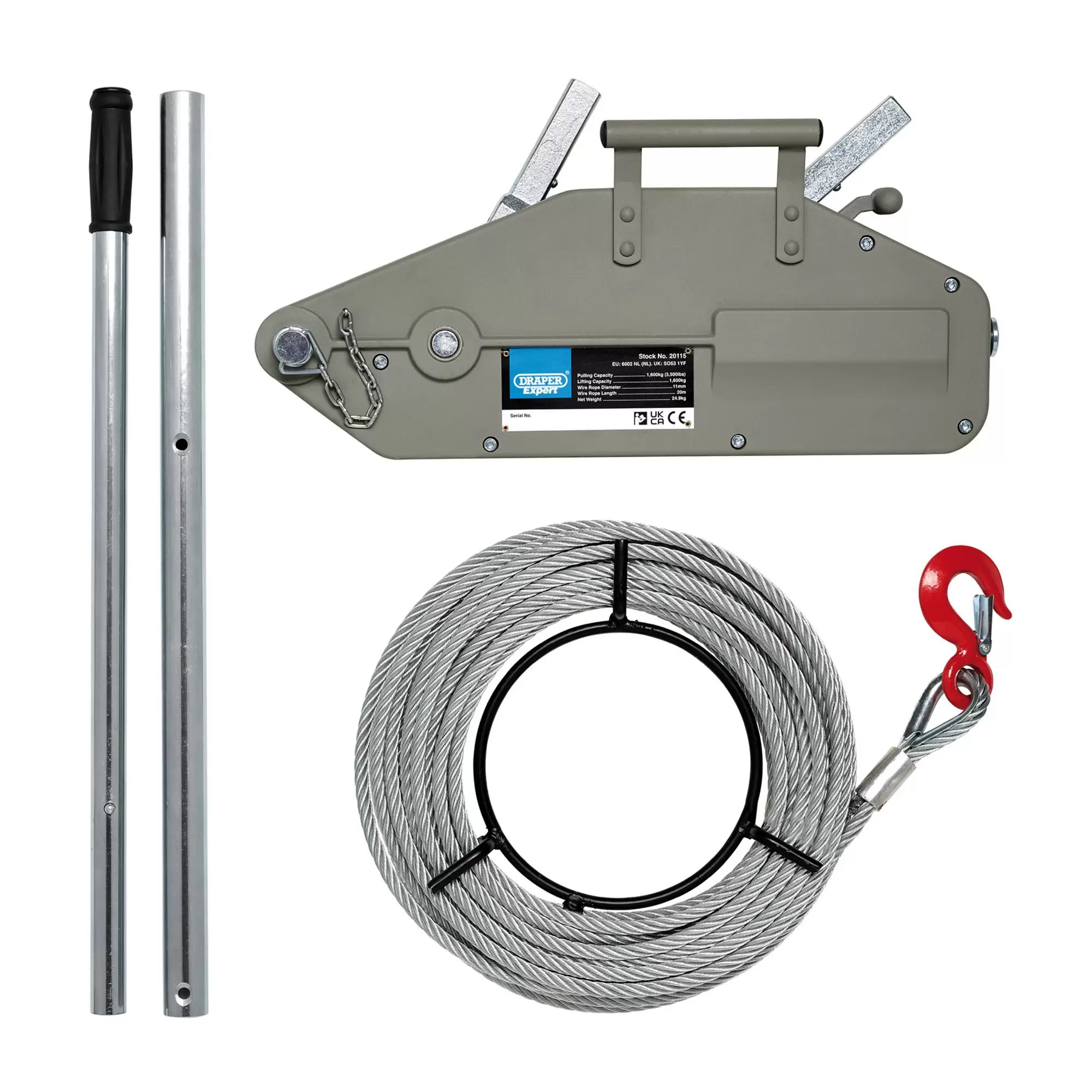

Draper Tools - 20115 - Draper Expert Wire Rope Puller, 1600kg

This high-strength manual puller is simple and safe to operate by one person. It has a compact design making it suitable for use in confined spaces. The heavy-duty steel mechanism inside safeguards a high-breaking force 20m steel wire rope, which can be used at any angle. There is a forward and reverse handle for extra control when pulling or releasing the load. The additional release lever saves time when adjusting rope length. The telescopic two-piece operating handle means it can be adjusted to suit any height (up to 800mm). There is a heavy-duty hook fitted to the end of the wire rope, which can be attached to the wire or securely fitted to the puller using the anchor pin. The aluminium casing is lightweight and it has a carry handle for ease of transportation.

Pulling capacity 1,600kg (3,500lbs)
Lifting capacity 1,600kg
Wire rope diameter 11mm
Wire rope length 20m
Handle length 800mm
Handle diameter 29mm
Dimensions 556 x 120 x 270mm
Weight 24.9kg
