Home > Handtools > Engineering Tools > GYS - 058590 - POWERDUCTION 110LG (L90)
GYS - 058590 - POWERDUCTION 110LG (L90)
SKU: GYS058590
Part Number: 058590
Barcode: 3154020058590
Country of Origin: France
Weight: 85.50 Kg
Our Price
£6,211.75 (inc VAT) £5,176.46 (ex VAT)
RRP £6,835.20 £5,696.00
Save
£623.45
£519.54
Description

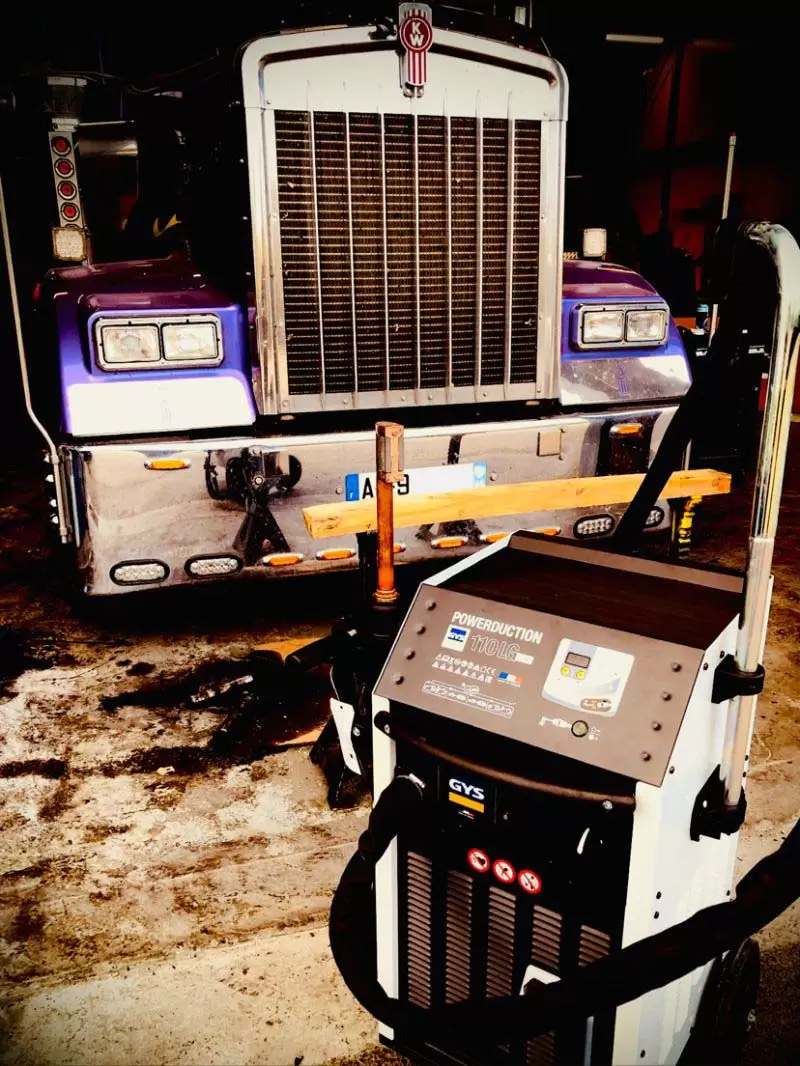

The POWERDUCTION 110LG induction heating unit provides immediate heating power for degreasing and heating steel or aluminium. With no flame, its heating is precise, instantaneous and safe for the working environment. Thanks to its liquid cooling, it can work without interruption at its maximum power of 11 kW. Designed for use with a 16 A three-phase socket, it is particularly efficient for mechanical work on heavy goods vehicles, public works equipment and agricultural machinery.
Features
The POWERDUCTION 110LG has an integrated, heating
time management system and can be used to operate a
temperature-control unit (optional extra: POWERDUCTION
Heat Controller, P.N. 061644). It is fitted with indispensable
technologies that are essential for precisely controlling the
heating process in order to obtain a result that meets all
professional requirements.
Specification
• Heating power: 11 kW, selectable in 1000 W steps.
• Wide range of applications.
• Time-saving safety: heats up immediately without flame.
• Integrated heating time management and can control an intelligent temperature control box.
• 4-metre induction cable for working at height or in places where the generator cannot go.
Workshopping Says
A WIDE RANGE OF APPLICATIONS
• Straightening out bent chassis (not HLE steel)
• Releasing bolts and steering ball joints without damaging the rubber pads
• Removing seized hub bearings
• Removing the exhaust system
• Annealing metal parts
• Heating for bending
• Brazing
The POWERDUCTION 110LG supplies an instant heating power to unseizing metal parts as well as heating
up steel or aluminium. Featuring flame-less technology, its heating is accurate, instantaneous and safe for
the working environment. Thanks to its liquid-cooling system, this machine can work continuously at its
maximum power (11 kW). Designed for use on a three-phase, 16 A socket, it is particularly effective for
HGV mechanical work, public works vehicles and agricultural machinery.
POWERDUCTION 110LG
P.N. 058590 (400 V / three phase)
P.N. 065246 (208/240 V / three phase, UL Standard)
WATER-COOLED
INDUCTION
HEATING
GUARANTEED TO SAVE POWER AND TIME
• Heating power:
11 kW of power that can be selected in increments of 1,000 W.
Directly heats the centre of the metal down to a depth of 6 mm.
Heats until red hot (800°C):
50LG 110 LG 160LG
M14 1 s M18 1 s M20 1 s
2 mm 3 s
4 mm 5 s
2 mm 2 s
4 mm 4 s
2 mm 1 s
4 mm 3 s
8 mm 17 s
Ø 10 10 s Ø 10 7 s Ø 10 5 s
• Safe and time saving:
Immediate, flameless heating on a specific area; it can be used
to close cables, pipes or other heat-sensitive parts whilst avoiding
the need to disassemble them.
• User comfort:
Equipped with a four meter induction cable, which allows the operator
to work at height or in places where the machine cannot fit.
