Home > Handtools > Engineering Tools > Sealey - TIO305 - 3-in-1 Sheet Metal Machine 305mm
Sealey - TIO305 - 3-in-1 Sheet Metal Machine 305mm
SKU: TIO305
Part Number: TIO305
Barcode: 5054511974737
Country of Origin: CHN
Weight: 49.00 Kg
Our Price
£313.86 (inc VAT) £261.55 (ex VAT)
RRP £485.94 £404.95
Save
£172.08
£143.40
1 year Warranty included.
Description

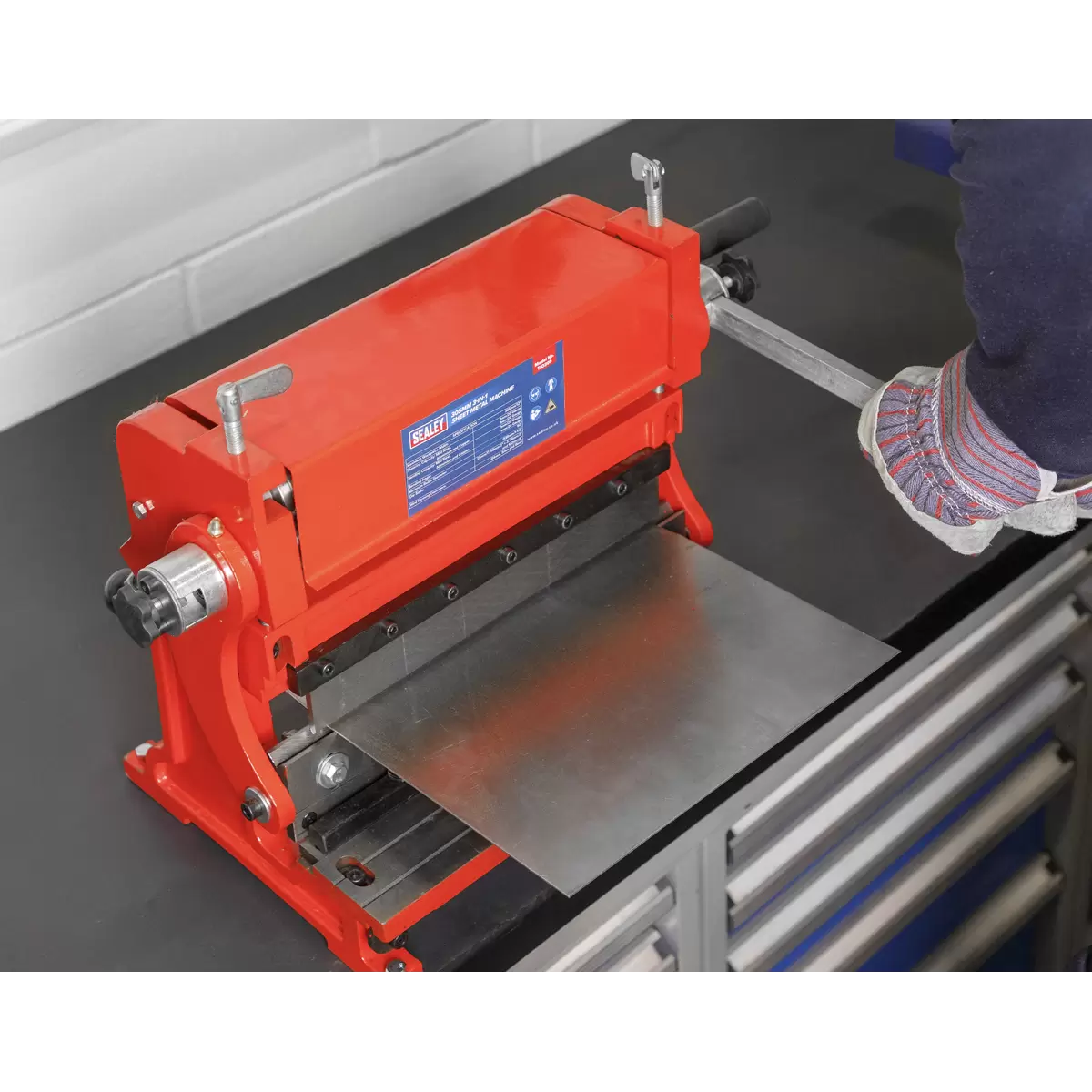

12" 3-in-1 light sheet metal working machine. Can shear, bend and roll a variety of metals including mild steel, aluminium and copper. The rollers have grooves with diameters of Ø2.5mm, 3mm, 4mm, 5mm, 5.5mm and 6mm for bending rods. Adjust the distance and angle of the rollers to create the desired curvature for curves, cylinders or cones. Shear sheets of metal up to 305mm wide. Make pans with a maximum lip of 1" and bend (brake) sheets up to an angle of 90°.
Features
Specification
Model No TIO305
Brand: Sealey
Die Sizes: 25mm/1", 50mm/2" (x2), 76mm/3", 102mm/4"
Minimum Roller Diameter: Ø38mm/1-1/2"
Nett Weight: 42kg
Tube Rolling Diameter: Ø2.5mm, 3mm, 4mm, 5mm, 5.5mm, 6mm
Workpiece Maximum Thickness: Mild Steel: 1mm/20 gaugeAluminium and copper: 1.2mm/18 gauge
Workpiece Maximum Width: 305mm/12"
Brand: Sealey
Die Sizes: 25mm/1", 50mm/2" (x2), 76mm/3", 102mm/4"
Minimum Roller Diameter: Ø38mm/1-1/2"
Nett Weight: 42kg
Tube Rolling Diameter: Ø2.5mm, 3mm, 4mm, 5mm, 5.5mm, 6mm
Workpiece Maximum Thickness: Mild Steel: 1mm/20 gaugeAluminium and copper: 1.2mm/18 gauge
Workpiece Maximum Width: 305mm/12"
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8462290000
Country of Origin = CHN
