Karcher - 1.071-939.0 - HDS 10/21-4 M *EU Pressure washer
SKU: 1.071-939.0
Part Number: 10719390
Barcode: 4054278955872
Country of Origin: DE ( Germany )
Weight: 160.20 Kg
Our Price
£4,151.99 (inc VAT) £3,459.99 (ex VAT)
RRP £4,825.20 £4,021.00
Save
£673.21
£561.01
Description
The HDS 10/21-4 M is one of the most powerful hot water high-pressure cleaners in the middle class and also impresses with its sophisticated ergonomics and high level of user-friendliness. Its low-speed, 4-pole and water-cooled electric motor, the robust 3-piston axial pump with ceramic piston and the economical eco!efficiency mode simultaneously ensure maximum performance and reliable, economical operation. The energy-saving EASY!Force Advanced HP trigger gun with servo control and 1050-millimetre-long spray lance with patented nozzle technology as well as the EASY!Lock quick-release fasteners are also included as standard for fatigue-free and time-saving work. Many other equipment and performance details are also impressive, such as the optimised burner engineering, the 2 detergent tanks, the convenient mobility concept, the extensive safety technology, the simple operation with just one switch or the clever accessory storage options.
- ANTI!Twist

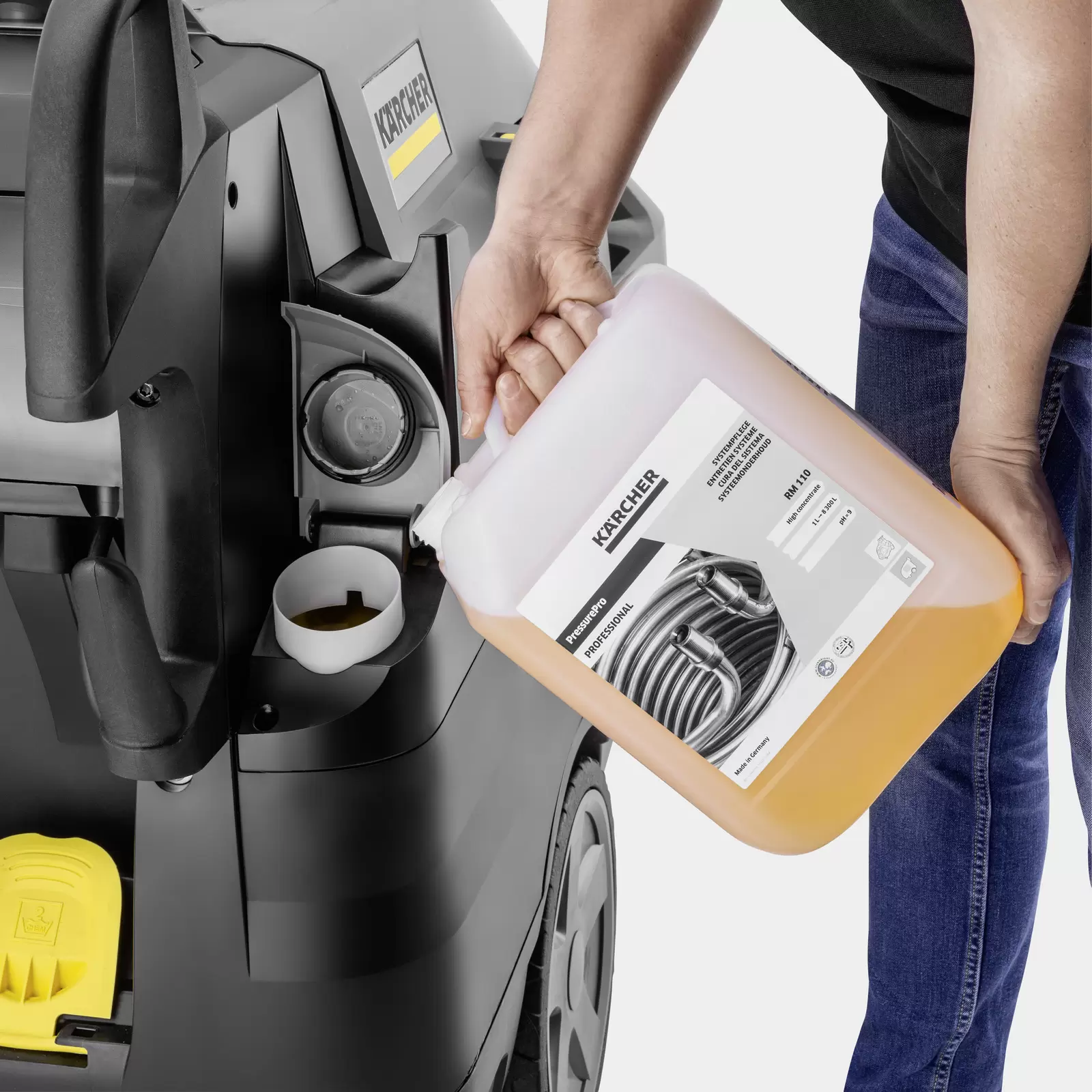

- Tanks for detergent, scale inhibitor and fuel can be filled from outside
- Pressure switch control
- Control panel with indicator lamps
- Spray lance, 1050
- Trigger gun, EASY!Force Advanced
- High-pressure hose length, 10
- High-pressure hose specification, DN 8,400 bar
- High-pressure hose type, Longlife
- Pole reversing plug (three-phase)
- Power nozzle
- Cleaning agent function, 20 + 10 l tank
- Servo Control
- Dry running protection
- Two detergent tanks
Features
High efficiency
- In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.
- The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.
- EASY!Force Advanced for fatigue-free work without any holding force.
- Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
- Rotating 1050 mm stainless steel lance.
- Highly efficient, tried-and-tested "Made in Germany" burner technology.

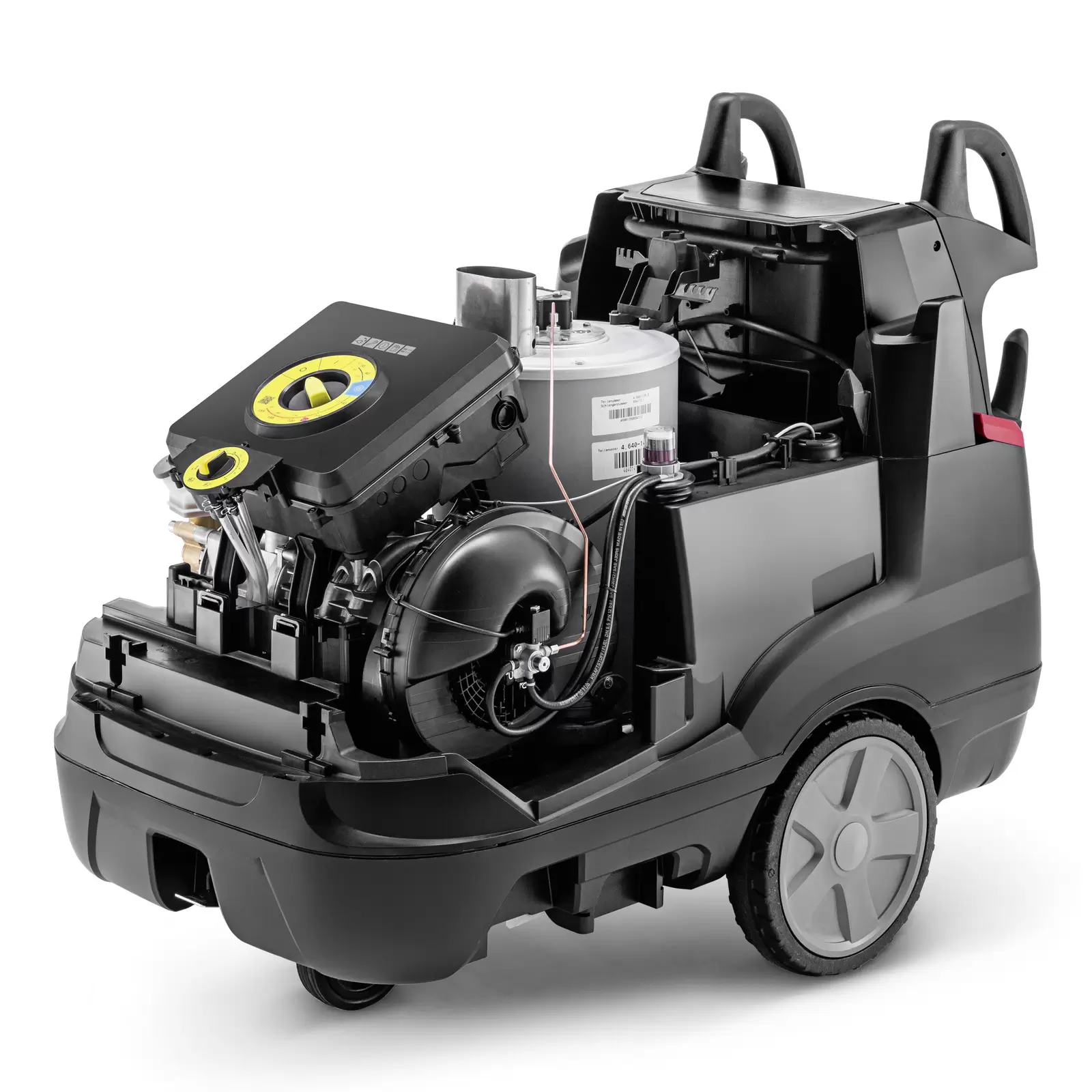

- 4-pole electric motor with 3-piston axial pump.
- Water-cooled motor for a high performance and long service life.
- Easy-to-access water filter protects the pump against dirt particles in the water.
- Safety valves, water shortage and fuel protection ensure the availability of the machine.
- The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
- On-board storage for full range of accessories. Includes 2 hooks for suction hose and power cord.

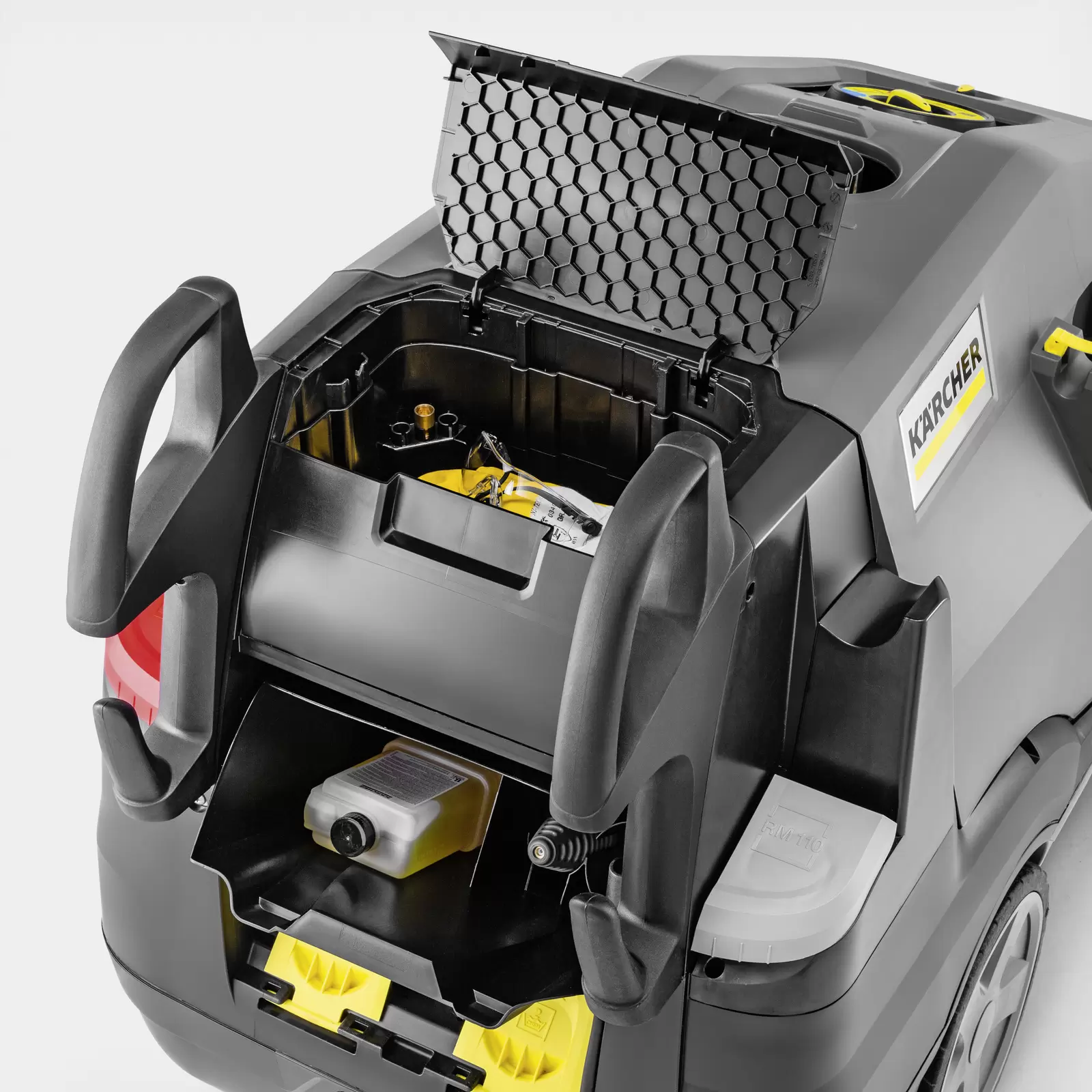

- Spacious storage compartment, e.g. for detergents, gloves or tools.
- Easy to switch between detergent tank 1 and 2.
- Precise detergent dosing unit with rinse function.
- "Jogger" design with large rubber wheels and steering roller.

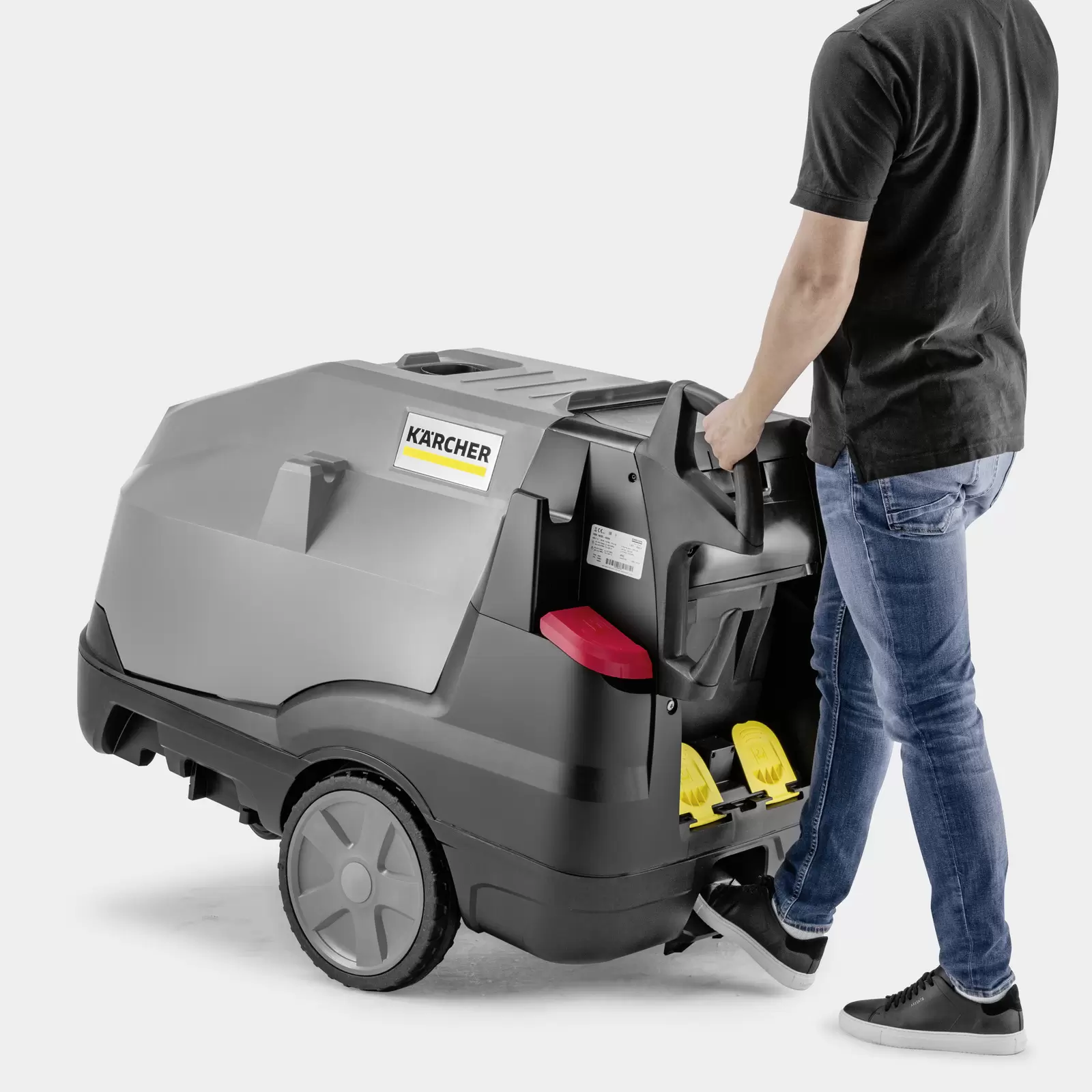

- Integrated tipping trough for effortless transport over ledges.
- Push handles for simple transport and manoeuvrability.

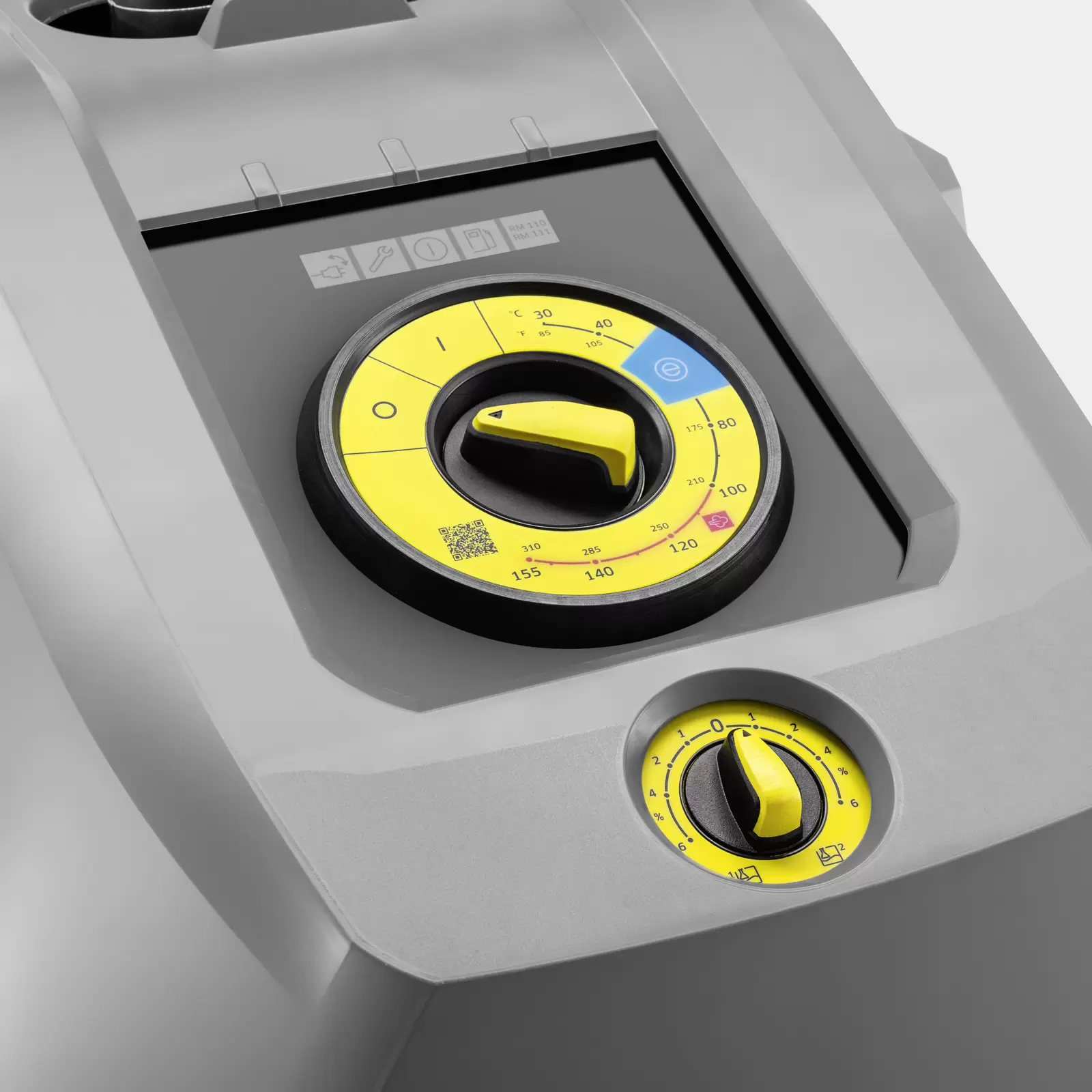

- One switch for all unit functions.
Specification
Current type
3 / 400 / 50 Ph / V / Hz
Flow Rate
500 – 1000 l/h
Operating pressure
30 – 210 / 3 – 21 bar / MPa
Max. Pressure
Power rating
8 kW
Consumption fuel oil
7.3 kg/h
Heating oil consumption, eco!efficiency
5.8 kg/h
Nozzle size
Weight (with accessories)
160.2 kg
Weight incl. packaging
170.054 kg
Dimensions (L x W x H)
1330 x 750 x 1060 mm
