Karcher - 1.071-949.0 - HDS 7/10-4M high-pressure cleaner
SKU: 1.071-949.0
Part Number: 1.071-949.0
Barcode: 4066529096456
Weight: 192.31 Kg
Our Price
£3,599.99 (inc VAT) £2,999.99 (ex VAT)
RRP £4,149.60 £3,458.00
Save
£549.61
£458.01
Description

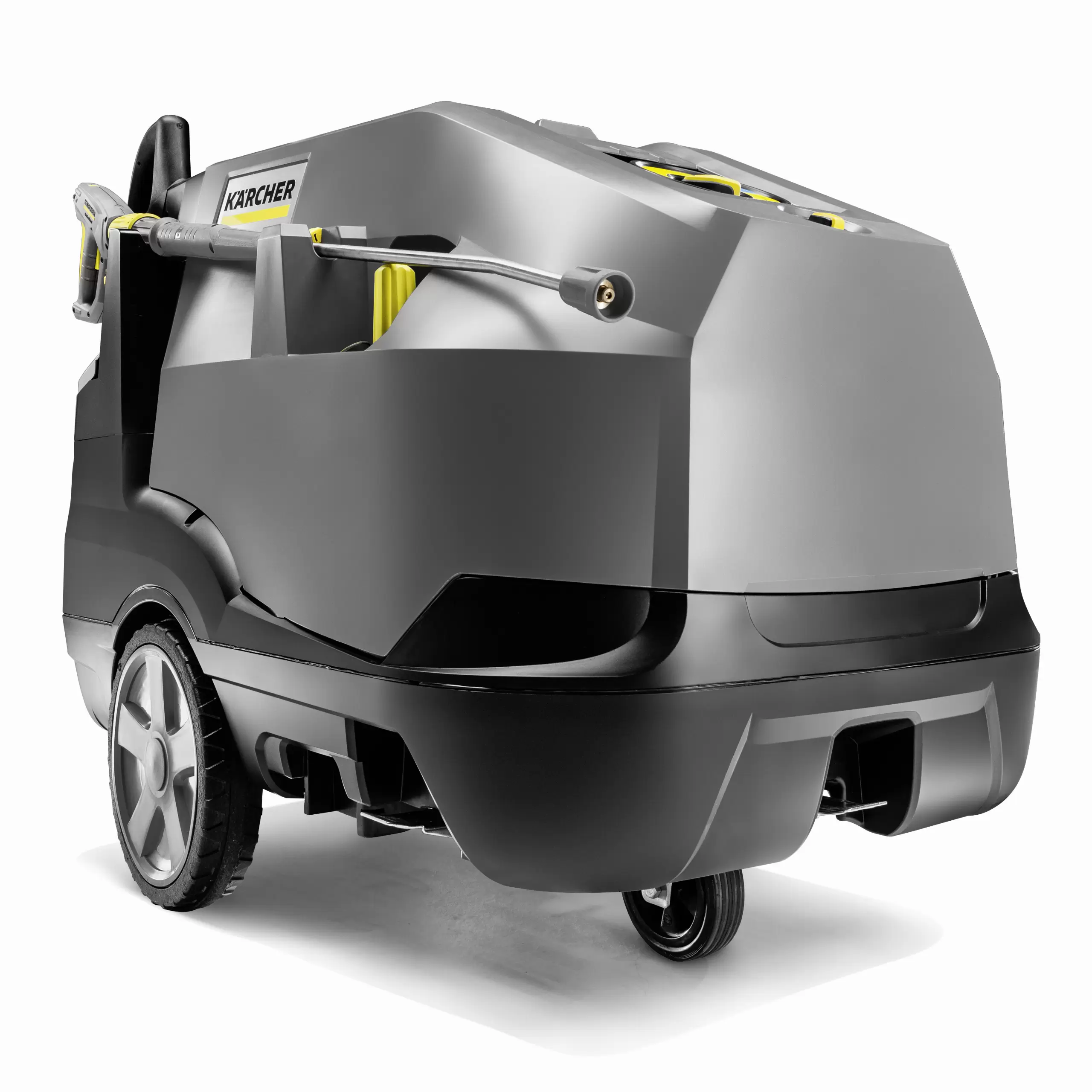

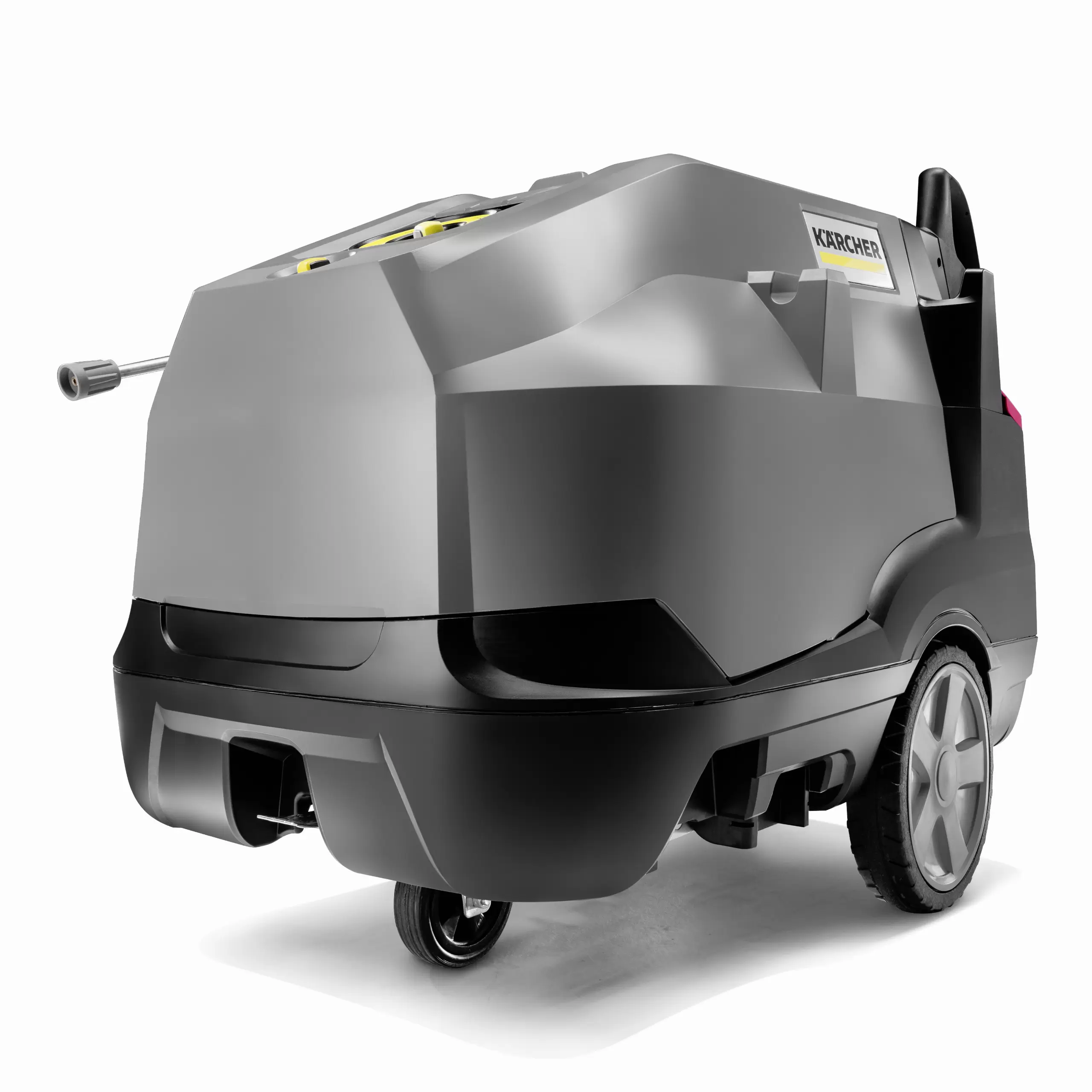

The HDS 7/10-4 M single-phase hot water high-pressure cleaner is the perfect entry-level machine in the middle class. It combines the highest cleaning quality with the best ergonomics and user-friendliness thanks to high-quality components and systems. The robust 3-piston axial pump with ceramic piston, the low-speed, water-cooled, 4-pole electric motor, optimised burner engineering and the economical eco!efficiency mode ensure safe and economical operation. The innovative EASY!Force Advanced HP trigger gun with servo control and 1050-millimetre-long stainless steel spray lance with patented nozzle technology is also included as standard for effortless, fatigue-free and ergonomic work. The middle class machine also impresses with its two detergent tanks, intuitive 1-switch operation, ergonomic accessory storage, time-saving EASY!Lock quick-release fasteners and a sophisticated mobility concept. Consistently applied safety technology with water filter, safety valves and SDS hose also reliably protects the particularly maintenance-friendly HDS 7/10-4 M from damage.
- ANTI!Twist
- Anti-twist system (AVS)

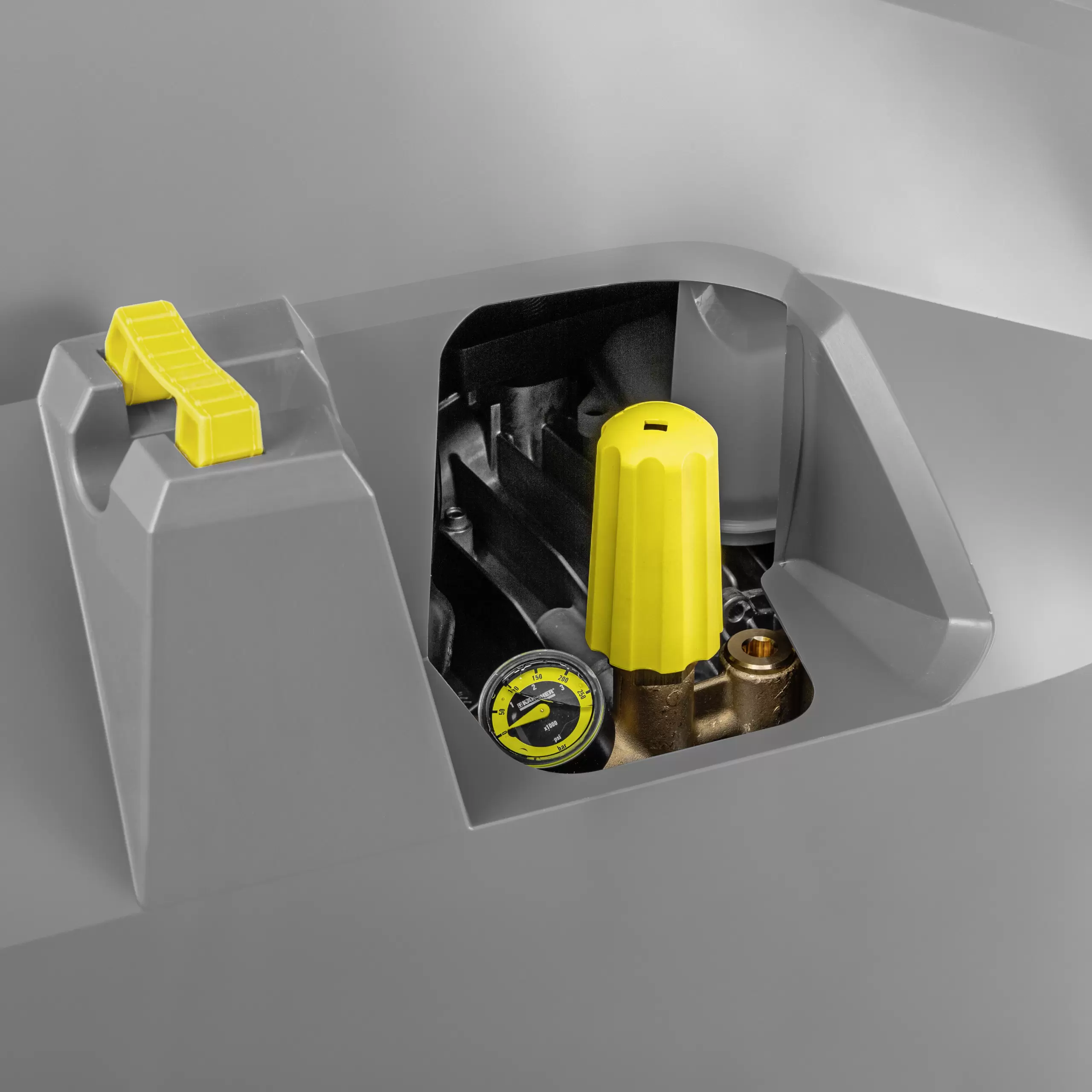

- Pressure switch control
- Spray lance, 1050
- Trigger gun, EASY!Force Advanced
- High-pressure hose length, 10
- High-pressure hose specification, DN 8,400 bar
- High-pressure hose type, Longlife
- High pressure lance
- Power nozzle
- Cleaning agent function, 20 + 10 l tank
- Servo Control
- Dry running protection
- Two detergent tanks
Features
High efficiency
- In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.
- The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.

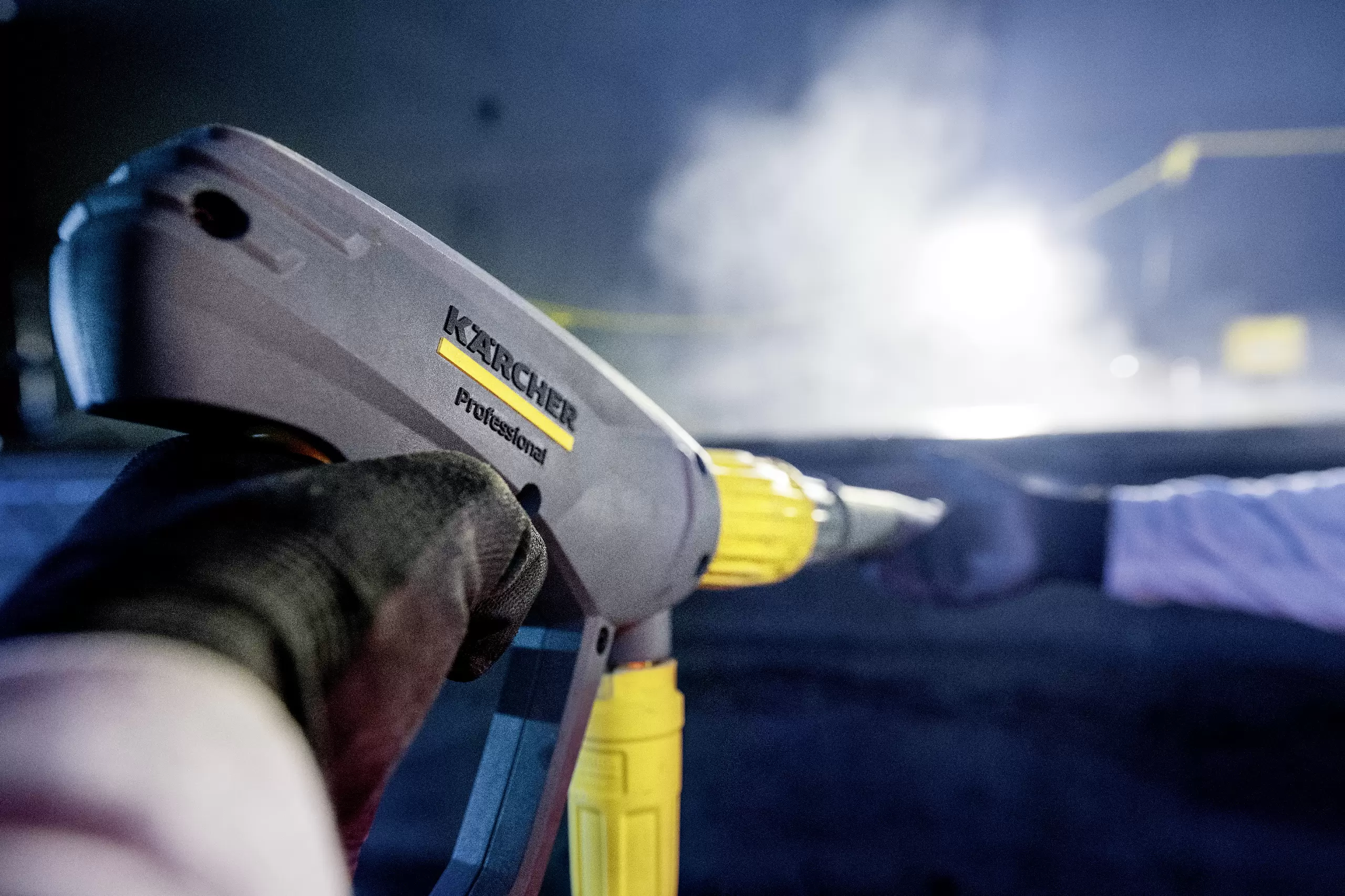

- EASY!Force Advanced for fatigue-free work without any holding force.
- Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
- Rotating 1050 mm stainless steel lance.
- Highly efficient, tried-and-tested "Made in Germany" burner technology.

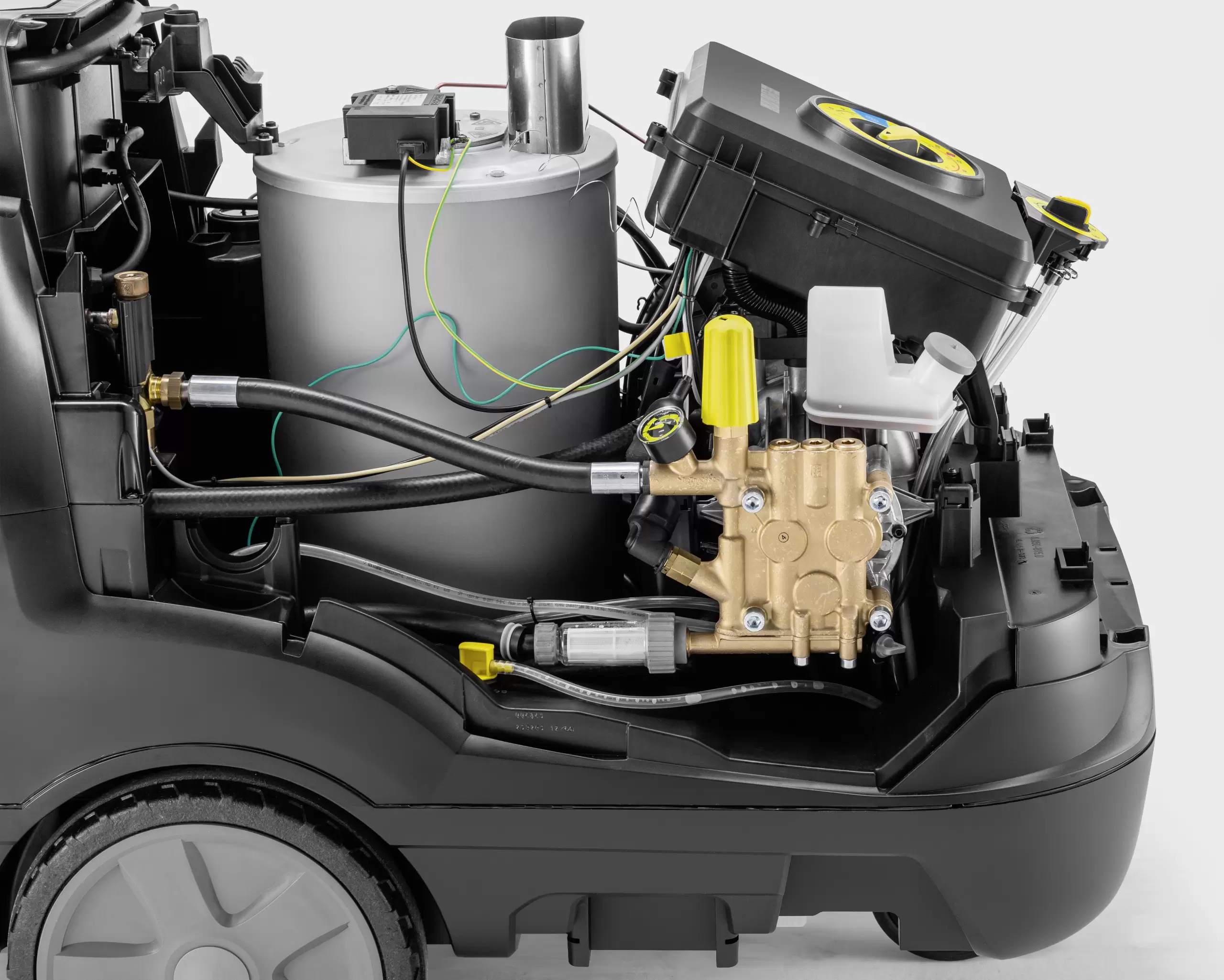

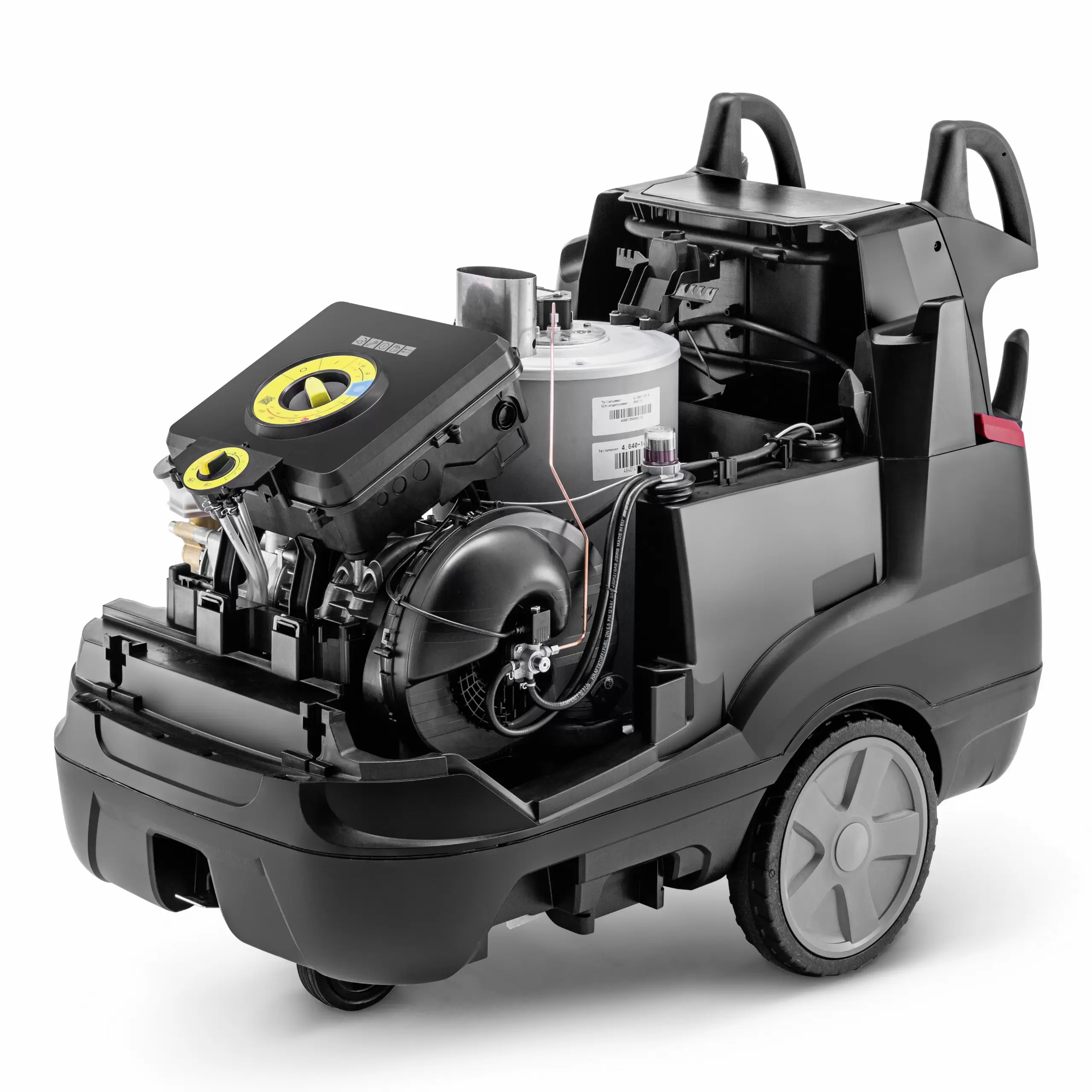

- 4-pole electric motor with 3-piston axial pump.
- Water-cooled motor for a high performance and long service life.
- Easy-to-access water filter protects the pump against dirt particles in the water.
- Safety valves, water shortage and fuel protection ensure the availability of the machine.
- The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.

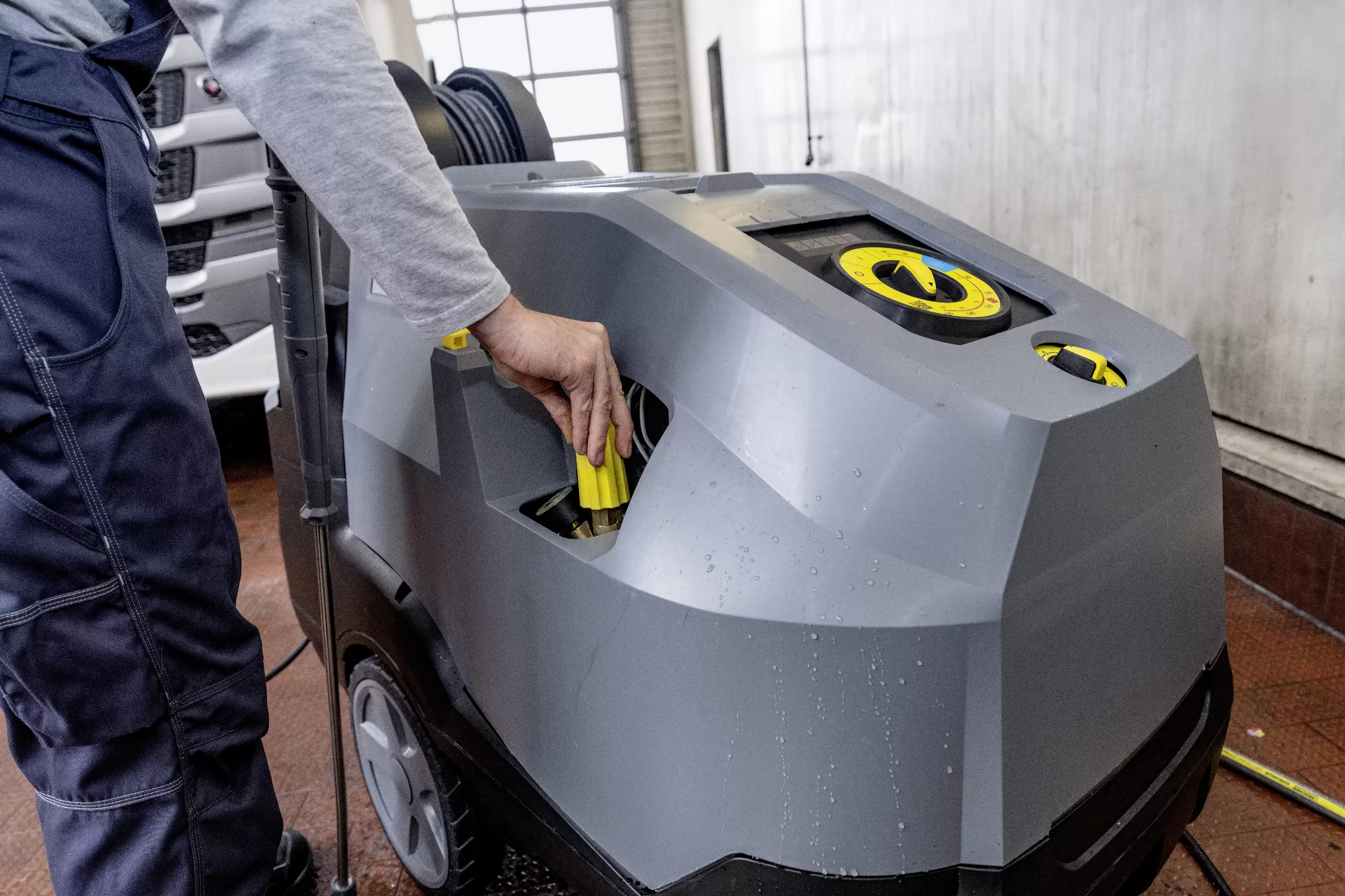

- On-board storage for full range of accessories. Includes 2 hooks for suction hose and power cord.

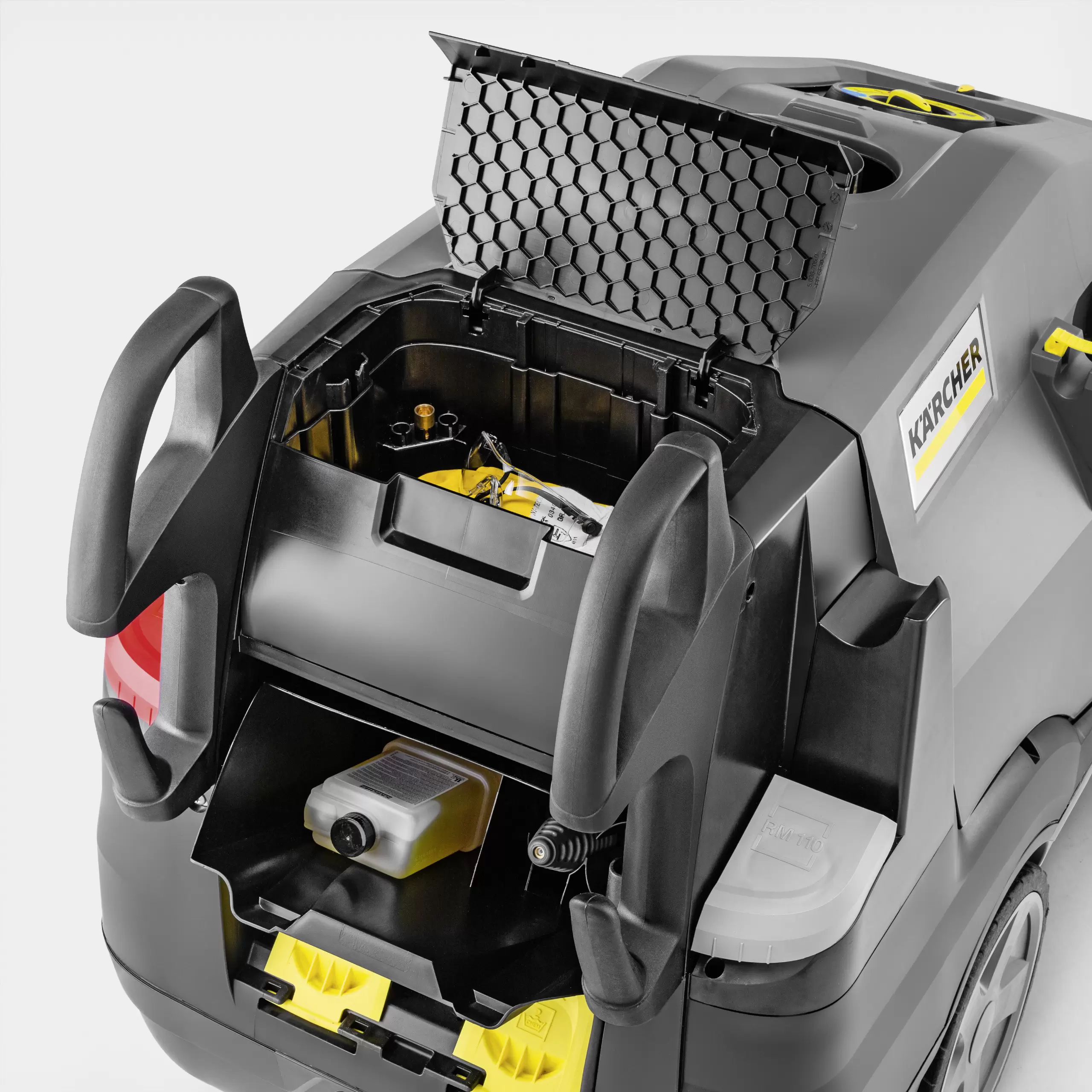

- Spacious storage compartment, e.g. for detergents, gloves or tools.

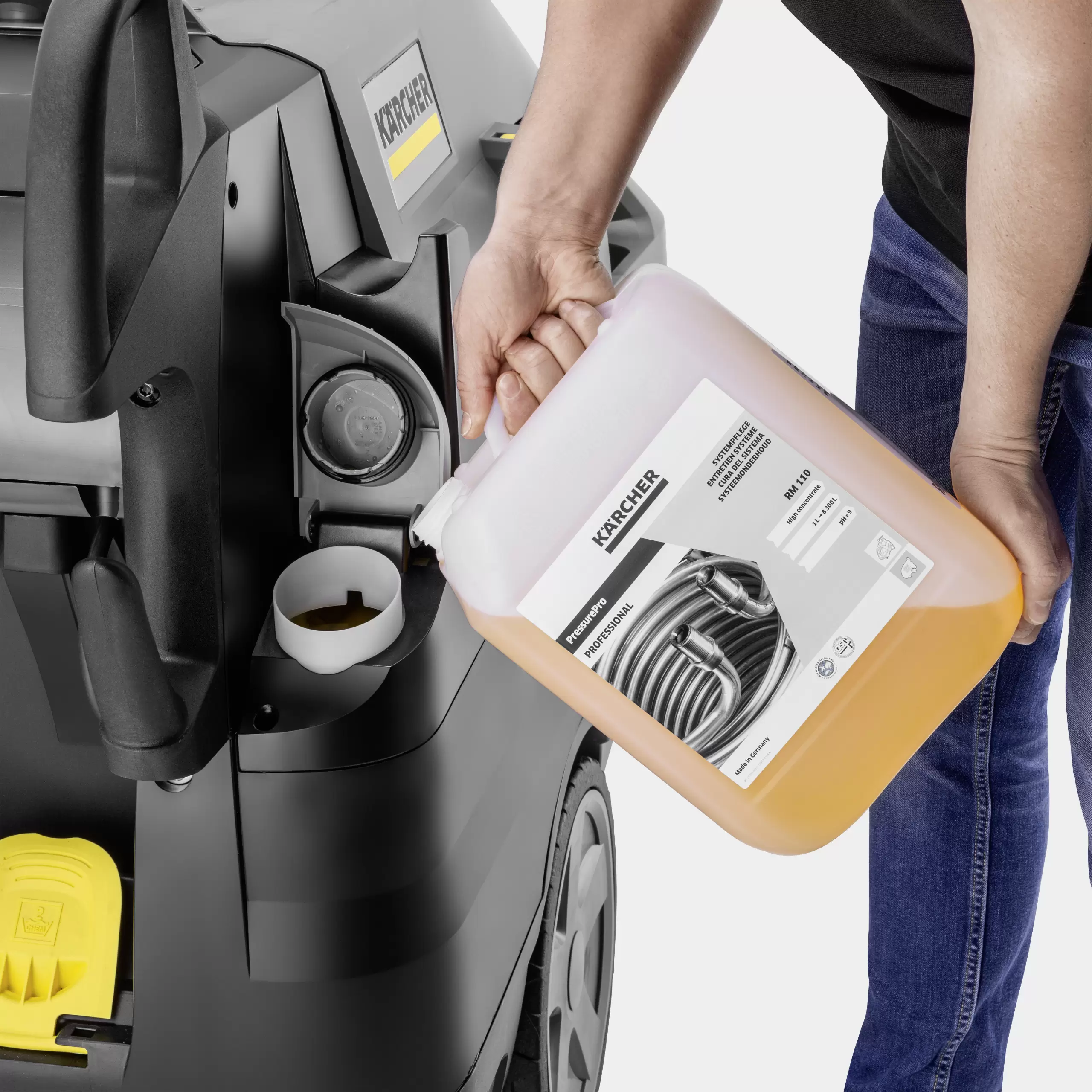

- Easy to switch between detergent tank 1 and 2.
- Precise detergent dosing unit with rinse function.

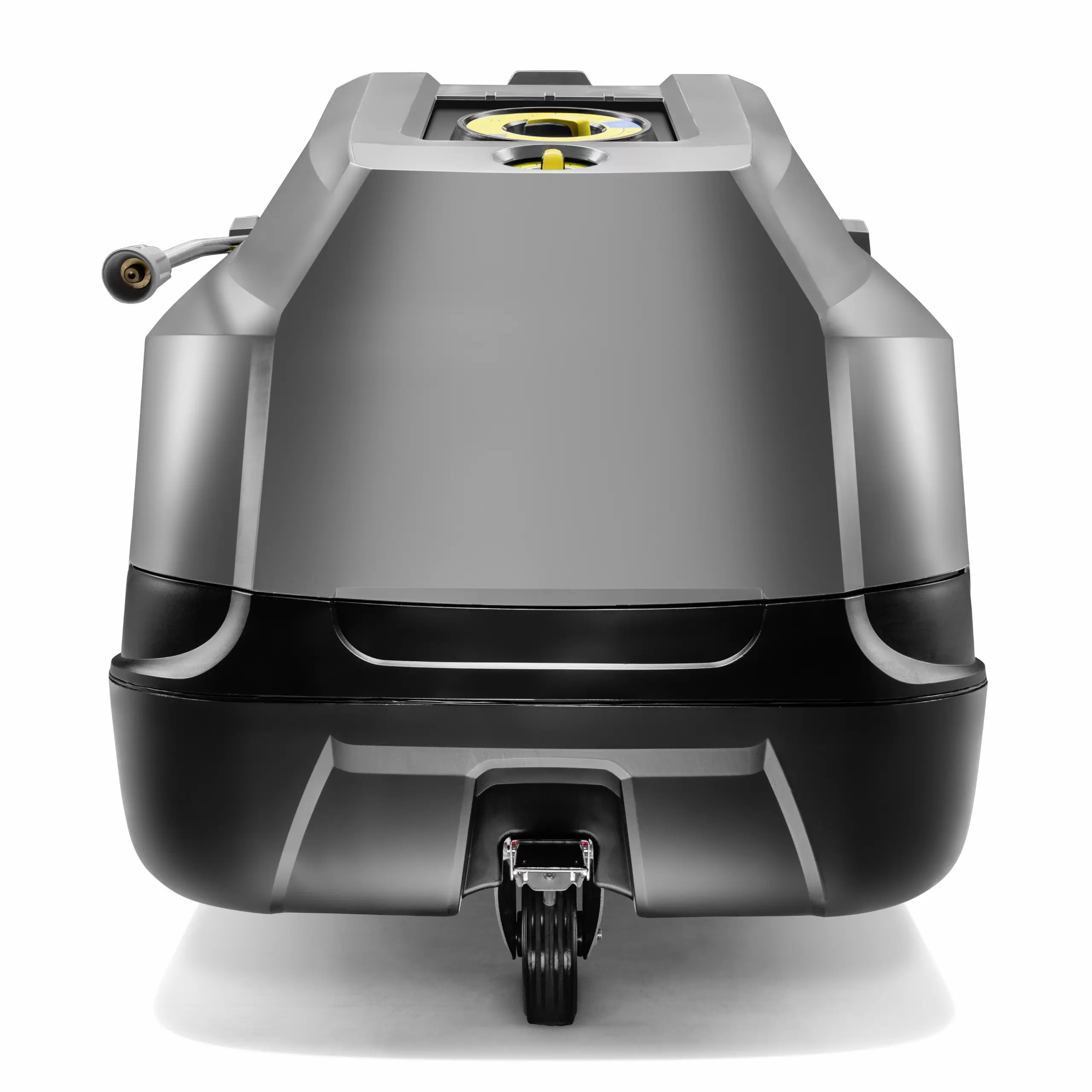

- "Jogger" design with large rubber wheels and steering roller.

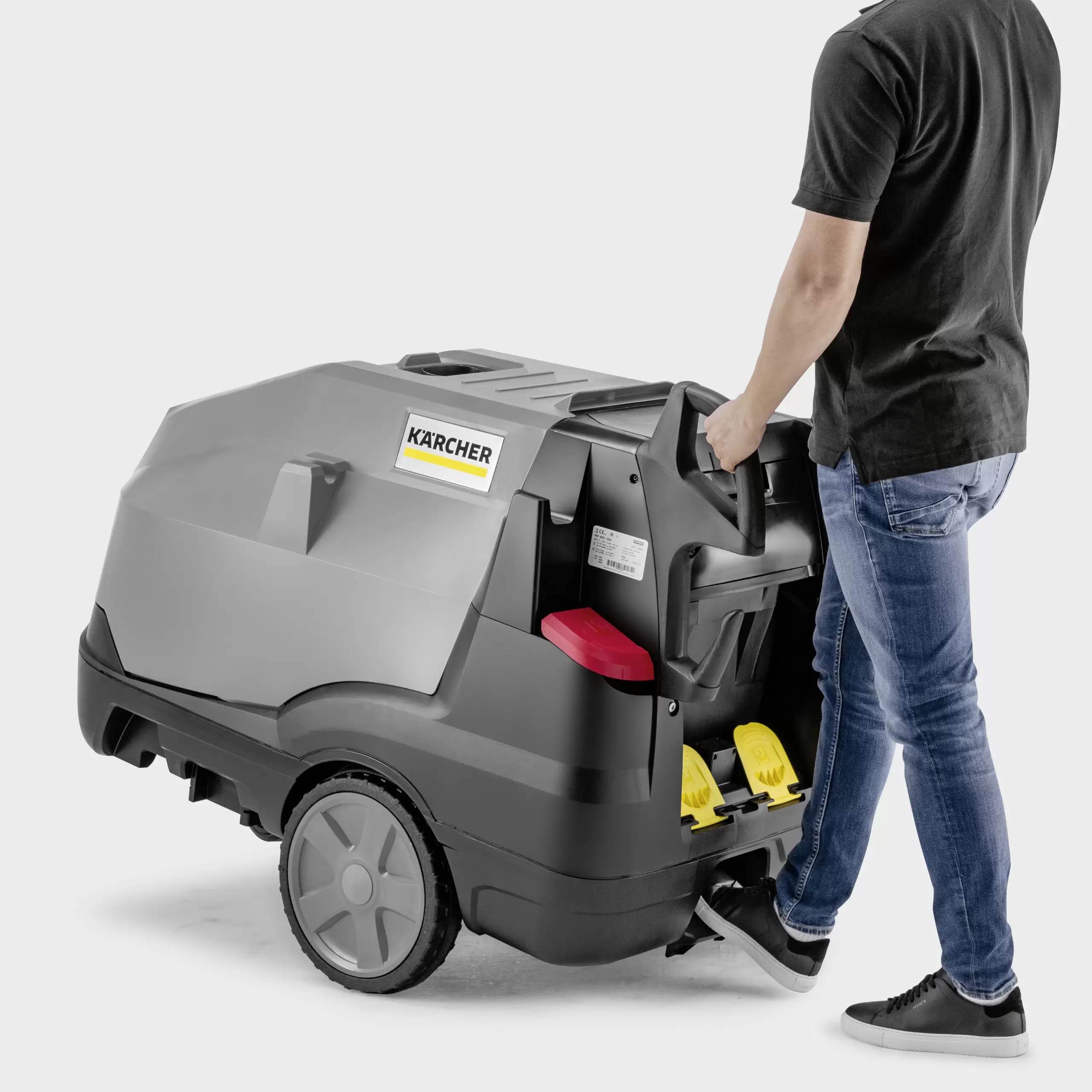

- Integrated tipping trough for effortless transport over ledges.
- Push handles for simple transport and manoeuvrability.

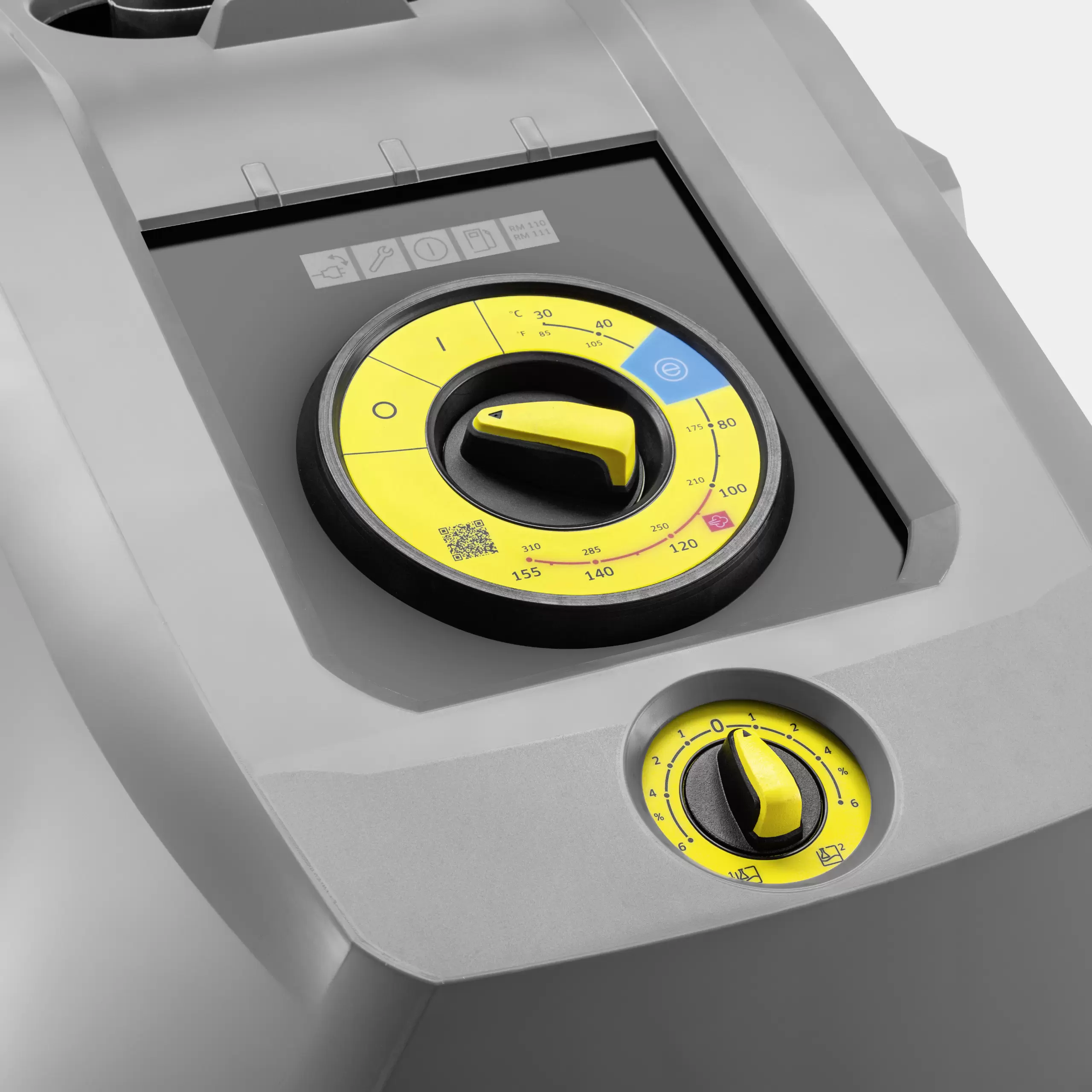

- One switch for all unit functions.
Applications

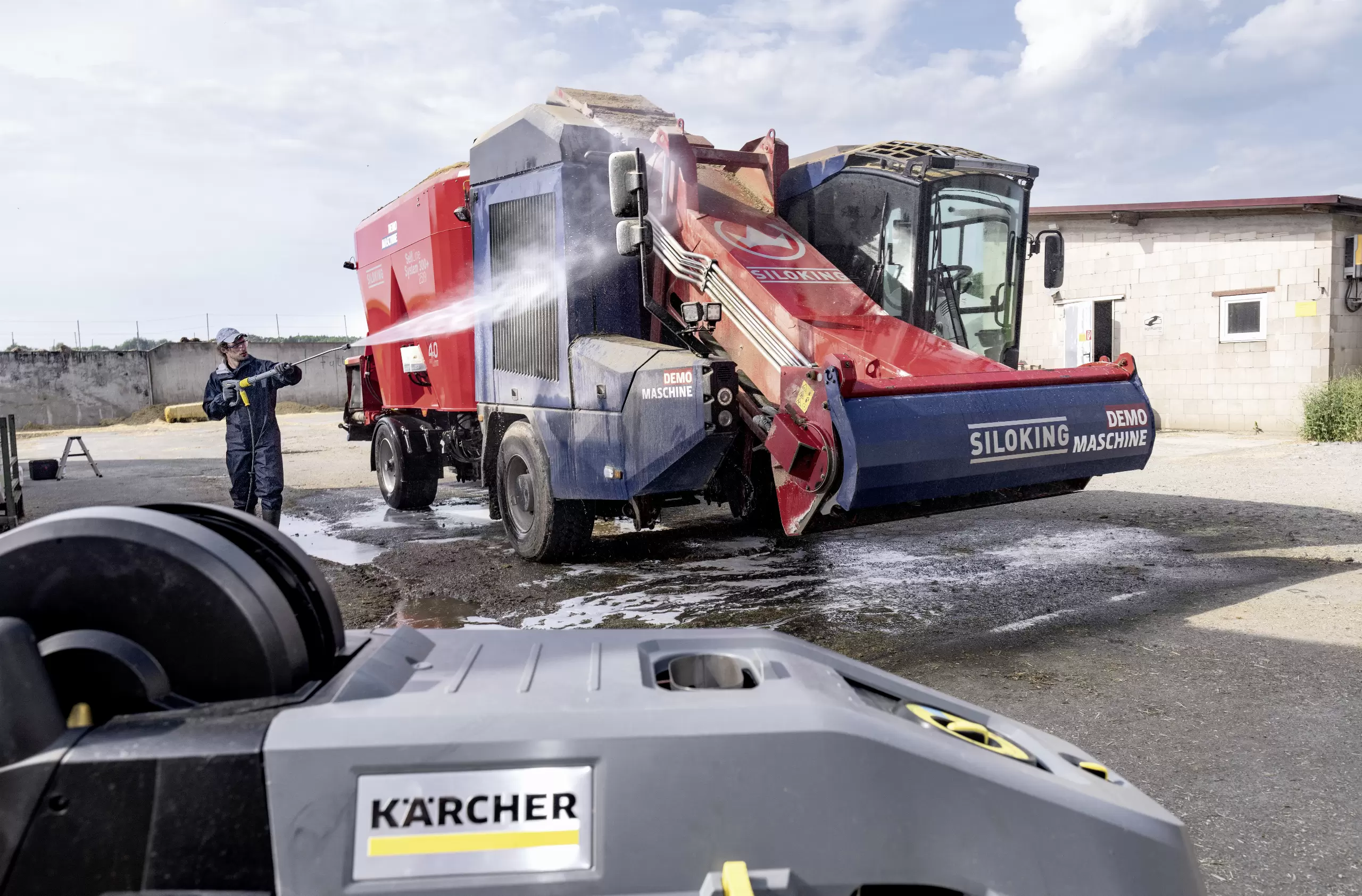

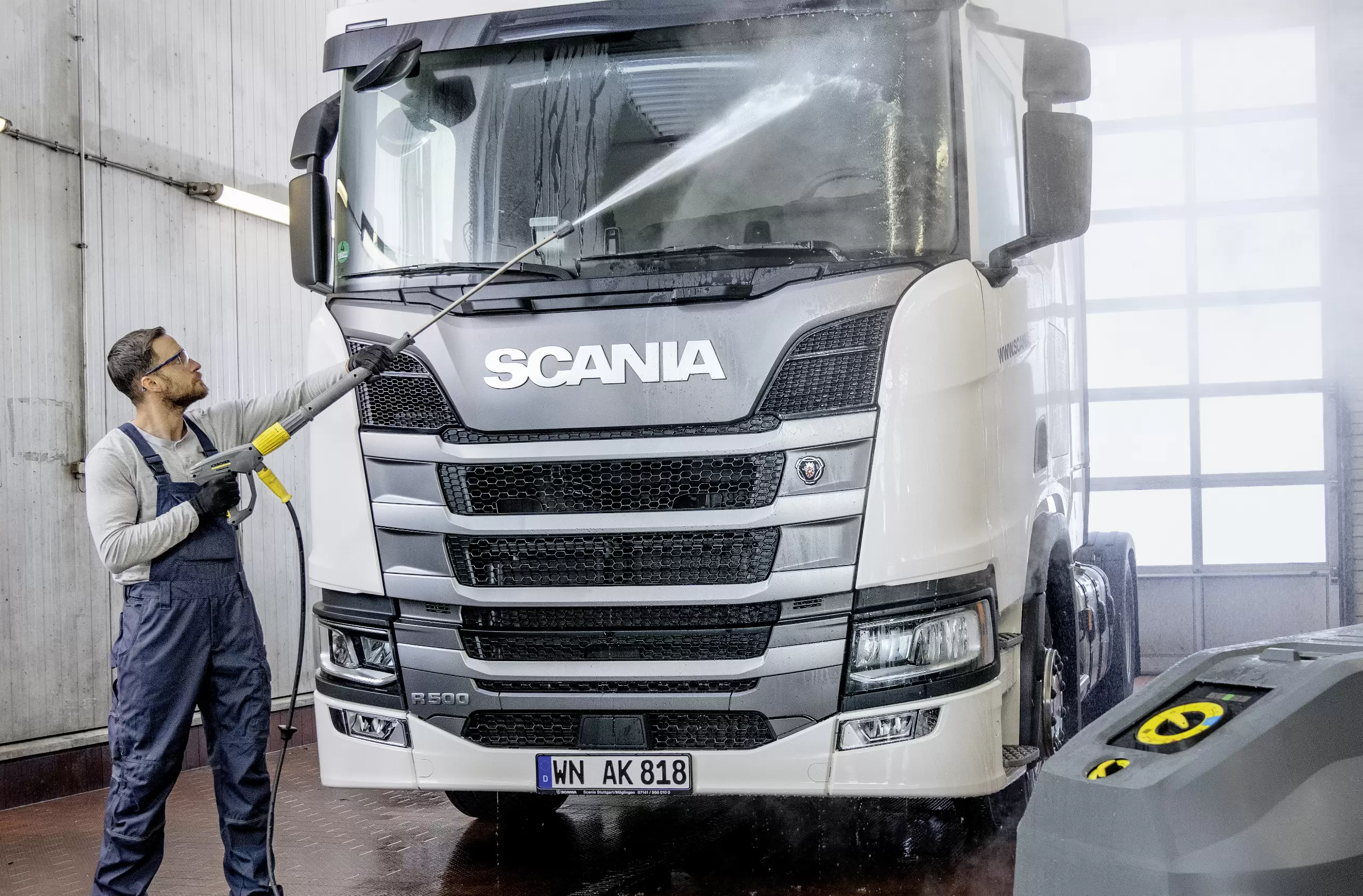

- Vehicle cleaning

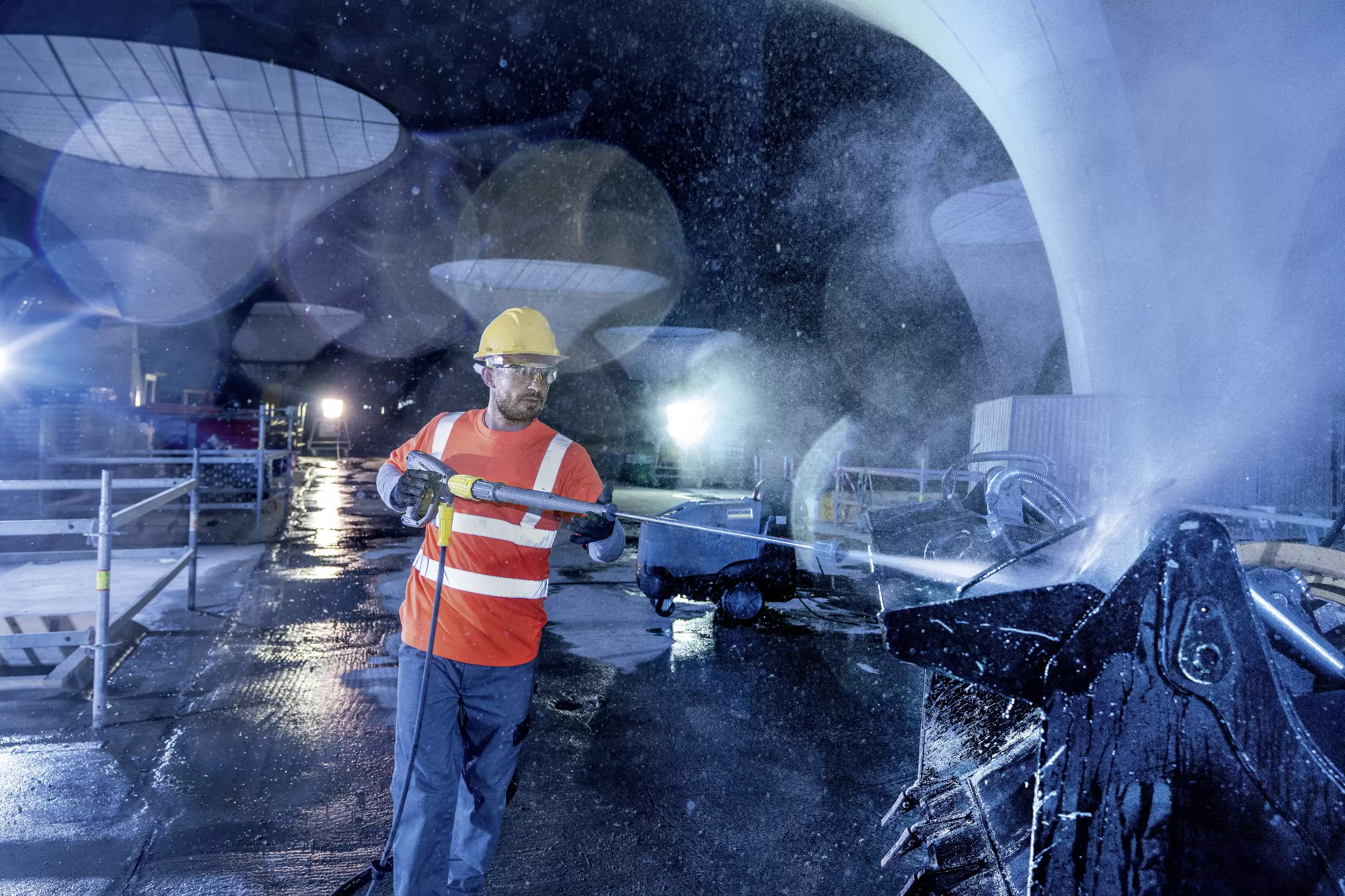

- Device and machine cleaning
- Workshop cleaning
- Cleaning outdoor spaces
- Service station cleaning
- Façade cleaning
- Swimming pool cleaning
- Cleaning of sports facilities
- Cleaning during production processes
- Cleaning of production facilities
Specification
Flow Rate
350 – 700 l/h
Operating pressure
30 – 100 / 3 – 10 bar / MPa
Max. Pressure
145 bar
Heating oil consumption ( 60°C) / eco!efficiency mode
4.6 kg/h
Heating oil consumption, eco!efficiency
3.8 kg/h
Current type
1 / 230 – 240 / 50 Ph / V / Hz
Power rating
3 kW
Nozzle size
025
Weight (with accessories)
182.454 kg
Weight incl. packaging
192.308 kg
Dimensions (L x W x H)
1300 x 800 x 1140 mm
