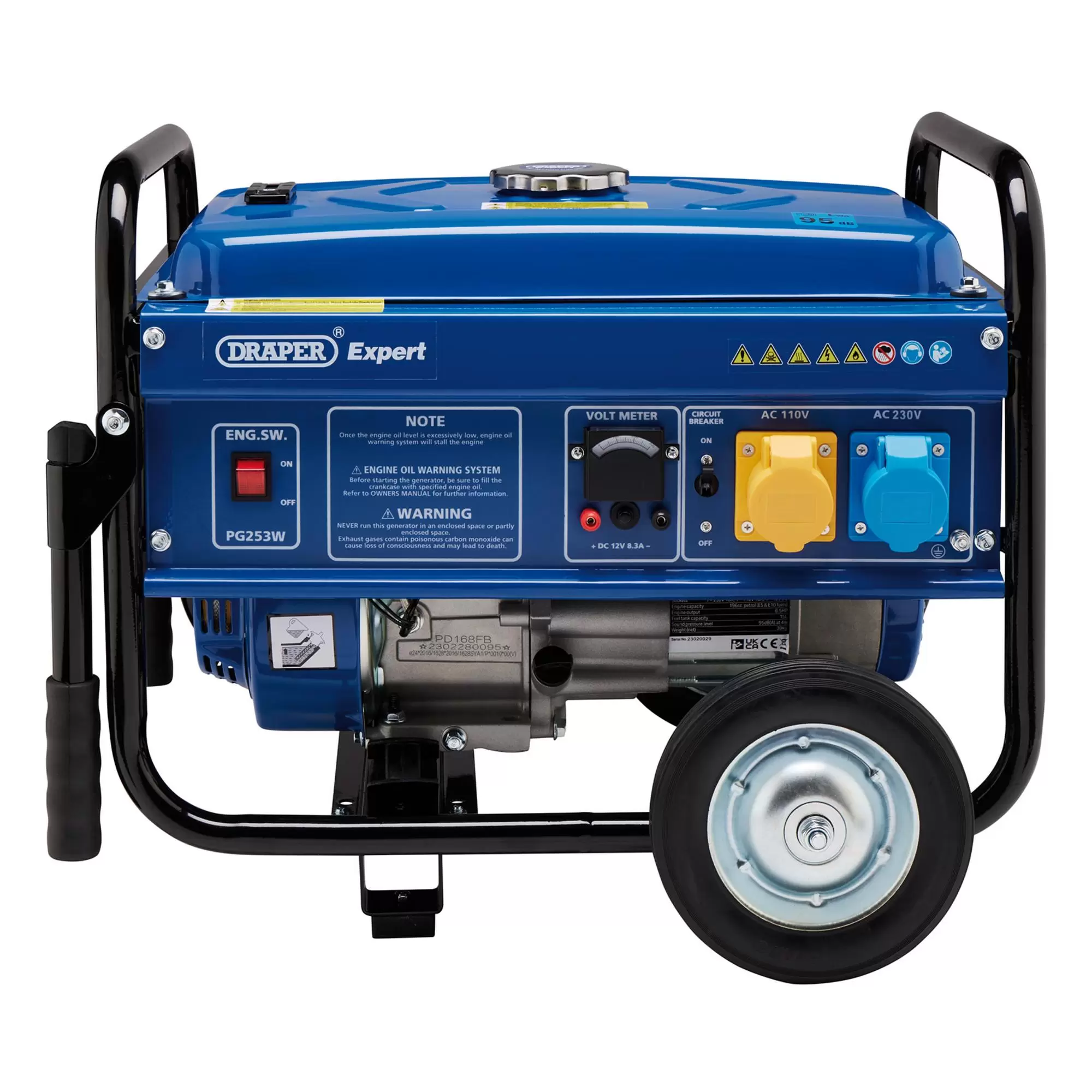

This open frame generator is powered through a high-quality 196cc petrol engine with recoil start, held in a heavy-duty steel tubular frame. It has oil and fuel resistant anti-vibration mounts and wheel kit for ease of mobility. The generator delivers dual voltage output 220V/110V and 12V DC. Supplied with a spark plug spanner, combination spanners and 12V charging lead. Compatible with E5 and E10 fuel.

Powered by 4-stroke engine

Easy pull recoil start

Steel tubular frame

Dual voltage output 220/110V

12V DC output

Fitted with oil and fuel resistant anti-vibration mounts

Engine low oil shutdown

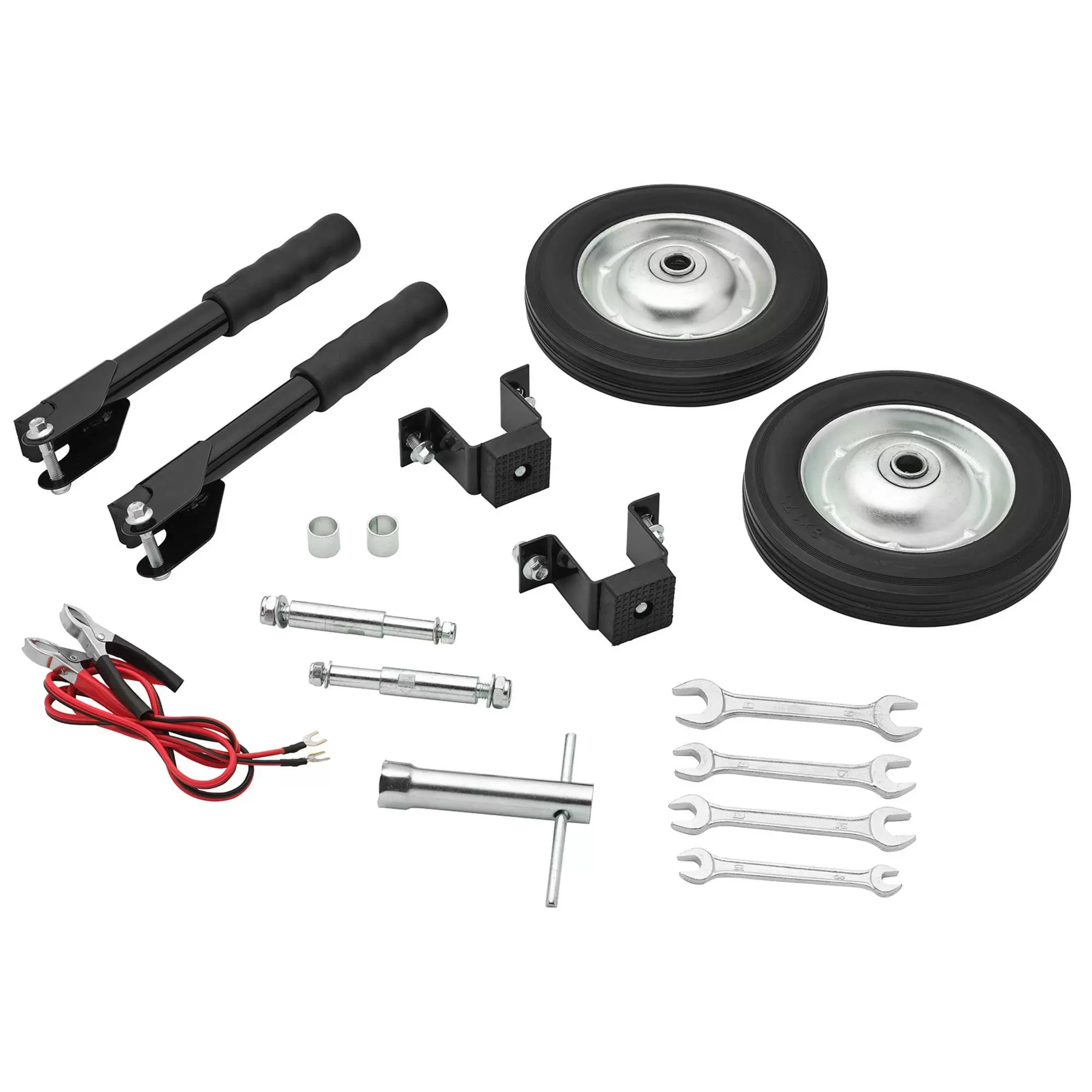

Supplied with 12V charging lead and basic toolkit

Compatible with E5 and E10 fuel

Maximum AC output 2,200W (2.75kVA)
Rated AC output 2,000W (2.50kVA)
Sockets 1 x 230V 16 A, 1 x 110V 16A, 1 x 12V DC
Engine type Forced air cooled four stroke OHV
Engine capacity 196cc Petrol
Engine output 6.5HP
Fuel tank 15L
Continuous run time 9 hours at 75% load
Noise 95dB(A)
Oil capacity 0.6L
Oil SAE 10W-40 (available separately)
Dimensions (H) 590 x (W) 485 x (H) 480mm
Weight (net) 39kg

Warranty Period = 12 months

Downloads

Parts Listing Instruction Manual Declaration Of Conformity CE Declaration Of Conformity UK CA
