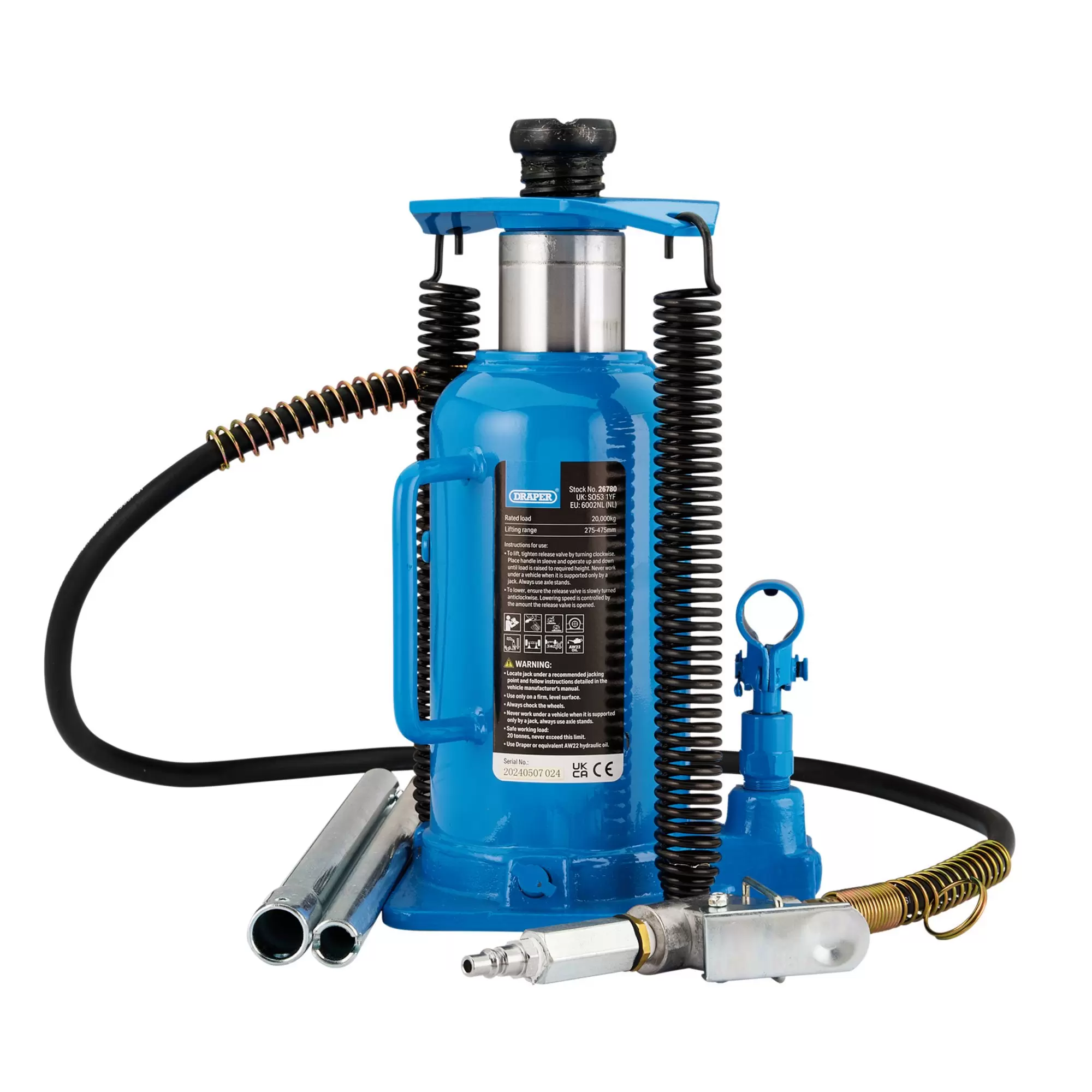

Draper Tools - 26780 - Air Bottle Jack, 20 Tonne

This air bottle jack can effortlessly handle heavy loads up to 20 tonnes. It has a minimum height of 245mm and a maximum height of 474mm, making it versatile and suitable for various lifting needs. The extendable screw reaches up to 80mm, allowing for precise adjustments. You can connect the air compressor for pneumatic lifting and control it by using the air valve, which makes heavy lifting effortless and improves work efficiency. The bottle jack can also be operated hydraulically by hand using the two-piece handle for extra versatility. It is built with a robust welded base and reservoir to improve strength and minimise leaks. Additionally, there is a built-in safety valve to prevent overloading. The jack also features an integrated carry handle for easy transportation and storage.

Capacity 20 Tonne
Lifting range 245-475mm
Screw extension 80mm
Operating air pressure 0.7-1mpa
Saddle diameter 45mm
Air coupler 1/4 BSP
Hydraulic lift 150mm
Ram diameter 72mm
Jack handle length 650mm
Base size 220 x 175mm
Weight 16kg
