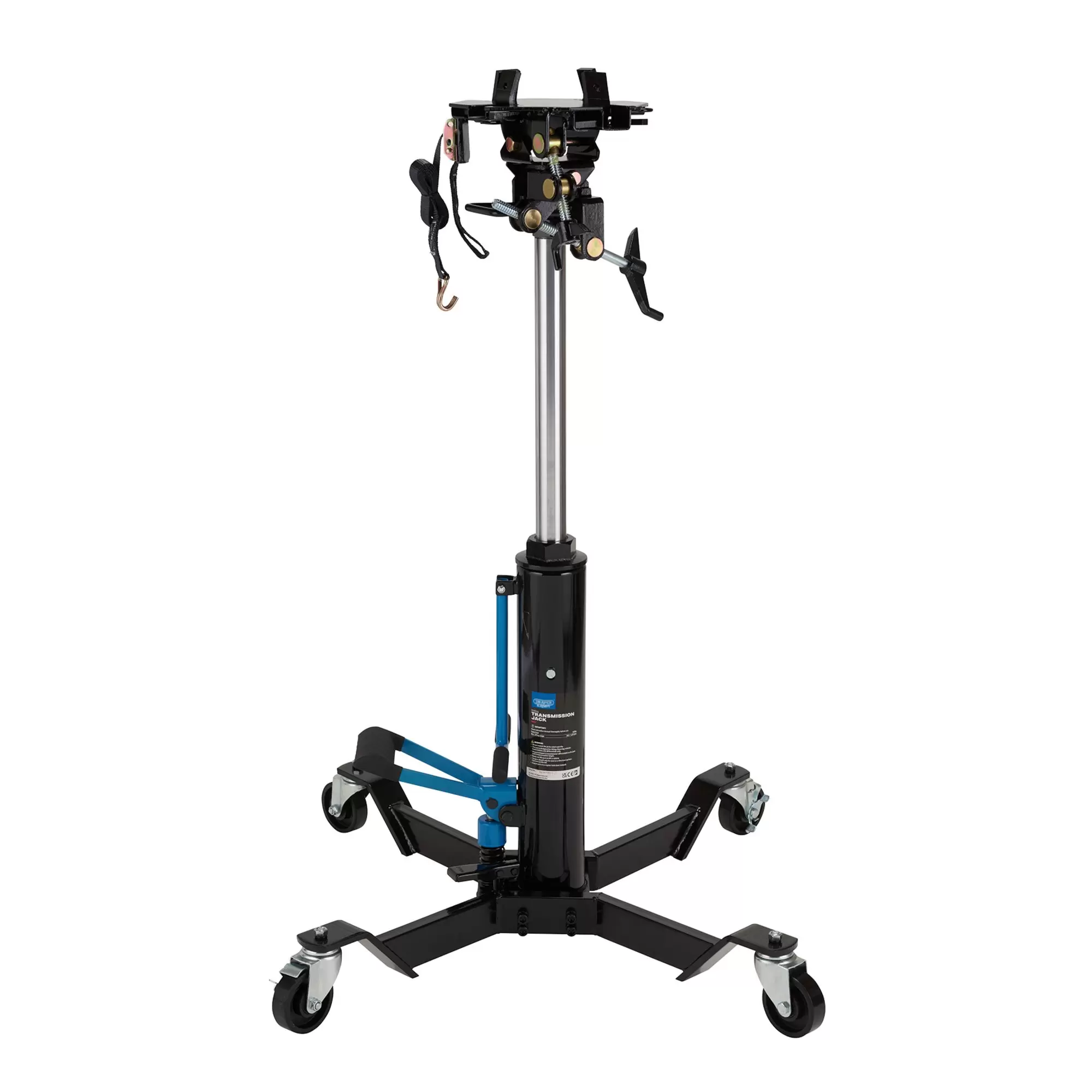

Draper Tools - 08557 - Draper Expert Evolution Vertical Transmission Jack, 500kg

This vertical transmission jack is part of the stylish and distinctive Evolution range. Telescopic twin stage ram with a low entry height for reduced clearances. Operated by foot pedal for easy hands-free operation. Fully adjustable saddle able to accept a wide range of components. Has forward, backward and side-to-side tilting action to aid the user further. Ratchet saddle claws enhance the operating speed when clamping the load. There are two non-marking ratchet straps for added support. Fitted with four extra-large 100mm nylon castors that prevent damage to floors and provide quiet and smooth operation. The side mounted T-handle further aids positioning and manoeuvrability. Fitted with overload safety valve. Fully tested and certified for safe, reliable operation. Capacity 500kg.

Capacity 500kg
Minimum height 902mm
Maximum height stage 1 1,387mm
Maximum height stage 2 1,891mm
Saddle type Adjustable
Base dimensions 290 x 290mm
Castor diameter 100mm
Weight 66kg
