Home > Workshop Equipment > Jacking & Lifting > Draper Tools - 02078 - Draper Expert Pneumatic High Lift Jack, 30 Tonne

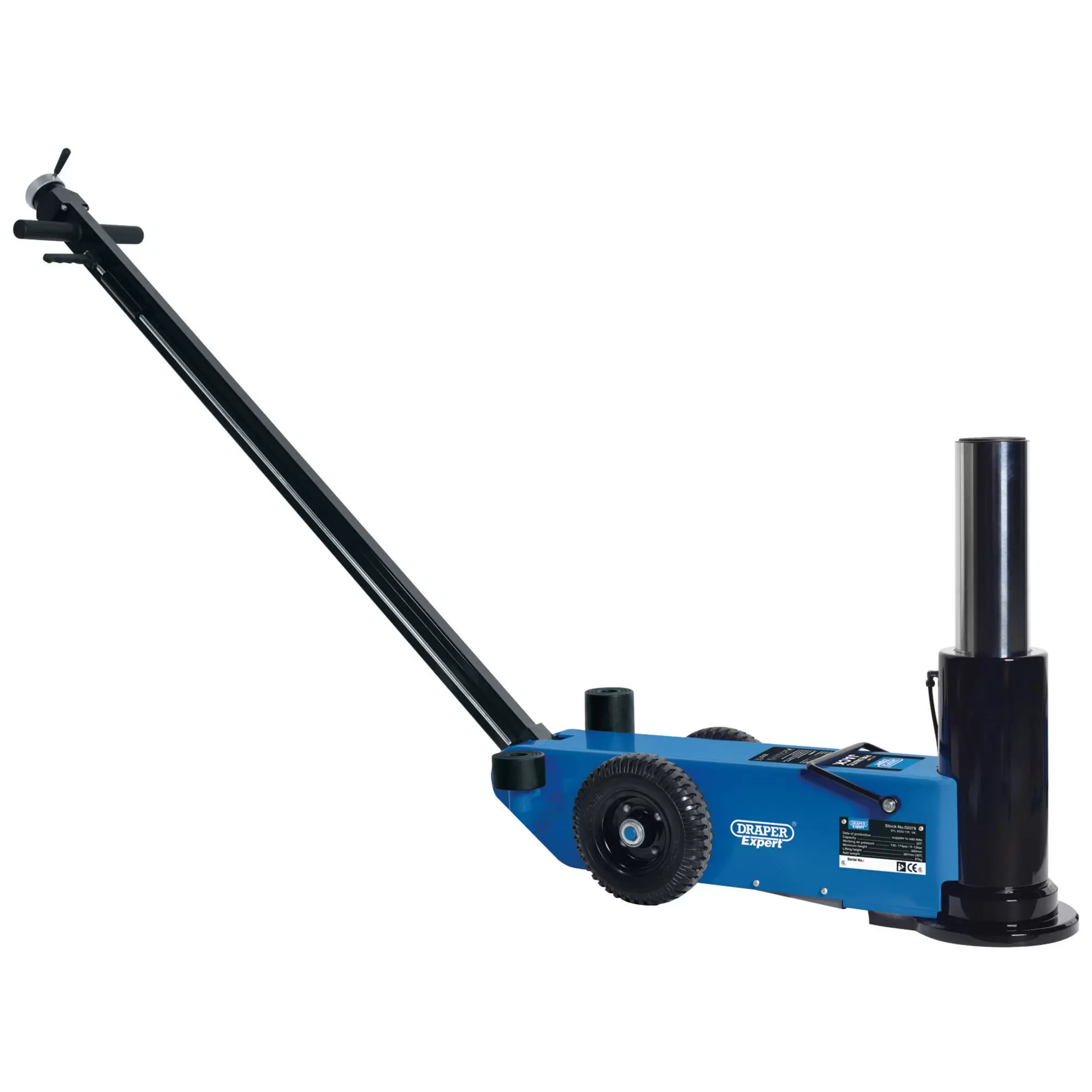

Draper Tools - 02078 - Draper Expert Pneumatic High Lift Jack, 30 Tonne
SKU: 02078
Part Number: PJ30HL
Barcode: 5010559020782
Country of Origin: CN
Weight: 81.82 Kg
Our Price
£1,753.91 (inc VAT) £1,461.59 (ex VAT)
RRP £2,064.00 £1,720.00
Save
£310.09
£258.41
12 months Warranty included.
Description

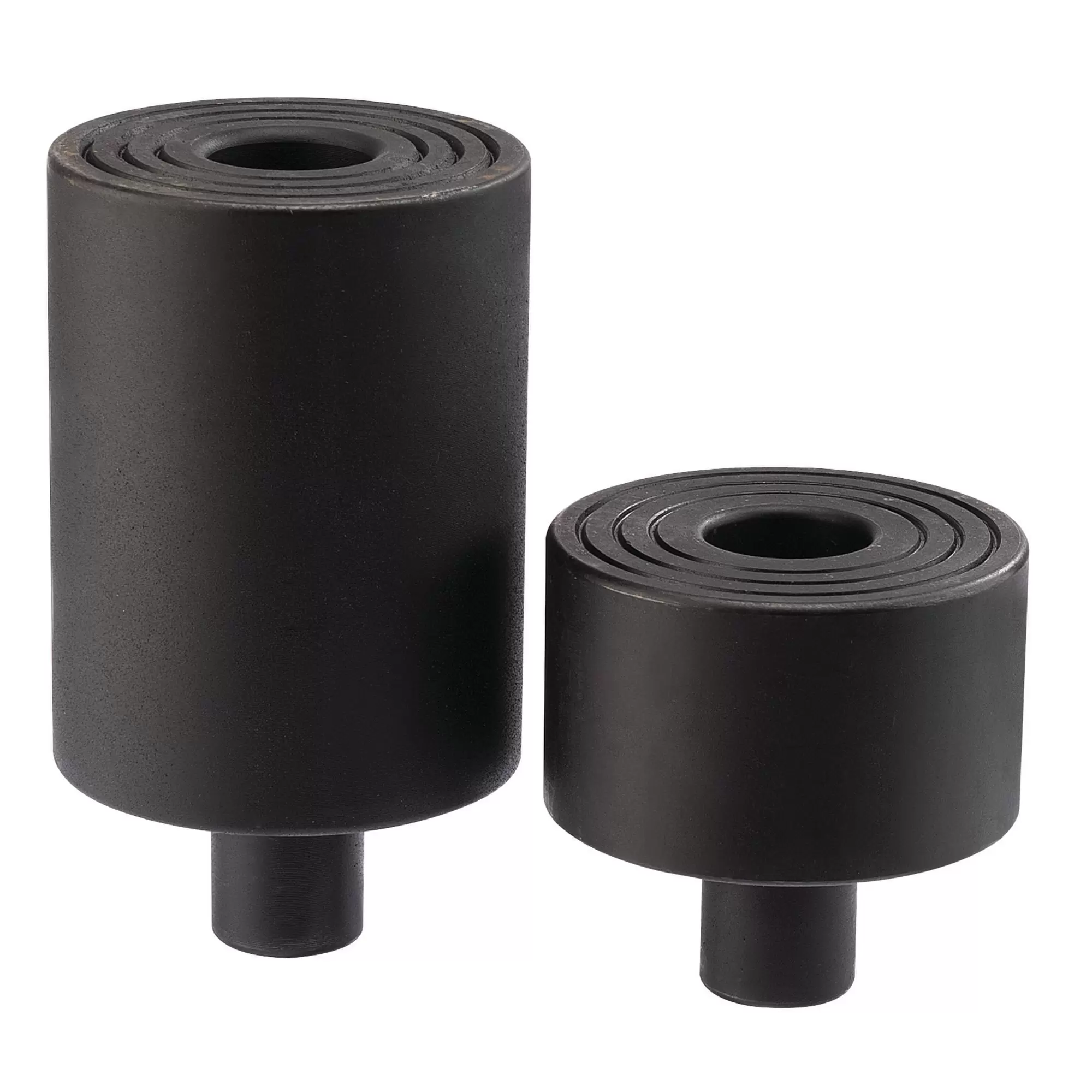

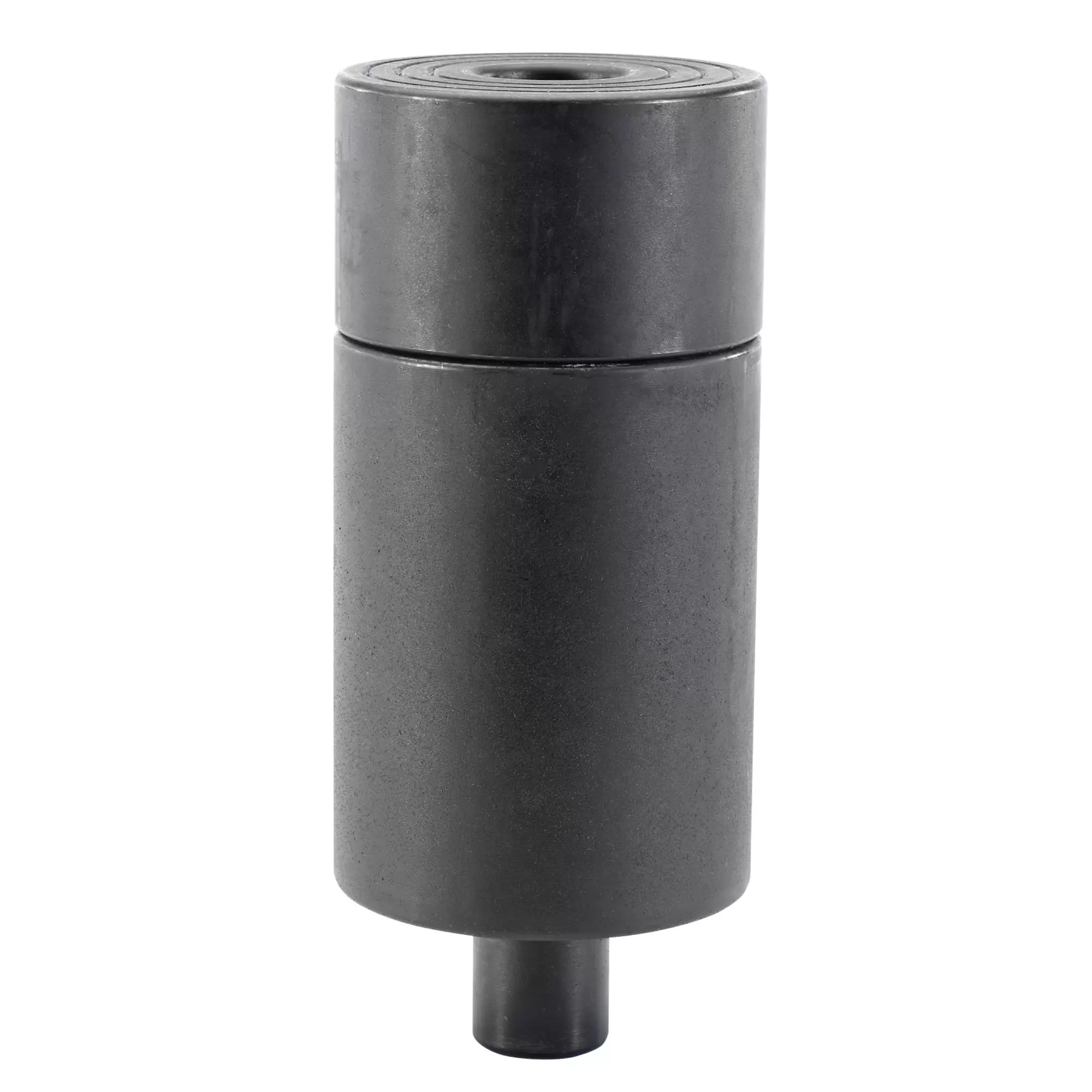

Portable and compact high lift pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 100mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Features
Specification
Air Consumption 11.5cfm
Air Inlet 1/4" BSP
Capacity 30 Tonne (30,000kg)
Chassis Dimensions 840 x 215 x 360mm
Handle Length 1380mm
Lifting Height 267mm
Max Height 772mm (inc extensions)
Min Height 360mm
Nett Weight 87kg
Operating Air Pressure 9 – 12BAR (130 – 174psi)
Saddle Diameter 83.6mm
Wheel Diameter 200mm
Wheel Width 55.5mm
Air Inlet 1/4" BSP
Capacity 30 Tonne (30,000kg)
Chassis Dimensions 840 x 215 x 360mm
Handle Length 1380mm
Lifting Height 267mm
Max Height 772mm (inc extensions)
Min Height 360mm
Nett Weight 87kg
Operating Air Pressure 9 – 12BAR (130 – 174psi)
Saddle Diameter 83.6mm
Wheel Diameter 200mm
Wheel Width 55.5mm
Description
Portable and compact high lift pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 100mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Features
Specification
Air Consumption 11.5cfm
Air Inlet 1/4" BSP
Capacity 30 Tonne (30,000kg)
Chassis Dimensions 840 x 215 x 360mm
Handle Length 1380mm
Lifting Height 267mm
Max Height 772mm (inc extensions)
Min Height 360mm
Nett Weight 87kg
Operating Air Pressure 9 – 12BAR (130 – 174psi)
Saddle Diameter 83.6mm
Wheel Diameter 200mm
Wheel Width 55.5mm
Air Inlet 1/4" BSP
Capacity 30 Tonne (30,000kg)
Chassis Dimensions 840 x 215 x 360mm
Handle Length 1380mm
Lifting Height 267mm
Max Height 772mm (inc extensions)
Min Height 360mm
Nett Weight 87kg
Operating Air Pressure 9 – 12BAR (130 – 174psi)
Saddle Diameter 83.6mm
Wheel Diameter 200mm
Wheel Width 55.5mm
