Home > Workshop Equipment > Jacking & Lifting > Draper Tools - 03724 - Draper Expert Pneumatic Jack, 30 Tonne
Draper Tools - 03724 - Draper Expert Pneumatic Jack, 30 Tonne
SKU: 03724
Part Number: PJ30P
Barcode: 5010559037247
Country of Origin: CN
Weight: 36.50 Kg
Our Price
£1,013.44 (inc VAT) £844.53 (ex VAT)
RRP £1,242.00 £1,035.00
Save
£228.56
£190.47
12 months Warranty included.
Description

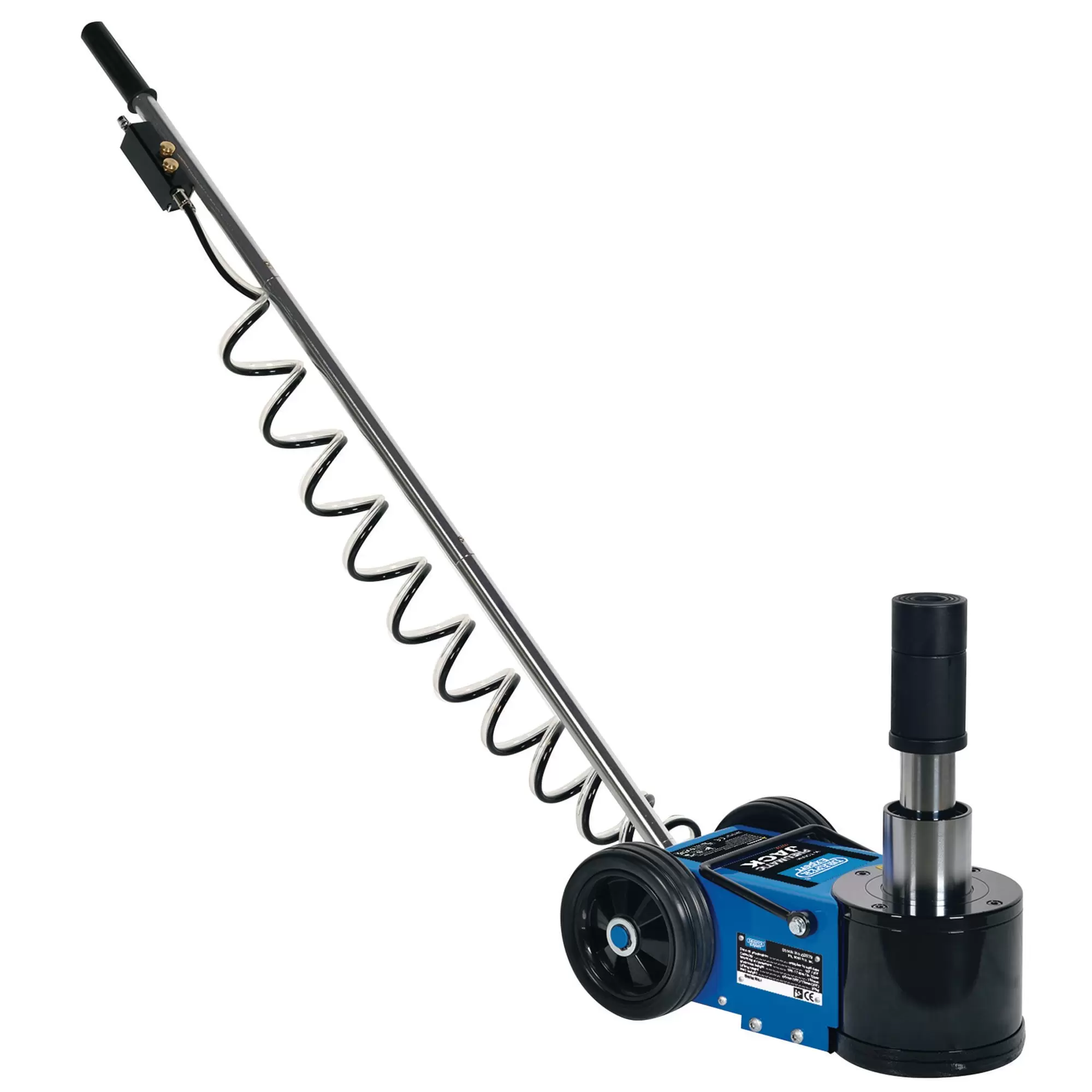

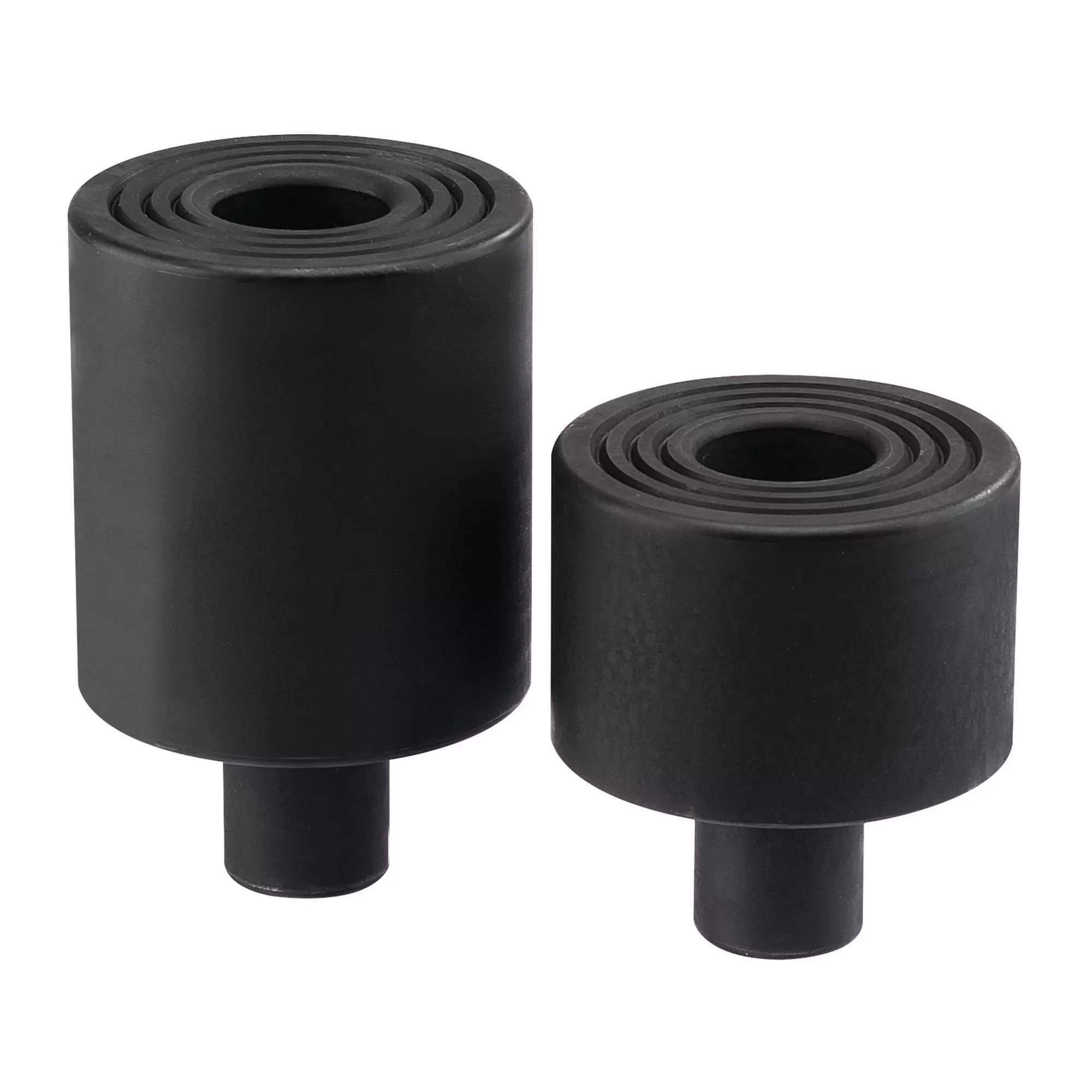

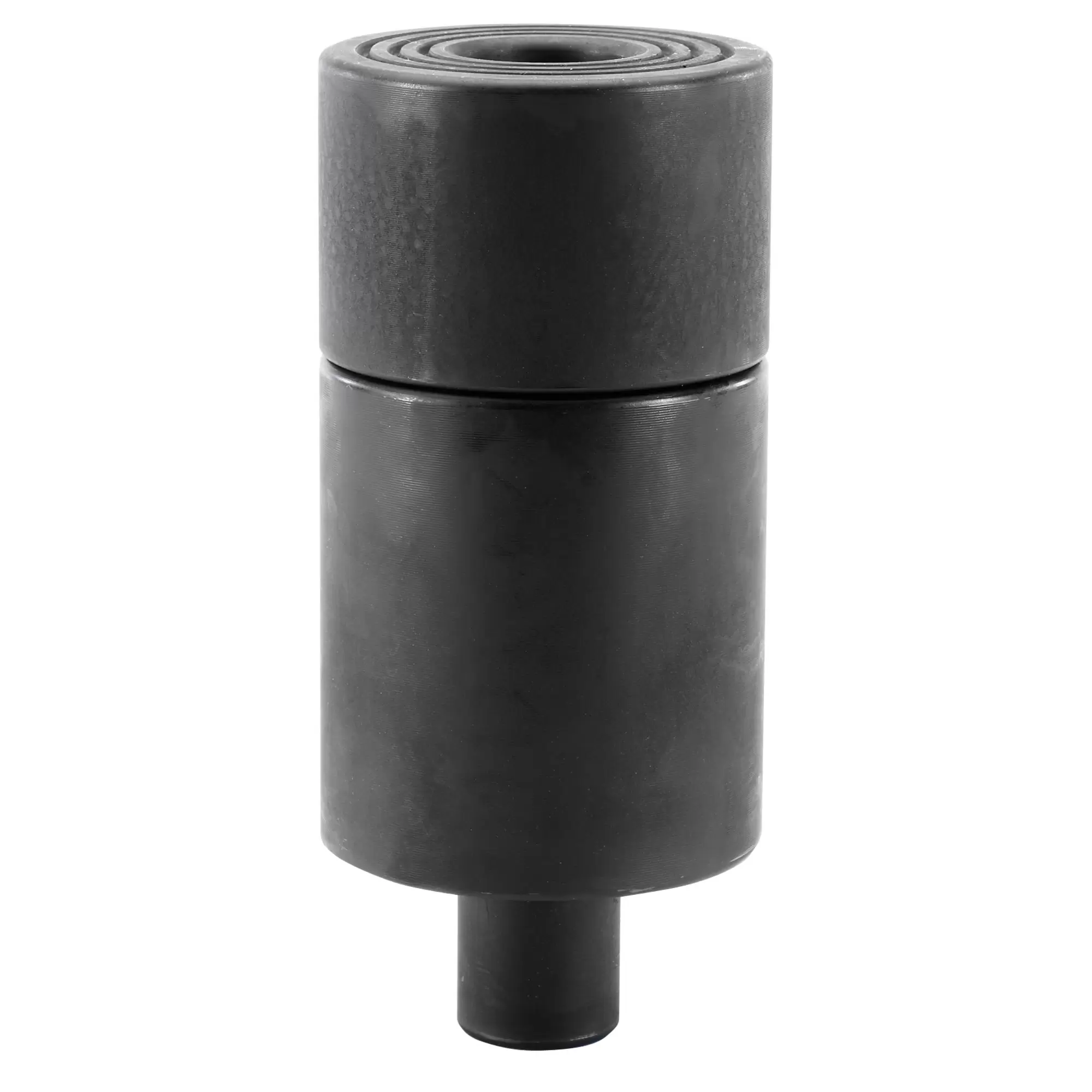

Portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Features
Specification
Air Consumption 10.5cfm
Air Inlet 1/4” BSP
Capacity 30 Tonne (30,000kg)15 Tonne (15,000kg)
Chassis Dimensions 430 x 176 x 150mm
Handle Length 1200mm
Lifting Height Position 1 73mm
Lifting Height Position 2 66mm
Max Height Stage 1 343mm (inc extensions)
Max Height Stage 2 409mm (inc extensions)
Min Height 150mm
Nett Weight 30kg
Operating Air Pressure 9 – 12BAR (130 – 174psi)
Saddle Diameter 70mm
Wheel Diameter 165mm
Wheel Width 42.5mm
Air Inlet 1/4” BSP
Capacity 30 Tonne (30,000kg)15 Tonne (15,000kg)
Chassis Dimensions 430 x 176 x 150mm
Handle Length 1200mm
Lifting Height Position 1 73mm
Lifting Height Position 2 66mm
Max Height Stage 1 343mm (inc extensions)
Max Height Stage 2 409mm (inc extensions)
Min Height 150mm
Nett Weight 30kg
Operating Air Pressure 9 – 12BAR (130 – 174psi)
Saddle Diameter 70mm
Wheel Diameter 165mm
Wheel Width 42.5mm
Description
Portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Features
Specification
Air Consumption 10.5cfm
Air Inlet 1/4” BSP
Capacity 30 Tonne (30,000kg)15 Tonne (15,000kg)
Chassis Dimensions 430 x 176 x 150mm
Handle Length 1200mm
Lifting Height Position 1 73mm
Lifting Height Position 2 66mm
Max Height Stage 1 343mm (inc extensions)
Max Height Stage 2 409mm (inc extensions)
Min Height 150mm
Nett Weight 30kg
Operating Air Pressure 9 – 12BAR (130 – 174psi)
Saddle Diameter 70mm
Wheel Diameter 165mm
Wheel Width 42.5mm
Air Inlet 1/4” BSP
Capacity 30 Tonne (30,000kg)15 Tonne (15,000kg)
Chassis Dimensions 430 x 176 x 150mm
Handle Length 1200mm
Lifting Height Position 1 73mm
Lifting Height Position 2 66mm
Max Height Stage 1 343mm (inc extensions)
Max Height Stage 2 409mm (inc extensions)
Min Height 150mm
Nett Weight 30kg
Operating Air Pressure 9 – 12BAR (130 – 174psi)
Saddle Diameter 70mm
Wheel Diameter 165mm
Wheel Width 42.5mm
