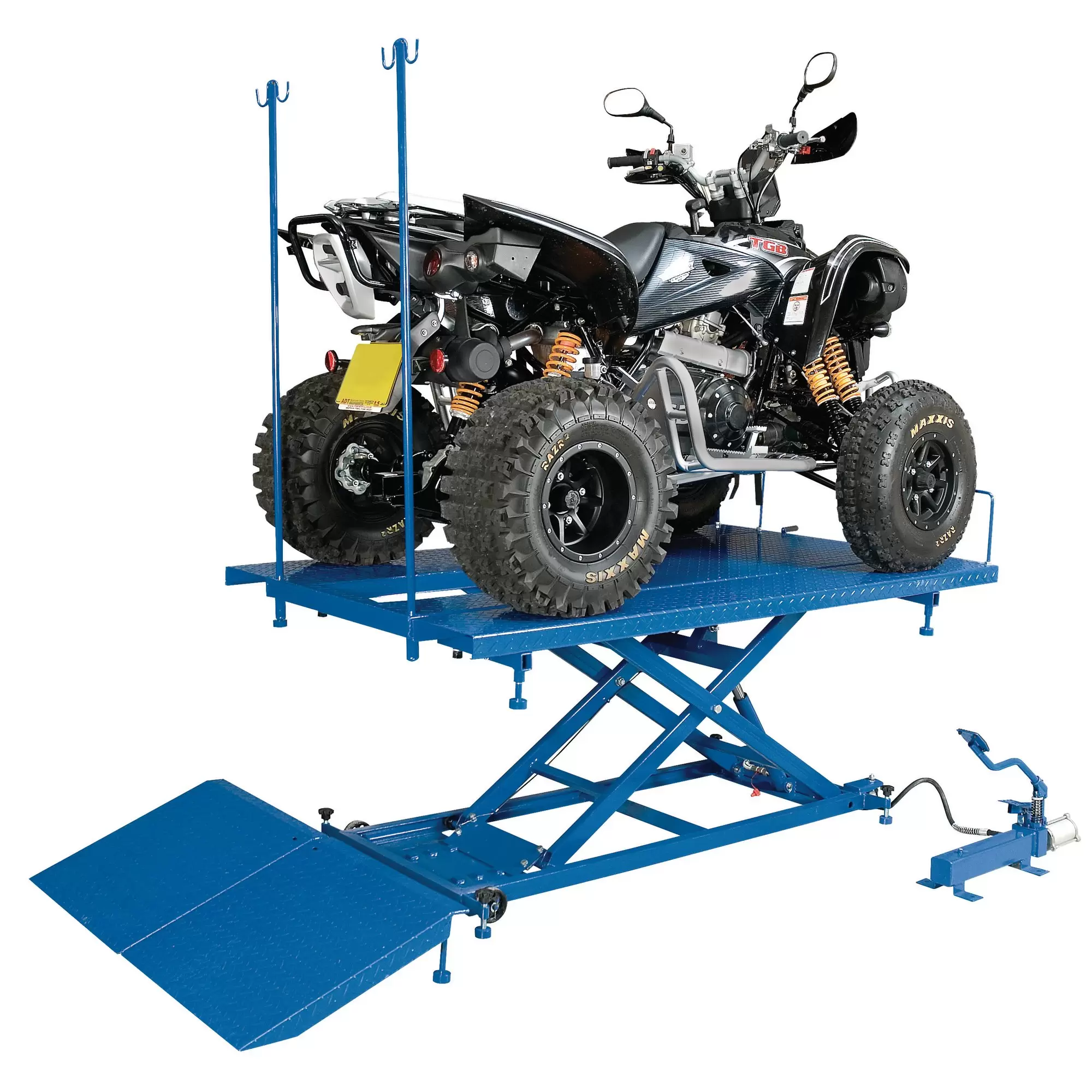

Draper Tools - 37190 - Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift, 680kg

Large lift that supports motorcycles plus all terrain vehicles (ATV), Mini tractors and other similar - sized vehicles which can be accommodated by using the Supplied additional side platforms for extra width. All steel construction with heavy duty foot operated dual hydraulic pump and pneumatic pump - up system with controller and ram assembly. Safety table lock device to prevent accidental lowering. Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only). Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use. Table surface is stippled for safety and grip whilst loading motorcycles/ATV/small garden machinery. Supplied in wooden crate.

Air Inlet 1/4"BSP
Capacity 680kg (1500lbs)
Closed Height 200mm
Lifting Range 200-885mm
Max Height 885mm
Operating Air Pressure 90psi (6.2bar)
Rear Wheel Removal Panel (L x W) 600 x 250mm
Motorcycle Loading Ramp (L X W) 850 x 150mm
Table As For Atv Use (L X W) 1950 x 1220mm
Table As Motorcycle Lift (L X W) 1950 x 680mm
Working Height Stops 550; 720; 840mm
Weight 260kg
