Sealey - 600TRQ - Viking Vertical Transmission Jack with Quick Lift 600kg

SKU: 600TRQ

Part Number: 600TRQ

Barcode: 5054630238116

Country of Origin: CHN

Weight: 36.00 Kg

In stock

Our Price

£393.28 (inc VAT) £327.73 (ex VAT)

RRP £707.94 £589.95

Save £314.66 £262.22

3 years Warranty included.

Description Features Specification Workshopping Says Downloads Videos

Description

This transmission jack features Quick Lift to reduce the time and effort needed to get saddle to gearbox. Single foot pedal operation keeps hands-free during lifting process. Spring loaded dead man's safety release control reduces the risk of inadvertent lowering. 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load. Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions. Castors and side handle make the unit easily manoeuvrable. Hydraulic unit larger than the economy models for improved performance and durability. Can be fitted with optional Adjustable Gearbox Support - Model No. ADT3.

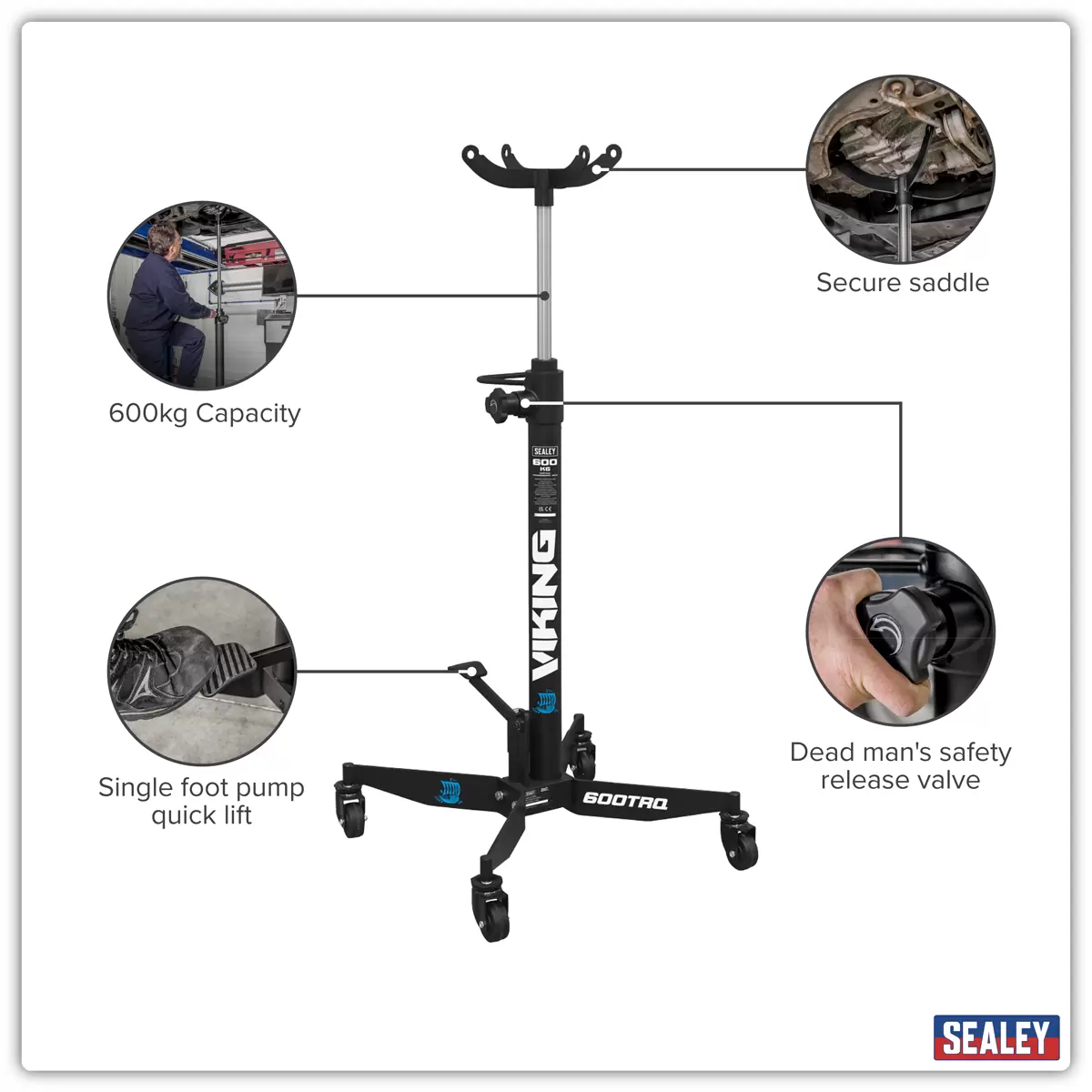

Features

Min./Max. Saddle Height: 1146/1986mm.

Quick Lift feature to reduce time and effort.

Only a maximum of 22 pumps needed to reach full height.

Single foot pedal operation keeps hands-free during lifting process.

Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.

2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load.

Hydraulic unit larger than the economy models for improved performance and durability.

Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions.

Castors and side handle for easy manoeuvrability.

Suitable for use with optional Adjustable Gearbox Supports - Model No. ADT3.

3 Year guarantee*.

Model No. 600TRQ

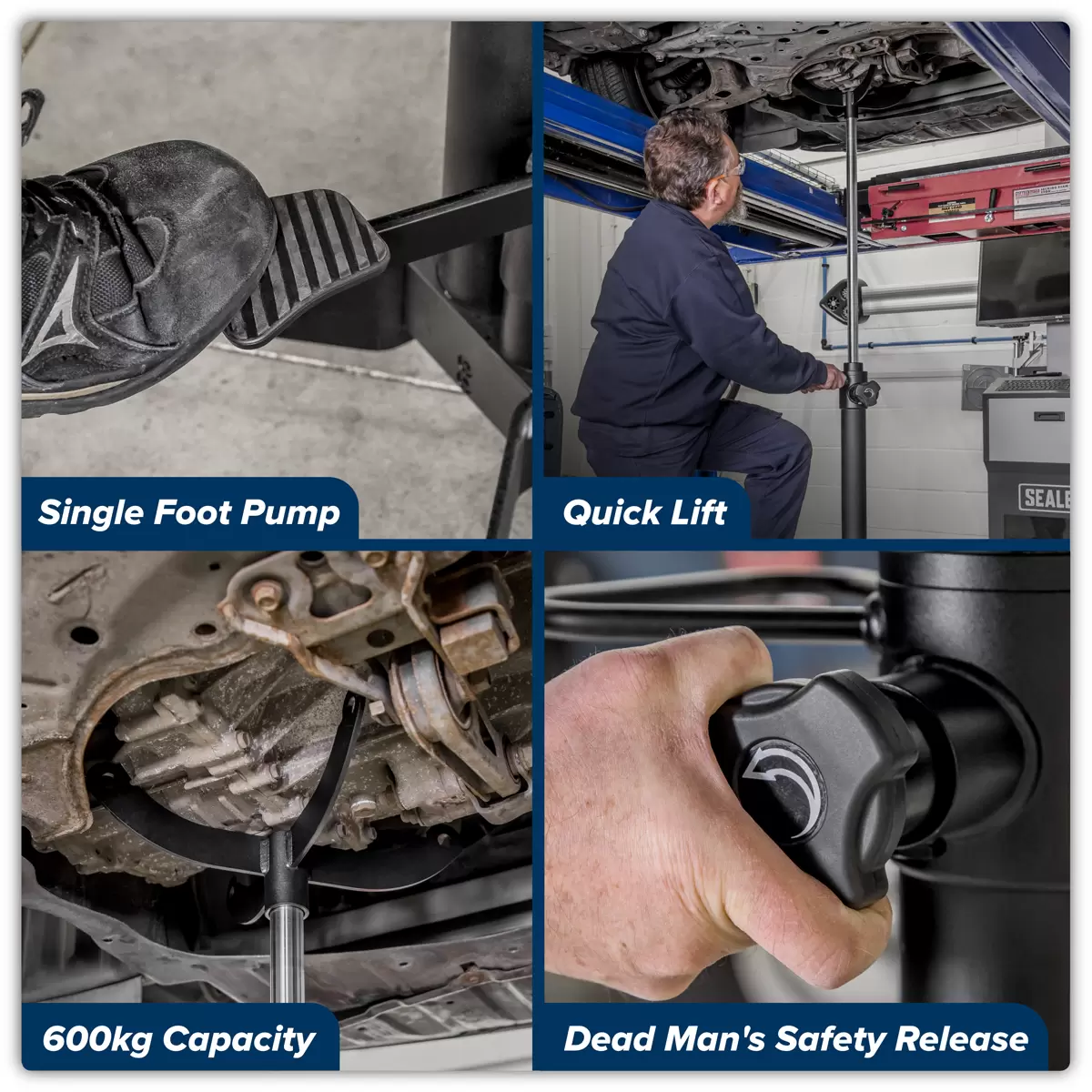

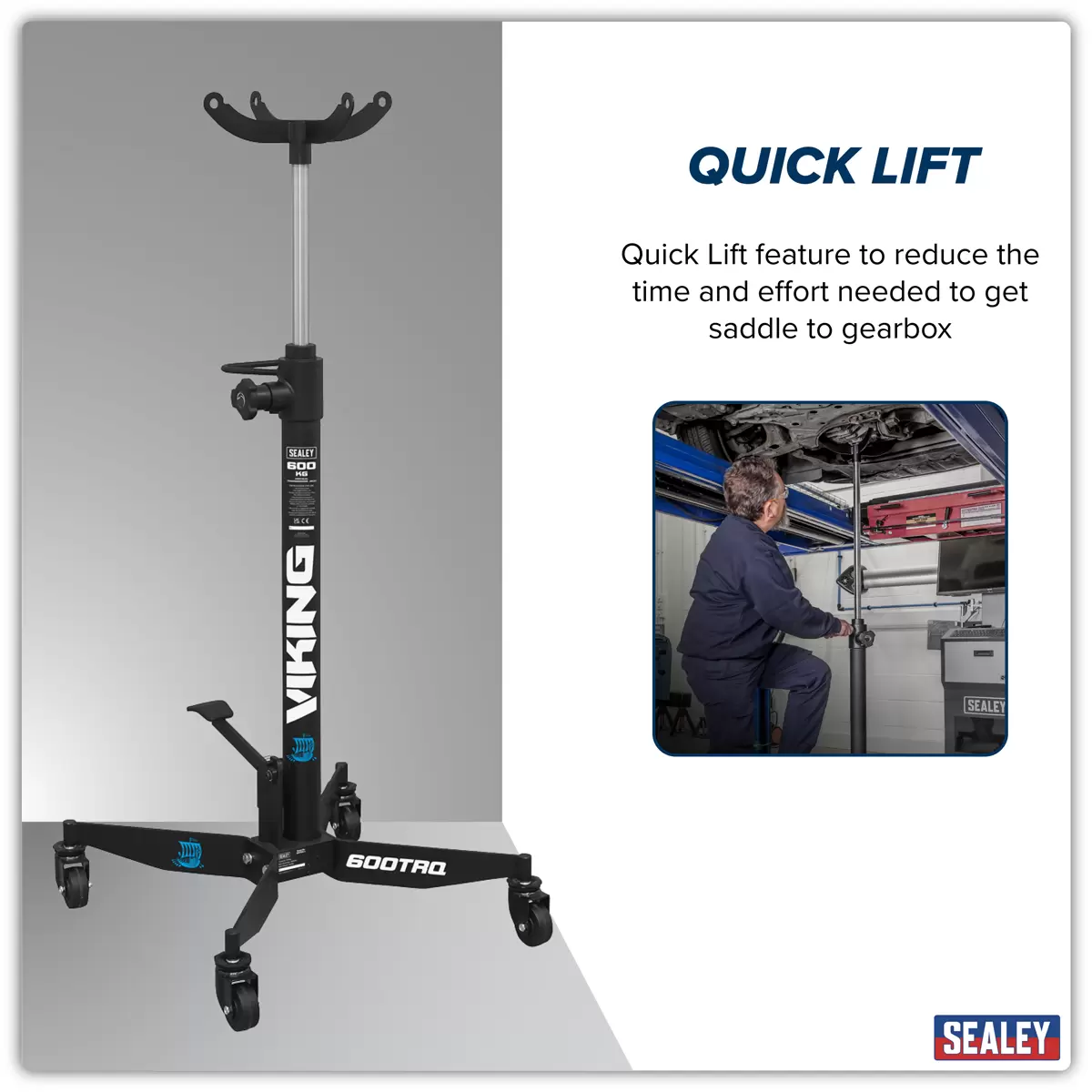

QUICK LIFT - reduced time and effort needed to get saddle to gearbox, only a maximum of 22 pumps needed to reach full height.

CONVENIENT - Single foot pedal operation keeps hands-free during lifting process.

SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.

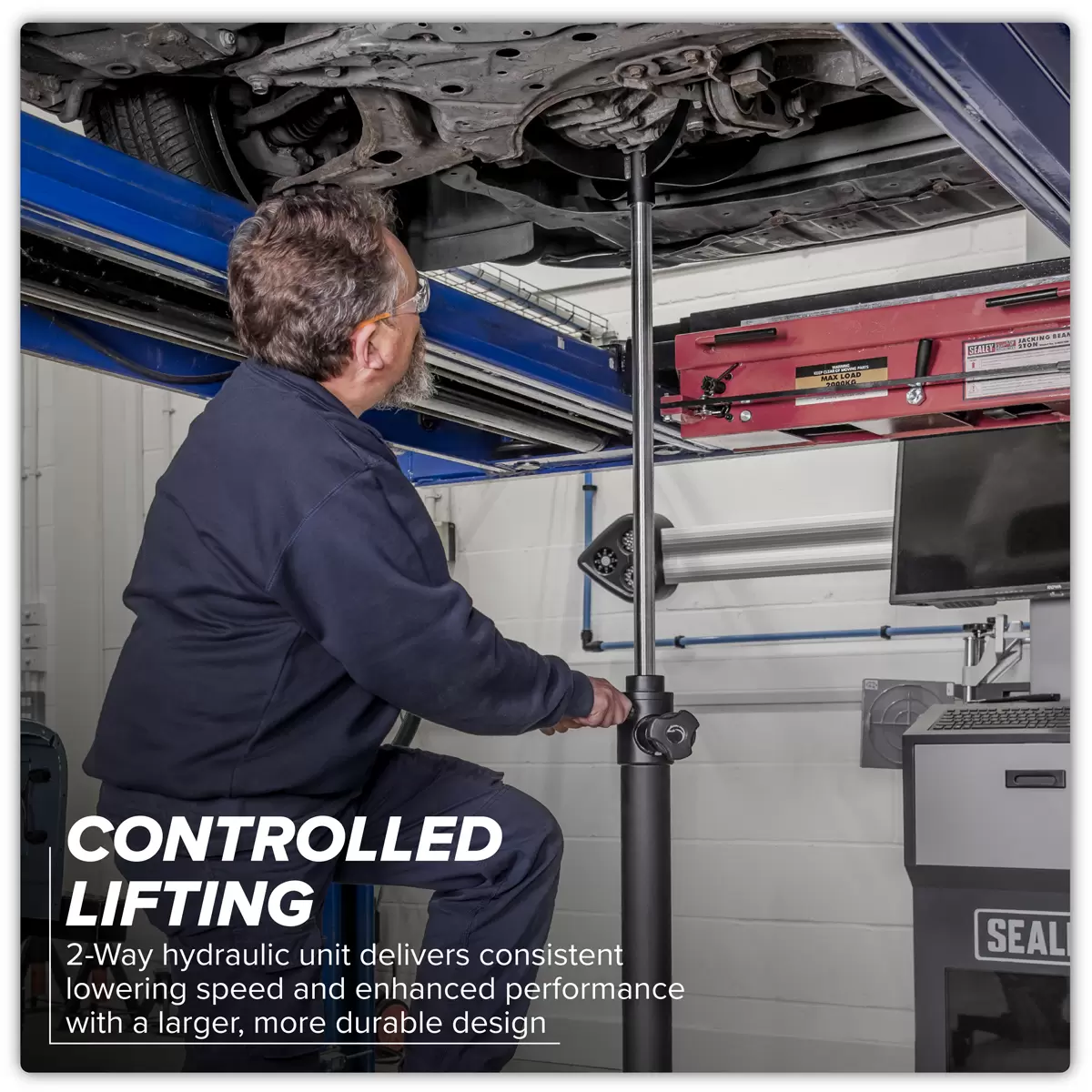

CONTROLLED - 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load.

HEAVY DUTY - Hydraulic unit larger than the economy models for improved performance and durability.

UNIVERSAL - Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions.

MANEUVERABLE - Castors and side handle make the units easily positioned.

SUITABLE - for use with optional Adjustable Gearbox Support - Model No. ADT3.

3 YEAR GUARANTEE*.

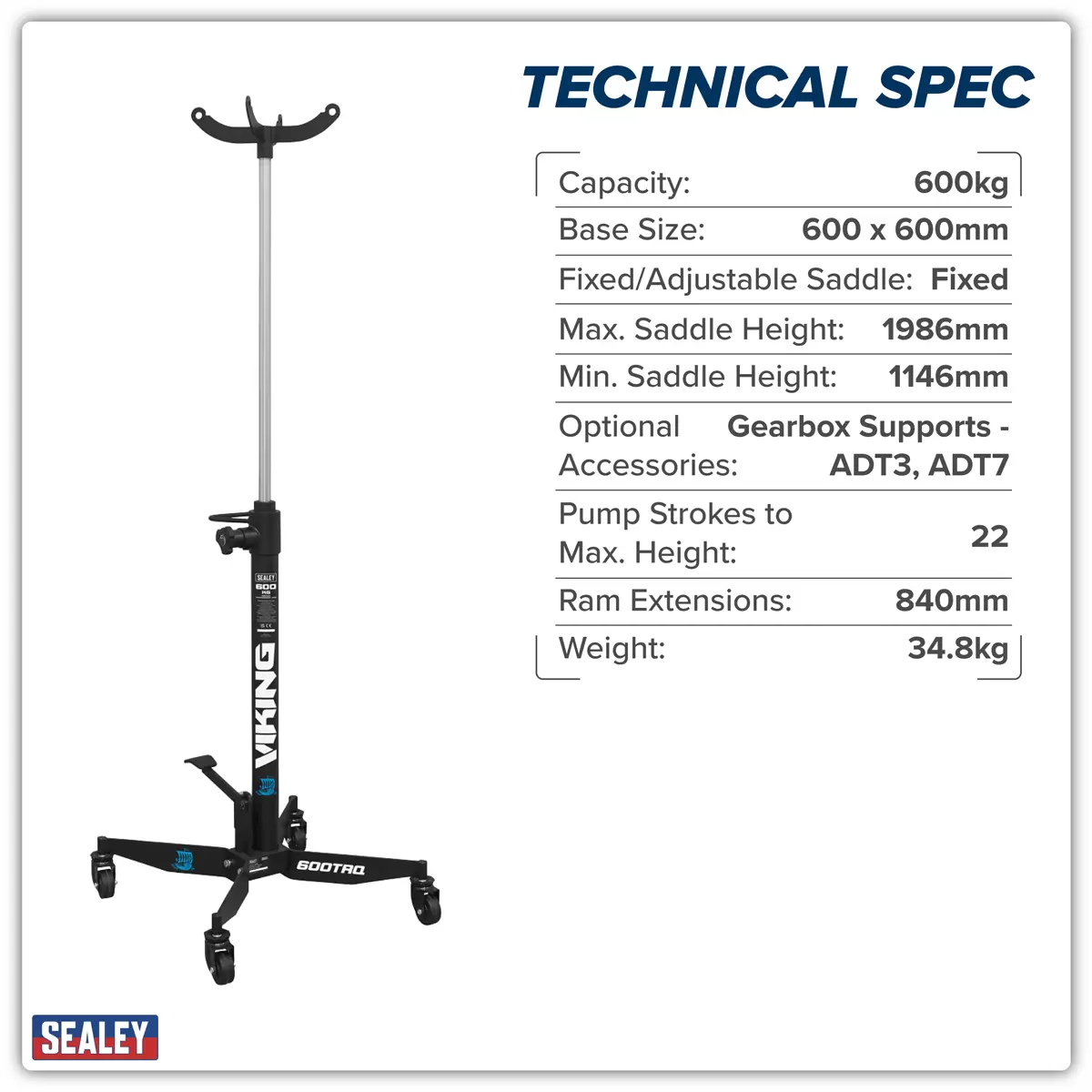

Specification

Model No 600TRQ
Base Size: 600x600mm
Brand: Viking
Capacity: 600kg
Fixed/Adjustable Saddle: Fixed
Maximum Saddle Height: 1986mm
Minimum Saddle Height: 1146mm
Nett Weight: 34.8kg
Optional Accessories: Adjustable Gearbox Supports - ADT3, ADT7
Pump Strokes to Maximum Height: 22
Ram Extensions: 840mm

Workshopping Says

Warranty Period = 3 years years

Commodity code = 8425420000

Country of Origin = CHN
