Sealey - LH1000 - Lever Hoist Steel 1000kg
SKU: LH1000
Part Number: LH1000
Barcode: 5054630452086
Country of Origin: CHN
Weight: 7.00 Kg
Our Price
£151.61 (inc VAT) £126.34 (ex VAT)
RRP £167.94 £139.95
Save
£16.33
£13.61
1 year Warranty included.
Description

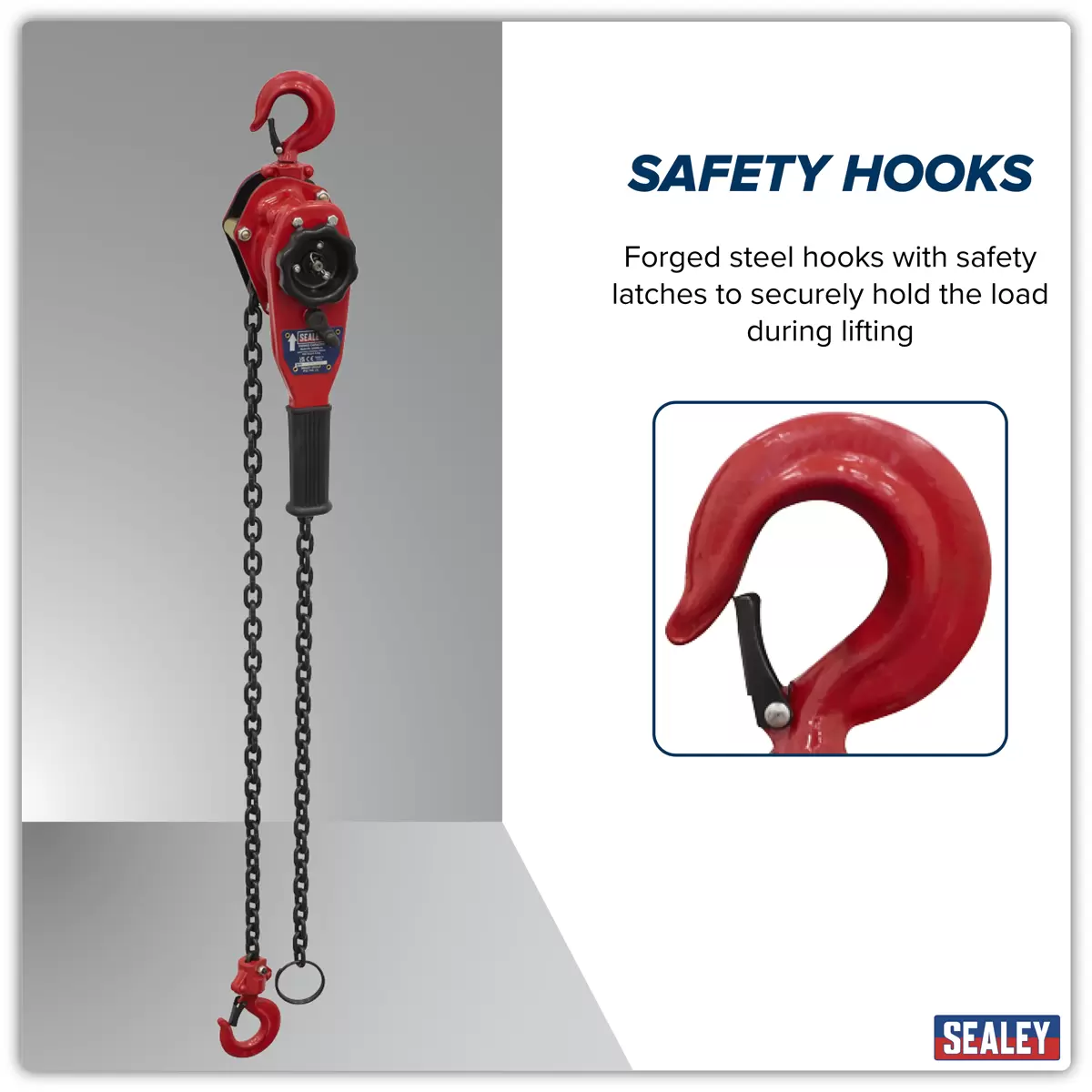

Rugged construction features drop-forged and heat treated pinion gear with totally enclosed mechanisms. Equipped with heavy-duty brake and high quality alloy steel chain. Hooks fitted with safety latches and rotate 360°. Free-chaining feature permits slack in the load chain to be taken up by hand before engaging the ratchet arm. Provides total control on the load position.
Features

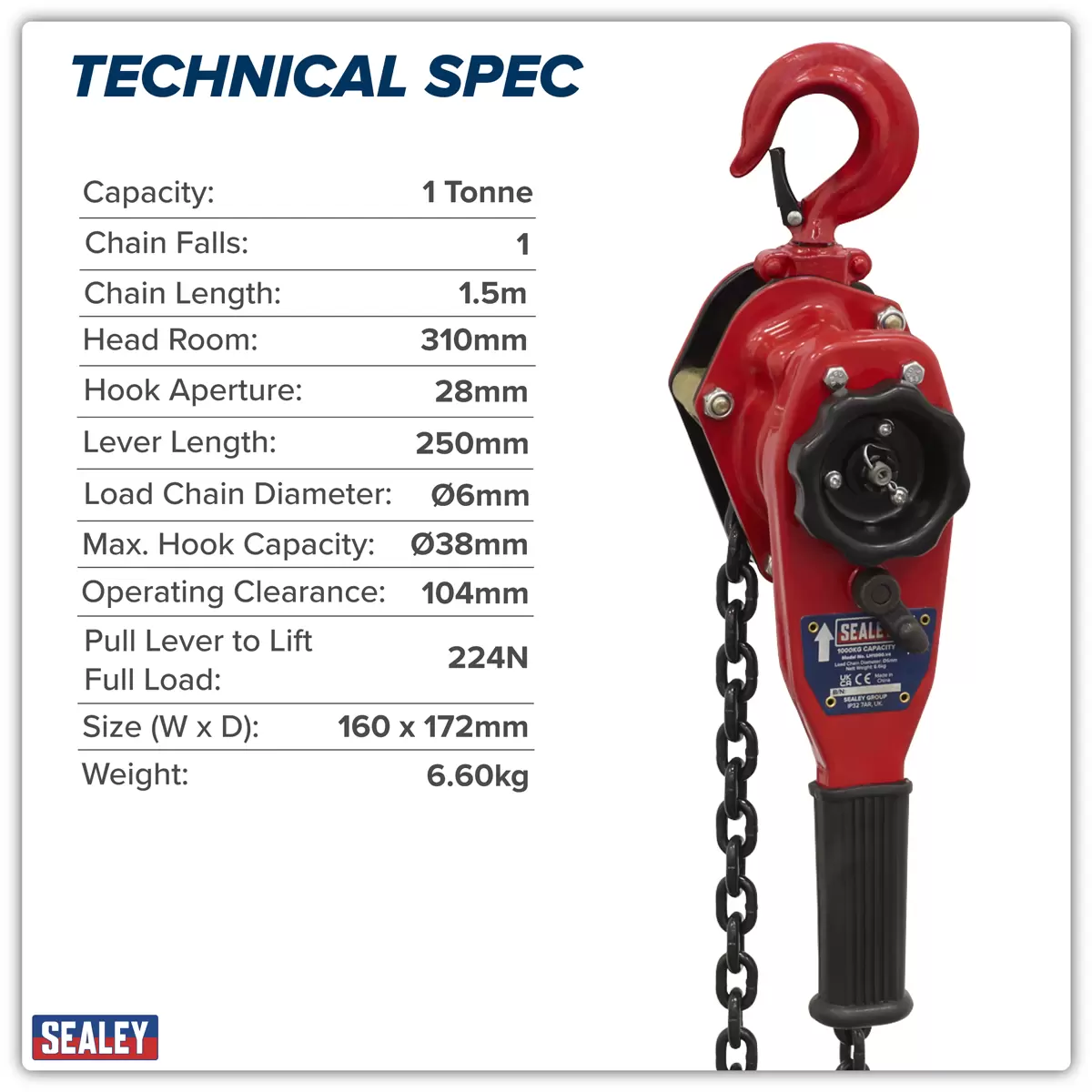

Model No LH1000
Brand: Sealey
Capacity: 1000kg
Chain Falls: 1
Chain Length: 1.5m
Head Room: 310mm
Hook Aperture: 28mm
Lever Length: 250mm
Load Chain Diameter: Ø6mm
Maximum Hook Capacity Ø: 38mm
Nett Weight: 6.6kg
Operating Clearance: 104mm
Pull on Lever to Lift Full Load: 224N
Size (W x D): 160 x 172mm
Brand: Sealey
Capacity: 1000kg
Chain Falls: 1
Chain Length: 1.5m
Head Room: 310mm
Hook Aperture: 28mm
Lever Length: 250mm
Load Chain Diameter: Ø6mm
Maximum Hook Capacity Ø: 38mm
Nett Weight: 6.6kg
Operating Clearance: 104mm
Pull on Lever to Lift Full Load: 224N
Size (W x D): 160 x 172mm
Specification
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8426190000
Country of Origin = CHN
