Home > Workshop Equipment > Jacking & Lifting > Sealey - LH750 - Lever Hoist Steel 750kg
Sealey - LH750 - Lever Hoist Steel 750kg
SKU: LH750
Part Number: LH750
Barcode: 5054630449499
Country of Origin: CHN
Weight: 6.90 Kg
Our Price
£126.53 (inc VAT) £105.44 (ex VAT)
RRP £143.94 £119.95
Save
£17.41
£14.51
1 year Warranty included.
Description

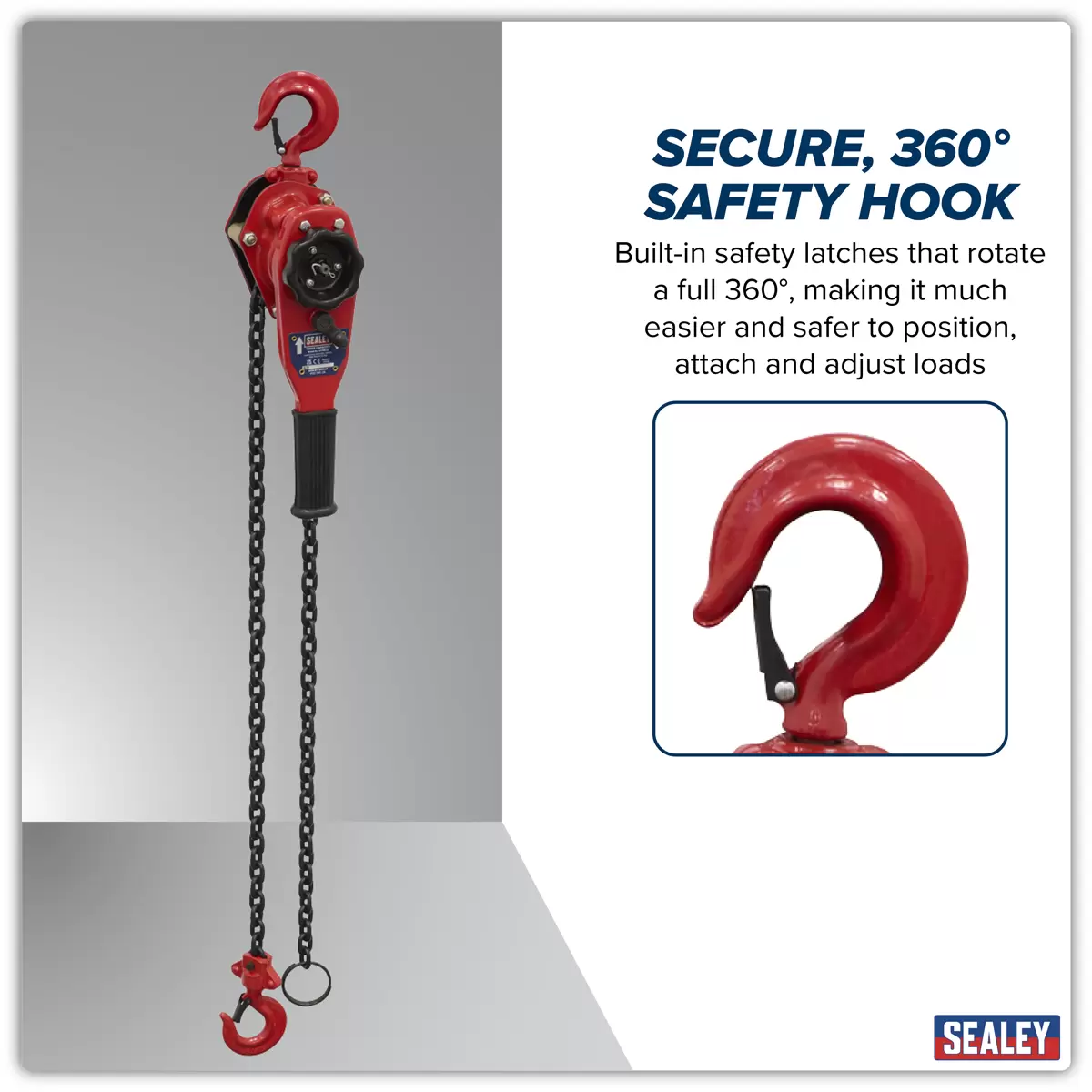

Rugged construction features drop-forged and heat treated pinion gear with totally enclosed mechanisms. Equipped with heavy-duty brake and high quality alloy steel chain. Hooks fitted with safety latches and rotate 360°. Free-chaining feature permits slack in the load chain to be taken up by-hand before engaging the ratchet arm. Provides total control on the load position.

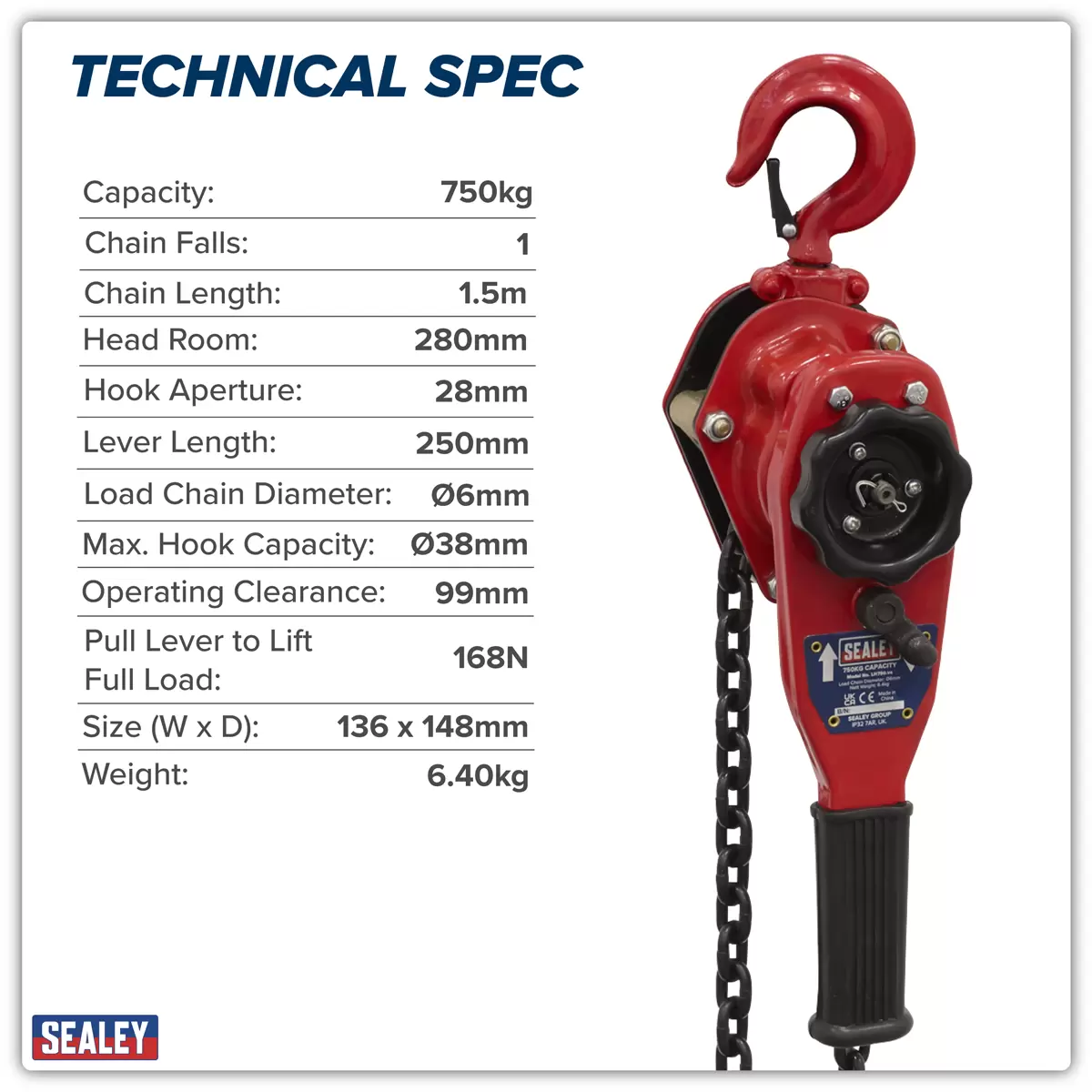

Features
Model No LH750
Brand: Sealey
Capacity: 750kg
Chain Falls: 1
Chain Length: 1.5m
Head Room: 280mm
Hook Aperture: 28mm
Lever Length: 250mm
Load Chain Diameter: Ø6mm
Maximum Hook Capacity Ø: 38mm
Nett Weight: 6.4kg
Operating Clearance: 99mm
Pull on Lever to Lift Full Load: 168N
Size (W x D): 136 x 148mm
Brand: Sealey
Capacity: 750kg
Chain Falls: 1
Chain Length: 1.5m
Head Room: 280mm
Hook Aperture: 28mm
Lever Length: 250mm
Load Chain Diameter: Ø6mm
Maximum Hook Capacity Ø: 38mm
Nett Weight: 6.4kg
Operating Clearance: 99mm
Pull on Lever to Lift Full Load: 168N
Size (W x D): 136 x 148mm
Specification
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8426190000
Country of Origin = CHN
