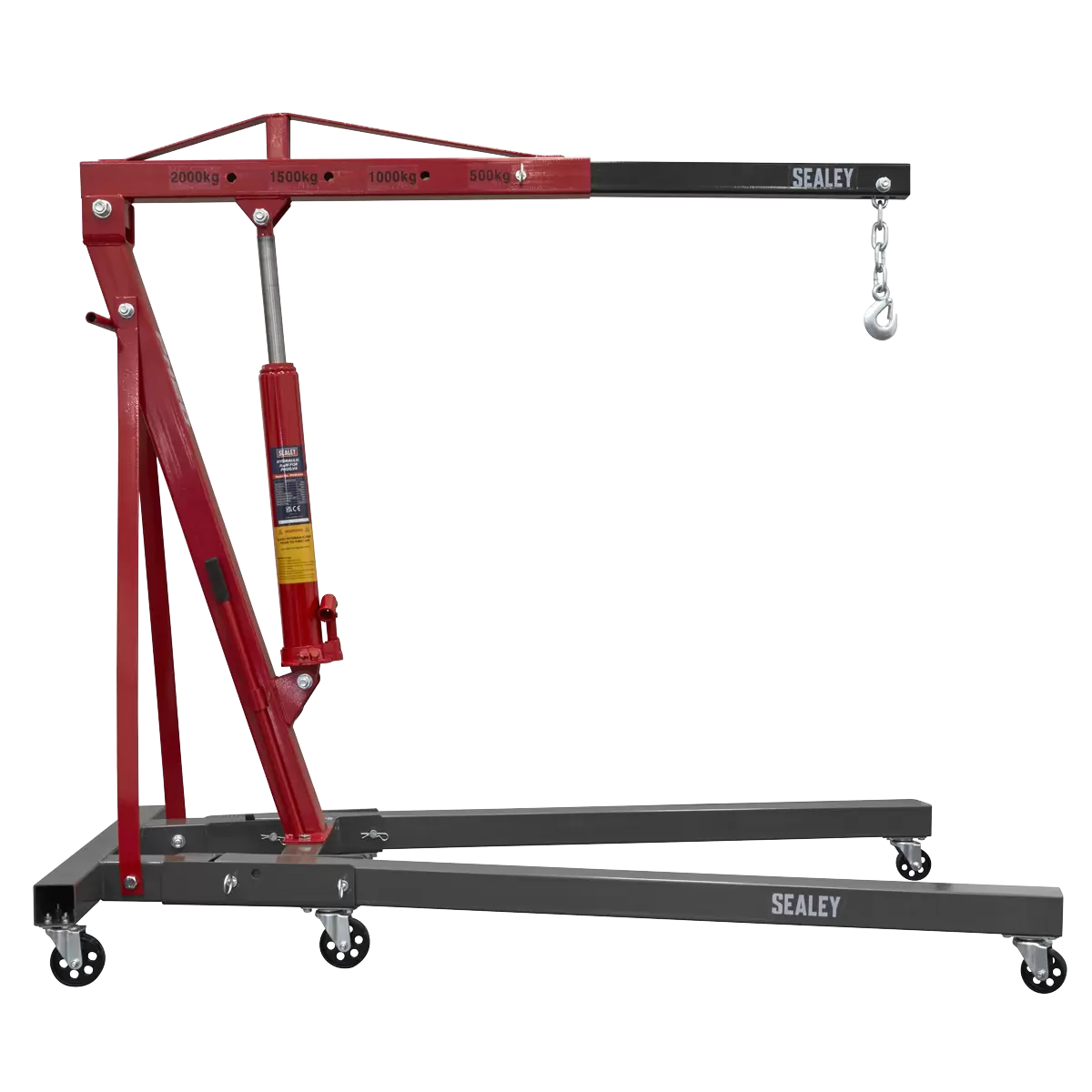

Sealey - PH20 - Folding Engine Crane 2 Tonne
SKU: PH20
Part Number: PH20
Barcode: 5024209546362
Country of Origin: CHN
Weight: 90.00 Kg
Our Price
£365.89 (inc VAT) £304.91 (ex VAT)
RRP £623.94 £519.95
Save
£258.05
£215.04
1 year Warranty included.
Description

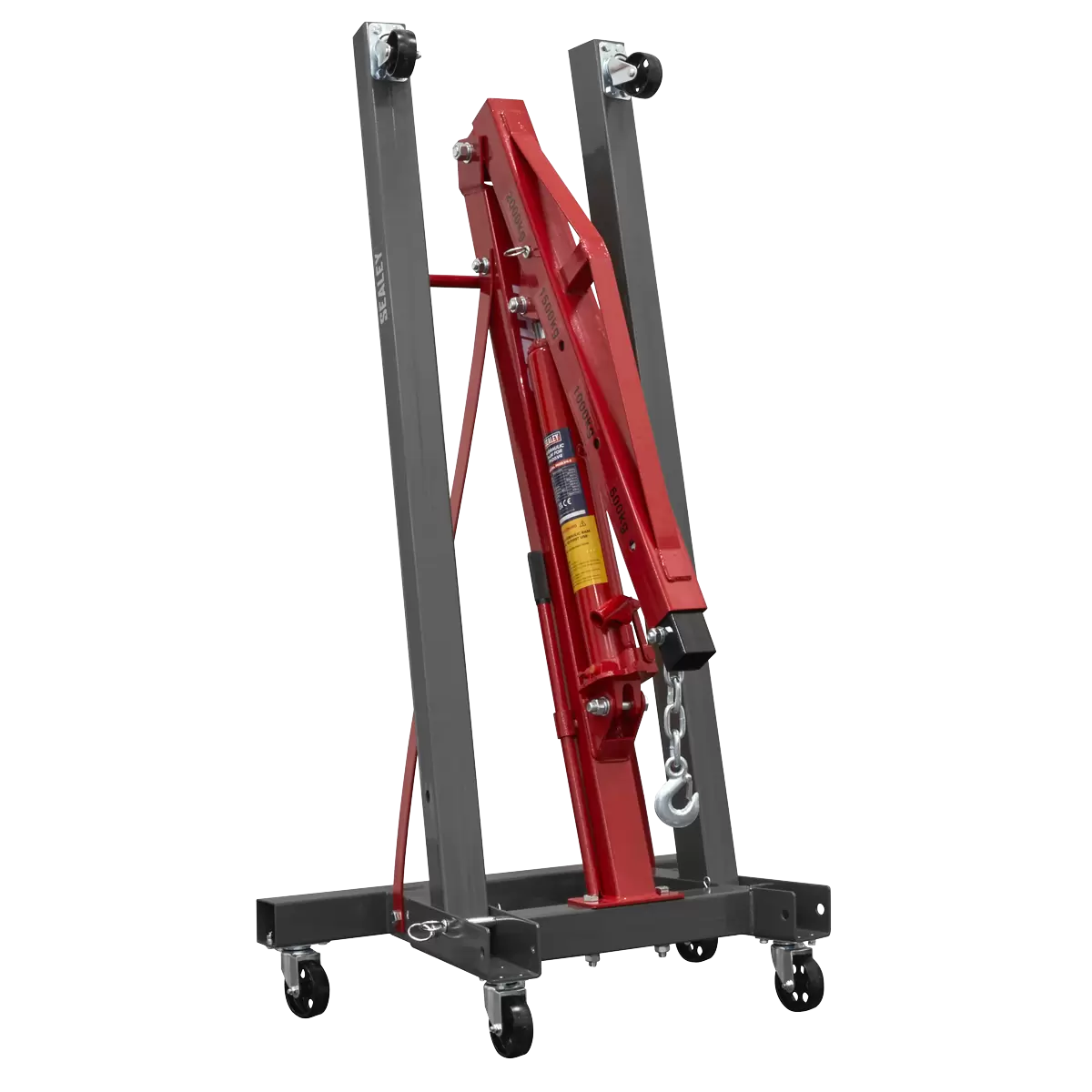

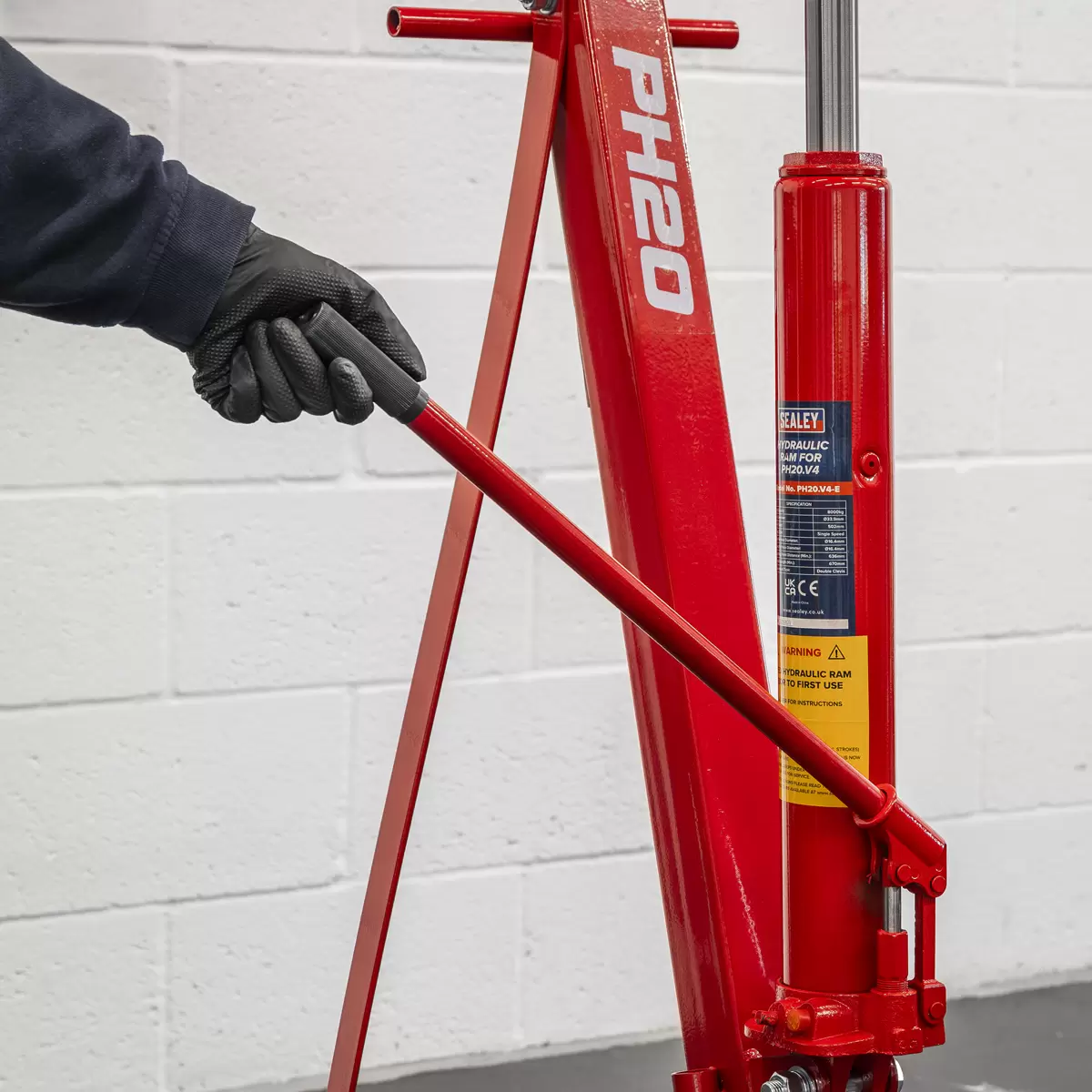

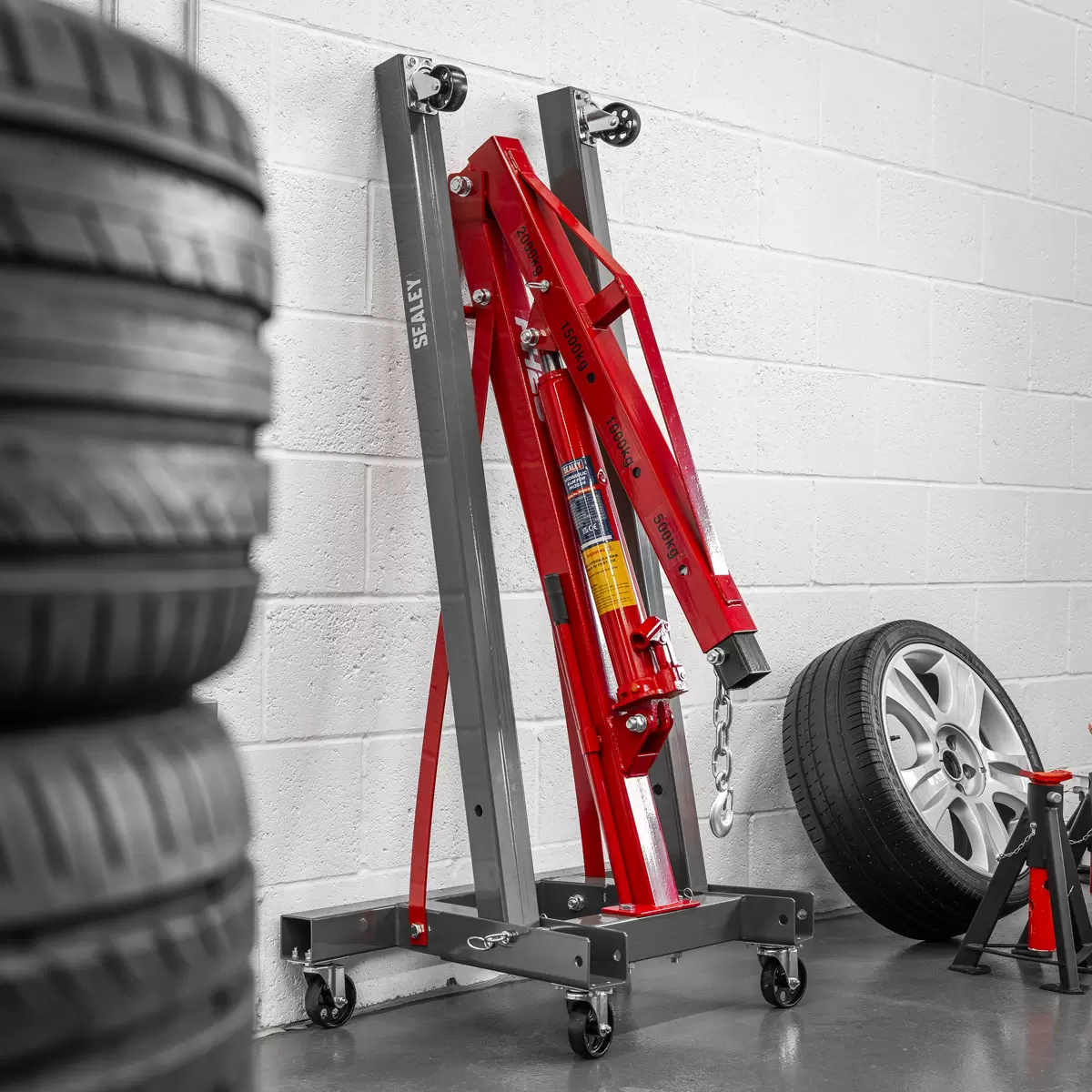

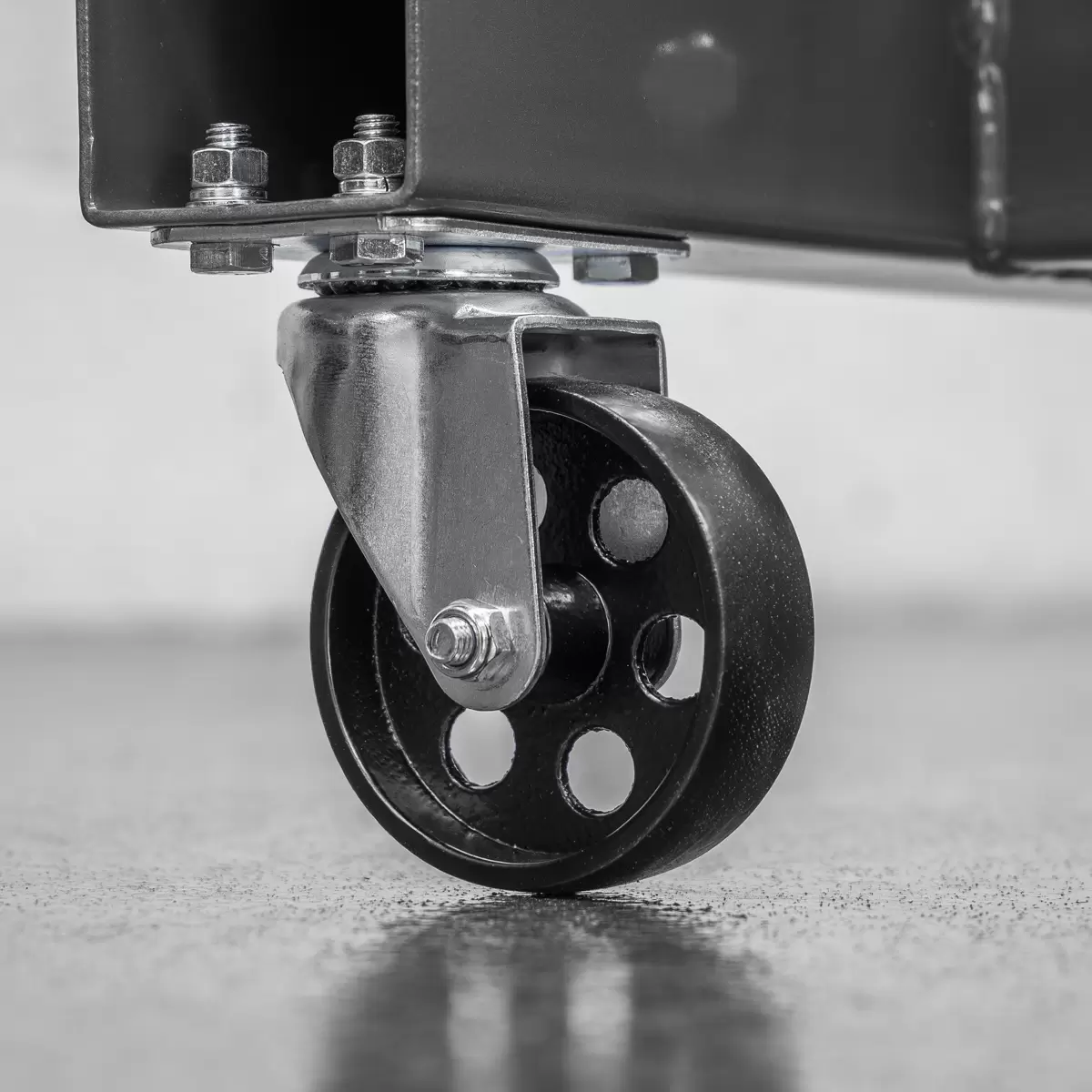

2 tonne folding crane - economy model. Folds for easy storage, freeing valuable workshop space when not in use. Heavy-duty castors. Weighs only 77kg and is perfect for mobile or workshop use. Pump access from side. Delivered in knock-down form for reduced freight cost. Some self-assembly required.
Features
Model No PH20
Brand: Sealey
Height Jib Down: 1440mm
Height Legs Folded: 1540mm
Height of Frame: 195mm
Length Legs Extended: n/a
Length of Jib Position 1: 930mm
Length of Jib Position 2: 1110mm
Length of Jib Position 3: 1200mm
Length of Jib Position 4: 1460mm
Length of Jib Position 5: n/a
Length: 1750mm

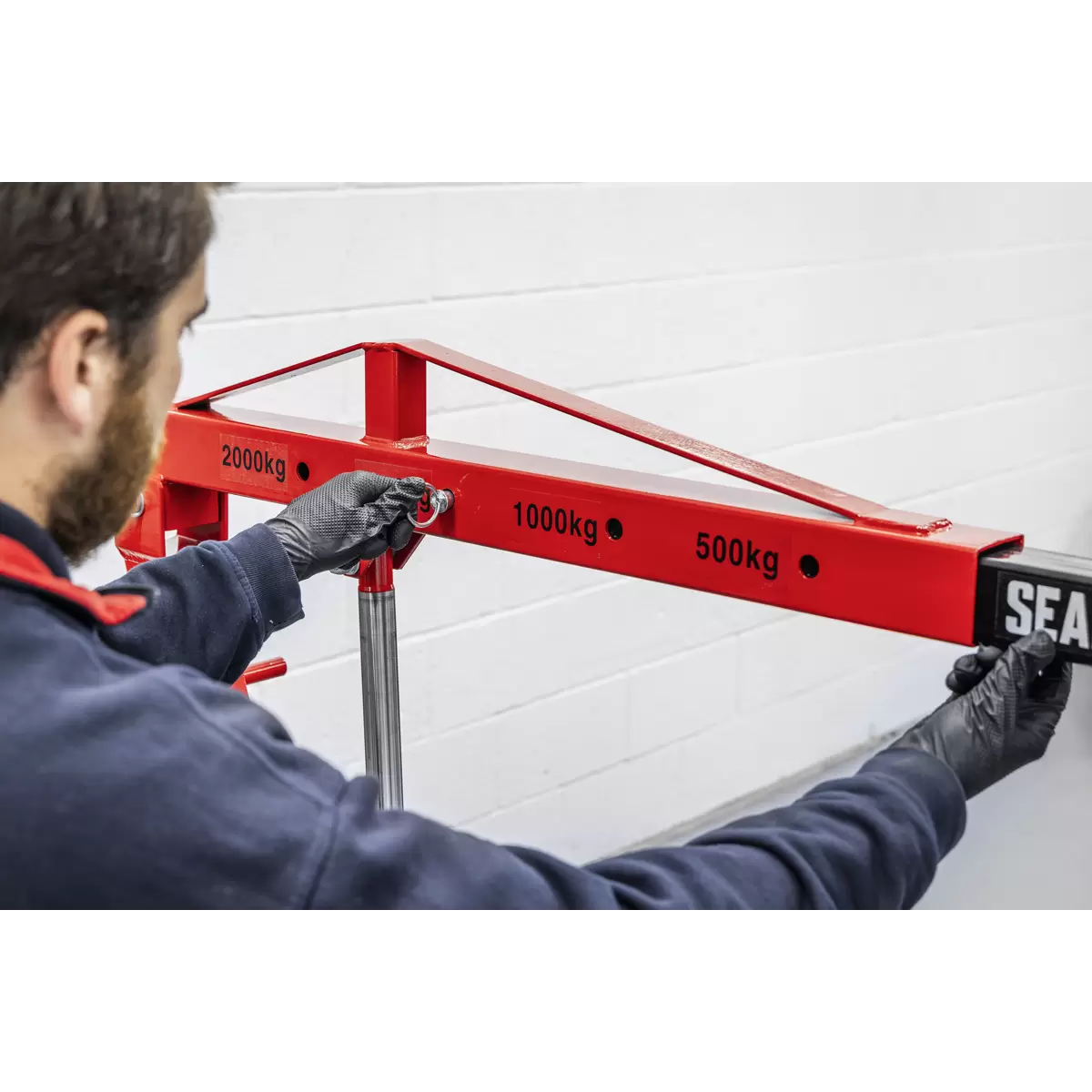

Lifting Capacity in Position 1: 2000kg
Lifting Capacity in Position 2: 1500kg
Lifting Capacity in Position 3: 1000kg
Lifting Capacity in Position 4: 500kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 2060mm
Max. Lift Ht at Jib Position 2: 2190mm
Max. Lift Ht at Jib Position 3: 2330mm
Max. Lift Ht at Jib Position 4: 2490mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 77kg
Rear Width: 850mm
Width Front Frame: 1055mm
Width Inside Front Frame: 915mm
Brand: Sealey
Height Jib Down: 1440mm
Height Legs Folded: 1540mm
Height of Frame: 195mm
Length Legs Extended: n/a
Length of Jib Position 1: 930mm
Length of Jib Position 2: 1110mm
Length of Jib Position 3: 1200mm
Length of Jib Position 4: 1460mm
Length of Jib Position 5: n/a
Length: 1750mm
Lifting Capacity in Position 1: 2000kg
Lifting Capacity in Position 2: 1500kg
Lifting Capacity in Position 3: 1000kg
Lifting Capacity in Position 4: 500kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 2060mm
Max. Lift Ht at Jib Position 2: 2190mm
Max. Lift Ht at Jib Position 3: 2330mm
Max. Lift Ht at Jib Position 4: 2490mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 77kg
Rear Width: 850mm
Width Front Frame: 1055mm
Width Inside Front Frame: 915mm
Specification
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8426190000
Country of Origin = CHN
