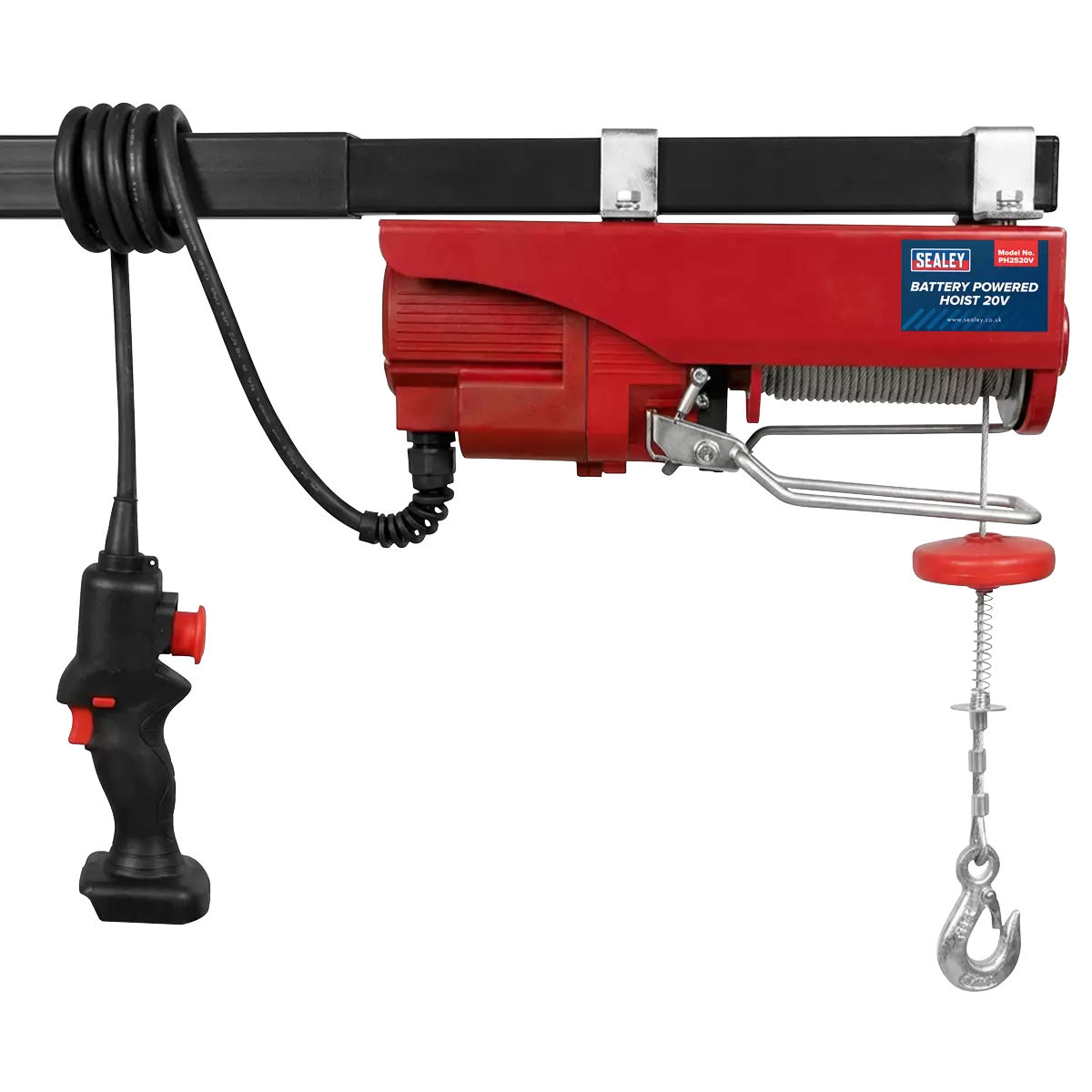

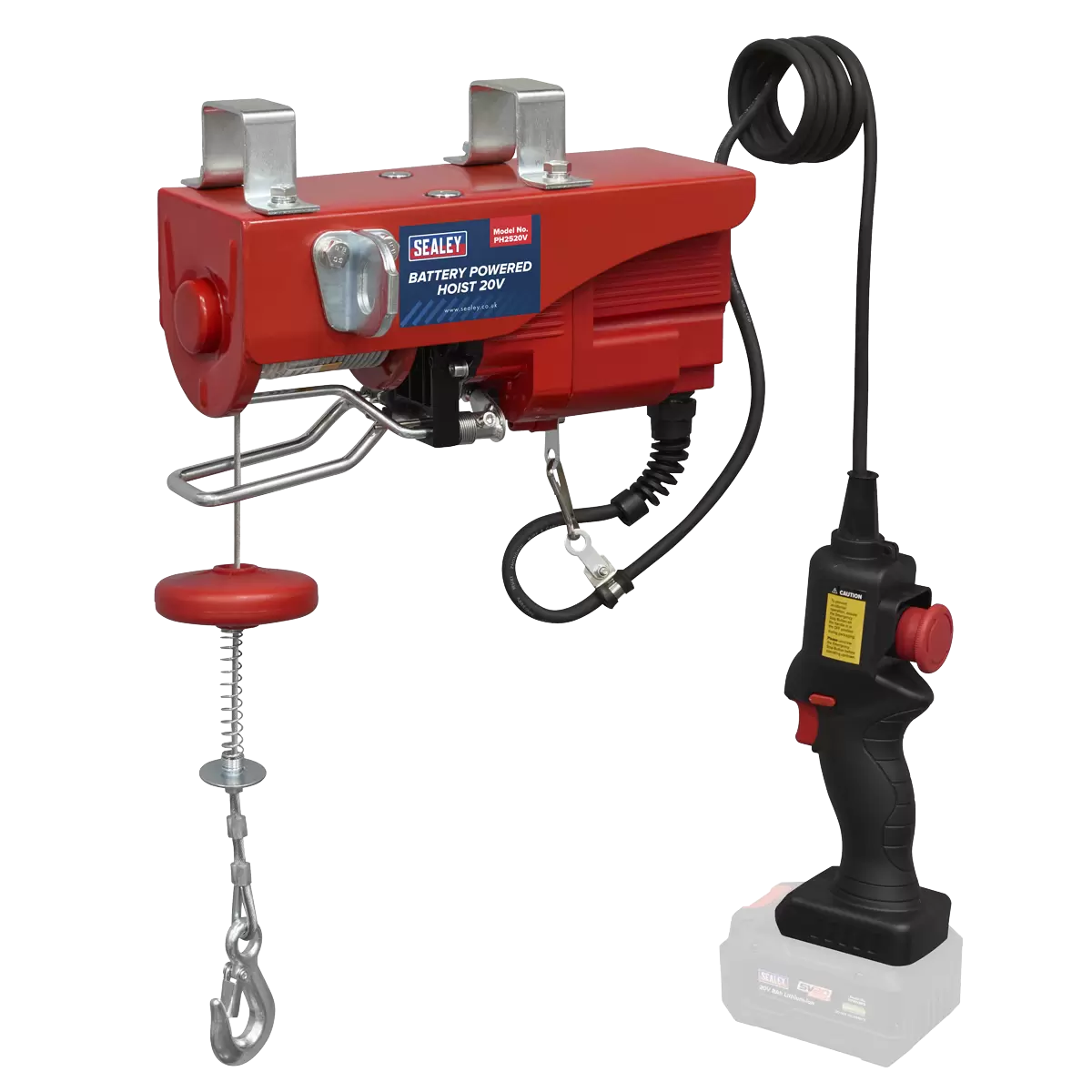

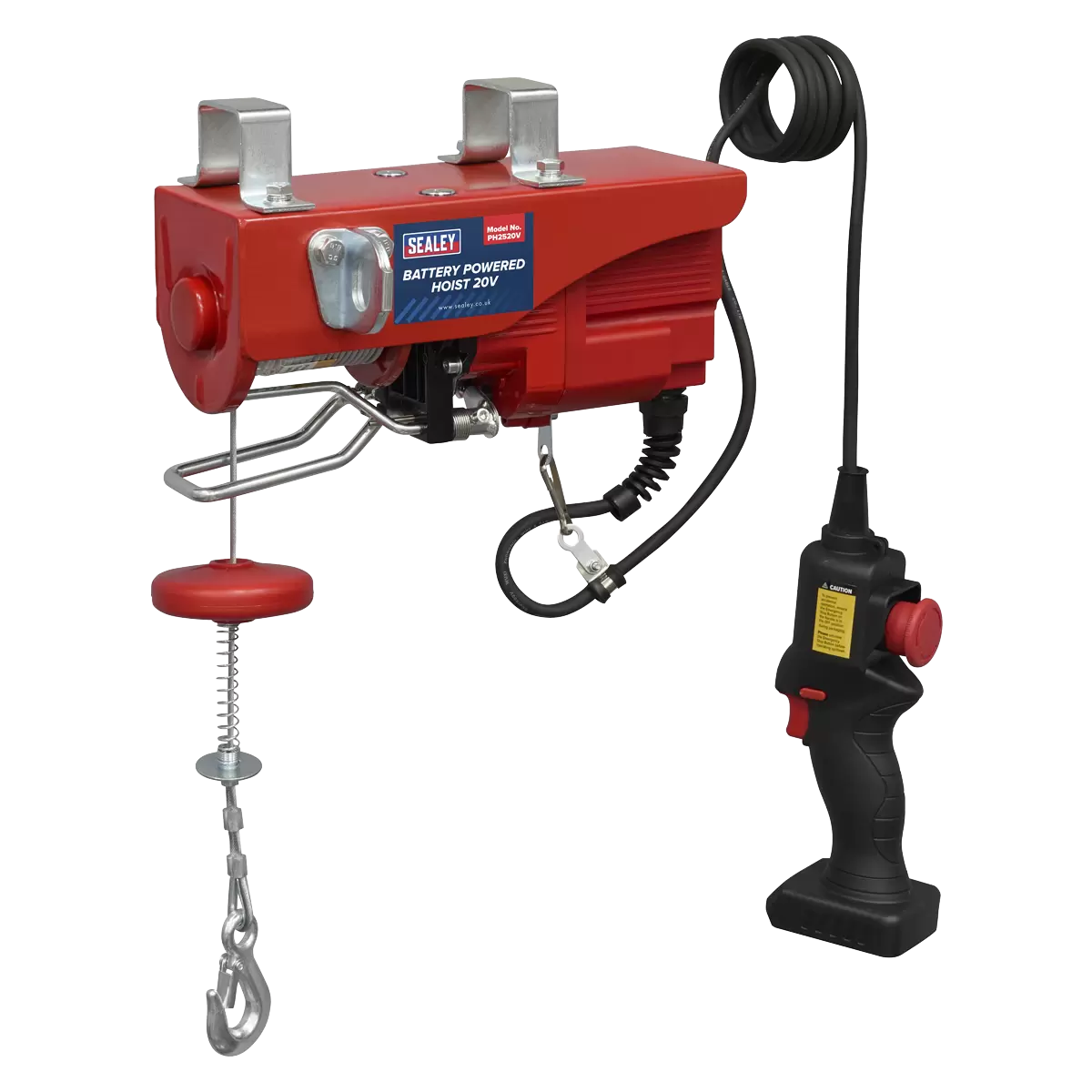

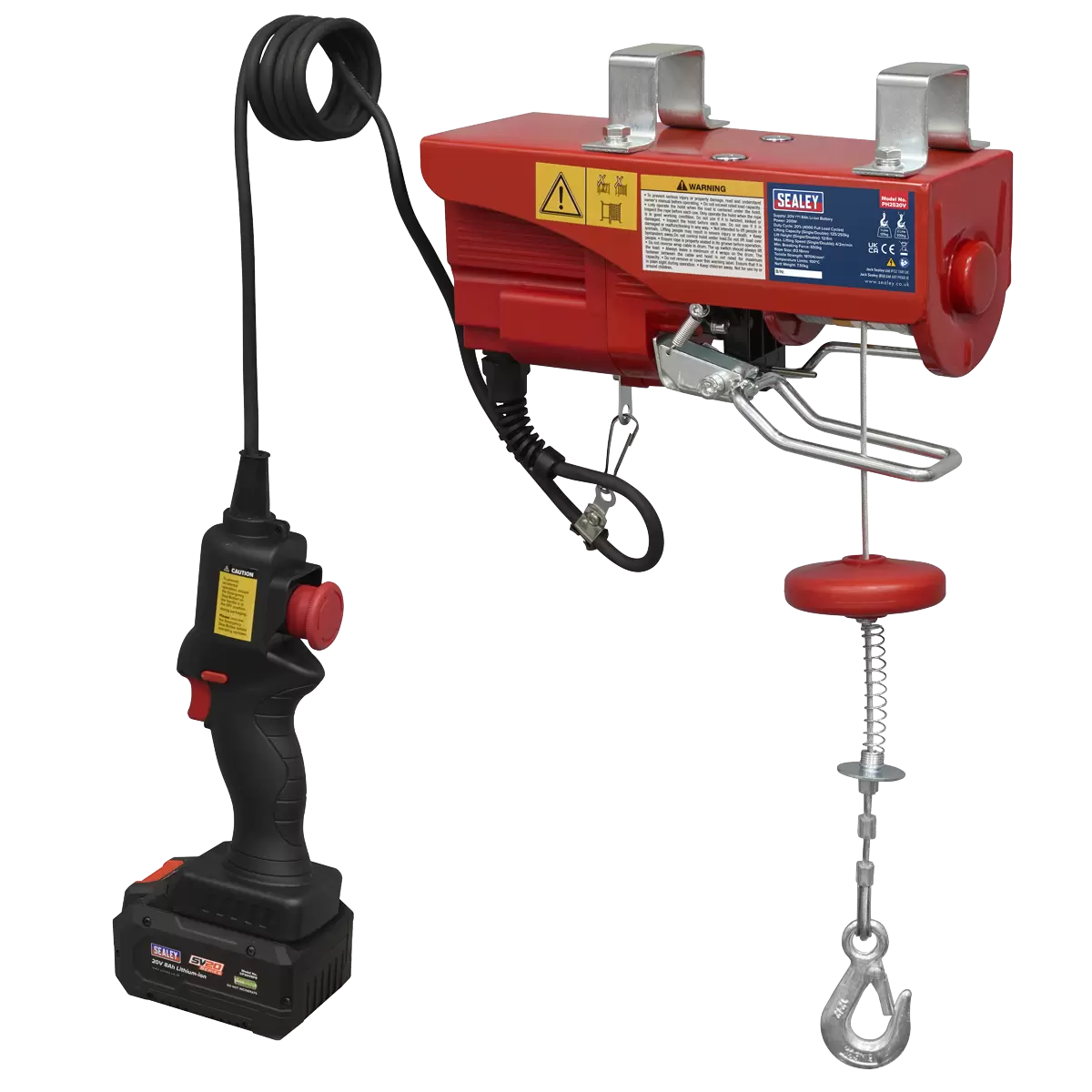

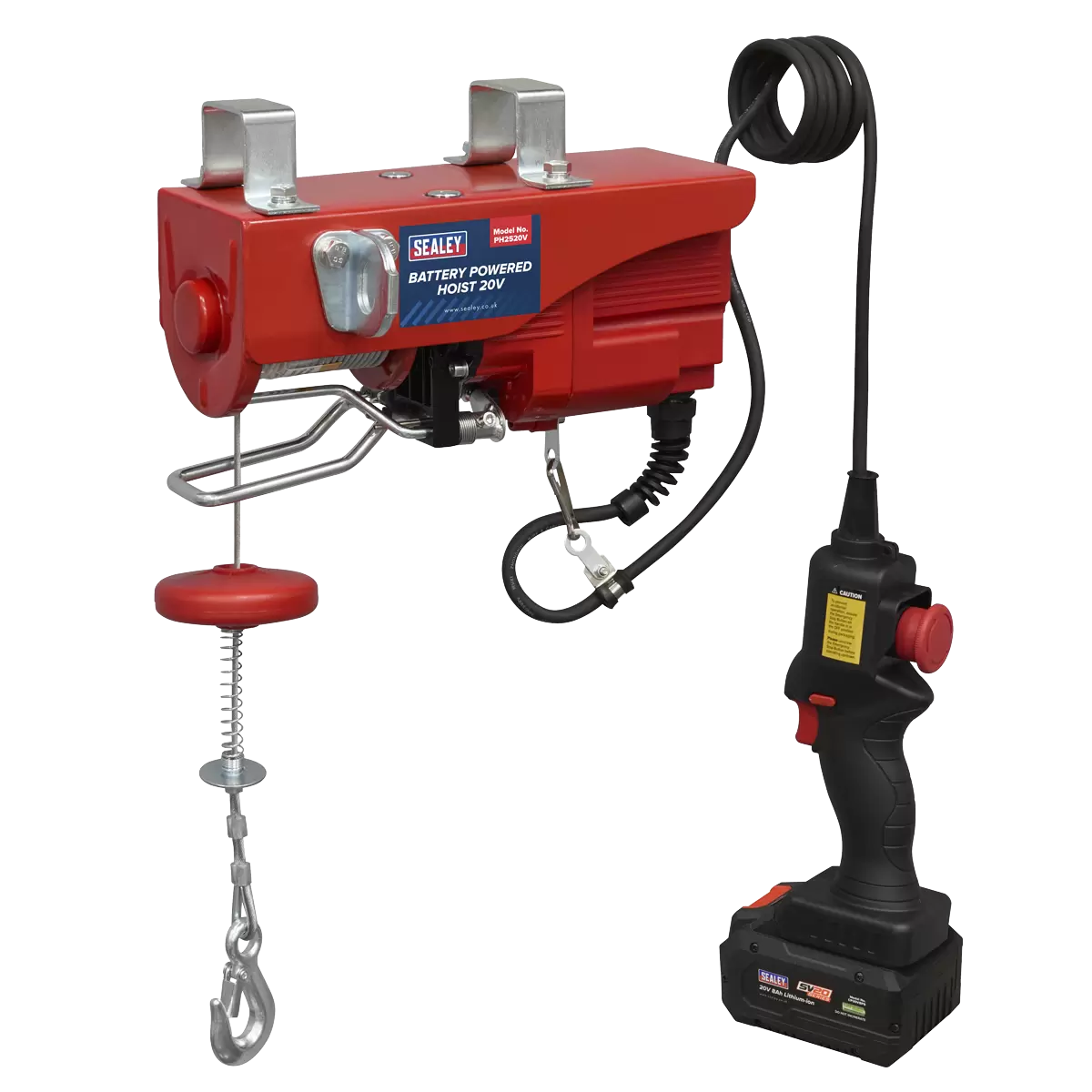

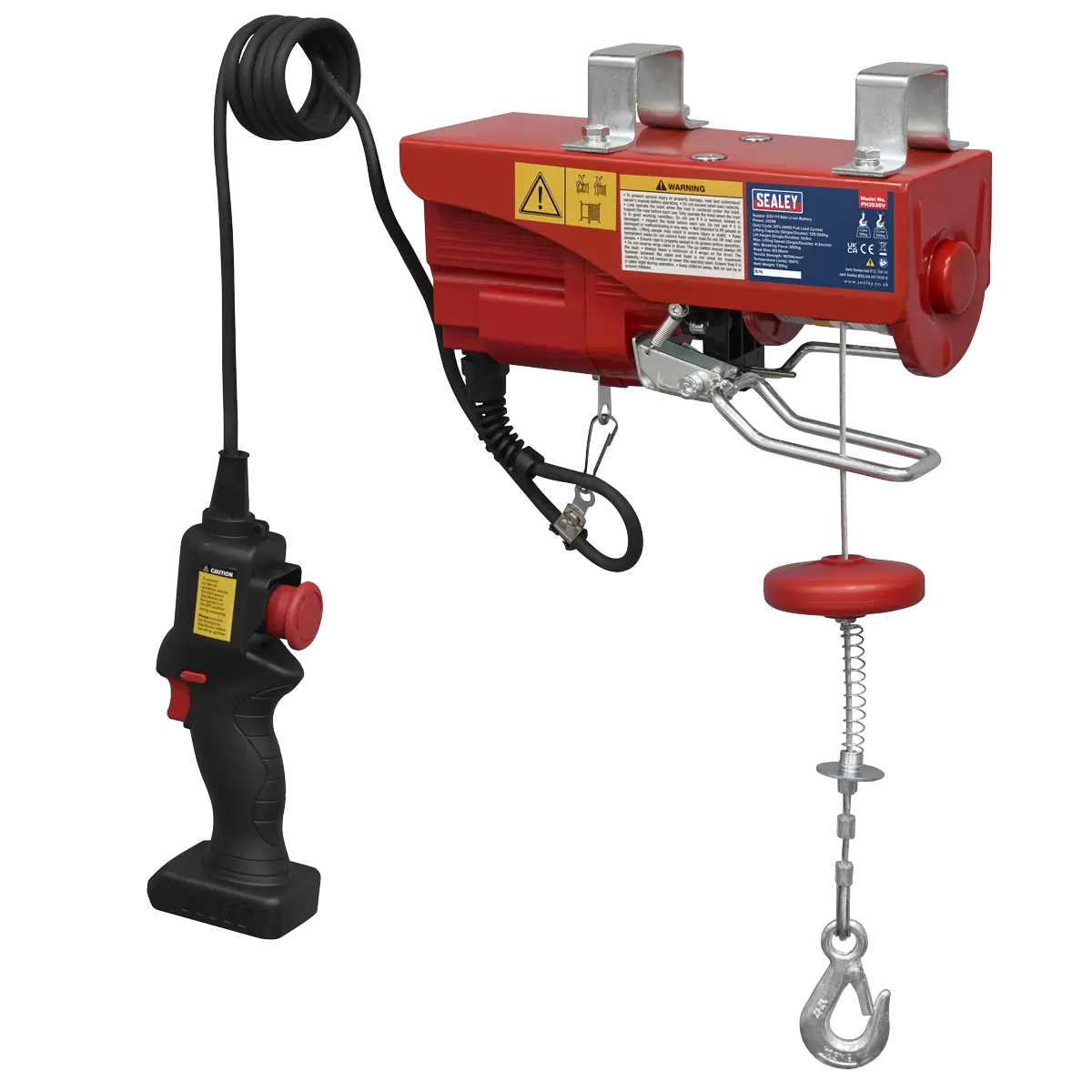

Sealey - PH2520V - SV20 Series Battery Powered Hoist 20V - Body Only
SKU: PH2520V
Part Number: PH2520V
Barcode: 5054630632990
Country of Origin: CHN
Weight: 8.10 Kg
Our Price
£154.37 (inc VAT) £128.64 (ex VAT)
RRP £191.94 £159.95
Save
£37.57
£31.31
1 year Warranty included.
Description
Powered by our SV20 20V battery system. For best performance, use Battery Model No. CP20VBP8. Hoist is installed with two types of brakes electronic and mechanical to ensure the product brakes effectively. Features integrated overheat protection for improved safety and extended product life. 12m Wire for extended reach and easier hoisting (double line 6m). Has a capacity of 125kg pulling power (double line 250kg). Requires compatible 20V battery and mains charger, sold separately.
Features
Model No PH2520V
Brand: Sealey
Capacity (Double Cable): 250kg
Capacity (Single Cable): 125kg
Insulating Grade: B
IP Rating: IP23
Lift Height (Double Cable): 6m
Lift Height (Single Cable): 12m
Lift Speed (Maximum): Single - 4m/minDouble - 2m/min
Minimum Rope Tensile Strength: 1870N/mm²
Motor Power: 200W
Nett Weight: 7.5kg
Rope Diameter: Ø3.18mm
Voltage: 20V
Brand: Sealey
Capacity (Double Cable): 250kg
Capacity (Single Cable): 125kg
Insulating Grade: B
IP Rating: IP23
Lift Height (Double Cable): 6m
Lift Height (Single Cable): 12m
Lift Speed (Maximum): Single - 4m/minDouble - 2m/min
Minimum Rope Tensile Strength: 1870N/mm²
Motor Power: 200W
Nett Weight: 7.5kg
Rope Diameter: Ø3.18mm
Voltage: 20V
Specification
Downloads
Description
Powered by our SV20 20V battery system. For best performance, use Battery Model No. CP20VBP8. Hoist is installed with two types of brakes electronic and mechanical to ensure the product brakes effectively. Features integrated overheat protection for improved safety and extended product life. 12m Wire for extended reach and easier hoisting (double line 6m). Has a capacity of 125kg pulling power (double line 250kg). Requires compatible 20V battery and mains charger, sold separately.
Features
Model No PH2520V
Brand: Sealey
Capacity (Double Cable): 250kg
Capacity (Single Cable): 125kg
Insulating Grade: B
IP Rating: IP23
Lift Height (Double Cable): 6m
Lift Height (Single Cable): 12m
Lift Speed (Maximum): Single - 4m/minDouble - 2m/min
Minimum Rope Tensile Strength: 1870N/mm²
Motor Power: 200W
Nett Weight: 7.5kg
Rope Diameter: Ø3.18mm
Voltage: 20V
Brand: Sealey
Capacity (Double Cable): 250kg
Capacity (Single Cable): 125kg
Insulating Grade: B
IP Rating: IP23
Lift Height (Double Cable): 6m
Lift Height (Single Cable): 12m
Lift Speed (Maximum): Single - 4m/minDouble - 2m/min
Minimum Rope Tensile Strength: 1870N/mm²
Motor Power: 200W
Nett Weight: 7.5kg
Rope Diameter: Ø3.18mm
Voltage: 20V
