Home > Workshop Equipment > Jacking & Lifting > Sealey - PT2000 - Plain Trolley 2 Tonne
Sealey - PT2000 - Plain Trolley 2 Tonne
SKU: PT2000
Part Number: PT2000
Barcode: 5054630626685
Country of Origin: CHN
Weight: 13.50 Kg
Our Price
£135.89 (inc VAT) £113.24 (ex VAT)
RRP £167.94 £139.95
Save
£32.05
£26.71
1 year Warranty included.
Description

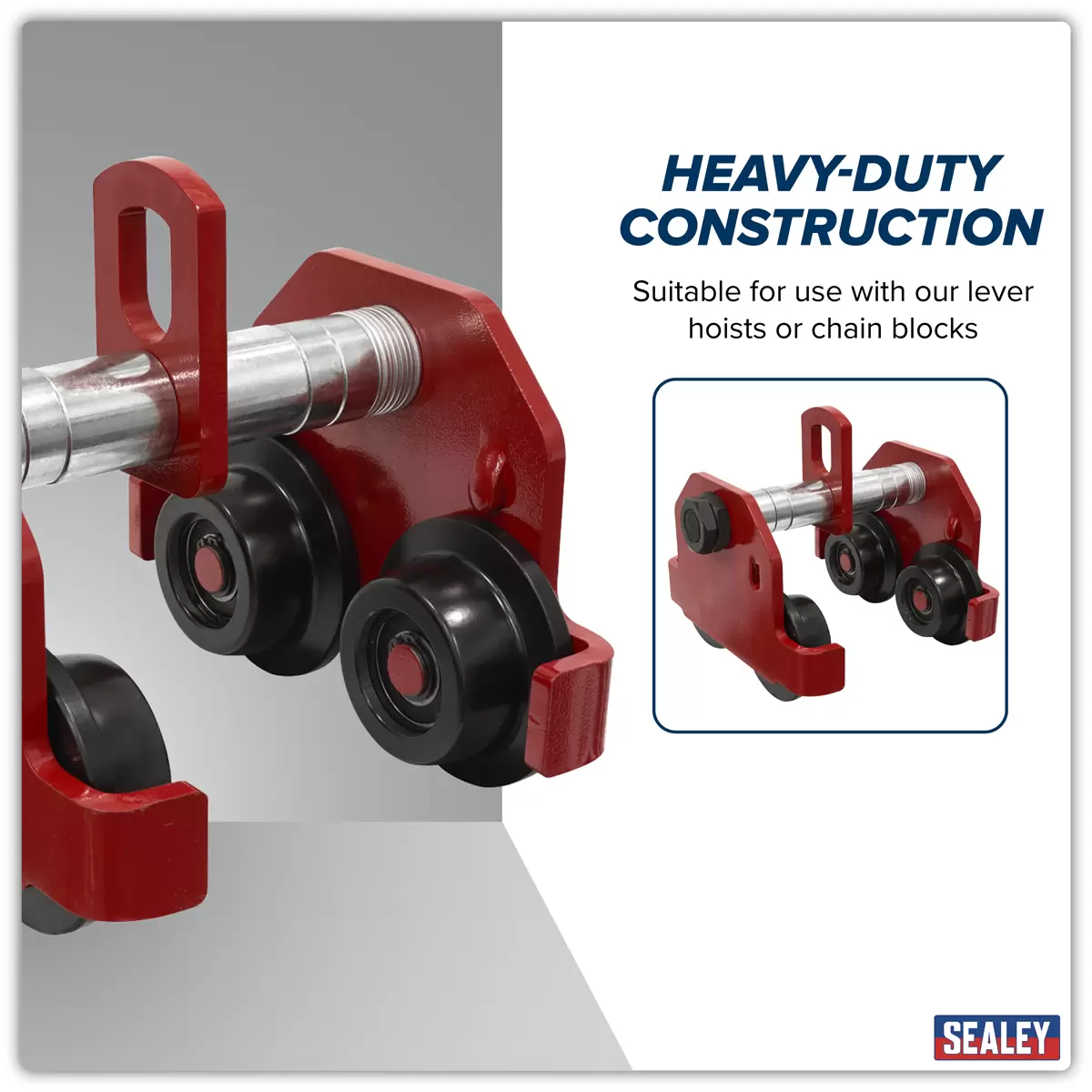

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Track width adjusts between 80-168mm. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer. Four evenly spaced wheels help to make the unit move smoothly along the load bearer.
Features
Model No PT2000
Brand: Sealey
Nett Weight: 13kg
Capacity: 2000kg
Track Width Adjustable Range: 80-168mm
Minimum Curve Radius: 1300mm
A: 255mm
B: 138mm
C: 138mm
D: 102mm
E: 128mm
Weight: 13kg
Minimum Standard I-Beam Dimensions (D x W x Web): 180 x 100 x 6mm
Maximum Distance Between Spans: 3000mm
Maximum Standard I-Beam Dimensions (D x W x Web): 350 x 150 x 9mm
Maximum Distance Between Spans: 9000mm
Refer to catalogue for diagram:
Brand: Sealey
Nett Weight: 13kg
Capacity: 2000kg
Track Width Adjustable Range: 80-168mm
Minimum Curve Radius: 1300mm
A: 255mm
B: 138mm
C: 138mm
D: 102mm
E: 128mm
Weight: 13kg
Minimum Standard I-Beam Dimensions (D x W x Web): 180 x 100 x 6mm
Maximum Distance Between Spans: 3000mm
Maximum Standard I-Beam Dimensions (D x W x Web): 350 x 150 x 9mm
Maximum Distance Between Spans: 9000mm
Refer to catalogue for diagram:
Specification
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8431100000
Country of Origin = CHN
