Home > Workshop Equipment > Jacking & Lifting > Sealey - PT500 - Plain Trolley 0.5 Tonne
Sealey - PT500 - Plain Trolley 0.5 Tonne
SKU: PT500
Part Number: PT500
Barcode: 5024209142717
Country of Origin: CHN
Weight: 7.04 Kg
Our Price
£86.65 (inc VAT) £72.21 (ex VAT)
RRP £104.34 £86.95
Save
£17.69
£14.74
1 year Warranty included.
Description

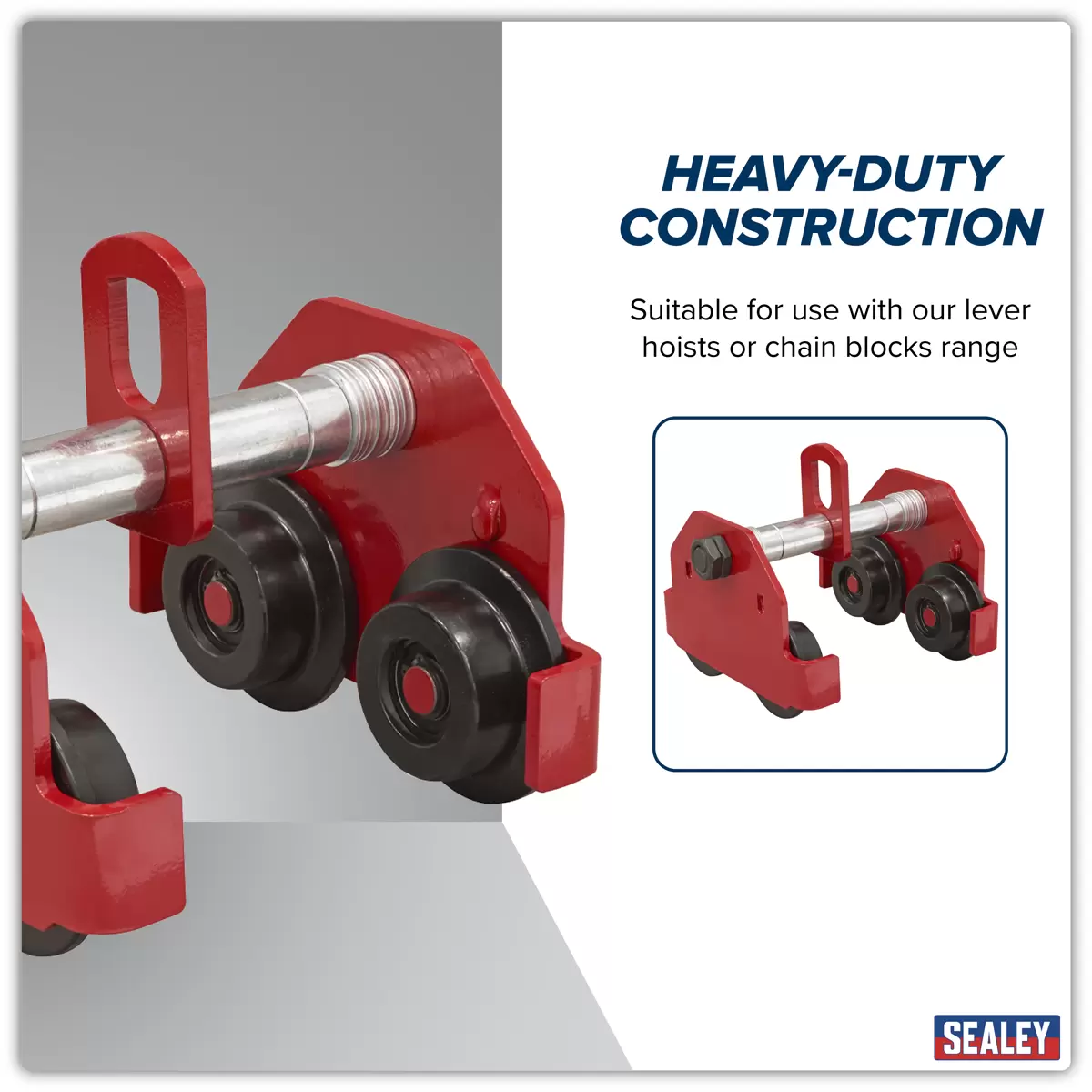

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
Features
Model No PT500
Brand: Sealey
Nett Weight: 7kg
Capacity: 500kg
Test Load: 750kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 800mm
A: 212mm
B: 115mm
C: 115mm
D: 90mm
E: 115mm
Weight: 7kg
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 3000mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 8000mm
Refer to catalogue for diagram.:
Brand: Sealey
Nett Weight: 7kg
Capacity: 500kg
Test Load: 750kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 800mm
A: 212mm
B: 115mm
C: 115mm
D: 90mm
E: 115mm
Weight: 7kg
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 3000mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 8000mm
Refer to catalogue for diagram.:
Specification
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8431100000
Country of Origin = CHN
