Home > Workshop Equipment > Jacking & Lifting > Sealey - SC10LR - Long Reach Engine Crane with Extendable Legs 1 Tonne
Sealey - SC10LR - Long Reach Engine Crane with Extendable Legs 1 Tonne
SKU: SC10LR
Part Number: SC10LR
Barcode: 5054630444517
Country of Origin: CHN
Weight: 85.50 Kg
Our Price
£407.24 (inc VAT) £339.37 (ex VAT)
RRP £539.94 £449.95
Save
£132.70
£110.58
1 year Warranty included.
Description

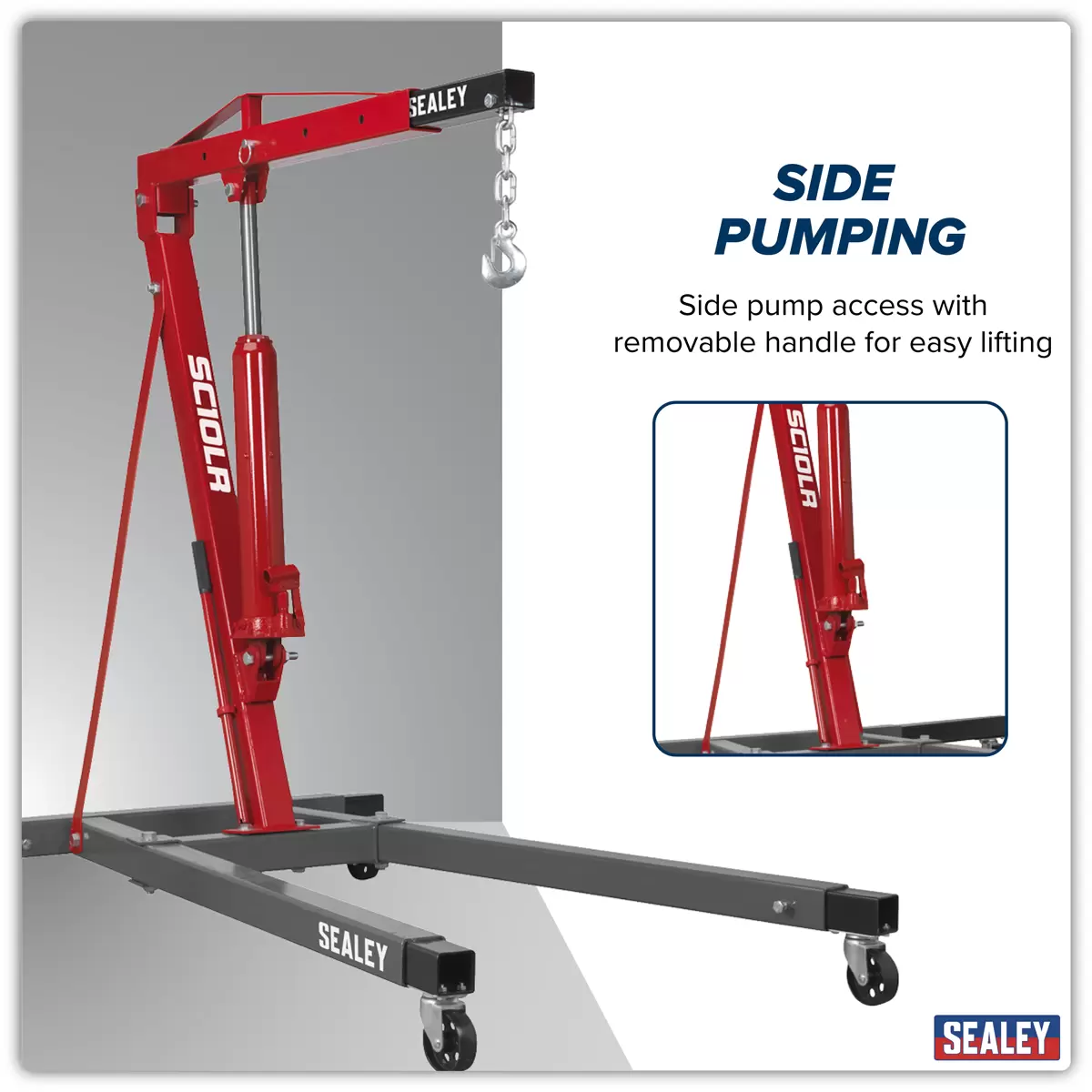

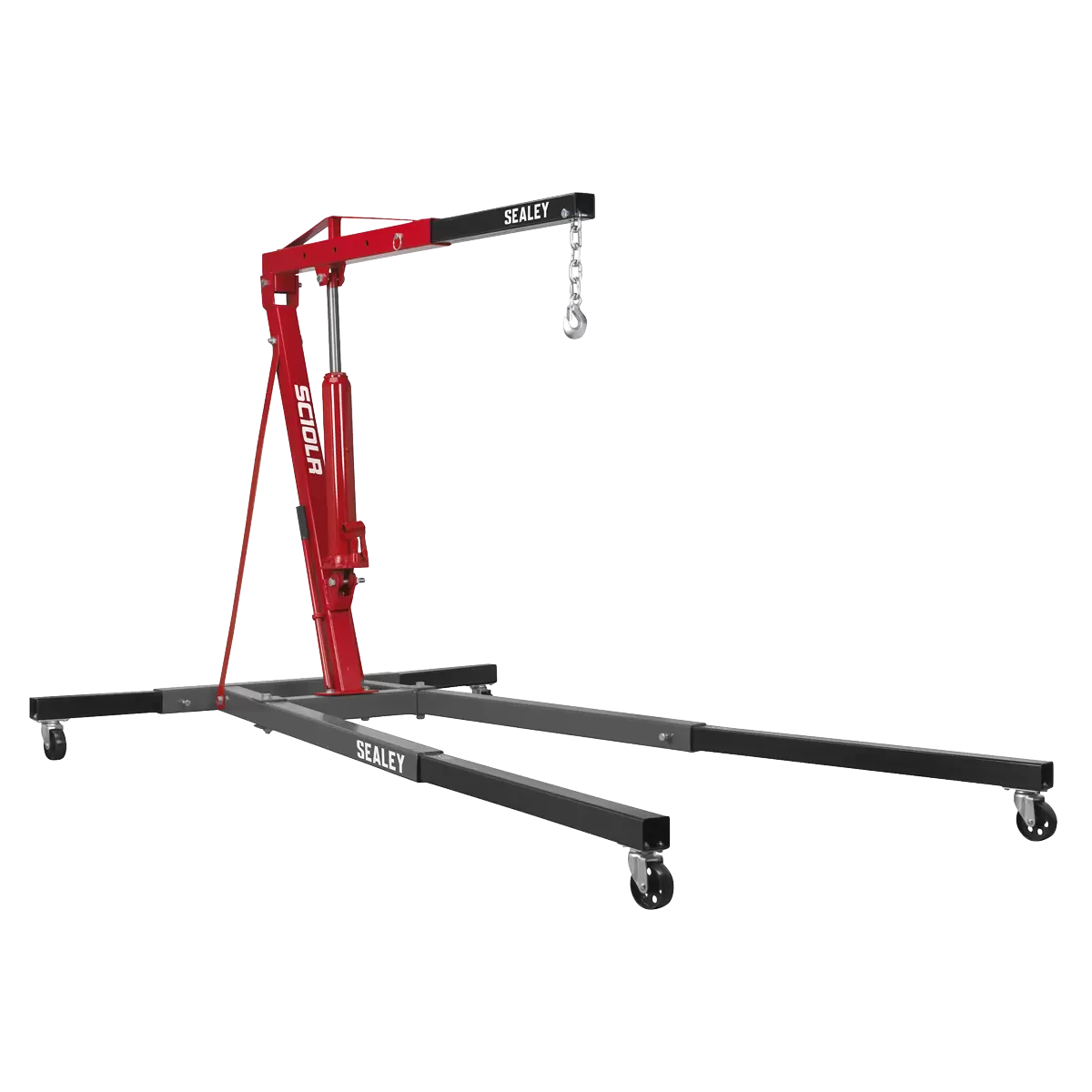

Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1447mm. Side pump for easy access and to maintain sight of the load being lifted. Removeable handle. Folding design for easy transportation and storing.
Features
Model No SC10LR
Brand: Sealey
Height Jib Down: 1446mm
Height of Frame: 180mm
Length Legs Extended: 1600mm
Length of Jib Position 1: 937mm
Length of Jib Position 2: 1107mm
Length of Jib Position 3: 1277mm
Length of Jib Position 4: 1447mm
Length of Jib Position 5: n/a
Length: 1450mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 750kg
Lifting Capacity in Position 3: 500kg
Lifting Capacity in Position 4: 250kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1750mm
Max. Lift Ht at Jib Position 2: 1850mm
Max. Lift Ht at Jib Position 3: 1950mm
Max. Lift Ht at Jib Position 4: 2050mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 81.5kg
Rear Width: 860/1160mm
Standard Leg Length: 1450mm
Extended Leg Length: 1590mm
Extendable Distance: 140mm
Width Front Frame: 690-720mm
Width Inside Front Frame: 381/605mm
Brand: Sealey
Height Jib Down: 1446mm
Height of Frame: 180mm
Length Legs Extended: 1600mm
Length of Jib Position 1: 937mm
Length of Jib Position 2: 1107mm
Length of Jib Position 3: 1277mm
Length of Jib Position 4: 1447mm
Length of Jib Position 5: n/a
Length: 1450mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 750kg
Lifting Capacity in Position 3: 500kg
Lifting Capacity in Position 4: 250kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1750mm
Max. Lift Ht at Jib Position 2: 1850mm
Max. Lift Ht at Jib Position 3: 1950mm
Max. Lift Ht at Jib Position 4: 2050mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 81.5kg
Rear Width: 860/1160mm
Standard Leg Length: 1450mm
Extended Leg Length: 1590mm
Extendable Distance: 140mm
Width Front Frame: 690-720mm
Width Inside Front Frame: 381/605mm
